Identifying the Enclosure Components
Controller Module

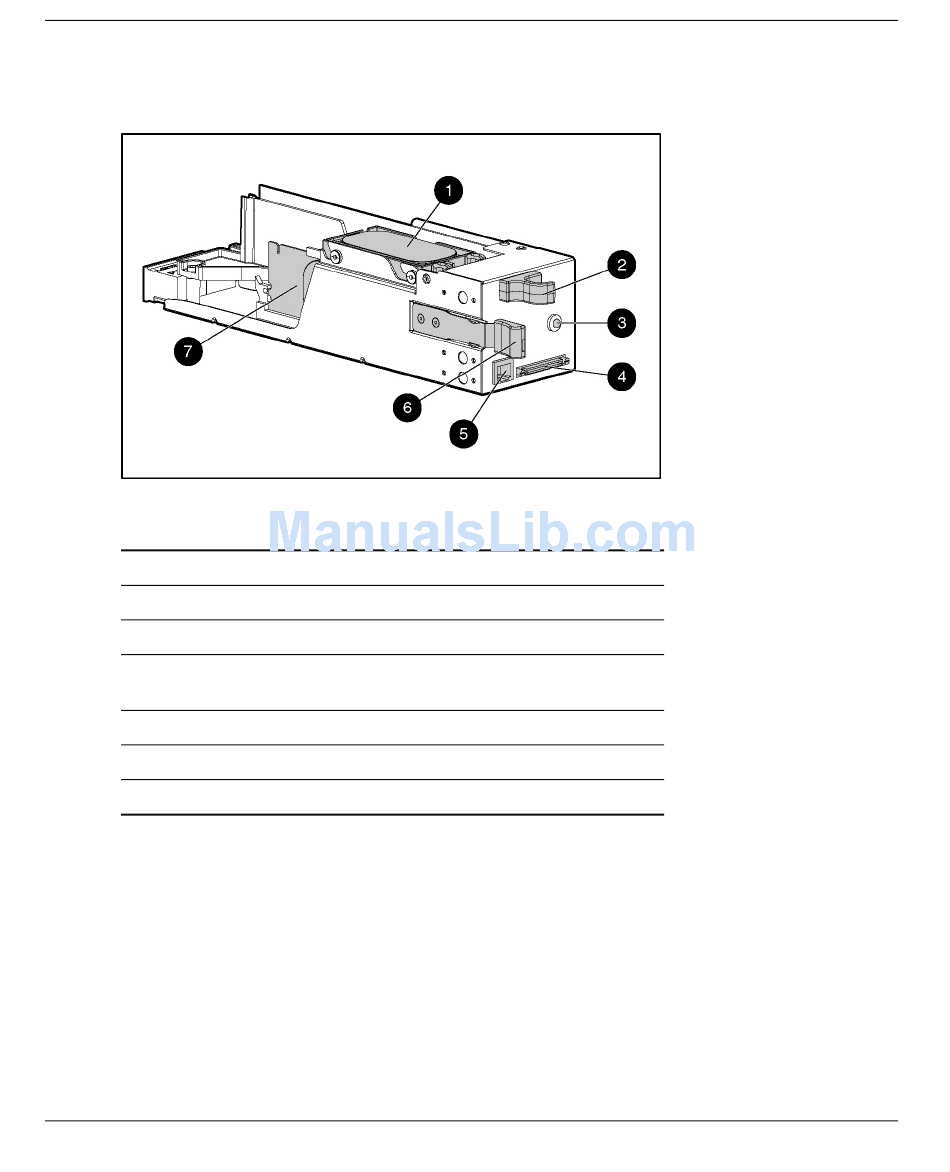

Figure 2-4: Controller module
Item
Description
1
Upper cache battery
2
Finger hook
3
Bicolor status LED (green or amber)
4
VHDCI connector (for connecting to a sixth-generation
Smart Array controller or an MSA1500 cs enclosure)
5
Service port (for HP service technicians only)
6
Release lever
7
Controller cache (lower cache battery just visible)
2-4
HP StorageWorks Modular Smart Array 20 User Guide
