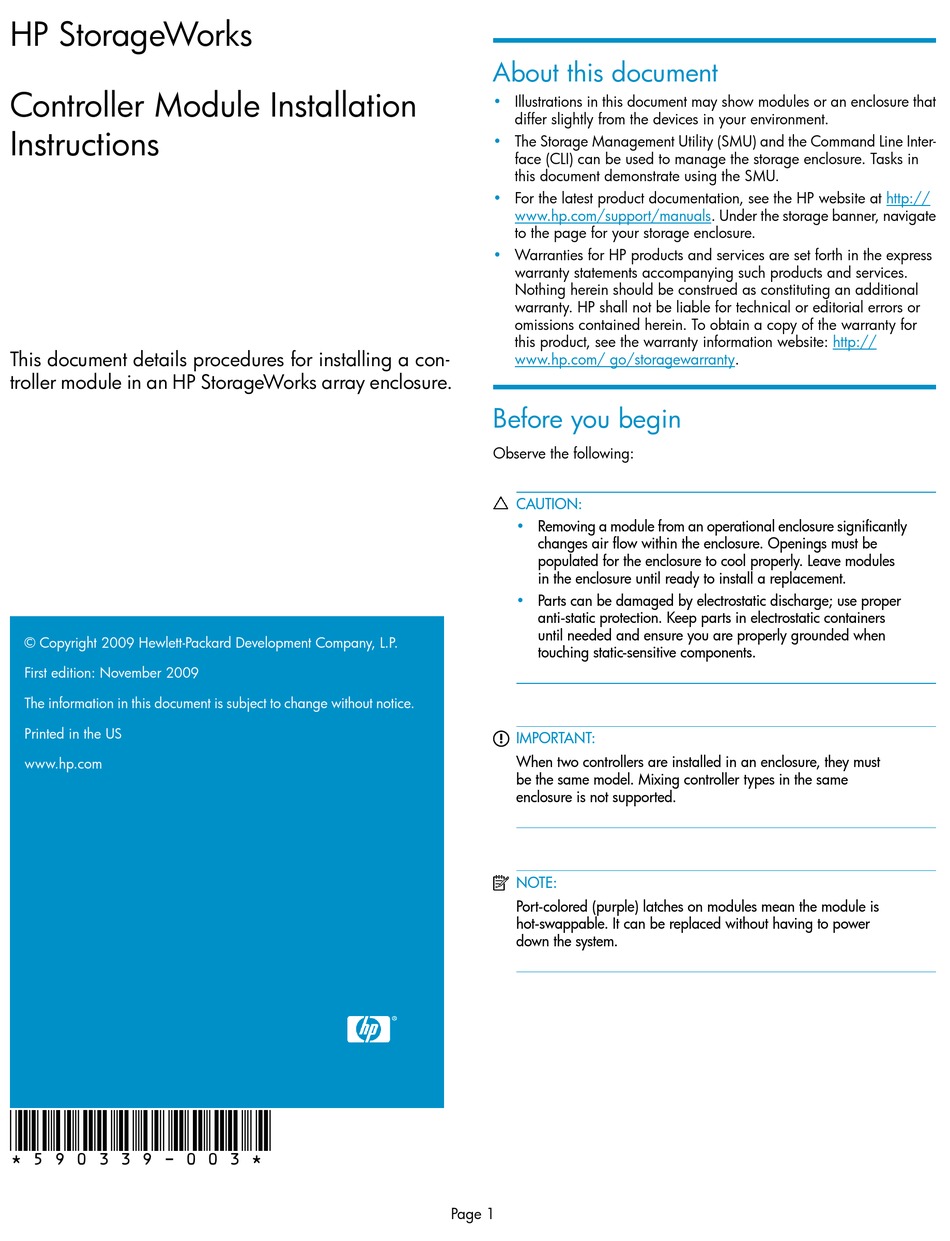

HP StorageWorks

Controller Module Installation

Instructions
This document details procedures for installing a con-
troller module in an HP StorageWorks array enclosure.
© Copyright 2009 Hewlett-Packard Development Company, L.P.
First edition: November 2009
The information in this document is subject to change without notice.
Printed in the US
www.hp.com
*590339-003*

About this document

Illustrations in this document may show modules or an enclosure that
differ slightly from the devices in your environment.
The Storage Management Utility (SMU) and the Command Line Inter-
face (CLI) can be used to manage the storage enclosure. Tasks in
this document demonstrate using the SMU.
For the latest product documentation, see the HP website at
www.hp.com/support/manuals. Under the storage banner, navigate
to the page for your storage enclosure.
Warranties for HP products and services are set forth in the express
warranty statements accompanying such products and services.
Nothing herein should be construed as constituting an additional
warranty. HP shall not be liable for technical or editorial errors or
omissions contained herein. To obtain a copy of the warranty for
this product, see the warranty information website:
www.hp.com/
go/storagewarranty.

Before you begin

Observe the following:
CAUTION:
Removing a module from an operational enclosure significantly
changes air flow within the enclosure. Openings must be
populated for the enclosure to cool properly. Leave modules
in the enclosure until ready to install a replacement.
Parts can be damaged by electrostatic discharge; use proper
anti-static protection. Keep parts in electrostatic containers
until needed and ensure you are properly grounded when
touching static-sensitive components.
IMPORTANT:
When two controllers are installed in an enclosure, they must
be the same model. Mixing controller types in the same
enclosure is not supported.
NOTE:
Port-colored (purple) latches on modules mean the module is
hot-swappable. It can be replaced without having to power
down the system.
Page 1
