Summary of Contents for Albrecht AE 4200 R

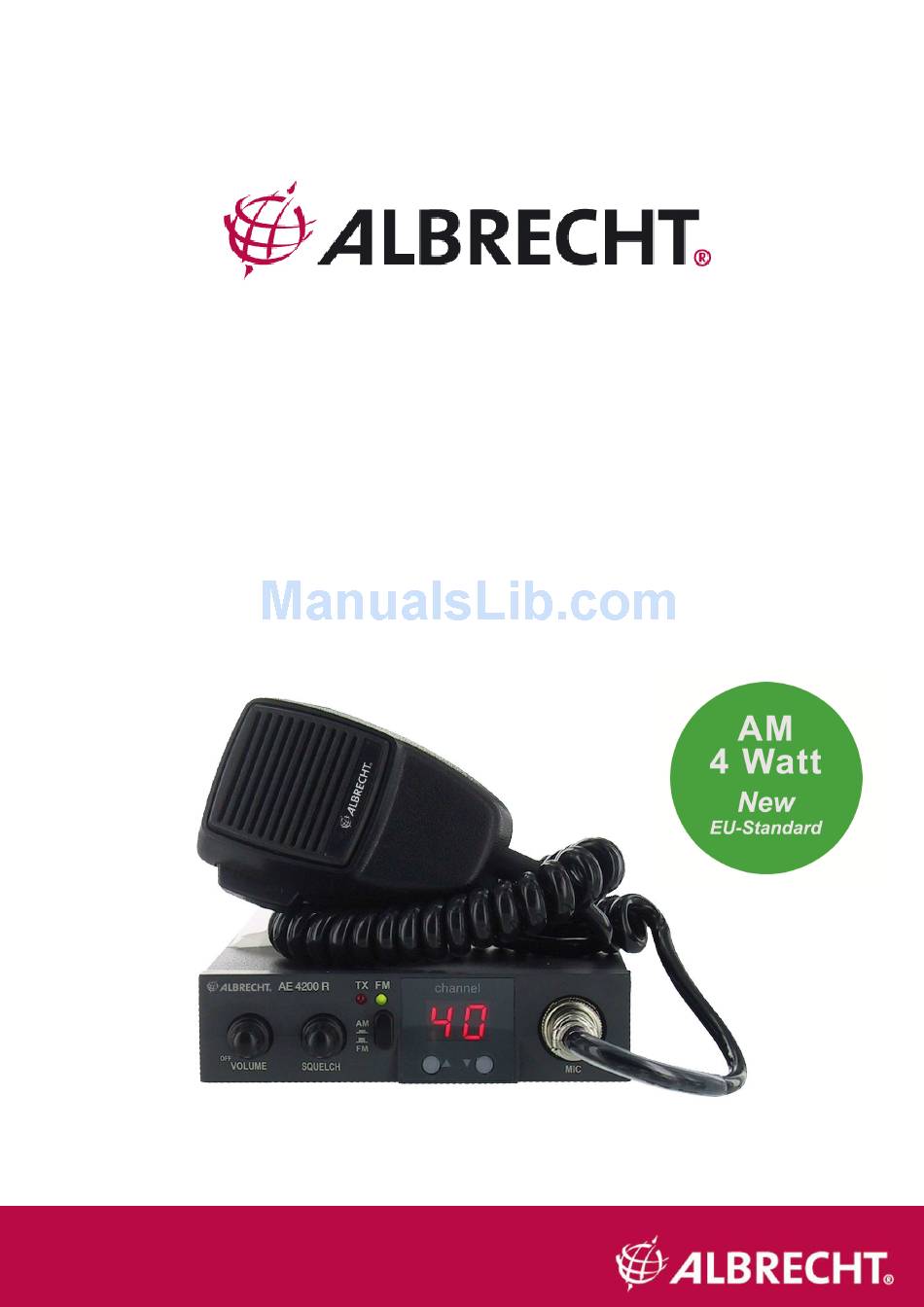

- Page 1 CB RADIO AE 4200 R OPERATING MANUAL Downloaded from www.cbradio.nl...
-
Page 2: Table Of Contents
Selecting the operating channel Adjusting squelch (muting) AM / FM mode switch Special interest channels Transmitting and correct use of microphone External sockets External loudspeaker Microphone socket Service and Warranty information Technical Details Service contacts Legal Information Albrecht Radio Passport Declaration of Conformity... -
Page 3: Important Note
Important Note Your Albrecht AE 4200 R corresponds to the latest European CB standards. As a unique feature, our standard version has a software country switching which allows selecting the operation mode according to the country, where you intend to use the radio. -
Page 4: Introduction
Introduction Your new Albrecht CB Radio AE 4200 R, developed and manufactured in accordance with the latest CB regulations, offers you: 40 channels FM / 4 watt 80 channels FM / 4 watt / 40 channels AM / 4 Watt... -
Page 5: Safety Precautions
Please also take road safety into account! CB Radio (even when only receiving, particularly when volume is turned up) can divert your attention from the road! Road safety is of course to be given priority! Therefore only use your AE 4200 R when the traffic situation enables it to be used safely. -
Page 6: Installation Of The Radio
Installation of the radio You can either operate your ALBRECHT AE 4200 R in the car or at home as a base station. For installation as a mobile station in the car, a mobile mount device is enclosed. Mount the set in such a way that it is not exposed to direct sunlight if possible, as this would lead to an increase in the temperature and can decrease the (set’s) working life. -
Page 7: Antenna Connection
Antenna connection Connect your CB antenna to the ANT socket on the rear side of your ALBRECHT AE 4200 R. Most CB antennas must be tuned to best radiation during installation to give highest effective communication range. -
Page 8: Operation
Some antennas, like “Gamma II” (order No. 6725) are broadbanded and do not need any retuning during installations. Even if your AE 4200 R has a particularly robust transmitter high- level stage which can even withstand mismatching of SWR=3, you... -
Page 9: Selecting The Operating Channel
Switching to 80/40 channel system (Germany and CZ/SK only) 80/40 This position is only allowed to be used in Germany and CZ / SK, because no other European country provides the German 80 FM channels. (Note: In Czech Republic please use only FM and in Slovak Republic use only FM on ch 1-40 &... -
Page 10: Adjusting Squelch (Muting)
Adjusting squelch (muting) Particularly in FM, noise can be a nuisance on a free channel. With the muting control (SQUELCH) You can suppress this noise - but also signals which are too weak to be received properly. This is how to adjust the signal strength required to switch on the loudspeaker, using the SQUELCH control knob: The further the control knob is turned to the right, the stronger a signal has to be in order to be audible through the loudspeaker. -
Page 11: Transmitting And Correct Use Of Microphone
The modulation amplifier of your AE 4200 R is sensitive enough and enables you in most cases to speak with even more distance, depending on how loud your voice is. -
Page 12: External Sockets
3.5 mm jack plug and ensure that none of the loudspeaker connections are attached to the vehicle chassis. Microphone socket Your AE 4200 R has an 4 pin standard microphone socket on the front side. The wiring corresponds to international standards used by many manufacturers since many years. - Page 13 European 2 years warranty The distributor, dealer or retail shop where You bought the radio warrants to the original retail purchaser of this product that should this product or any part of it, under normal use and conditions, be proven defective in material or workmanship within 2 years from the date of original purchase, such defect(s) will be repaired or replaced with new or reconditioned product without charge for parts and repair labour.
-
Page 14: Technical Details
48 dB (EN 300 433-1) Audio output power ca. 2 Watt to 8 Ohm load © Alan Electronics GmbH, June 2012 www.alan-electonics.de, www.albrecht-online.de, www.service.alan-electronics,de Technical Hotline (Germany only) (+49) (0) 1805 012204 (14 cents / minute, mobile networks may charge up to 42... -
Page 15: Albrecht Radio Passport
Albrecht Radio Passport AE 4200 R The radio may be used as mobile CB radio in European Countries according to following information, which we publish as “Radio Passport”. Because the number of countries which have implemented the new CB standards with 4 Watt AM and 4 Watt FM is changing within the next time, the latest version of this radio passport is published on our Internet Web server and may be downloaded any time. -
Page 16: Declaration Of Conformity
We are not liable for any information about the national implementation process of CEPT / ECC decision ECC DEC(11)03 . - Diese Konformitätserklärung und der Albrecht Gerätepass werden regelmäßig aktualisiert und sind unter www.service.alan-electronics.de in der jeweils gültigen neuesten Version abrufbar. Wir übernehmen keine Gewähr für Informationen über die Implementierung der CEPT / ECC Entscheidung ECC DEC(11)03 in den einzelnen...
