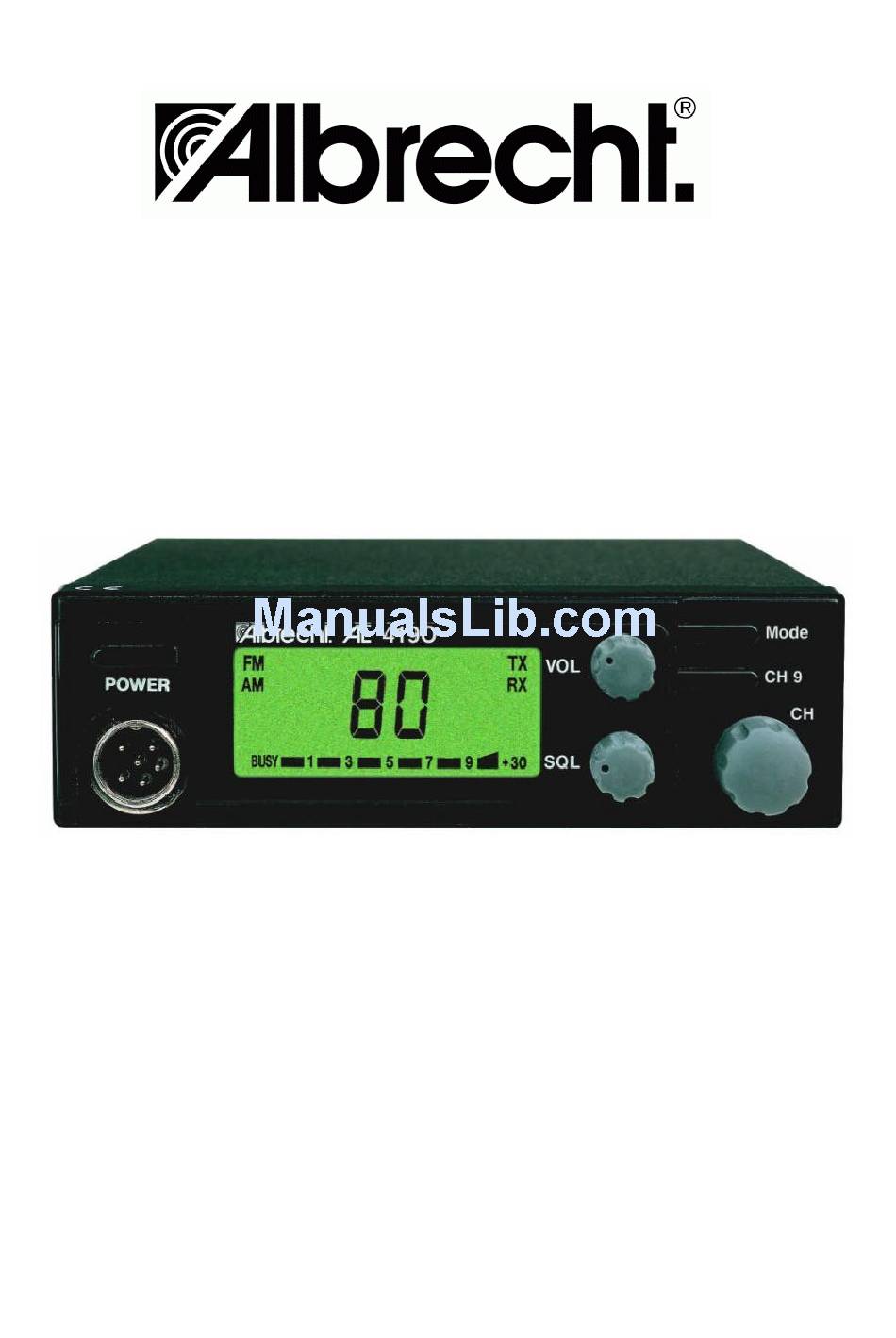

Page 1: Operating Manual
CB RADIO AE 4190 OPERATING MANUAL ALAN Electronics GmbH Dovenkamp 11 D- 22952 Lütjensee www.albrecht-online.de... -
Page 2: Table Of Contents
AM / FM mode switch Special interest channels Direct CH 9 Access button Transmitting and correct use of microphone External sockets External loudspeaker External S-meter Microphone socket Service and Warranty informations Legal Information Albrecht Radio Passport Declaration of Conformity Technical Details Service contacts... -
Page 3: Important Note
Important Note Your Albrecht AE 4190 corresponds to the latest European CB standards. As a unique feature, it has a country switch which allows selecting the operation mode according to the country, where You intend to use the radio. Please make sure that You apply for a... -
Page 4: Accessories Included
Please also take road safety into account! CB Radio (even when only receiving, particularly when volume is turned up) can divert your attention from the road! Road safety is of course to be given priority! Therefore only use your ALBRECHT AE 4190 when the traffic situation enables it to be used safely. -
Page 5: Front View
Front view ON / OFF Receive Volume AM-FM-switch CH 9 switch Squelch Channel switch Rear view External speaker Socket for Brand plate with country list 8 Ohms, min. 2 W external S-meter DC power cable Country switch in 80/12 position 13.2 V Country switch setting before installation Before You install Your new CB radio, You should preset the country switch on the rear... -
Page 6: Installation Of The Radio
Malfunctions may result! Installation of the radio You can either operate your ALBRECHT AE 4190 in the car or at home as a base station. For installation as a mobile station in the car, a mobile mount device is enclosed. -
Page 7: Power Supply
In order to prevent interference to the vehicle electronics from transmission in the vehicle, please make sure to take any mounting instructions from the vehicle manufacturer for radios and antennas into account. Power supply Your AE 4190 receives power from the fixed mounted 2 wire power cable. The cable has a looped-in fuse in a plastic holder. -
Page 8: Antenna Connection
Antenna connection Connect your CB antenna to the ANT socket on the rear side of your ALBRECHT AE 4190. Most CB antennas must be tuned to best radiation during installation to give highest effective communication range. -
Page 9: Selecting The Operating Channel
Push POWER switch. Initially, all LC display icons and buttons are illuminated, while radio makes a short self-test. Then CH 1 will appear in FM. turn VOL further until desired volume is reached. Selecting the operating channel On the radio set: With the channel knob You can continuously select channels. -
Page 10: Am / Fm Mode Switch
AM / FM mode switch In the two programming modes 40/40 and 80/12, FM modulation is available on all channels, but AM only on channels depending on country switch position. AM modulation is available on all 40 channels in 40/40 or only on 12 channels (CH 4 to 15) in 80/12 mode. -
Page 11: Transmitting And Correct Use Of Microphone
S-meter is connected to the inner pin, and the negative pole is on the outside. Microphone socket The 6-pole microphone socket on the front side is wired according to the well-known Albrecht specifications, which also meet the recommendations issued by the German manufacturers of CB radios. -
Page 12: Service And Warranty Informations
FAQ’s any time from our server under http://www.albrecht-online.de/service If You should have a problem, please have a look to the service hints or frequently asked questions (FAQ) before You send Your CB radio back to the service center. -
Page 13: Legal Information
Internet Web server and may be downloaded any time from www.albrecht-online.de/service ALBRECHT RADIO PASSPORT AE 4190 This CB radio complies to the latest European regulations (R&TTE directive and European harmonised... -
Page 14: Declaration Of Conformity
Declaration of Conformity / Konformitätserklärung We hereby declare that our product: / Wir erklären hiermit, dass unser Produkt CB-Radio Albrecht AE 4190 satisfies all technical regulations applicable to the product within the scope of EU Council Directives, European Standards and national frequency applications:/ alle technischen Anforderungen im Geltungsbereich der EU Richtlinien, europäischer Normen und nationaler Frequenzanwendungen einhält:... -
Page 15: Technical Details
60 dB V EMK Image rejection better 48 dB (EN 300 433-1) Audio output power 2 Watt to 8 Ohm load © ALAN Electronics GmbH, 2002 www.albrecht-online.de Service-Hotline: (+49) 4154 849 180 Service-Fax: (+49) 4154 849 288 e-mail: service@albrecht-online.de...
