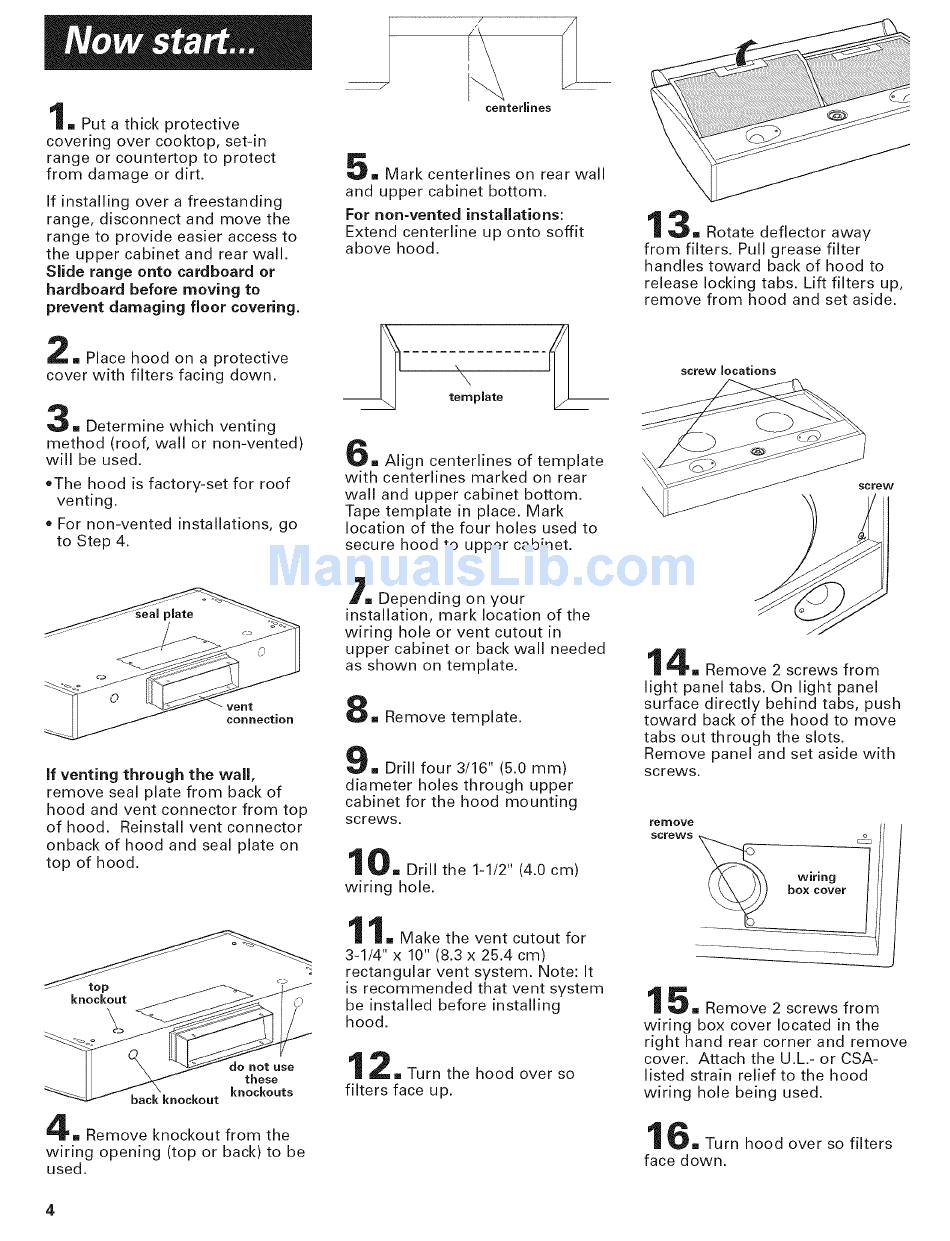

,. Puta thickprotective
coveringovercooktop,set-in
rangeor countertopto protect
from damageor dirt.
If installingovera freestanding
range,disconnect a nd movethe
rangeto provideeasieraccess to
the uppercabinetand rearwall.
Sliderange
onto cardboard or
hardboard
before moving
to
prevent damaging
floor covering.
= Place hood on a protective
cover with filters facing down.
3[]
Determine
which venting
method
(roof, wall or non-vented)
will be used.
oThe hood is factory-set
for roof
venting.
For non-vented
installations, go
to Step 4.
if venting through
the wall,
remove seal plate from back of
hood and vent connector
from top
of hood.
Reinstall vent connector
onback of hood and seal plate on
top of hood.
knockout
;o
not
use
these
knockouts
back knockout
= Remove knockout from the
wiring
opening
(top or back) to be
used.
centerlines
= Mark centerlines
on rear wall
and upper cabinet bottom.
For non-vented
installations:
Extend centerline
up onto soffit
above hood.
= Align centerlines
of template
with centerlines
marked on rear
wall and upper cabinet bottom.
Tape template
in place. Mark
location of the four holes used to
secure hood to upper cabinet.
7=
Depending
on your
installation, mark location of the
wiring
hole or vent cutout in
upper cabinet or back wall needed
as shown on template.
m Remove
template.
= Drill four 3/16" (5.0 mm)
diameter
holes through
upper
cabinet for the hood mounting
screws.
10=
Drill the 1-1/2" (4.0 cm)
wiring
hole.
1[]
Make the vent cutout for
3-1/4" x 10" (8.3 x 25.4 cm)
rectangular
vent system. Note: It
is recommended
that vent system
be installed
before installing
hood.
2=
Turn the hood over so
filters face up.
3=
Rotate deflector
away
from filters. Pull grease filter
handles toward
back of hood to
release locking tabs. Lift filters
up,
remove from hood and set aside.
screw locations
screw
4=
Remove 2 screws from
light panel tabs. On light panel
surface directly
behind tabs, push
toward
back of the hood to move
tabs out through
the slots.
Remove panel and set aside with
screws.
remove
screws
_
_
wiring
b oxcover/
5=
Remove 2 screws from
wiring
box cover located in the
right hand rear corner and remove
cover.
Attach the U.L.- or CSA-
listed strain relief to the hood
wiring
hole being used.
6_
Turn hood over so filters
face down.
