Model 335 Postal Scale
User Manual
1.1 Introduction

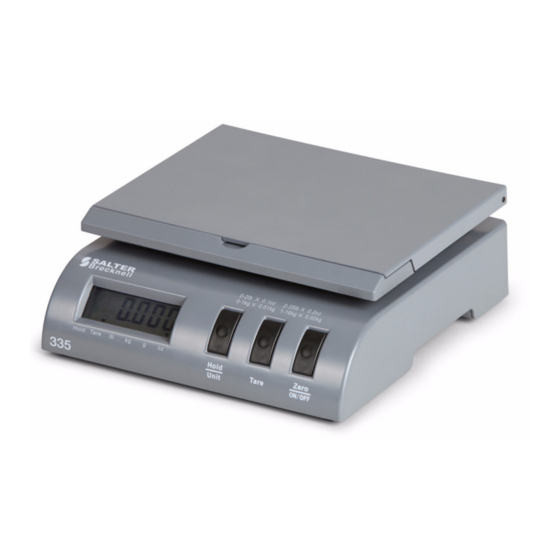

The Model 335 Postal Scale,
shown at right, is an
affordable solution for many
applications. Perfect for use
in the office or home to weigh
letters and small packages.
The 335 includes a USB
interface that will provide
power and communication
with your computer and 3rd
party USPS software.
Designed for use within stable environments where fluctuation of
temperature, humidity and vibration are limited. The scale features a
weight hold function allowing you to view the weight of an item that is too
large and obstructs the weight display. The 335 also includes a units
switching function allowing you to weigh items in lb/oz, kg, or g.
Use the flip tray to weigh large envelopes or hold tubes/packages in place
on the weight tray.
The Model 335 includes a blue backlit display. The display will activate
upon power up and when the scale is in use for weighing. To save battery
life the backlight will turn off after seven seconds of no use.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 335 and is the answer not in the manual?

Questions and answers

Related Manuals for Salter Brecknell 335

Summary of Contents for Salter Brecknell 335

  • Page 1 The scale features a weight hold function allowing you to view the weight of an item that is too large and obstructs the weight display. The 335 also includes a units switching function allowing you to weigh items in lb/oz, kg, or g.

  • Page 2: Unpacking The Scale

    Remove contents from packaging, your product should include: Model 335 scale One USB cable If you are missing an item please contact you Salter Brecknell dealer for immediate replacement at no charge, shipped via UPS ground. 1.3 Installing the scale Mount the scale on a stable, level surface that is free from air currents, rapid temperature changes and vibration.

  • Page 3: Installing Or Changing The Battery

    1.4 Operating Instructions 1.4.1 Installing or Changing the Battery Your Model 335 bench scale can operate on one 9 volt battery. The expected life of the battery is 60 hours of normal use. If Lo. B is displayed, this indicates the batteries are low. After this appears, the scale will turn off in approximately one minute.
  • Page 4 1.4.2 Annunciators and Key Functions The 335 has a series of arrow annunciators along the bottom of the display that point at labels to show you the current unit of measure, if the unit is in Hold mode, if there is an active tare and if the scale is at zero weight.

  • Page 5: Tare Weighing

    1.4.3 Standard Weighing Follow these steps to perform standard weighing: Press the Zero / ON / OFF button to turn the scale on… The scale beeps and performs a test sequence. If everything is OK, the display will show zero weight and the scale is ready for use.

  • Page 6: Auto Power Off

    1.4.7 Auto Power-Off To converse battery life and electricity, the Model 335 scale will automatically power off after 5 minutes of no use or no change in weight. If connected to your USB port, you should turn off this feature. Press and hold the Tare key for 5 seconds, AU.oFF is displayed.

  • Page 7: Usb Interface

    1.4.8 USB Interface The Model 335 postal scale includes a USB virtual com port interface that is compatible with Windows 98, XP and Vista. Download and install the 335 USB driver from www.salterbrecknell.com. See the Downloads page. There is an Active X program on the Salter Brecknell website if you want to do your own customized scale interface.

  • Page 8: Troubleshooting

    1.6 Troubleshooting Symptom Possible Cause Remedy Cannot turn on Batteries are low Replace batteries, check Incorrectly installed battery polarity Poor weighing accuracy Improper calibration Perform calibration Unstable environment Move scale to stable location Scale was not zeroed prior to Press the ZERO key to zero the scale prior to Tare function is active Press Tare key to...
  • Page 9 When calibrating your scale, you are teaching the scale a zero reference point and a known accurate weight. The MODEL 335 allows you to calibrate the scale using lb or kg weights. You must close any Windows program used with the Model 335 before attempting to calibrate the scale.
  • Page 10 1.7.2 Calibrating your scale using KG weights Make sure there is no weight on the scale, and the scale is off. Press and hold the Tare key, then press the Hold / Unit and Zero / ON / OFF key until the display shows 15.00 and release all the keys.

  • Page 11: Specifications

    1.8 Specifications Capacity and Resolution Dual Range 0-2 lb x 0.1 oz / 2-35 lb x 0.2 ounce 0-1 x 0.01 kg / 1-16 x 0.02 kg 0-1,000 x 10 g / 1,000– 16,000 x 20 gram Accuracy +/- 3 divisions (division = resolution) Operating Temp 5°...
  • Page 12 Salter Brecknell Weighing Products 1000 Armstrong Dr. Fairmont, MN 56031 Toll free: 800-637-0529 Tel: 507-238-8702 Fax: 507-238-8271 e-mail: sales@salterbrecknell.com www.salterbrecknell.com October 2009 335 Postal_u_en_500479.fm AWT35-500479 Issue AA...
