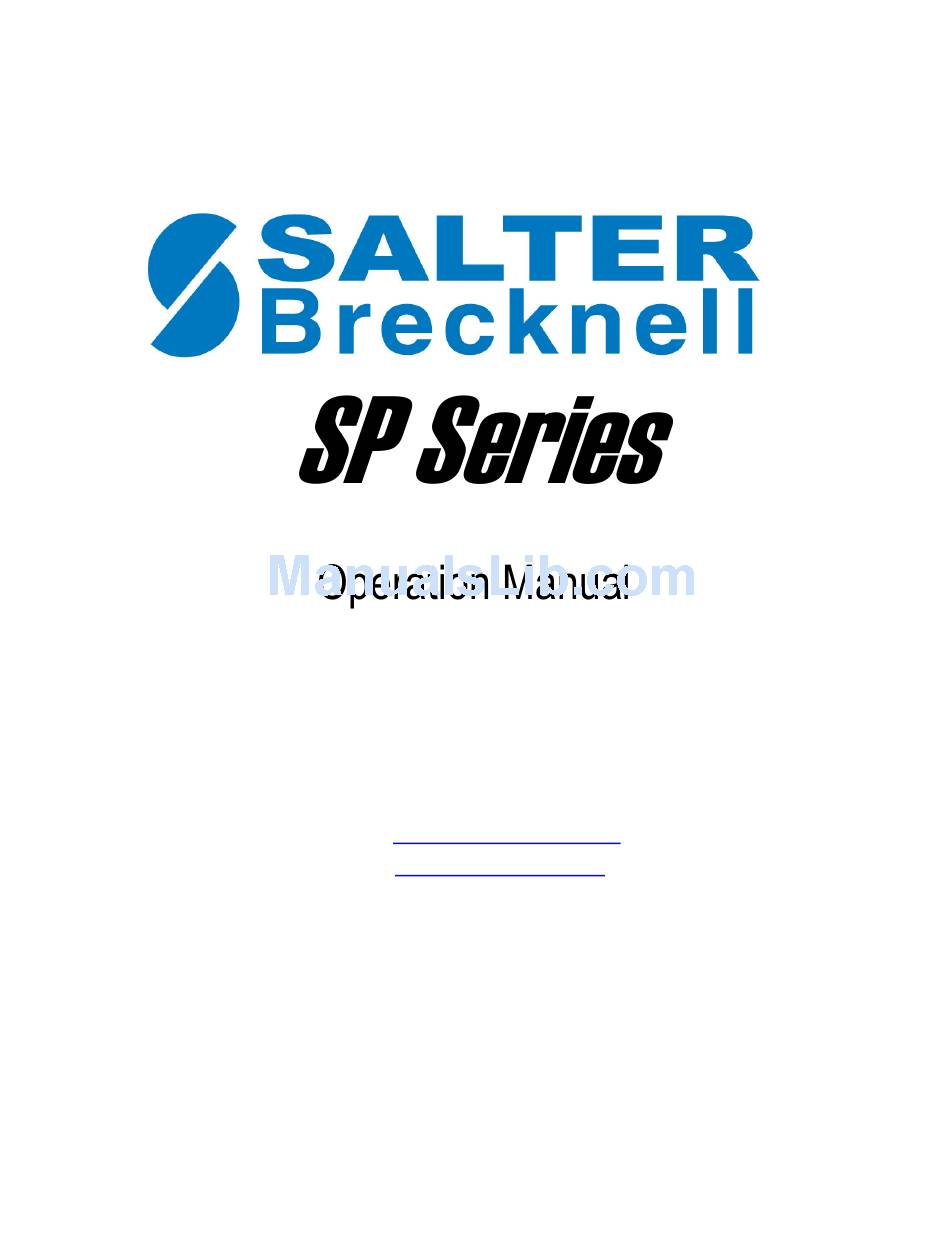

- Page 1 Digital Bench Scale Revision 8.93 August 12, 1993 Salter Brecknell Weighing Products 1000 Armstrong Drive Fairmont, MN 56031 Tel (800) 637-0529 Tel (507) 238-8702 Fax (507) 238-8271 E-mail: sales@salterbrecknell.com Web: www.salterbrecknell.com 02/18/04...
-
Page 2: Table Of Contents
Table of Contents Introduction..................1 Installation and Wiring ................ 1 Keyboard Functions................1 Configuration ..................2 User Menu Descriptions..............2 Calibration ..................3 Specifications ..................4 Warranty and Service Information ............5 02/18/04... -
Page 3: Introduction
Introduction The SP Series Digital Bench Scale is a popular data protocols to match a wide variety of compact, legal for trade scale with remote digital printers, remote displays, or personal computers. indicator. Housed in a standard black polymer If you plan to use your scale with equipment... - Page 4 SPD100 TRANSTRONIC SCALE CO. Toggles between Gross and Net weight display. SP SERIES FRONT PANEL GROSS TARE Used to zero a weight indication in Net mode. Sends "Print" data to printer if scale is stable and not in overload. Not active when "Continuous" option PRINT is selected in User Menu.
-
Page 5: Configuration
Configuration All Serial Communication parameters are em- ters. To modify these parameters, you must first bedded in a user menu consisting of 5 separate enter the USER MENU mode. Once there, four menu selections, each with its own sub-menu of of the front panel keys become directional navi- choices. -
Page 6: User Menu Descriptions
User Menu Descriptions NAME/CODE DESCRIPTION CODE/VALUE Selects the baud rate for data transmission through the serial port. 2400√ √ √ √ 1200 Baud Rate 4800 9600 Selects the number of data bits and parity of serial transmission. 8√ √ √ √ "8"... -
Page 7: Calibration
Calibration All SP Series scales may be calibrated with any precision test weight from 10 lb to 100 lb. The recom- mended test weight is about 2/3 of the full scale capacity, but in general, the larger the test weight, the more accurate the scale will be. -
Page 8: Specifications
Specifications CONSTRUCTION: OPERATING TEMPERATURE RANGE: Indicator: Black ABS with steel 32°F to 104°F back plate. (0° C to 40° C) Base: Steel and ABS with stainless OPTIONAL SWIVEL POST: steel platform. 12" (30mm) Tall Stainless Steel Construction DISPLAY: 7 Digit, 0.5", 7-Segment POWER SOURCE: Vacuum Fluorescent AC Adapter, 12VDC, 650mA,... - Page 9 13.2in [336.00mm] 10.2in [258.00mm] 3.8in [97.50mm] DC POWER RS-232 ON/OFF INDICATOR PORT SWITCH JACK CONNECTOR ID TAG CALIBRATION SWITCH COVER BASE...
