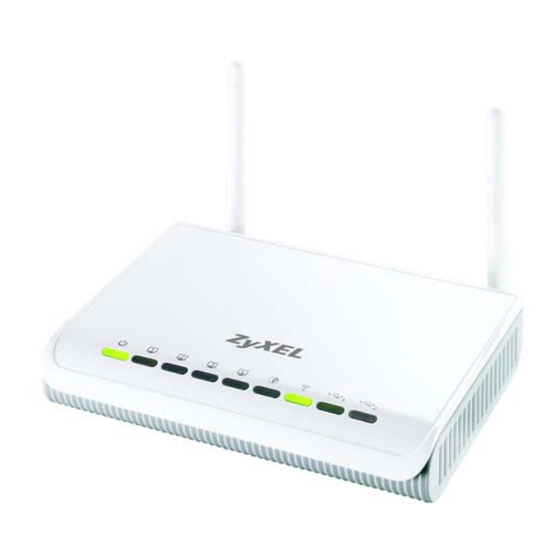

ZyXEL Communications NBG4615 User Manual

ZyXEL Communications NBG4615 User Manual

Wireless n gigabit netusb router

Hide thumbs Also See for NBG4615:

User manual (392 pages)

,

Quick start manual (56 pages)

,

Specifications (4 pages)

Table Of Contents

Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

NBG4615

Wireless N Gigabit NetUSB Router

Default Login Details

IP Address

http://192.168.1.1

Password

Firmware Version 1.0

Edition 3, 7/2011

www.zyxel.com

www.zyxel.com

1234

Copyright © 2011

ZyXEL Communications Corporation

Table of Contents

Advertisement

Table of Contents

Troubleshooting

Need help?

Need help?

Do you have a question about the NBG4615 and is the answer not in the manual?

Questions and answers

Summary of Contents for ZyXEL Communications NBG4615

Page 1 NBG4615 Wireless N Gigabit NetUSB Router Default Login Details IP Address http://192.168.1.1 Password 1234 Firmware Version 1.0 Edition 3, 7/2011 www.zyxel.com www.zyxel.com Copyright © 2011 ZyXEL Communications Corporation...
Page 3: About This User's Guide
User’s Guide PDF. Related Documentation • Quick Start Guide The Quick Start Guide is designed to help you get your NBG4615 up and running right away. It contains information on setting up your network and configuring for Internet access. • Support Disc Refer to the included CD for support documents.
Page 4: Document Conventions
Syntax Conventions • The NBG4615 may be referred to as the “NBG4615”, the “device”, the “product” or the “system” in this User’s Guide. • Product labels, screen names, field labels and field choices are all in bold font.
Page 5 Document Conventions Icons Used in Figures Figures in this User’s Guide may use the following generic icons. The NBG4615 icon is not an exact representation of your device. NBG4615 Computer Notebook computer Server DSLAM Firewall Telephone Switch Router Modem NBG4615 User’s Guide...
Page 6: Safety Warnings
Your product is marked with this symbol, which is known as the WEEE mark. WEEE stands for Waste Electronics and Electrical Equipment. It means that used electrical and electronic products should not be mixed with general waste. Used electrical and electronic equipment should be treated separately. NBG4615 User’s Guide...
Page 7: Table Of Contents
The WPS Button ........................24 ZyXEL NetUSB Share Center Utility ..................25 Connection Wizard ........................33 Introducing the Web Configurator ....................43 Monitor ............................49 NBG4615 Modes ........................55 Easy Mode ..........................57 Router Mode ..........................68 Access Point Mode ........................75 Universal Repeater Mode ......................82 WISP Mode ..........................90 WISP + UR Mode ........................99...
Page 8 Contents Overview NBG4615 User’s Guide...
Page 9: Table Of Contents
Part I: User’s Guide ................19 Chapter 1 Introduction..........................21 1.1 Overview ..........................21 1.2 Applications ..........................21 1.3 Ways to Manage the NBG4615 ...................21 1.4 Good Habits for Managing the NBG4615 ................22 1.5 LEDs ............................22 Chapter 2 The WPS Button........................24 2.1 Overview ..........................24 Chapter 3 ZyXEL NetUSB Share Center Utility..................
Page 10 5.1 Overview ..........................43 5.2 Accessing the Web Configurator ..................43 5.2.1 Login Screen ......................43 5.2.2 Password Screen .......................44 5.2.3 Home Screen ......................45 5.3 Resetting the NBG4615 .......................47 5.3.1 How to Use the RESET Button ...................47 Chapter 6 Monitor............................. 49 6.1 Overview ..........................49 6.2 What You Can Do ........................49...
Page 11 11.1 Overview ..........................82 11.2 What You Can Do .......................82 11.3 What You Need to Know ....................83 11.4 Setting your NBG4615 to Universal Repeater Mode ............83 11.5 Universal Repeater Mode Status Screen ................84 11.6 Universal Repeater Screen ....................86 11.6.1 No Security .......................87 11.6.2 Static WEP ........................88...
Page 12 14.4 Using Multiple SSIDs on the NBG4615 ................111 14.4.1 Configuring Security Settings of Multiple SSIDs ............. 112 14.5 Connecting the NBG4615 (in Universal Repeater Mode) to an AP or Wireless Router ... 115 14.6 Connecting to USB Storage with the ZyXEL NetUSB Share Center Utility ...... 119 14.6.1 Multiple Connections to the USB Device ..............
Page 13 17.4.1 Ethernet Encapsulation ..................151 17.4.2 PPPoE Encapsulation ....................153 17.4.3 PPTP Encapsulation ....................155 17.4.4 L2TP Encapsulation ....................157 17.5 Advanced WAN Screen ....................159 17.6 IGMP Snooping Screen ....................160 Chapter 18 LAN ............................163 18.1 Overview ..........................163 18.2 What You Can Do ......................163 NBG4615 User’s Guide...
Page 14 20.5.5 Two Points To Remember About Trigger Ports ............178 Chapter 21 DDNS............................179 21.1 Overview .........................179 21.1.1 What You Need To Know ..................179 21.2 General ..........................180 Chapter 22 Static Route ........................... 181 22.1 Overview ........................181 22.2 IP Static Route Screen ....................182 Chapter 23 RIP............................183 NBG4615 User’s Guide...
Page 15 27.2 What You Need to Know ....................203 27.2.1 Remote Management and NAT ................203 27.2.2 System Timeout .....................203 27.3 WWW Screen ........................204 Chapter 28 Universal Plug-and-Play (UPnP)..................205 28.1 Overview .........................205 28.2 What You Need to Know ....................205 NBG4615 User’s Guide...
Page 16 30.2 Power, Hardware Connections, and LEDs ...............223 30.3 NBG4615 Access and Login ....................224 30.4 Internet Access ........................226 30.5 Resetting the NBG4615 to Its Factory Defaults ...............227 30.6 Wireless Router/AP Troubleshooting ................227 30.7 USB Device Problems ......................229 30.8 ZyXEL Share Center Utility Problems ................230 Appendix A Product Specifications ..................
Page 17 Table of Contents Appendix H Open Software Announcements ..............313 Appendix I Legal Information ....................347 Index ............................355 NBG4615 User’s Guide...
Page 18 Table of Contents NBG4615 User’s Guide...
Page 19: User's Guide
User’s Guide...
Page 21: Introduction
1.2 Applications Your can create the following networks using the NBG4615: • Wired. You can connect network devices via the Ethernet ports of the NBG4615 so that they can communicate with each other and access the Internet. • Wireless. Wireless clients can connect to the NBG4615 to access network resources.
Page 22: Good Habits For Managing The Nbg4615
If you forget your password, you will have to reset the NBG4615 to its factory default settings. If you backed up an earlier configuration file, you would not have to totally re-configure the NBG4615.
Page 23 The NBG4615 is ready, but is not sending/receiving data through the wireless LAN. Blinking The NBG4615 is sending/receiving data through the wireless LAN. The NBG4615 is negotiating a WPS connection with a wireless client. The wireless LAN is not ready or has failed. USB 1-2 Green The NBG4615 has a USB device installed.
Page 24: The Wps Button
The WPS Button 2.1 Overview Your NBG4615 supports WiFi Protected Setup (WPS), which is an easy way to set up a secure wireless network. WPS is an industry standard specification, defined by the WiFi Alliance. WPS allows you to quickly set up a wireless network with strong security, without having to configure security settings manually.
Page 25: Zyxel Netusb Share Center Utility
The ZyXEL NetUSB Share Center Utility allows you to work with the USB devices that are connected directly to the NBG4615 as if they are connected directly to your computer. This allows you to easily share USB-based devices such as printers, scanners, portable hard disks, MP3 players, faxes, and digital cameras (to name a few) with all the other people in your home or office as long as they are connected to the NBG4615 and have the ZyXEL NetUSB Share Center Utility installed.
Page 26: The Zyxel Netusb Share Center Utility
To open the ZyXEL NetUSB Share Center Utility, double-click its system tray icon. 3.2 The ZyXEL NetUSB Share Center Utility This section describes the ZyXEL NetUSB Share Center Utility main window. Figure 2 ZyXEL NetUSB Share Center Utility Main Window NBG4615 User’s Guide...
Page 27: The Menus
Table 2 ZyXEL NetUSB Share Center Utility Main Window Icons ICON DESCRIPTION Configure Server Click to open the NBG4615’s built-in Web Configurator, which you can use to set up the NBG4615 (see Chapter 5 on page 43 for details). Auto-Connect Printer You can set the selected printer to ‘auto-connect’...
Page 28 Auto-Connect Printer function. See Chapter 14 on page 121 for more details. Note: You first must install the appropriate drivers for the printer that you intend to use. Delete Auto-Connect Printer This removes the auto-connect option from the selected printer. NBG4615 User’s Guide...
Page 29: The Zyxel Netusb Share Center Configuration Window
This section describes the utility’s configuration window, which allows you to set certain options for the utility. These options do not apply to the USB devices connected to the NBG4615. You can open it by clicking the Tools > Configuration menu command.
Page 30: Exit The Zyxel Netusb Share Center Utility
If you want to exit the ZyXEL NetUSB Share Center Utility when your computer is not connected to any USB device, follow the steps below: Click System > Exit on the Utility screen. The Utility will automatically close. Or you can close the Utlity screen first, then exit: NBG4615 User’s Guide...
Page 31 Chapter 3 ZyXEL NetUSB Share Center Utility Click the X on the upper-right corner of the Utility: This will close the Utility screen to an icon at the system tray of your computer. Right-click on the Utility’s icon and click Exit. NBG4615 User’s Guide...
Page 32 Chapter 3 ZyXEL NetUSB Share Center Utility NBG4615 User’s Guide...
Page 33: Connection Wizard
Launch your web browser and type "http://192.168.1.1" as the website address. Type "1234" (default) as the password and click Login. Note: The Wizard appears when the NBG4615 is accessed for the first time or when you reset the NBG4615 to its default factory settings.
Page 34: Connect To Internet
Chapter 4 Connection Wizard 4.3 Connect to Internet The NBG4615 offers five Internet connection types. They are Static IP, DHCP, PPPoE, PPTP or L2TP. The wizard attempts to detect which WAN connection type you are using. Figure 7 Detecting your Internet Connection Type If the wizard does not detect a connection type, you must select one from the drop-down list box.
Page 35: Connection Type: Dhcp
Table 7 Internet Connection Type: Static IP LABEL DESCRIPTION Internet Connection Type Select the Static IP option. IP Address Enter the IP address provided by your ISP. Subnet Mask Enter the IP subnet mask in this field. NBG4615 User’s Guide...
Page 36: Connection Type: Pppoe
By implementing PPPoE directly on the NBG4615 (rather than individual computers), the computers on the LAN do not need PPPoE software installed, since the NBG4615 does that part of the task. Furthermore, with NAT, all of the LAN's computers will have Internet access.
Page 37: Connection Type: Pptp
Dynamic IP Select this radio button if your ISP did not assign you a fixed IP address. Static IP Select this radio button, provided by your ISP to give the NBG4615 a fixed, unique IP address. IP Address Type the name of your service provider.
Page 38: Connection Type: L2Tp
Dynamic IP Select this radio button if your ISP did not assign you a fixed IP address. Static IP Select this radio button, provided by your ISP to give the NBG4615 a fixed, unique IP address. PPTP Address Type the (static) IP address assigned to you by your ISP.
Page 39 Table 10 Internet Connection Type: L2TP (continued) LABEL DESCRIPTION Static IP Select this radio button, provided by your ISP to give the NBG4615 a fixed, unique IP address. L2TP Address Type the (static) IP address assigned to you by your ISP.
Page 40: Router Password
Figure 15 Router Password 4.5 Wireless Security Configure Wireless Settings. Configure the wireless network settings on your NBG4615 in the following screen. The fields that show up depend on the kind of security you select. 4.5.1 Wireless Security: No Security Choose No Security in the Wireless Security screen to let wireless devices within range access your wireless network.
Page 41: Wireless Security: Wpa-Psk/Wpa2-Psk
Enter a descriptive name (up to 32 printable 7-bit ASCII characters) for the wireless Network LAN. Name (SSID) If you change this field on the NBG4615, make sure all wireless stations use the same SSID in order to access the network. Security mode Select a Security level from the drop-down list box.
Page 42 You can also click GO to open the Easy Mode Web Configurator of your NBG4615. You have successfully set up your NBG4615 to operate on your network and access the Internet. You are now ready to connect wirelessly to your NBG4615 and access the Internet.
Page 43: Introducing The Web Configurator
H A PT ER Introducing the Web Configurator 5.1 Overview This chapter describes how to access the NBG4615 Web Configurator and provides an overview of its screens. The Web Configurator is an HTML-based management interface that allows easy setup and management of the NBG4615 via Internet browser.
Page 44: Password Screen
215. The time is in 24-hour format, for example 15:00 is 3:00 PM. 5.2.2 Password Screen You should see a screen asking you to change your password (highly recommended) as shown next. Figure 20 Change Password Screen NBG4615 User’s Guide...
Page 45: Home Screen
Administrator Inactivity Timer field expires (default five minutes; go to Chapter 29 on page 213 to change this). Simply log back into the NBG4615 if this happens. 5.2.3 Home Screen If you have previously logged into the Web Configurator but did not click Logout, you may be redirected to the Home screen.
Page 46: Weather Edit
5.2.3.2 Time/Date Edit One timezone can cover more than one country. You can choose a particular country in which the NBG4615 is located and have the NBG4615 display and use the current time and date for its logs. Click the icon to change the Weather display.
Page 47: Resetting The Nbg4615
Make sure the power LED is on. Press the RESET button for longer than 1 second to restart/reboot the NBG4615. Press the RESET button for longer than 5 seconds to set the NBG4615 back to its factory-default configurations. NBG4615 User’s Guide...
Page 48 Chapter 5 Introducing the Web Configurator NBG4615 User’s Guide...
Page 49: Monitor
• Use the WLAN Station Status screen to view the wireless stations that are currently associated to the NBG4615 (Section 6.7 on page 54). 6.3 The Log Screen The Web Configurator allows you to look at all of the NBG4615’s logs in one location. NBG4615 User’s Guide...
Page 50: View Log
6.3.1 View Log Use the View Log screen to see the logged messages for the NBG4615. The log wraps around and deletes the old entries after it fills. Select what logs you want to see from the Display drop list. The log choices depend on your settings in the Log Settings screen.
Page 51: Bw Mgmt Monitor
DHCP (Dynamic Host Configuration Protocol, RFC 2131 and RFC 2132) allows individual clients to obtain TCP/IP configuration at start-up from a server. You can configure the NBG4615’s LAN as a DHCP server or disable it. When configured as a server, the NBG4615 provides the TCP/IP configuration for the clients.
Page 52 Chapter 6 Monitor Address, IP Address, and Expiration time) of all network clients using the NBG4615’s DHCP server. Figure 27 Summary: DHCP Table The following table describes the labels in this screen. Table 18 Summary: DHCP Table LABEL DESCRIPTION This is the index number of the host computer.
Page 53: Packet Statistics
Rx B/s This displays the reception speed in bytes per second on this port. Up Time This is the total time the NBG4615 has been for each session. System Up Time This is the total time the NBG4615 has been on.
Page 54: Wlan Station Status
Click the WLAN Station Status (Details...) hyperlink in the Status screen. View the wireless stations that are currently associated to the NBG4615 in the Association List. Association means that a wireless client (for example, your network or computer with a wireless network card) has connected successfully to the AP (or wireless router) using the same SSID, channel and security settings.
Page 55: Nbg4615 Modes
Status screen in this mode. • WISP + UR: In this mode, the NBG4615 has the same function as in WISP mode. In addition, it can provide WiFi function to the clients on the LAN side. Go to Section 13.4 on page 101...
Page 56 Chapter 7 NBG4615 Modes For more information on these modes and to change the mode of your NBG4615, refer to Chapter 29 on page 221. The menu for changing device modes is available in Expert mode only. Note: Choose your Device Mode carefully to avoid having to change it later.
Page 57: Easy Mode
The Web Configurator is set to Easy Mode by default. You can configure several key features of the NBG4615 in this mode. This mode is useful to users who are not fully familiar with some features that are usually intended for network administrators.
Page 58: What You Can Do
• Use this Navigation Panel to opt out of the Easy mode (Section 8.4 on page 59). • Use the Network Map screen to check if your NBG4615 can ping the gateway and whether it is connected to the Internet (Section 8.5 on page 59).
Page 59: Navigation Panel
Note: The Network MAP is viewable by Windows XP (need to install patch), Windows Vista and Windows 7 users only. For Windows XP (Service Pack 2) users, you can see the network devices connected to the NBG4615 by downloading the LLTD (Link Layer Topology Discovery) patch from the Microsoft Website.
Page 60: Control Panel
Chapter 8 Easy Mode The line connecting the NBG4615 to the gateway becomes green when the NBG4615 is able to ping the gateway. It becomes red when the ping initiating from the NBG4615 does not get a response from the gateway. The same rule applies to the line connecting the gateway to the Internet.
Page 61: Game Engine
Refer to Section 8.6.6 on page 64 to see this screen. 8.6.1 Game Engine the NBG4615 maximizes the bandwidth for gaming traffic that When this feature is enabled, it forwards out through an interface. Figure 35 Game Engine Note: When this is switched on, the Game Console tab in the...
Page 62 Chapter 8 Easy Mode Disabling the wireless capability lowers the energy consumption of the of the NBG4615. Figure 36 Power Saving The following table describes the labels in this screen. Table 23 Power Saving LABEL DESCRIPTION WLAN Status Select On or Off to specify whether the Wireless LAN is turned on or off (depending on what you selected in the WLAN Status field).
Page 63: Content Filter
Click Add after you have typed a keyword. Repeat this procedure to add other keywords. Up to 64 keywords are allowed. Note: The NBG4615 does not recognize wildcard characters as keywords. When you try to access a web page containing a keyword, you will get a message telling you that the content filter is blocking this request.
Page 64: Firewall
8.6.5 Firewall Enable this feature to protect the network from Denial of Service (DoS) attacks. The NBG4615 blocks repetitive pings from the WAN that can otherwise cause systems to slow down or hang. Figure 39 Firewall Click OK to close this screen.
Page 65 Chapter 8 Easy Mode Note: You can enable the Wireless function of your NBG4615 by first turning on the switch in the back panel. Figure 40 Wireless Security The following table describes the general wireless LAN labels in this screen.
Page 66: Wps
Click this to go back to the Wireless Security screen. Create a secure wireless network simply by pressing a button. The NBG4615 scans for a WPS-enabled device within the range and performs wireless security information synchronization. Note: After you click the WPS button on this screen, you have to press a similar button in the wireless station utility within 2 minutes.
Page 67: Status Screen In Easy Mode
The following table describes the labels in this screen. Table 27 Status Screen in Easy Mode ITEM DESCRIPTION Name This is the name of the NBG4615 in the network. You can change this in the Maintenance > General screen in Section 29.3 on page 213. Time This is the current system date and time.
Page 68: Router Mode
Router Mode 9.1 Overview The NBG4615 is set to router mode by default. Routers are used to connect the local network to another network (for example, the Internet). In the figure below, the NBG4615 connects the local network (LAN1 ~ LAN4) to the Internet.
Page 69: Router Mode Status Screen
Select a number of seconds or None from the drop-down list box to refresh all screen statistics automatically at the end of every time interval or to not refresh the screen statistics. Click this button to refresh the status screen statistics. NBG4615 User’s Guide...
Page 70 This shows the current status of the Wireless LAN - ON or OFF. - Name (SSID) This shows a descriptive name used to identify the NBG4615 in the wireless LAN. - Channel This shows the channel number which you select manually.
Page 71 This displays what percentage of the NBG4615’s processing ability is currently used. When this percentage is close to 100%, the NBG4615 is running at full load, and the throughput is not going to improve anymore. If you want some applications to have more throughput, you should turn off other applications (for example, using bandwidth management.)
Page 72: Navigation Panel
Chapter 9 Router Mode 9.2.1 Navigation Panel Use the sub-menus on the navigation panel to configure NBG4615 features. Figure 45 Navigation Panel: Router Mode The following table describes the sub-menus. Table 30 Navigation Panel: Router Mode LINK FUNCTION Status This screen shows the NBG4615’s general device, system and interface status information.
Page 73 Snooping that subscribe to multicast services. Use this screen to configure LAN IP address and subnet mask. IP Alias Use this screen to have the NBG4615 apply IP alias to create LAN subnets. DHCP Server General Use this screen to enable the NBG4615’s DHCP server.
Page 74 Monitor Use this screen to view the amount of network bandwidth that applications running in the network are using. Remote Use this screen to be able to access the NBG4615 from the LAN, Management WAN or both. UPnP General Use this screen to enable UPnP on the NBG4615.
Page 75: Access Point Mode
Access Point Mode 10.1 Overview Use your NBG4615 as an access point (AP) if you already have a router or gateway on your network. In this mode your NBG4615 bridges a wired network (LAN) and wireless LAN (WLAN) in the same subnet. See the figure below for an example.
Page 76: Setting Your Nbg4615 To Ap Mode
Log into the Web Configurator if you haven’t already. See the Quick start Guide for instructions on how to do this. To use your NBG4615 as an access point, go to Maintenance > Sys OP Mode > General and select Access Point mode.
Page 77: Configuring Your Wlan, Bandwidth Management And Maintenance Settings
• See Chapter 26 on page 195 for information on configuring your Bandwidth Management screen. • See Chapter 29 on page 213 for information on configuring your Maintenance settings. NBG4615 User’s Guide...
Page 78: Ap Mode Status Screen
This is the firmware version and the date created. Sys OP Mode This is the device mode (Section 7.1.2 on page 55) to which the NBG4615 is set - Access Point Mode. LAN Information - MAC Address This shows the LAN Ethernet adapter MAC Address of your device.
Page 79 This displays what percentage of the NBG4615’s processing ability is currently used. When this percentage is close to 100%, the NBG4615 is running at full load, and the throughput is not going to improve anymore. If you want some applications to have more throughput, you should turn off other applications (for example, using bandwidth management.
Page 80: Lan Screen
Use this section to configure your LAN settings while in Access Point mode. Click Network > LAN to see the screen below. Note: If you change the IP address of the NBG4615 in the screen below, you will need to log into the NBG4615 again using the new IP address.
Page 81 Also when you select this, you cannot enter an IP address for your NBG4615 in the field below. Use Defined LAN IP Click this if you want to specify the IP address of your NBG4615. Or if your Address ISP or network administrator gave you a static IP address to access the network or the Internet.
Page 82: Universal Repeater Mode
• Use the Status screen to view read-only information about your NBG4615 (Section 11.5 on page 84). • Use the LAN screen to set the IP address for your NBG4615 acting as an access point (Section 10.5 on page 80).
Page 83: What You Need To Know
11.4 Setting your NBG4615 to Universal Repeater Mode Connect your computer to the LAN port of the NBG4615. The default IP address of the NBG4615 is “192.168.1.2”. In this case, your computer must have an IP address in the range between “192.168.1.3” and “192.168.1.254”.
Page 84: Universal Repeater Mode Status Screen
Note: The Universal Repeater mode IP address is always the same as the Access Point mode IP address. If you changed the IP address of your NBG4615 while in Access Point mode, use this IP address in Universal Repeater mode.
Page 85 This displays what percentage of the NBG4615’s processing ability is currently used. When this percentage is close to 100%, the NBG4615 is running at full load, and the throughput is not going to improve anymore. If you want some applications to have more throughput, you should turn off other applications (for example, using bandwidth management.
Page 86: Universal Repeater Screen
N/A when the WLAN is disabled. 11.5.0.1 Navigation Panel Use the menu in the navigation panel to configure NBG4615 features in Universal Repeater mode. The following screen and table show the features you can configure in Universal Repeater mode.
Page 87: No Security
(B) through the NBG4615 (A) in universal repeater mode, you must set the channel number in the Wireless LAN > General screen to be the same as the one on the wireless router or AP to which the NBG4615 wants to connect.
Page 88: Static Wep
Select a default WEP key to use for data encryption. WEP Key 1 ~ The WEP keys are used to encrypt data. Both the NBG4615 and the access point WEP Key 4 must use the same WEP key for data transmission.
Page 89: Wpa(2)-Psk
LABEL DESCRIPTION Universal Repeater Parameters Enable Select this option to have the NBG4615 connect to the specified access point. SSID Enter the name of the access point to which you are connecting. MAC Address Enter the MAC address of the access point to which you are connecting.
Page 90: Wisp Mode
Use this mode if you already have an access point or router in your network. In the example below, one NBG4615 (A) is configured as a wireless client and another is used as an access point (B). The wireless client has two clients that need to connect to the Internet. The NBG4615 wirelessly connects to the available access point (B).
Page 91: Setting Your Nbg4615 To Wisp Mode
Log into the Web Configurator if you haven’t already. See the Quick start Guide for instructions on how to do this. To set your NBG4615 to WISP Mode, go to Maintenance > Sys OP Mode > General and select WISP Mode.
Page 92: Wisp Mode Status Screen
Chapter 12 WISP Mode The default IP address of the NBG4615 is “192.168.1.1”. If you did not change this, you can use the same IP address in WISP Mode. Open a web browser such as Internet Explorer and type “192.168.1.1” as the web address in your web browser.
Page 93 This displays what percentage of the NBG4615’s processing ability is currently used. When this percentage is close to 100%, the NBG4615 is running at full load, and the throughput is not going to improve anymore. If you want some applications to have more throughput, you should turn off other applications (for example, using bandwidth management.
Page 94 N/A when the WLAN is disabled. 12.4.0.1 Navigation Panel Use the menu in the navigation panel to configure NBG4615 features in WISP mode. The following screen and table show the features you can configure in Access Point mode.
Page 95: Wireless Lan General Screen
Chapter 12 WISP Mode 12.5 Wireless LAN General Screen Use this screen to configure the wireless LAN settings of your NBG4615. Go to Configuration > Wireless LAN > General to open the following screen. Figure 65 WISP Mode: Wireless LAN > General The following table describes the labels in this screen.
Page 96: Static Wep
A passphrase functions like a password. In WEP security mode, it is further converted by the NBG4615 into a complicated string that is referred to as the “key”. This key is requested from all devices wishing to connect to a wireless network.
Page 97: Wpa(2)-Psk
DESCRIPTION Key 1 to Key 4 The WEP keys are used to encrypt data. Both the NBG4615 and the wireless stations must use the same WEP key for data transmission. If you chose 64-bit WEP, then enter any 5 ASCII characters or 10 hexadecimal characters ("0-9", "A-F").
Page 98: Site Survey Screen
SSID This displays the SSID of the wireless device. indicates the wireless device is added to an activated profile and the NBG4615 is connecting to it. BSSID This displays the MAC address of the wireless device.
Page 99: Wisp + Ur Mode
WISP + UR Mode 13.1 Overview In WISP + UR mode, the NBG4615 has the same function as in WISP mode. In addition, it can provide WiFi function to the clients on the LAN side. In the example below, one NBG4615 (A) is configured as WISP +UR mode and another is used as an access point (B).
Page 100: Setting Your Nbg4615 To Wisp + Ur Mode
Log into the Web Configurator if you haven’t already. See the Quick start Guide for instructions on how to do this. To set your NBG4615 to WISP + UR Mode Mode, go to Maintenance > Sys OP Mode > General and select WISP + UR Mode.
Page 101: Wisp + Ur Mode Status Screen
Chapter 13 WISP + UR Mode The default IP address of the NBG4615 is “192.168.1.1”. If you did not change this, you can use the same IP address in WISP + UR Mode. Open a web browser such as Internet Explorer and type “192.168.1.1”...
Page 102 This shows the current status of the Wireless LAN - ON or OFF. - Name (SSID) This shows a descriptive name used to identify the NBG4615 in the wireless LAN. - Channel This shows the channel number which you select manually.
Page 103 For the WLAN, it displays the maximum transmission rate when the WLAN is enabled and N/A when the WLAN is disabled. 13.4.0.1 Navigation Panel Use the menu in the navigation panel to configure NBG4615 features in WISP + UR mode. NBG4615 User’s Guide...
Page 104 The following screen and table show the features you can configure in Access Point mode. Figure 74 Menu: WISP +UR Mode Refer to Table 30 on page 72 for descriptions of the labels shown in the Navigation panel. NBG4615 User’s Guide...
Page 105: Tutorials
14.2.1 Push Button Configuration (PBC) Make sure that your NBG4615 is turned on. Make sure the WLAN switch (at the back panel of the NBG4615) is set to ON, and that the device is placed within range of your computer.
Page 106: Pin Configuration
Log into NBG4615’s Web Configurator and press the Push Button in the Configuration > Network > Wireless Client > WPS Station screen. Note: Your NBG4615 has a WPS button located on its back panel, as well as a WPS button in its configuration utility. Both buttons have exactly the same function; you can use one or the other.
Page 107: Configure Wireless Security Without Wps
This may take up to two minutes. Then the wireless client is able to communicate with the NBG4615 securely. The following figure shows you the example to set up wireless network and security on NBG4615 and wireless client (ex. NWD210N in this example) by using PIN method.
Page 108 Section 5.2 on page 43). Make sure the WLAN switch (at the back panel of the NBG4615) is set to ON. Open the Configuration > Wireless LAN > General screen in the AP’s Web Configurator. Confirm that the status of wireless LAN is ON.
Page 109: Configure Your Notebook
Note: We use the ZyXEL M-302 wireless adapter utility screens as an example for the wireless client. The screens may vary for different models. The NBG4615 supports IEEE 802.11b, IEEE 802.11g and IEEE 802.11n wireless clients. Make sure that your notebook or computer’s wireless adapter supports one of these standards.
Page 110 Chapter 14 Tutorials Select SSID_Example3 and click Connect. Select WPA-PSK and type the security key in the following screen. Click Next. The Confirm Save window appears. Check your settings and click Save to continue. NBG4615 User’s Guide...
Page 111: Using Multiple Ssids On The Nbg4615
14.4 Using Multiple SSIDs on the NBG4615 You can configure more than one SSID on a NBG4615 when it is operating in access point or universal repeater mode. This allows you to configure multiple independent wireless networks on the NBG4615 as if there were multiple APs (virtual APs).
Page 112: Configuring Security Settings Of Multiple Ssids
SSID_VoIP SSID_Guest 14.4.1 Configuring Security Settings of Multiple SSIDs The NBG4615 is in access point mode by default. If you want to use multiple SSIDs when the NBG4615 is in universal repeater mode, see Chapter 11 on page 82 for how to set the NBG4615 to universal repeater mode.
Page 113 Click Apply. Click the Security tab to configure security settings for each SSID. Select SSID_Worker from the SSID drop-down list. Configure the screen as follows. Click Apply. NBG4615 User’s Guide...
Page 114 Chapter 14 Tutorials 10 Select SSID_Guest from the SSID drop-down list. Configure the screen as follows. Click Apply. 11 Select SSID_VoIP from the SSID drop-down list. Configure the screen as follows. Click Apply. NBG4615 User’s Guide...
Page 115: Connecting The Nbg4615 (In Universal Repeater Mode) To An Ap Or Wireless Router
AP or wireless router through the NBG4615, set the NBG4615 to Universal Repeater mode and then associate the NBG4615 with the AP or wireless router. The NBG4615 must be within the transmission range of the AP or wireless router.
Page 116 10 Go to Configuration > Network > Wireless LAN > Universal Repeater to connect the NBG4615 wirelessly to an AP. Select Enable. Enter the SSID of the existing AP or wireless router to which you want to connect (“SSIDofMyAP” in this example). Enter the wireless security settings which are the same as those on the existing AP or wireless router to access it (WPA-PSK and “KeyofMyWirelessNetwork”...
Page 117 11 Set the channel number in the Wireless LAN > General screen to be the same as the one on the wireless router or AP to which the NBG4615 is connecting. This allows wireless clients access or acquire an IP address from another AP or wireless router through the NBG4615 in universal repeater mode.
Page 118 Chapter 14 Tutorials 12 Go to the Status screen. If the NBG4615 has successfully connected to an AP or wireless router, it displays the SSID and MAC address of the AP or wireless router in the field next to WLAN Station Status under Device Information.
Page 119: Connecting To Usb Storage With The Zyxel Netusb Share Center Utility
14.6 Connecting to USB Storage with the ZyXEL NetUSB Share Center Utility This tutorial shows you how to connect to a USB device over your NBG4615 network by using the ZyXEL NetUSB Share Center Utility. Install the ZyXEL NetUSB Share Center Utility on the computer to which you want to connect the USB device.
Page 120 The Utility is still connected. Do not exit the Utility until the USB device is disconnected via the Utility or until you receive a request to disconnect. See Chapter 3 on page 30 for details on how to exit the Utility. NBG4615 User’s Guide...
Page 121: Automatically Connecting To A Usb Printer
Chapter 3 on page 26 details on the installation. Connect a USB printer to one of the USB ports of the NBG4615. Open the ZyXEL NetUSB Sharing Center Utility on your computer. The name of the USB printer automatically shows in the Utility screen.
Page 122 The printer will be automatically added to your printer list. The Utility supports one connection to the NBG4615’s USB device at a time. If more than one computer is using the printer and are all auto-connected to the USB device, the second computer automatically starts printing after the first computer finishes its printing task.
Page 123: Technical Reference
Technical Reference...
Page 125: Wireless Lan
HAPTER Wireless LAN 15.1 Overview This chapter discusses how to configure the wireless network settings in your NBG4615. See the appendices for more detailed information about wireless networks. The following figure provides an example of a wireless network. Figure 77 Example of a Wireless Network The wireless network is the part in the blue circle.
Page 126: What You Should Know
• Use the Scheduling screen to set the times your wireless LAN is turned on and off (Section 15.9 on page 140). • Use the WDS screen to configure Wireless Distribution System on your NBG4615 (Section 15.10 on page 141).
Page 127 The types of encryption you can choose depend on the type of user authentication. (See page 127 for information about this.) Table 44 Types of Encryption for Each Type of Authentication NO AUTHENTICATION RADIUS SERVER Weakest No Security Static WEP WPA-PSK Strongest WPA2-PSK WPA2 NBG4615 User’s Guide...
Page 128: General Wireless Lan Screen
When you select WPA2 or WPA2-PSK in your NBG4615, you can also select an option (WPA Compatible) to support WPA as well. In this case, if some wireless clients support WPA and some support WPA2, you should set up WPA2-PSK or WPA2 (depending on the type of wireless network login) and select the WPA Compatible option in the NBG4615.
Page 129: Guest Wlan
Guest WLAN allows you to set up a wireless network where users can access to Internet via the NBG4615 (Z), but not other networks connected to the Z. In the following figure, a guest user can access the Internet from the guest wireless network A via Z but not the home or company network Note: The home or company network N and Guest WLAN network are independent networks.
Page 130 (A is Guest WLAN and N is home or company network.) Figure 79 Example: Bandwidth for Different Networks 600 kbps 300 kbps 100 kbps Click Network > Wireless LAN to open the General screen. Figure 80 Network > Wireless LAN > General NBG4615 User’s Guide...
Page 131 Wireless LAN This shows whether the wireless LAN is ON or OFF. You can enable or disable the wireless LAN by using the WLAN switch located on the back panel of the NBG4615. Network The SSID (Service Set IDentity) identifies the Service Set with which a wireless Name(SSID) client is associated.
Page 132: Wireless Security Screen
Both the wireless stations and the access points must use the same WEP key. Your NBG4615 allows you to configure up to four 64-bit or 128-bit WEP keys but only one key can be enabled at any one time.
Page 133 A passphrase functions like a password. In WEP security mode, it is further converted by the NBG4615 into a complicated string that is referred to as the “key”. This key is requested from all devices wishing to connect to a wireless network.
Page 134: Wpa-Psk/Wpa2-Psk
DESCRIPTION Key 1 to Key 4 The WEP keys are used to encrypt data. Both the NBG4615 and the wireless stations must use the same WEP key for data transmission. If you chose 64-bit WEP, then enter any 5 ASCII characters or 10 hexadecimal characters ("0-9", "A-F").
Page 135: Mac Filter
Chapter 15 Wireless LAN 15.4 MAC Filter The MAC filter screen allows you to configure the NBG4615 to give exclusive access to devices (Allow) or exclude devices from accessing the NBG4615 (Deny). Every Ethernet device has a unique MAC (Media Access Control) address. The MAC address is assigned at the factory and consists of six pairs of hexadecimal characters, for example, 00:A0:C5:00:00:02.
Page 136: Wireless Lan Advanced Screen
256 and 2346. Output Power Set the output power of the NBG4615 in this field. If there is a high density of APs in an area, decrease the output power of the NBG4615 to reduce interference with other APs. Select one of the following 100%, 90%, 75%, 50%, 25% or 10%.
Page 137: Quality Of Service (Qos) Screen
Select Auto to increase data throughput. However, this may make data transfer more prone to errors. Select Long to prioritize data integrity. This may be because your wireless network is busy and congested or the NBG4615 is located in an environment prone to radio interference. Extension This is set to Auto by default.
Page 138 This is the 802.11 mode used. Only compliant WLAN devices can associate with the NBG4615. SSID This is the name of the wireless network (the NBG4615’s first SSID). Security This is the type of wireless security employed by the network.
Page 139: Wps Station Screen
Use this button when you use the PIN Configuration method to configure PIN number wireless station’s wireless settings. Type the same PIN number generated in the wireless station’s utility. Then click Start to associate to each other and perform the wireless security information synchronization. NBG4615 User’s Guide...
Page 140: Scheduling Screen
Off earlier for the WLAN Status the Wireless LAN will turn off between the two times you enter in these fields. Apply Click Apply to save your changes back to the NBG4615. Cancel Click Cancel to reload the previous configuration for this screen.
Page 141: Wds Screen
A Wireless Distribution System (WDS) is a wireless connection between two or more APs. Use this screen to set the operating mode of your NBG4615 to AP + Bridge or Bridge and establish wireless links with other APs. You need to know the MAC address of the peer device, which also must be in bridge mode.
Page 142 Table 55 Network > Wireless LAN > WDS (continued) LABEL DESCRIPTION Remote MAC This is the MAC address of the peer device that your NBG4615 wants to make a Address bridge connection with. You can connect to up to 4 peer devices.
Page 143: Ipv6
Every IPv6 device is able to generate its own and unique IP address automatically when IPv6 is initiated on its interface. It combines the prefix and the interface ID (generated from its own Ethernet MAC address) to form a complete IPv6 address. NBG4615 User’s Guide...
Page 144: The Ipv6 Screen
When IPv6 is enabled on a device, its interface automatically generates a link-local address (beginning with fe80). When the interface is connected to a network with a router and the NBG4615 is set to automatically obtain an IPv6 network prefix from the router for the interface, it generates another address which combines its interface ID and global and subnet information advertised from the router.
Page 145: Ipv6 Connection: Ethernet
Enter the secondary DNS server's IP address in this field. LAN IPv6 Address Setup LAN IPv6 address Enter a valid IPv6 address for the LAN using colon (:) hexadecimal notation. LAN IPv6 Link-local This shows the IPv6 link-local address that the NBG4615 generates Address automatically. NBG4615 User’s Guide...
Page 146: Ipv6 Connection: Dhcpv6
LABEL DESCRIPTION Address Autoconfiguration Setup Enable Address Select the checkbox to enable Address Autoconfiguration on the NBG4615. Autoconfiguration Type Select the IPv6 autoconfiguration type: Stateless or Stateful. If you choose Stateful, enter the beginning and end of the IPv6 address range in the fields below.
Page 147: Ipv6 Connection: Link-Local Only
Click Cancel to reload the previous configuration for this screen. 16.2.3 IPv6 Connection: Link-local only Use the Link-local only connection mode for the NBG4615 to communicate with other IPv6 devices on the LAN side. If you choose this mode, the LAN IPv6 Link-local Address will be shown in the screen.
Page 148 Chapter 16 IPv6 If you select Link-local only as the IPv6 Connection Type, the following screen displays. Figure 93 Network > IPv6: Link-local only NBG4615 User’s Guide...
Page 149: Wan
HAPTER 17.1 Overview This chapter discusses the NBG4615’s WAN screens. Use these screens to configure your NBG4615 for Internet access. A WAN (Wide Area Network) connection is an outside connection to another network or the Internet. It connects your private networks such as a LAN (Local Area Network) and other networks, so that a computer in one location can communicate with computers in other locations.
Page 150: Configuring Your Internet Connection
(and service name) for user authentication. WAN IP Address The WAN IP address is an IP address for the NBG4615, which makes it accessible from an outside network. It is used by the NBG4615 to communicate with other devices in other networks. It can be static (fixed) or dynamically assigned by the ISP each time the NBG4615 tries to access the Internet.
Page 151: Multicast
A and D. IGMP (Internet Group Multicast Protocol) is a network-layer protocol used to establish membership in a multicast group - it is not used to carry user data. The NBG4615 supports both IGMP version 1 (IGMP-v1) and IGMP version 2 (IGMP-v2).
Page 152 _@$./ characters, and it can be up to 31 characters long. Password Type the password associated with the user name above. Use up to 64 ASCII characters except [, ] and ?. This field can be blank. Retype to Type your password again for confirmation. Confirm NBG4615 User’s Guide...
Page 153: Pppoe Encapsulation
WAN DNS Assignment First DNS Server Select From ISP if your ISP dynamically assigns DNS server information (and the NBG4615's WAN IP address). The field to the right displays the (read-only) Second DNS DNS server IP address that the ISP assigns.
Page 154 By implementing PPPoE directly on the NBG4615 (rather than individual computers), the computers on the LAN do not need PPPoE software installed, since the NBG4615 does that part of the task. Furthermore, with NAT, all of the LANs’ computers will have access.
Page 155: Pptp Encapsulation
WAN DNS Assignment First DNS Server Select From ISP if your ISP dynamically assigns DNS server information (and the NBG4615's WAN IP address). The field to the right displays the (read-only) DNS Second DNS server IP address that the ISP assigns.
Page 156 Type the password associated with the User Name above. Retype to Confirm Type your password again to make sure that you have entered is correctly. Nailed-up Connection Select Nailed-Up Connection if you do not want the connection to time out. NBG4615 User’s Guide...
Page 157: L2Tp Encapsulation
WAN DNS Assignment First DNS Server Select From ISP if your ISP dynamically assigns DNS server information (and the NBG4615's WAN IP address). The field to the right displays the Second DNS Server (read-only) DNS server IP address that the ISP assigns.
Page 158 Get automatically Select this option If your ISP did not assign you a fixed IP address. This is from ISP the default selection. Use Fixed IP Address Select this option If the ISP assigned a fixed IP address. NBG4615 User’s Guide...
Page 159: Advanced Wan Screen
WAN DNS Assignment First DNS Server Select From ISP if your ISP dynamically assigns DNS server information (and the NBG4615's WAN IP address). The field to the right displays the Second DNS Server (read-only) DNS server IP address that the ISP assigns.
Page 160: Igmp Snooping Screen
Auto-Subnet Configuration None Select this option to have the NBG4615 do nothing when it gets a WAN IP address in the range of 192.168.x.y (where x and y are from zero to nine) or in the same subnet as the LAN IP address.
Page 161 Table 63 Network > WAN > IGMP Snooping LABEL DESCRIPTION Enable IGMP Snooping Select this option to have the NBG4615 use IGMP snooping. Check the LAN port/s to which IGMP snooping applies. Apply Click Apply to save your changes back to the NBG4615.
Page 162 Chapter 17 WAN NBG4615 User’s Guide...
Page 163: Lan
18.2 What You Can Do • Use the IP screen to change the IP address for your (Section 18.4 on page 165). • Use the IP Alias screen to have the NBG4615 apply IP alias to create LAN subnets (Section 18.5 on page 165).
Page 164: What You Need To Know
Figure 103 LAN and WAN IP Addresses The LAN parameters of the NBG4615 are preset in the factory with the following values: • IP address of 192.168.1.1 with subnet mask of 255.255.255.0 (24 bits) • DHCP server enabled with 32 client IP addresses starting from 192.168.1.33.
Page 165: Lan Ip Screen
Chapter 18 LAN 18.4 LAN IP Screen Use this screen to change the IP address for your NBG4615. Click Network > LAN > IP. Figure 104 Network > LAN > IP The following table describes the labels in this screen.
Page 166 IP Subnet Mask The subnet mask specifies the network number portion of an IP address. Your NBG4615 will automatically calculate the subnet mask based on the IP address that you assign. Unless you are implementing subnetting, use the subnet mask computed by the NBG4615.
Page 167: Dhcp Server
DHCP (Dynamic Host Configuration Protocol, RFC 2131 and RFC 2132) allows individual clients to obtain TCP/IP configuration at start-up from a server. You can configure the NBG4615’s LAN as a DHCP server or disable it. When configured as a server, the NBG4615 provides the TCP/IP configuration for the clients.
Page 168: General
Leave the Enable DHCP Server check box selected unless your ISP instructs you to do otherwise. Clear it to disable the NBG4615 acting as a DHCP server. When configured as a server, the NBG4615 provides TCP/IP configuration for the clients. If not, DHCP service is disabled and you must have another DHCP server on your LAN, or else the computers must be manually configured.
Page 169: Advanced
MAC addresses. You can also use this screen to configure the DNS server information that the NBG4615 sends to the DHCP clients. To change your NBG4615’s static DHCP settings, click Network > DHCP Server > Advanced. The following screen displays.
Page 170 LAN IP address displays in the field to the right (read-only). The NBG4615 tells the DHCP clients on the LAN that the NBG4615 itself is the DNS server. When a computer on the LAN sends a DNS query to the NBG4615, the NBG4615 forwards the query to the NBG4615's system DNS server (configured in the WAN >...
Page 171: Nat
You assign the LAN IP addresses to the devices (A to D) connected to your NBG4615. The ISP assigns the WAN IP address. The NAT network appears as a single host on the Internet. All traffic coming from A to D going out to the Internet use the IP address of the NBG4615, which is 192.168.1.1.
Page 172: What You Need To Know
The following terms and concepts may help as you read through this chapter. Inside/Outside This denotes where a host is located relative to the NBG4615, for example, the computers of your subscribers are the inside hosts, while the web servers on the Internet are the outside hosts.
Page 173: General
IP source address in each packet and then forwards it to the Internet. The NBG4615 keeps track of the original addresses and port numbers so incoming reply packets can have their original values restored. The following figure illustrates this.
Page 174: Application
Application screen. If you do not assign a Default Server IP address, the NBG4615 discards all packets received for ports that are not specified in the Application screen or remote management.
Page 175 Click the Edit icon to display and modify an existing rule setting in the fields under Add Application Rule. Click the Remove icon to delete a rule. Apply Click Apply to save your changes back to the NBG4615. Cancel Click Cancel to begin configuring this screen afresh. NBG4615 User’s Guide...
Page 176: Advanced
Type a port number or the ending port number in a range of port numbers. Trigger The trigger port is a port (or a range of ports) that causes (or triggers) the NBG4615 to record the IP address of the LAN computer that sent the traffic to a server on the WAN. Port Type a port number or the starting port number in a range of port numbers.
Page 177: Technical Reference
Chapter 20 NAT 20.5 Technical Reference The following section contains additional technical information about the NBG4615 features described in this chapter. 20.5.1 NATPort Forwarding: Services and Port Numbers A port forwarding set is a list of inside (behind NAT on the LAN) servers, for example, web or FTP, that you can make accessible to the outside world even though NAT makes your whole inside network appear as a single machine to the outside world.
Page 178: Trigger Port Forwarding Example
(Transfer Control Protocol/Internet Protocol). 20.5.5 Two Points To Remember About Trigger Ports Trigger events only happen on data that is going coming from inside the NBG4615 and going to the outside. If an application needs a continuous data stream, that port (range) will be tied up so that another computer on the LAN can’t trigger it.
Page 179: Ddns
IP address as yourhost.dyndns.org. This feature is useful if you want to be able to use, for example, www.yourhost.dyndns.org and still reach your hostname. Note: If you have a private WAN IP address, then you cannot use Dynamic DNS. You must have a public WAN IP address. NBG4615 User’s Guide...
Page 180: General
Chapter 21 DDNS 21.2 General To change your NBG4615’s DDNS, click Network > DDNS. The screen appears as shown. Figure 115 Dynamic DNS The following table describes the labels in this screen. Table 72 Dynamic DNS LABEL DESCRIPTION Dynamic DNS Setup Enable Dynamic DNS Select this check box to use dynamic DNS.
Page 181: Static Route
N3 because it doesn't know that there is a route through the same remote node Router 1 (via gateway Router 2). The static routes are for you to tell the NBG4615 about the networks beyond the remote nodes.
Page 182: Ip Static Route Screen
Metric This is the number assigned to the route. Delete Click the Delete icon to remove a static route from the NBG4615. A window displays asking you to confirm that you want to delete the route. Cancel Click Cancel to begin configuring this screen afresh.
Page 183: Rip
The following table describes the labels in this screen. Table 74 Network > RIP LABEL DESCRIPTION Select the RIPv1 or RIPv2 you want the NBG4615 to use. Otherwise select None. Apply Click Apply to save your changes back to the NBG4615.
Page 184 Chapter 23 RIP NBG4615 User’s Guide...
Page 185: Firewall
Firewall 24.1 Overview Use these screens to enable and configure the firewall that protects your NBG4615 and your LAN from unwanted or malicious traffic. Enable the firewall to protect your LAN computers from attacks by hackers on the Internet and control access between the LAN and WAN.
Page 186 (click the General tab under Firewall and then click the Enable Firewall check box). The NBG4615's purpose is to allow a private Local Area Network (LAN) to be securely connected to the Internet. The NBG4615 can be used to prevent theft, destruction and modification of data, as well as log events, which may be important to the security of your network.
Page 187: General
Keep the firewall in a secured (locked) room. 24.2 General Use this screen to enable or disable the NBG4615’s firewall, and set up firewall logs. Click Security > Firewall to open the General screen. Figure 120 Security > Firewall > General l The following table describes the labels in this screen.
Page 188 Internet Protocol (IP) datagrams, but the messages are processed by the TCP/IP software and directly apparent to the application user. Respond to Ping The NBG4615 will not respond to any incoming Ping requests when Disable is selected. Select WAN to reply to incoming WAN Ping requests. Apply Click Apply to save the settings.
Page 189 Drop - Traffic matching the conditions of the firewall rule are stopped. Delete Click Delete to remove the firewall rule. Cancel Click Cancel to start configuring this screen again. Appendix F on page 301 for commonly used services and port numbers. NBG4615 User’s Guide...
Page 190: Content Filtering
The file path is the characters that come after the first slash in the URL. For example, with the URL www.zyxel.com.tw/news/pressroom.php, the file path is news/pressroom.php. Since the NBG4615 checks the URL’s domain name (or IP address) and file path separately, it will not find items that go across the two. For example, with the URL www.zyxel.com.tw/news/...
Page 191: Content Filter
WAN it is possible for LAN users to circumvent content filtering by pointing to this proxy server. Enable URL The NBG4615 can block Web sites with URLs that contain certain keywords in Keyword Blocking the domain name or IP address. For example, if the keyword "bad" was enabled, all sites containing this keyword in the domain name or IP address will be blocked, e.g., URL http://www.website.com/bad.html would be blocked.
Page 192: Technical Reference
For example, with the URL www.zyxel.com.tw/news/pressroom.php, content filtering only searches for keywords within www.zyxel.com.tw. Full Path URL Checking Full path URL checking has the NBG4615 check the characters that come before the last slash in the URL. For example, with the URL www.zyxel.com.tw/news/pressroom.php, full path URL checking searches for keywords within www.zyxel.com.tw/news/.
Page 193 Chapter 25 Content Filtering File Name URL Checking Filename URL checking has the NBG4615 check all of the characters in the URL. For example, filename URL checking searches for keywords within the URL www.zyxel.com.tw/ news/pressroom.php. Use the ip urlfilter customize actionFlags 8 [disable | enable] command to extend (or not extend) the keyword blocking search to include the URL's complete filename.
Page 194 Chapter 25 Content Filtering NBG4615 User’s Guide...
Page 195: Bandwidth Management
• Use the Advanced screen to configure bandwidth managements rule for the pre-defined services and applications (Section 26.5 on page 196). • Use the Monitor screen to view the amount of network bandwidth that applications running in the network are using (Section 26.6 on page 201). NBG4615 User’s Guide...
Page 196: What You Need To Know
You can also use this screen to configure bandwidth management rule for other services or applications that are not on the pre-defined list of NBG4615. Additionally, you can define the source and destination IP addresses and port for a service or application.
Page 197 This is traffic from LAN/WLAN to WAN. Downstream Select the total amount of bandwidth (from 64 Kilobits to 32 Megabits) that you Bandwidth want to dedicate to uplink traffic. This is traffic from WAN to LAN/WLAN. NBG4615 User’s Guide...
Page 198 This is the category where a service belongs. Service This is the name of the service. Select the check box to have the NBG4615 apply this bandwidth management rule. Advanced Setting Click the Edit icon to open the Rule Configuration screen where you can modify the rule.
Page 199: Rule Configuration: Application Rule Configuration
Traffic redirect or IP alias may cause LAN-to-LAN traffic to pass through the NBG4615 and be managed by bandwidth management. Bandwidth Select Maximum Bandwidth or Minimum Bandwidth and specify the maximum or minimum bandwidth allowed for the rule in kilobits per second.
Page 200: Rule Configuration: User Defined Service Rule Configuration
Source Address Start Enter the starting IP address of the computer that initializes traffic for the application or service. The NBG4615 applies bandwidth management to traffic initiating from this computer. Source Address End Enter the ending IP address of the computer that initializes traffic for the application or service.
Page 201: Monitor Screen
Internet include Internet Relay Chat and Newsgroups. The Web is accessed through use of a browser. E-Mail Electronic mail consists of messages sent through a computer network to specific groups or individuals. Here are some default ports for e-mail: NBG4615 User’s Guide...
Page 202 Gaming Online gaming services lets you play multiplayer games on the Internet via broadband technology. As of this writing, your NBG4615 supports Xbox, Playstation, Battlenet and MSN Game Zone. NBG4615 User’s Guide...
Page 203: Remote Management
(Section 27.3 on page 204) does not match the client IP address. If it does not match, the NBG4615 will disconnect the session immediately. There is already another remote management session. You may only have one remote management session running at one time.
Page 204: Www Screen
Chapter 27 Remote Management 27.3 WWW Screen To change your NBG4615’s remote management settings, click Management > Remote Management > WWW. Figure 129 Management > Remote Management > WWW The following table describes the labels in this screen. Table 83 Management > Remote Management > WWW...
Page 205: Universal Plug-And-Play (Upnp)
When a UPnP device joins a network, it announces its presence with a multicast message. For security reasons, the NBG4615 allows multicast messages on the LAN only. NBG4615 User’s Guide...
Page 206: Upnp Screen
This section shows you how to use the UPnP feature in Windows XP. You must already have UPnP installed in Windows XP and UPnP activated on the NBG4615. Make sure the computer is connected to a LAN port of the NBG4615. Turn on your computer and the NBG4615.
Page 207 Chapter 28 Universal Plug-and-Play (UPnP) Right-click the icon and select Properties. Figure 131 Network Connections In the Internet Connection Properties window, click Settings to see the port mappings there were automatically created. Figure 132 Internet Connection Properties NBG4615 User’s Guide...
Page 208 Note: When the UPnP-enabled device is disconnected from your computer, all port mappings will be deleted automatically. Select Show icon in notification area when connected option and click OK. An icon displays in the system tray. Figure 135 System Tray Icon NBG4615 User’s Guide...
Page 209: Web Configurator Easy Access
28.4.2 Web Configurator Easy Access With UPnP, you can access the web-based configurator on the NBG4615 without finding out the IP address of the NBG4615 first. This comes helpful if you do not know the IP address of the NBG4615.
Page 210 Figure 137 Network Connections An icon with the description for each UPnP-enabled device displays under Local Network. Right-click on the icon for your NBG4615 and select Invoke. The web configurator login screen displays. Figure 138 Network Connections: My Network Places...
Page 211 Chapter 28 Universal Plug-and-Play (UPnP) Right-click on the icon for your NBG4615 and select Properties. A properties window displays with basic information about the NBG4615. Figure 139 Network Connections: My Network Places: Properties: Example NBG4615 User’s Guide...
Page 212 Chapter 28 Universal Plug-and-Play (UPnP) NBG4615 User’s Guide...
Page 213: Maintenance
• Use the Reset/Restart screen to reboot the NBG4615 without turning the power off (Section 29.8 on page 219). • Use the Sys OP Mode screen to select how you want to use your NBG4615 (Section 29.10 on page 221).
Page 214: Password Screen
Click Cancel to begin configuring this screen afresh. 29.4 Password Screen It is strongly recommended that you change your NBG4615's password. If you forget your NBG4615's password (or IP address), you will need to reset the device. See Section 29.8 on page 219 for details.
Page 215: Time Setting Screen
Chapter 29 Maintenance 29.5 Time Setting Screen Use this screen to configure the NBG4615’s time based on your local time zone. To change your NBG4615’s time and date, click Maintenance > Time. The screen appears as shown. Figure 142 Maintenance > Time The following table describes the labels in this screen.
Page 216 When you select Manual, enter the new date in this field and then click Apply. Get from Time Select this radio button to have the NBG4615 get the time and date from the Server time server you specified below. Auto...
Page 217: Firmware Upgrade Screen
After you see the Firmware Upload In Process screen, wait two minutes before logging into the NBG4615 again. The NBG4615 automatically restarts in this time causing a temporary network disconnect. In some operating systems, you may see the following icon on your desktop.
Page 218: Configuration Backup/Restore Screen
Firmware Upgrade screen. 29.7 Configuration Backup/Restore Screen Backup configuration allows you to back up (save) the NBG4615’s current configuration to a file on your computer. Once your NBG4615 is configured and functioning properly, it is highly recommended that you back up your configuration file before making configuration changes. The backup configuration file will be useful in case you need to return to your previous settings.
Page 219: Reset/Restart Screen
RESET button. Note: If you uploaded the default configuration file you may need to change the IP address of your computer to be in the same subnet as that of the default NBG4615 IP address (192.168.1.2). See...
Page 220 Internet, another device, such as a router, is required. Figure 148 Access Point Mode Universal Repeater NBG4615 in Universal Repeater mode work as an access point and wireless client simultaneously. Figure 149 Universal Repeater Mode NBG4615 User’s Guide...
Page 221: Sys Op Mode Screen
Access Point Wireless Client 29.10 Sys OP Mode Screen Use this screen to select how you want to use your NBG4615. Figure 151 Maintenance > Sys OP Mode The following table describes the labels in the General screen. Table 90 Maintenance > Sys OP Mode...
Page 222: To The Internet
The IP address of the device on the local network is set to 192.168.1.2. Universal Repeater Mode Select Universal Repeater Mode if you want to have wireless clients associate with the NBG4615 and also want to connect the NBG4615 to an existing access point. •...
Page 223: Troubleshooting
Make sure you are using the power adaptor or cord included with the NBG4615. Make sure the power adaptor or cord is connected to the NBG4615 and plugged in to an appropriate power source. Make sure the power source is turned on.
Page 224: Nbg4615 Access And Login
The default IP address is 192.168.1.1. If you changed the IP address and have forgotten it, you might get the IP address of the NBG4615 by looking up the IP address of the default gateway for your computer. To do this in most Windows computers, click Start >...
Page 225 You cannot log in to the Web Configurator while someone is using Telnet to access the NBG4615. Log out of the NBG4615 in the other session, or ask the person who is logged in to log out. This can happen when you fail to log out properly from your last session. Try logging in again after 5 minutes.
Page 226: Internet Access
AP. • Go to Network > Wireless LAN > General > WDS and check if the NBG4615 is set to bridge mode. Select Disable and try to connect to the Internet again.
Page 227: Resetting The Nbg4615 To Its Factory Defaults
30.5 Resetting the NBG4615 to Its Factory Defaults If you reset the NBG4615, you lose all of the changes you have made. The NBG4615 re-loads its default settings, and the password resets to 1234. You have to make all of your changes again.
Page 228 Check that both the NBG4615 and your wireless station are using the same wireless and wireless security settings. Make sure traffic between the WLAN and the LAN is not blocked by the firewall on the NBG4615. Make sure you allow the NBG4615 to be remotely accessed through the WLAN interface. Check your remote management settings.
Page 229: Usb Device Problems
If the USB device requires a special driver, install the driver from the installation disc that came with the device. After driver installation, reconnect the USB device to the NBG4615 and try to connect to it again with your computer.
Page 230: Zyxel Share Center Utility Problems
If the USB device requires a special driver, install the driver from the installation disc that came with the device. After driver installation, reconnect the USB device to the NBG4615 and try to connect to it again with your computer.
Page 231 If A does not disconnect the USB storage, B should click Request to Connect in the Utility to request A to disconnect. B cannot access the USB storage until A disconnects. • See Chapter 14 on page 119 for more details on connecting to USB storage by the Utility. NBG4615 User’s Guide...
Page 232 Chapter 30 Troubleshooting NBG4615 User’s Guide...
Page 233: Appendix A Product Specifications
You can add up to two computers to the NBG4615 without the cost of a hub when connecting to the Internet through the WAN port. You can add up to three computers to the NBG4615 when you connect to the Internet in AP mode. Add more than four computers to your LAN by using a hub.
Page 234 Web Configurator to put it on the NBG4615. Note: Only upload firmware for your specific model! Configuration Backup & Make a copy of the NBG4615’s configuration and put it back on the Restoration NBG4615 later if you decide you want to revert back to an earlier configuration.
Page 235: Wall-Mounting Instructions
Do not insert the screws all the way into the wall. Leave a small gap of about 0.5 cm between the heads of the screws and the wall. Make sure the screws are snugly fastened to the wall. They need to hold the weight of the NBG4615 with the connection cables.
Page 236 Appendix A Product Specifications Align the holes on the back of the NBG4615 with the screws on the wall. Hang the NBG4615 on the screws. Figure 152 Wall-mounting Example The following are dimensions of an M4 tap screw and masonry plug used for wall mounting. All measurements are in millimeters (mm).
Page 237: Appendix B Pop-Up Windows, Javascript And Java Permissions
In Internet Explorer, select Tools, Pop-up Blocker and then select Turn Off Pop-up Blocker. Figure 154 Pop-up Blocker You can also check if pop-up blocking is disabled in the Pop-up Blocker section in the Privacy tab. In Internet Explorer, select Tools, Internet Options, Privacy. NBG4615 User’s Guide...
Page 238 Click Apply to save this setting. Enable Pop-up Blockers with Exceptions Alternatively, if you only want to allow pop-up windows from your device, see the following steps. In Internet Explorer, select Tools, Internet Options and then the Privacy tab. NBG4615 User’s Guide...
Page 239 Select Settings…to open the Pop-up Blocker Settings screen. Figure 156 Internet Options: Privacy Type the IP address of your device (the web page that you do not want to have blocked) with the prefix “http://”. For example, http://192.168.167.1. NBG4615 User’s Guide...
Page 240 Figure 157 Pop-up Blocker Settings Click Close to return to the Privacy screen. Click Apply to save this setting. JavaScript If pages of the web configurator do not display properly in Internet Explorer, check that JavaScript are allowed. NBG4615 User’s Guide...
Page 241 Figure 158 Internet Options: Security Click the Custom Level... button. Scroll down to Scripting. Under Active scripting make sure that Enable is selected (the default). Under Scripting of Java applets make sure that Enable is selected (the default). NBG4615 User’s Guide...
Page 242 Figure 159 Security Settings - Java Scripting Java Permissions From Internet Explorer, click Tools, Internet Options and then the Security tab. Click the Custom Level... button. Scroll down to Microsoft VM. Under Java permissions make sure that a safety level is selected. NBG4615 User’s Guide...
Page 243 Click OK to close the window. Figure 160 Security Settings - Java JAVA (Sun) From Internet Explorer, click Tools, Internet Options and then the Advanced tab. Make sure that Use Java 2 for <applet> under Java (Sun) is selected. NBG4615 User’s Guide...
Page 244 Mozilla Firefox 2.0 screens are used here. Screens for other versions may vary slightly. The steps below apply to Mozilla Firefox 3.0 as well. You can enable Java, Javascript and pop-ups in one screen. Click Tools, then click Options in the screen that appears. Figure 162 Mozilla Firefox: TOOLS > Options NBG4615 User’s Guide...
Page 245 Click Content to show the screen below. Select the check boxes as shown in the following screen. Figure 163 Mozilla Firefox Content Security Opera Opera 10 screens are used here. Screens for other versions may vary slightly. NBG4615 User’s Guide...
Page 246 Figure 164 Opera: Allowing Pop-Ups Enabling Java From Opera, click Tools, then Preferences. In the Advanced tab, select Content from the left- side menu. Select the check boxes as shown in the following screen. Figure 165 Opera: Enabling Java NBG4615 User’s Guide...
Page 247 Appendix B Pop-up Windows, JavaScript and Java Permissions To customize JavaScript behavior in the Opera browser, click JavaScript Options. Figure 166 Opera: JavaScript Options Select the items you want Opera’s JavaScript to apply. NBG4615 User’s Guide...
Page 248 Appendix B Pop-up Windows, JavaScript and Java Permissions NBG4615 User’s Guide...
Page 249: Appendix C Ip Addresses And Subnetting
192.168.1.1). Each of these four parts is known as an octet. An octet is an eight-digit binary number (for example 11000000, which is 192 in decimal notation). Therefore, each octet has a possible range of 00000000 to 11111111 in binary, or 0 to 255 in decimal. NBG4615 User’s Guide...
Page 250 Subnet masks can be referred to by the size of the network number part (the bits with a “1” value). For example, an “8-bit mask” means that the first 8 bits of the mask are ones and the remaining 24 bits are zeroes. NBG4615 User’s Guide...
Page 251 For example, 192.1.1.0 /25 is equivalent to saying 192.1.1.0 with subnet mask 255.255.255.128. The following table shows some possible subnet masks using both notations. Table 96 Alternative Subnet Mask Notation ALTERNATIVE LAST OCTET LAST OCTET SUBNET MASK NOTATION (BINARY) (DECIMAL) 255.255.255.0 0000 0000 255.255.255.128 1000 0000 255.255.255.192 1100 0000 NBG4615 User’s Guide...
Page 252 You can “borrow” one of the host ID bits to divide the network 192.168.1.0 into two separate sub- networks. The subnet mask is now 25 bits (255.255.255.128 or /25). The “borrowed” host ID bit can have a value of either 0 or 1, allowing two subnets; 192.168.1.0 /25 and 192.168.1.128 /25. NBG4615 User’s Guide...
Page 253 Table 97 Subnet 1 LAST OCTET BIT IP/SUBNET MASK NETWORK NUMBER VALUE IP Address (Decimal) 192.168.1. IP Address (Binary) 11000000.10101000.00000001. 00000000 Subnet Mask (Binary) 11111111.11111111.11111111. 11000000 NBG4615 User’s Guide...
Page 254 11111111.11111111.11111111. 11000000 Subnet Address: Lowest Host ID: 192.168.1.193 192.168.1.192 Broadcast Address: Highest Host ID: 192.168.1.254 192.168.1.255 Example: Eight Subnets Similarly, use a 27-bit mask to create eight subnets (000, 001, 010, 011, 100, 101, 110 and 111). NBG4615 User’s Guide...
Page 255 NO. SUBNETS HOST BITS SUBNET 255.255.128.0 (/17) 32766 255.255.192.0 (/18) 16382 255.255.224.0 (/19) 8190 255.255.240.0 (/20) 4094 255.255.248.0 (/21) 2046 255.255.252.0 (/22) 1022 255.255.254.0 (/23) 255.255.255.0 (/24) 255.255.255.128 (/25) 255.255.255.192 (/26) 1024 255.255.255.224 (/27) 2048 255.255.255.240 (/28) 4096 NBG4615 User’s Guide...
Page 256 Network Address Translation (NAT) on the NBG4615. Once you have decided on the network number, pick an IP address for your NBG4615 that is easy to remember (for instance, 192.168.1.1) but make sure that no other device on your network is using that IP address.
Page 257 WAN addresses must be on different subnets. In the following example, the LAN and WAN are on the same subnet. The LAN computers cannot access the Internet because the router cannot route between networks. Figure 171 Conflicting Router IP Addresses Example NBG4615 User’s Guide...
Page 258 LAN port both use 192.168.1.1 as the IP address. The computer cannot access the Internet. This problem can be solved by assigning a different IP address to the computer or the router’s LAN port. Figure 172 Conflicting Computer and Router IP Addresses Example NBG4615 User’s Guide...
Page 259: Appendix D Setting Up Your Computer's Ip Address
PP EN D I X Setting Up Your Computer’s IP Address Note: Your specific NBG4615 may not support all of the operating systems described in this appendix. See the product specifications for more information about which operating systems are supported.
Page 260 Appendix D Setting Up Your Computer’s IP Address Windows XP/NT/2000 The following example uses the default Windows XP display theme but can also apply to Windows 2000 and Windows NT. Click Start > Control Panel. In the Control Panel, click the Network Connections icon. NBG4615 User’s Guide...
Page 261 Appendix D Setting Up Your Computer’s IP Address Right-click Local Area Connection and then select Properties. On the General tab, select Internet Protocol (TCP/IP) and then click Properties. NBG4615 User’s Guide...
Page 262 In the Command Prompt window, type "ipconfig" and then press [ENTER]. You can also go to Start > Control Panel > Network Connections, right-click a network connection, click Status and then click the Support tab to view your IP address and connection information. NBG4615 User’s Guide...
Page 263 Appendix D Setting Up Your Computer’s IP Address Windows Vista This section shows screens from Windows Vista Professional. Click Start > Control Panel. In the Control Panel, click the Network and Internet icon. Click the Network and Sharing Center icon. NBG4615 User’s Guide...
Page 264 Appendix D Setting Up Your Computer’s IP Address Click Manage network connections. Right-click Local Area Connection and then select Properties. Note: During this procedure, click Continue whenever Windows displays a screen saying that it needs your permission to continue. NBG4615 User’s Guide...
Page 265 Appendix D Setting Up Your Computer’s IP Address Select Internet Protocol Version 4 (TCP/IPv4) and then select Properties. NBG4615 User’s Guide...
Page 266 In the Command Prompt window, type "ipconfig" and then press [ENTER]. You can also go to Start > Control Panel > Network Connections, right-click a network connection, click Status and then click the Support tab to view your IP address and connection information. NBG4615 User’s Guide...
Page 267 Appendix D Setting Up Your Computer’s IP Address Windows 7 This section shows screens from Windows 7 Enterprise. Click Start > Control Panel. In the Control Panel, click View network status and tasks under the Network and Internet category. Click Change adapter settings. NBG4615 User’s Guide...
Page 268 Appendix D Setting Up Your Computer’s IP Address Double click Local Area Connection and then select Properties. Note: During this procedure, click Continue whenever Windows displays a screen saying that it needs your permission to continue. NBG4615 User’s Guide...
Page 269 Appendix D Setting Up Your Computer’s IP Address Select Internet Protocol Version 4 (TCP/IPv4) and then select Properties. NBG4615 User’s Guide...
Page 270 Click Advanced if you want to configure advanced settings for IP, DNS and WINS. Click OK to close the Internet Protocol (TCP/IP) Properties window. Click OK to close the Local Area Connection Properties window. NBG4615 User’s Guide...
Page 271 In the Command Prompt window, type "ipconfig" and then press [ENTER]. The IP settings are displayed as follows. Mac OS X: 10.3 and 10.4 The screens in this section are from Mac OS X 10.4 but can also apply to 10.3. Click Apple > System Preferences. NBG4615 User’s Guide...
Page 272 Appendix D Setting Up Your Computer’s IP Address In the System Preferences window, click the Network icon. When the Network preferences pane opens, select Built-in Ethernet from the network connection type list, and then click Configure. NBG4615 User’s Guide...
Page 273 • In the IP Address field, type your IP address. • In the Subnet Mask field, type your subnet mask. • In the Router field, type the IP address of your device. Click Apply Now and close the window. NBG4615 User’s Guide...
Page 274 Network Interface from the Info tab. Figure 173 Mac OS X 10.4: Network Utility Mac OS X: 10.5 and 10.6 The screens in this section are from Mac OS X 10.5 but can also apply to 10.6. Click Apple > System Preferences. NBG4615 User’s Guide...
Page 275 Appendix D Setting Up Your Computer’s IP Address In System Preferences, click the Network icon. When the Network preferences pane opens, select Ethernet from the list of available connection types. From the Configure list, select Using DHCP for dynamically assigned settings. NBG4615 User’s Guide...
Page 276 • In the IP Address field, enter your IP address. • In the Subnet Mask field, enter your subnet mask. • In the Router field, enter the IP address of your NBG4615. Click Apply and close the window. NBG4615 User’s Guide...
Page 277 The following screens use the default Ubuntu 8 installation. Note: Make sure you are logged in as the root administrator. Follow the steps below to configure your computer IP address in GNOME: Click System > Administration > Network. NBG4615 User’s Guide...
Page 278 Unlock button is greyed out until clicked.) You cannot make changes to your configuration unless you first enter your admin password. In the Authenticate window, enter your admin account name and password then click the Authenticate button. NBG4615 User’s Guide...
Page 279 • In the Configuration list, select Static IP address if you have a static IP address. Fill in the IP address, Subnet mask, and Gateway address fields. Click OK to save the changes and close the Properties dialog box and return to the Network Settings screen. NBG4615 User’s Guide...
Page 280 Appendix D Setting Up Your Computer’s IP Address If you know your DNS server IP address(es), click the DNS tab in the Network Settings window and then enter the DNS server information in the fields provided. Click the Close button to apply the changes. NBG4615 User’s Guide...
Page 281 The following screens use the default openSUSE 10.3 installation. Note: Make sure you are logged in as the root administrator. Follow the steps below to configure your computer IP address in the KDE: NBG4615 User’s Guide...
Page 282 Appendix D Setting Up Your Computer’s IP Address Click K Menu > Computer > Administrator Settings (YaST). When the Run as Root - KDE su dialog opens, enter the admin password and click OK. NBG4615 User’s Guide...
Page 283 When the YaST Control Center window opens, select Network Devices and then click the Network Card icon. When the Network Settings window opens, click the Overview tab, select the appropriate connection Name from the list, and then click the Configure button. NBG4615 User’s Guide...
Page 284 Select Dynamic Address (DHCP) if you have a dynamic IP address. Select Statically assigned IP Address if you have a static IP address. Fill in the IP address, Subnet mask, and Hostname fields. Click Next to save the changes and close the Network Card Setup window. NBG4615 User’s Guide...
Page 285 Click Finish to save your settings and close the window. Verifying Settings Click the KNetwork Manager icon on the Task bar to check your TCP/IP properties. From the Options sub-menu, select Show Connection Information. Figure 177 openSUSE 10.3: KNetwork Manager NBG4615 User’s Guide...
Page 286 Appendix D Setting Up Your Computer’s IP Address When the Connection Status - KNetwork Manager window opens, click the Statistics tab to see if your connection is working properly. Figure 178 openSUSE: Connection Status - KNetwork Manager NBG4615 User’s Guide...
Page 287: Appendix E Wireless Lans
(AP). Intra-BSS traffic is traffic between wireless clients in the BSS. When Intra-BSS is enabled, wireless client A and B can access the wired network and communicate with each other. When Intra-BSS is NBG4615 User’s Guide...
Page 288 APs is called a Distribution System (DS). This type of wireless LAN topology is called an Infrastructure WLAN. The Access Points not only provide communication with the wired network but also mediate wireless network traffic in the immediate neighborhood. NBG4615 User’s Guide...
Page 289 A hidden node occurs when two stations are within range of the same access point, but are not within range of each other. The following figure illustrates a hidden node. Both stations (STA) are within range of the access point (AP) or wireless gateway, but out-of-range of each other, so they NBG4615 User’s Guide...
Page 290 AP will fragment the packet into smaller data frames. A large Fragmentation Threshold is recommended for networks not prone to interference while you should set a smaller threshold for busy networks or networks that are prone to interference. NBG4615 User’s Guide...
Page 291 Wireless security is vital to your network to protect wireless communication between wireless clients, access points and the wired network. Wireless security methods available on the NBG4615 are data encryption, wireless client authentication, restricting access by device MAC address and hiding the NBG4615 identity.
Page 292 Wi-Fi Protected Access (WPA) WPA2 Most Secure Note: You must enable the same wireless security settings on the NBG4615 and on all wireless clients that you want to associate with it. IEEE 802.1x In June 2001, the IEEE 802.1x standard was designed to extend the features of IEEE 802.11 to support extended authentication as well as providing additional accounting and control features.
Page 293 For EAP-TLS authentication type, you must first have a wired connection to the network and obtain the certificate(s) from a certificate authority (CA). A certificate (also called digital IDs) can be used to authenticate users and a CA issues certificates and guarantees the identity of each certificate owner. NBG4615 User’s Guide...
Page 294 The AP maps a unique key that is generated with the RADIUS server. This key expires when the wireless connection times out, disconnects or reauthentication times out. A new WEP key is generated each time reauthentication is performed. NBG4615 User’s Guide...
Page 295 Cipher block chaining Message authentication code Protocol (CCMP). TKIP uses 128-bit keys that are dynamically generated and distributed by the authentication server. AES (Advanced Encryption Standard) is a block cipher that uses a 256-bit mathematical algorithm NBG4615 User’s Guide...
Page 296 WPA. At the time of writing, the most widely available supplicant is the WPA patch for Windows XP, Funk Software's Odyssey client. The Windows XP patch is a free download that adds WPA capability to Windows XP's built-in "Zero Configuration" wireless client. However, you must run Windows XP to use it. NBG4615 User’s Guide...
Page 297 The AP checks each wireless client's password and allows it to join the network only if the password matches. The AP and wireless clients generate a common PMK (Pairwise Master Key). The key itself is not sent over the network, but is derived from the PSK and the SSID. NBG4615 User’s Guide...
Page 298: Security Parameters Summary
An antenna couples RF signals onto air. A transmitter within a wireless device sends an RF signal to the antenna, which propagates the signal through the air. The antenna also operates in reverse by capturing RF signals from the air. NBG4615 User’s Guide...
Page 299 For omni-directional antennas mounted on a table, desk, and so on, point the antenna up. For omni-directional antennas mounted on a wall or ceiling, point the antenna down. For a single AP application, place omni-directional antennas as close to the center of the coverage area as possible. NBG4615 User’s Guide...
Page 300 Appendix E Wireless LANs For directional antennas, point the antenna in the direction of the desired coverage area. NBG4615 User’s Guide...
Page 301: Appendix F Common Services
File Transfer Program, a program to enable fast transfer of files, including large files that may not be possible by e-mail. H.323 1720 NetMeeting uses this protocol. NBG4615 User’s Guide...
Page 302 REXEC Remote Execution Daemon. RLOGIN Remote Login. RTELNET Remote Telnet. RTSP TCP/UDP The Real Time Streaming (media control) Protocol (RTSP) is a remote control for multimedia on the Internet. SFTP Simple File Transfer Protocol. NBG4615 User’s Guide...
Page 303 TFTP Trivial File Transfer Protocol is an Internet file transfer protocol similar to FTP, but uses the UDP (User Datagram Protocol) rather than TCP (Transmission Control Protocol). VDOLIVE 7000 Another videoconferencing solution. NBG4615 User’s Guide...
Page 304 Appendix F Common Services NBG4615 User’s Guide...
Page 305: Appendix G Ipv6
“private IP address” in IPv4. You can have the same link-local address on multiple interfaces on a device. A link-local unicast address has a predefined prefix of fe80::/10. The link-local unicast address format is as follows. Table 109 Link-local Unicast Address Format 1111 1110 10 Interface ID 10 bits 54 bits 64 bits NBG4615 User’s Guide...
Page 306: Global Address
All DHCP severs on a local site. FF05:0:0:0:0:0:1:3 The following table describes the multicast addresses which are reserved and can not be assigned to a multicast group. Table 111 Reserved Multicast Address MULTICAST ADDRESS FF00:0:0:0:0:0:0:0 FF01:0:0:0:0:0:0:0 FF02:0:0:0:0:0:0:0 FF03:0:0:0:0:0:0:0 FF04:0:0:0:0:0:0:0 FF05:0:0:0:0:0:0:0 FF06:0:0:0:0:0:0:0 FF07:0:0:0:0:0:0:0 NBG4615 User’s Guide...
Page 307 DHCPv6 server uses T1 and T2 to control the time at which the client contacts with the server to extend the lifetimes on any addresses in the IA_NA before the lifetimes expire. After T1, the client sends the server (S1) (from which the addresses in the IA_NA were obtained) a Renew message. If NBG4615 User’s Guide...
Page 308 Prefix delegation enables an IPv6 router to use the IPv6 prefix (network address) received from the ISP (or a connected uplink router) for its LAN. The NBG4615 uses the received IPv6 prefix (for example, 2001:db2::/48) to generate its LAN IP address. Through sending Router Advertisements (RAs) regularly by multicast, the NBG4615 passes the IPv6 prefix information to its LAN hosts.
Page 309 When the NBG4615 needs to send a packet, it first consults the destination cache to determine the next hop. If there is no matching entry in the destination cache, the NBG4615 uses the prefix list to determine whether the destination address is on-link and can be reached directly without passing through a router.
Page 310 Install Dibbler and select the DHCPv6 client option on your computer. After the installation is complete, select Start > All Programs > Dibbler-DHCPv6 > Client Install as service. Select Start > Control Panel > Administrative Tools > Services. NBG4615 User’s Guide...
Page 311 Windows 7 supports IPv6 by default. DHCPv6 is also enabled when you enable IPv6 on a Windows 7 computer. To enable IPv6 in Windows 7: Select Control Panel > Network and Sharing Center > Local Area Connection. Select the Internet Protocol Version 6 (TCP/IPv6) checkbox to enable it. Click OK to save the change. NBG4615 User’s Guide...
Page 312 IPv4 Address... : 172.16.100.61 Subnet Mask ... : 255.255.255.0 Default Gateway ..: fe80::213:49ff:feaa:7125%11 172.16.100.254 NBG4615 User’s Guide...
Page 313 Open Software Announcements End-User License Agreement for "NBG4615" WARNING: ZyXEL Communications Corp. IS WILLING TO LICENSE THE SOFTWARE TO YOU ONLY UPON THE CONDITION THAT YOU ACCEPT ALL OF THE TERMS CONTAINED IN THIS LICENSE AGREEMENT. PLEASE READ THE TERMS CAREFULLY BEFORE COMPLETING THE INSTALLATION PROCESS AS INSTALLING THE SOFTWARE WILL INDICATE YOUR ASSENT TO THEM.
Page 314 ALLOW THE WAIVER OR EXCLUSION OF IMPLIED WARRANTIES SO THEY MAY NOT APPLY TO YOU. IF THIS EXCLUSION IS HELD TO BE UNENFORCEABLE BY A COURT OF COMPETENT JURISDICTION, THEN ALL EXPRESS AND IMPLIED WARRANTIES SHALL BE LIMITED IN DURATION TO A PERIOD OF NBG4615 User’s Guide...
Page 315 License Agreement shall constitute the entire Agreement between the parties hereto. This License Agreement, the rights granted hereunder, the Software and Documentation shall not be assigned by you without the prior written consent of ZyXEL. Any waiver or modification of this License NBG4615 User’s Guide...
Page 316 No part may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, except the express written permission of ZyXEL Communications Corporation. This Product includes Linux Kernel , Uboot, Busybox, bpalogin, bridge-utils, dnsmasq, hotplug2, igmpproxy, iproute2, iptables, linux-igd, mtd-utils, ntpclient, ppp(pppd plugins), pptp, rp-l2pt, quagga, syslog-ng, updated, wireless_tools and gcc software under GPL 2.0 license.
Page 317 2. You may modify your copy or copies of the Program or any portion of it, thus forming a work based on the Program, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions: NBG4615 User’s Guide...
Page 318 If distribution of executable or object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place NBG4615 User’s Guide...
Page 319 If the Program specifies a version number of this License which applies to it and "any later version", you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Program does not specify NBG4615 User’s Guide...
Page 320 THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, NBG4615 User’s Guide...
Page 321 INC. PROPRIETARY CODE. PLEASE CAREFULLY READ THIS AGREEMENT AS IT PERTAINS TO THIS LICENSE, YOU CERTIFY THAT YOU WILL USE THE SOFTWARE ONLY IN THE MANNER PERMITTED HEREIN. 1. Definitions. 1.1 "Documentation" means any documentation GoAhead includes with the Original Code. NBG4615 User’s Guide...
Page 322 "control" means (a) the power, direct or indirect, to cause the direction or management of such entity, whether by contract or otherwise, or (b) ownership of fifty percent (50%) or more of the outstanding shares or beneficial ownership of such entity. 2. Source Code License. 2.1 Limited Source Code Grant. NBG4615 User’s Guide...
Page 323 Agreement, will survive termination of this Agreement for any reason. Upon termination, You agree to uninstall or destroy all copies of the Original Code, Modifications, and Documentation. 4. Trademarks and Brand. 4.1 License and Use. NBG4615 User’s Guide...
Page 324 IS RECORDED (IF ANY) ARE PROVIDED "AS IS" AND WITHOUT WARRANTIES OF ANY KIND, EXPRESS, STATUTORY OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. The entire risk as to the quality and performance of the Original Code NBG4615 User’s Guide...
Page 325 YOUR SOLE REMEDIES AND GOAHEAD'S ENTIRE LIABILITY ARE SET FORTH ABOVE. IN NO EVENT WILL GOAHEAD OR ITS DISTRIBUTORS OR DEALERS BE LIABLE FOR DIRECT, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE ORIGINAL CODE, THE INABILITY TO USE THE ORIGINAL CODE, NBG4615 User’s Guide...
Page 326 (including legal expenses and reasonable counsel fees) arising out of any claim of a third party with respect to the contents of the Your products, and any intellectual property rights or other rights or interests related thereto. 8. High Risk Activities. NBG4615 User’s Guide...
Page 327 The Original Code (i) was developed at private expense, and no part of it was developed with governmental funds; (ii) is a trade secret of GoAhead (or its licensor(s)) for all purposes of the Freedom of Information Act; (iii) is "restricted computer software" subject to limited utilization as NBG4615 User’s Guide...
Page 328 ACCEPT AND AGREE TO BE BOUND BY ALL OF THE TERMS AND CONDITIONS SET FORTH IN THIS AGREEMENT. IF YOU DO NOT WISH TO ACCEPT THIS LICENSE OR YOU DO NOT QUALIFY FOR A LICENSE BASED ON THE TERMS SET FORTH ABOVE, YOU MUST NOT CLICK THE "Register" BUTTON. NBG4615 User’s Guide...
Page 329 - IGMP proxy based multicast router Copyright (C) 2005 Johnny Egeland <johnny@rlo.org> This program is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by NBG4615 User’s Guide...
Page 330 - Licensed under the GNU General Public License, version 2 mrouted 3.9-beta3 - COPYRIGHT 1989 by The Board of Trustees of Leland Stanford Junior University. -Original license can be found in the Stanford.txt file. This Product includes openssl software under below license LICENSE ISSUES ============== NBG4615 User’s Guide...
Page 331 * 3. All advertising materials mentioning features or use of this software must display the following acknowledgment: "This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (http://www.openssl.org/)" * 4. The names "OpenSSL Toolkit" and "OpenSSL Project" must not be used to NBG4615 User’s Guide...
Page 332 * ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED * OF THE POSSIBILITY OF SUCH DAMAGE. * This product includes cryptographic software written by Eric Young * (eay@cryptsoft.com). This product includes software written by Tim * Hudson (tjh@cryptsoft.com). NBG4615 User’s Guide...
Page 333 * Redistribution and use in source and binary forms, with or without * modification, are permitted provided that the following conditions * are met: * 1. Redistributions of source code must retain the copyright notice, this list of conditions and the following disclaimer. NBG4615 User’s Guide...
Page 334 * SUCH DAMAGE. * The licence and distribution terms for any publically available version or * derivative of this code cannot be changed. i.e. this code cannot simply be * copied and put under another distribution licence NBG4615 User’s Guide...
Page 335 NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. This Product includes radvd software under below license The author(s) grant permission for redistribution and use in source and NBG4615 User’s Guide...
Page 336 THIS SOFTWARE IS PROVIDED BY ITS AUTHORS AND CONTRIBUTORS ``AS IS'' AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED NBG4615 User’s Guide...
Page 337 This software is provided 'as-is', without any express or implied warranty. In no event will the authors be held liable for any damages arising from the use of this software. Permission is granted to anyone to use this software for any purpose, NBG4615 User’s Guide...
Page 338 If you redistribute modified sources, we would appreciate that you include in the file ChangeLog history information documenting your changes. Please read the FAQ for more information on the distribution of modified source versions. This Product includes libupnp software under below license Copyright (c) 2000-2003 Intel Corporation NBG4615 User’s Guide...
Page 339 NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. This Product includes uClibc software under LGPL 2.1 license GNU LESSER GENERAL PUBLIC LICENSE NBG4615 User’s Guide...
Page 340 Also, if the library is modified by someone else and passed on, the recipients should know that what they have is not the original version, so that the original author's reputation will not be affected by problems that might be introduced by others. NBG4615 User’s Guide...
Page 341 A "work based on the Library" means either the Library or any derivative work under copyright law: that is to say, a work containing the Library or a portion of it, either verbatim or with NBG4615 User’s Guide...
Page 342 Library, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it. NBG4615 User’s Guide...
Page 343 Otherwise, if the work is a derivative of the Library, you may distribute the object code for the work under the terms of Section 6. Any executables containing that work also fall under Section 6, whether or not they are linked directly with the Library itself. NBG4615 User’s Guide...
Page 344 "a) Accompany the combined library with a copy of the same work based on the Library, uncombined with any other library facilities. This must be distributed under the terms of the Sections above. NBG4615 User’s Guide...
Page 345 In such case, this License incorporates the limitation as if written in the body of this License. NBG4615 User’s Guide...
Page 346 INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE LIBRARY TO OPERATE WITH ANY OTHER SOFTWARE), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. END OF TERMS AND CONDITIONS NBG4615 User’s Guide...
Page 347: Legal Information
ZyXEL further reserves the right to make changes in any products described herein without notice. This publication is subject to change without notice. TradeMarks NetUSB is a trademark of ZyXEL Communications, Inc. Other trademarks mentioned in this publication are used for identification purposes only and may be properties of their respective owners.
Page 348 IMPORTANT NOTE: IC Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. NBG4615 User’s Guide...
Page 349 God, or subjected to abnormal working conditions. Note Repair or replacement, as provided under this warranty, is the exclusive remedy of the purchaser. This warranty is in lieu of all other warranties, express or implied, including any implied warranty of NBG4615 User’s Guide...
