PRELIMINARY
PCS-35
PCS-35
Speed Dome Camera System

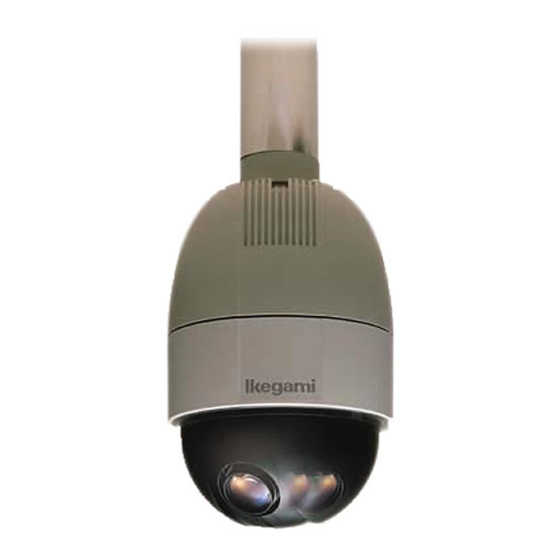

The PCS-35 is a multifunctional speed dome camera combined
NTSC 360,000 pixels/PAL 420,000 pixels of 1/4" CCD with large
magnification zoom lens (optical 23-times and digital 10-times)
and high speed pan/tilt drive. It realizes high speed tracking by
preset setting with its peripheral controller.
System can be expanded to a maximum of 240 units of PCS-35
and a maximum of 5088 preset points.
Advertisement
Related Manuals for Ikegami PCS-35
Summary of Contents for Ikegami PCS-35
- Page 1 (optical 23-times and digital 10-times) and high speed pan/tilt drive. It realizes high speed tracking by preset setting with its peripheral controller. System can be expanded to a maximum of 240 units of PCS-35 and a maximum of 5088 preset points.
-
Page 2: Other Accessories
¡Visibility is improved by a large-sized-with PCS-35SC backlight LCD for a display part. ¡System Controller for a PCS-35 speed dome ¡Various setup of a PCS-35 can be done from this camera system. keyboard. ¡It makes a PCS-35 system to expand to maximum ¡Dimensions W290xH55xD210mm (W11.4 x H2.2 x... -
Page 3: System Example
System Example System1 BNC Coaxial Cable Control Cable AC120V monitor AC24V AC120V PCS-35 PCS-351 AC120V PCS-35KB System2 AC24V PCS-35 AC24V AC24V AC24V AC24V monitor AC120V AC24V PCS-358 AC120V PCS-35 AC24V AC24V AC120V PCS-35KB System3 AC24V PCS-35 AC24V AC24V monitor monitor... - Page 4 140 x H210mm ( 55.12 x H82.68inch) Design and Specifications are subject to change without notice. U99A053-SELF3 Printed in Japan IKEGAMI ELECTRONICS ( U.S.A. ) , INC. URL http: //www.ikegami.com 37 BROOK AVENUE, MAYWOOD, NJ 07607 HEADQUARTERS Phone: ( 201 ) 368-9171 Fax: ( 201 ) 569-1626 WESTCOAST OFFICE 2631 MANHATTAN BEACH BLVD., REDONDO BEACH, CA 90278 Phone: ( 310 ) 297-1900 Fax: ( 310 ) 536-9550...
