Summary of Contents for Ikegami MKC-507

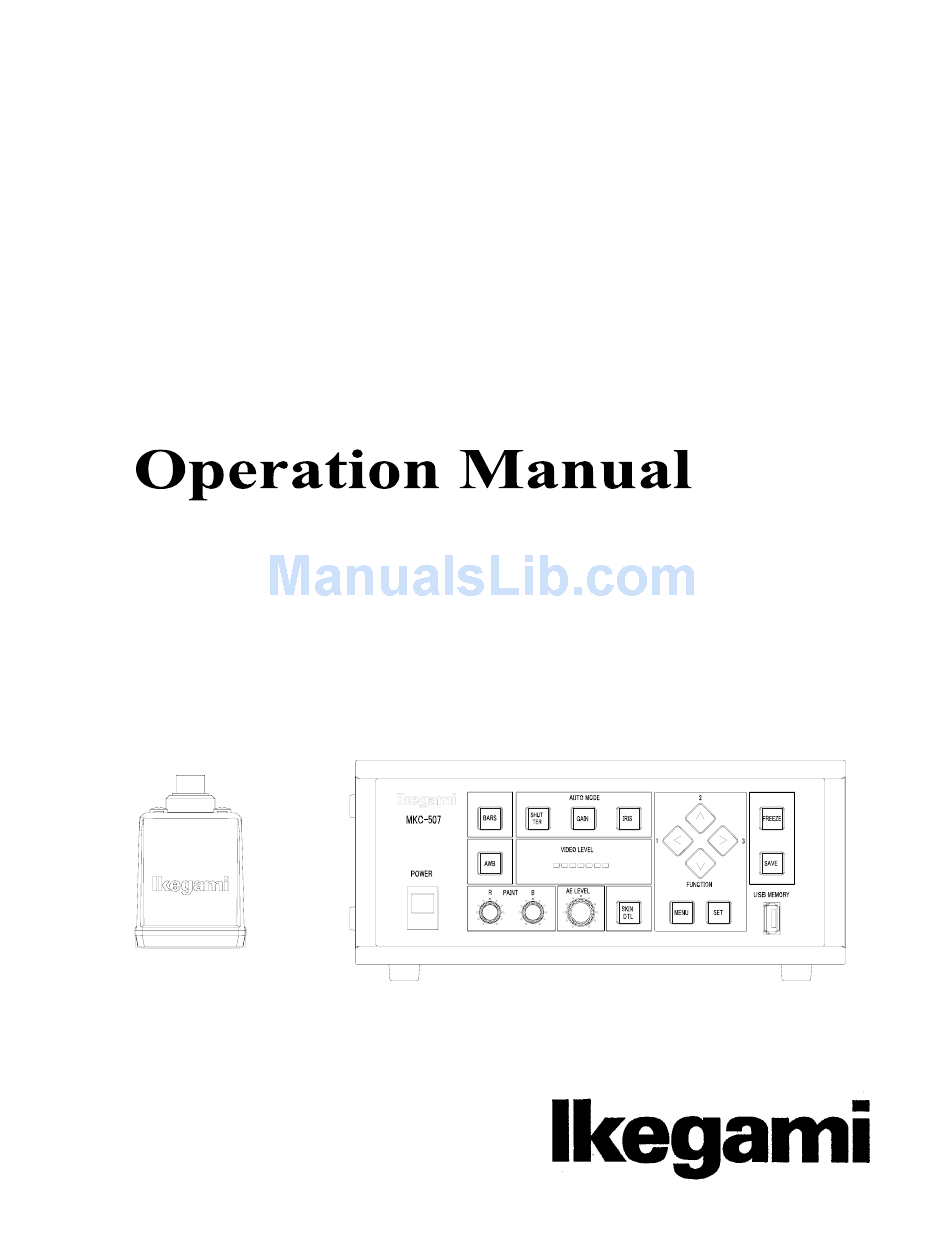

- Page 1 MKC-507 Digital Process Compact 3CCD Color Camera DN-21722-1...
- Page 2 The copyright of the software made for this product is in Ikegami Tsushinki Co., Ltd. It forbids to reproduction, a change, and so on about DN-21722-1...
-
Page 3: Safety Precautions
Safety Precautions For safe and correct usage CAUTION Thoroughly read the “Safety Precautions” and the operation When using the unit: manual before using the unit. Keep them carefully after Do not place a receptacle containing water or a small reading and use as ready reference. metallic piece on the unit! If water spills in the unit, a fire or electric shock may be caused. - Page 4 WARNING: The MKC-507 is authorized UL60601 Class I . When installing the unit: NOTE: This equipment has been tested and found to comply with Do not place a heavy thing on the unit! the limits for a Class A digital device, pursuant to part 15 of the The unit may lose a balance or drop, causing an injury.
- Page 5 DN-21722-1...
-
Page 6: Table Of Contents
Contents 1. Name and Function of each part CAMERA HEAD Front panel of CCU Back panel of CCU 2. Operation Connection Turning On Power Supply Setting Auto White Balance 3. Menu Operation Operation Method Video Adjust AE Mode DTL Set Field/Frame Auto Adjust Scene File... - Page 8 DN-21722-1...
-
Page 9: Name And Function Of Each Part
1. Name and function of each part CAMERA HEAD Side View Rear View 1/2"C mount LENS connector CAMERA connector 1/2” C mount Mount for connecting the lens and microscope adapter. LENS connector Used to connect the IRIS cable of the special microscope adapter and 1/2 inch C mount lens. LENS connector HR10A-7R-4S +12V... -
Page 10: Front Panel Of Ccu
Menu switch Power switch Used to turn on and off power to MKC-507. When this switch is turned on, the logo of "Ikegami" lights up blue. Pressing the top of the switch turns on power, and pressing the bottom of the switch turns off power. When this switch is turned on, the picture is output in the state where power was last turned off. - Page 11 Color bar switch Used to output an internal color bar signal of the camera to the picture output. This color bar signal can be used to control the brightness, contrast, etc. of the color monitor. Electronic shutter switch Used to keeps the output level of a video signal constant by controlling shutter speed automatically. Automatic switching from 1/60 seconds to 1/10000 seconds.
- Page 12 Menu switch Used to display the menu on which the user can set as desired on the monitoring screen. Select an item you want to set with Arrow key and define it with Define switch. For menu items you can set, refer to "Making menu selections". SET switch To define the item you want to set with the menu displayed, press this switch.
-
Page 13: Back Panel Of Ccu
Back panel of CCU CAMERA connector LAN connector USB connector KB/MOUSE connector VGA connector S-VIDEO OUT connector FOOT SW connector DV OUT connector RS-232C connector VIDEO OUT connector RGB OUT connector GEN LOCK IN connector AUDIO IN connector CAMERA connector Used to connect to CAMERA connector of the camera head with the camera cable. - Page 14 S-VIDEO OUT connector Used to output a Y/C VIDEO signal. Connect to a monitor having an S-VIDEO input with the S-VIDEO cable (option). AUDIO IN connector When outputting a sound signal to external equipment connected with the DV interface, input a sound signal from this connector.
-
Page 15: Operation
S-VIDEO cable RGB cable Foot switch Back panel of MKC-507 CCU * Terminate the output from RGB OUT and VIDEO OUT at 75 on the receiver side. Peripheral equipment to be connected to the THD-311 should be UL approved equipment. -
Page 16: Turning On Power Supply
(POWER switch) of CCU. When power to CCU is turned on, MKC-507(CAMERA HEAD+CCU) is initialized by the built-in computer. The monitor greens during this period. However it is not a trouble. -
Page 17: Setting Auto White Balance
Setting Auto White Balance Usually, MKC-507 can be operated immediately after turning on power supply. Therefore, any other operations are unnecessary. However, when using MKC-507 for the first time, or when the light source has been changed, set auto white balance. -
Page 18: Menu Operation
3. Menu Operation MKC-507 has various useful and practical functions. The user can select and set these functions on the menu. The basic operation is as follows: Operation method 1. Pressing the menu switch on the front panel of CCU displays a menu on the monitoring screen, on which various camera functions can be set. -
Page 19: Video Adjust
Video Adjust Used to adjust the level of black, red and blue of an picture. [Master Pedestal] Used to change the master pedestal value by means of [ ] [ ] switches. It is not used during ordinary operation. [Gain Offset Red] Used to change the level of red by means of [ ] [ ] switches. -
Page 20: Dtl Set
[AE Speed] Used to select the response rate of the electronic shutter and automatic sensitivity from among Middle, Fast and Slow. [Peak Ratio Set] Used to change the type of photometry while the electronic shutter and automatic sensitivity are operative. [ ] direction : Maximum value photometry. -
Page 21: Field/Frame
Field/Frame Used to switch the display method in the state of still screen picture. [CCD Acuum] Usually, set it to Field. [Freeze Mode] Used to choose the method of displaying the state of still screen picture between Field and Frame. Auto Adjust Used for automatic black level control and automatic white shading. -
Page 22: Scene File
Scene File Used to read and write a scene file, and also reset to the factory default. [Load Scene] Used to read a scene file. It has the same function as (16) Arrow switch on the front panel of CCU. It is possible to select from among No.1, No.2, No.3, and No.4. -
Page 23: Title
[Foot Switch 1] Select a function of the black foot switch from among Screen control (Freeze), Save (optional function), Record (not available), Fluorescein (not available), and Scene File (not available). [Foot Switch 2] Select a function of the green foot switch from among Screen control (Freeze), Save (optional function), Record (not available), Fluorescein (not available), and Scene File (not available). -
Page 24: Jpeg Parameter
JPEG Parameter Used to set the quality of a still picture to be recorded in USB memory. [JPEG Factor] Used to determine JPEG quality of picture. “100” means the highest quality of picture, of which capacity of is about 200KB. Sound Level Used to adjust sound volume. -
Page 25: Date/Time Adjust
Date/Time Adjust Used to set date and time. * When date and time have been set, be sure to press “Define” switch and then erase the menu screen. Miscellaneous Used for other settings. [CCU Place] Used to select the method of placing CCU. When placing CCU vertically, select Vertical. -
Page 26: Specifications
4. Specifications Ratings Optical system : RGB prism system Lens mount : 1/2-inch C-mount system Picture pickup device : 1/2-inch IT type CCD 3 Scanning method : 2:1 interlace 525 lines 60 fields 30 frames Aspect ratio : H4 : V3 Output signal Composite output : VBS :... -
Page 27: Performances
Performance Resolution: Horizontal: 850 lines (standard) Vertical: 400 lines SN ratio: 64dB ( and detail OFF, encoder output) Sensitivity: Standard: 2000lx F11/3200 K or more Registration error: Within 0.05% on full screen Functions External remote function: External controller (option) connection Color bar: Built in generator Auto functions:... -
Page 28: External Appearance
5. External Appearances Camera head Name Plate DN-21722-1... - Page 29 Operation Manual Edition Jun 2005 Published by Ikegami Tsushinki Co., Ltd. It forbids to copy it without notice and to reproduce it about a part of this manual or all as for any method as well without taking the assent of Ikegami Tsushinki Co., Ltd.
- Page 30 5-6-16, Ikegami, Ohta-ku, Tokyo, 146 Japan Phone: 03-5700-1111, Fax: 03-5700-1137 Ikegami Electronics (U.S.A.), Inc. 37 Brook Avenue, Maywood, New Jersey 07607, U.S.A. Phone: (201)368-9171, Fax: (201)569-1626 Ikegami Electronics (Europe) GmbH Ikegami strasse 1, 41460 Neuss 1, F.R Germany Phone: (02131)123-0, Fax: 02131)102820 DN-21722-1...
