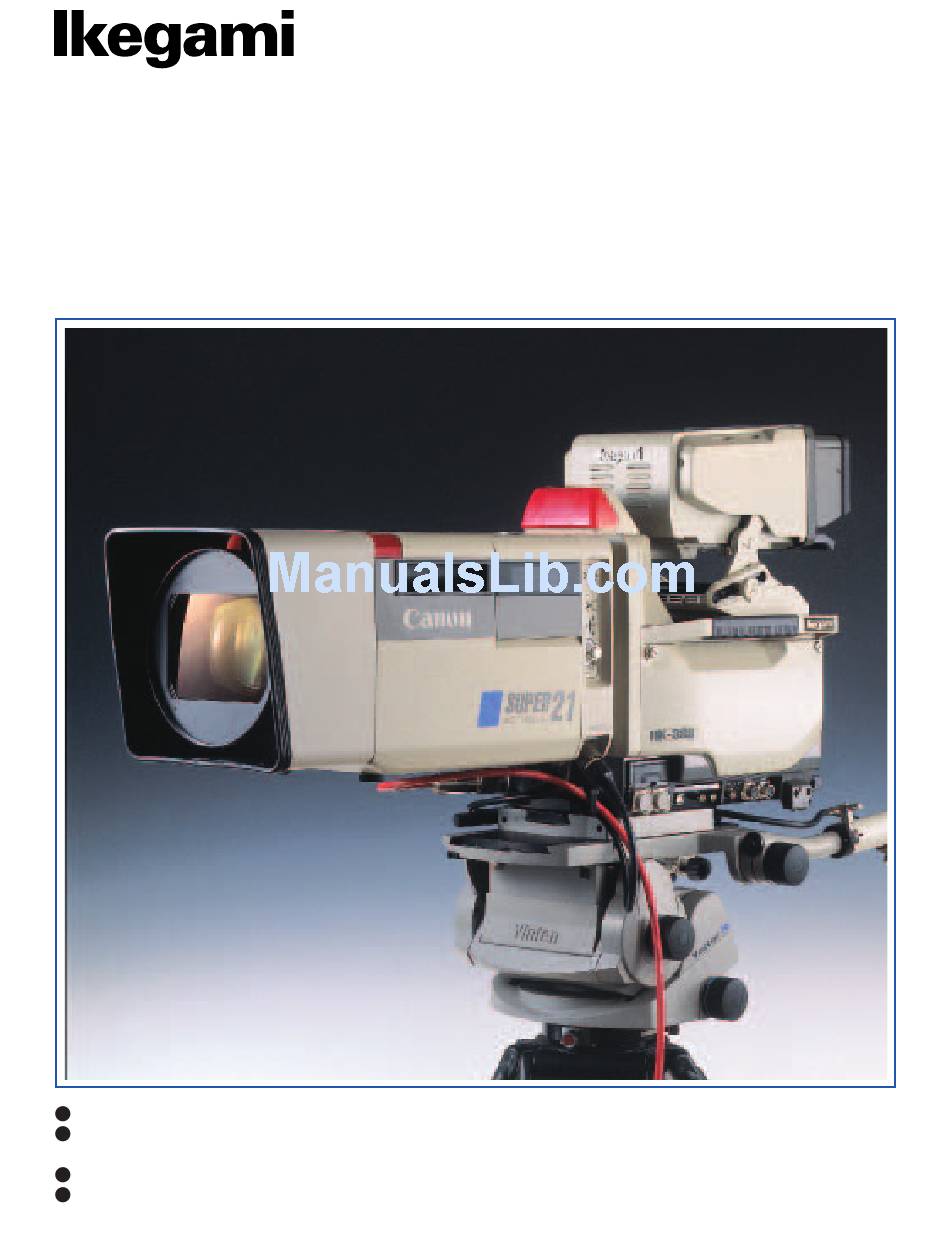

Ultra-wideband Studio/Field Digital CCD Camera System
HK-388
Digital Studio Camera.
HK-388P
Portable companion with performance and functionality equivalent to the HK-388 and
utilizing the BS, MCP and OCP common to the HK-388
HK-388W
16:9/4:3 Switchable Studio Camera.
HK-388PW Plug compatible Portable Companion to the HK-388W also with switchable 16:9/4:3
aspect ratio.
HK - 388
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ikegami HK-388
Summary of Contents for Ikegami HK-388
- Page 1 HK - 388 HK-388 Digital Studio Camera. HK-388P Portable companion with performance and functionality equivalent to the HK-388 and utilizing the BS, MCP and OCP common to the HK-388 HK-388W 16:9/4:3 Switchable Studio Camera. HK-388PW Plug compatible Portable Companion to the HK-388W also with switchable 16:9/4:3...
- Page 2 Three VLSI (Very Large Scale Integration) chips have Both camera head and base station incorporate the new digital encoder ASIC providing highly stable been developed by Ikegami for the digital process, performance with NTSC encoded outputs available as digital encoder, and data rate converter IC’s. Cutting- standard at the camera as well as base station.
- Page 3 Combining Top Image Quality with Production Creativity The HK-388 and HK-388P deliver high resolution, low noise image quality with a wide dynamic range and accurate color fidelity. Due to the extensive use of digital circuits, top image quality is achieved in a consistent and easy manner.
- Page 4 Total Commitment to Practical Use The HK-388 and HK-388P are designed for easy operation in practical applications. New component triax and fiber cable systems are available together with interface accessories for existing RGB triax. Camera operator and video operator facilities are further enhanced over predecessor models.
- Page 5 The HK-388P and HK-388PW have a new mechanical 7-inch Viewfinder design with lower center-of-gravity for good balance on the - Standard for HK-388 and HK-388W, also option for shoulder. The triax connector is mounted with pivot to HK-388P and HK-388PW provide excellent freedom of movement.
-
Page 6: Lens File
3 Only HK-388W/PW. 4 Self-contain use only. WHITE CLIP R,G,B R,G,B R,G,B R,G,B R,G,B R,G,B R,G,B R,G,B R,G,B R,G,B 5 Available for HK-388/W and/or HK-388P/PW with TA-388P. KNEE SLOPE R,G,B R,G,B R,G,B R,G,B R,G,B R,G,B R,G,B R,G,B R,G,B R,G,B KNEE POINT... - Page 7 AUTO SETUP LEVEL COLOR QUICK START (AC 220V Transmission) MCP-2 WFM IN MODE SWITCH PM IN WFM IN AUX IN COLOR C.TEMP HK-388/W WFM REM BARS DIASCOPE CORR 5600K PM OUT WFM OUT SYNC OUT SHUTTER BLACK GAMMA 0.45 0.35 VAR.
- Page 8 D430 mm) Utility Power 200VA [ HK-388P/HK-388PW Camera Head ] Weight HK-388(W) camera head: 27 kg (59.5 lbs) approx. HK-388P(W) camera head: 3.3 kg (7.3 lbs) approx. Composite Video Signal VBS 1Vp-p positive 75 (System connector) (excluding VF and TA)
