Installation
Instructions

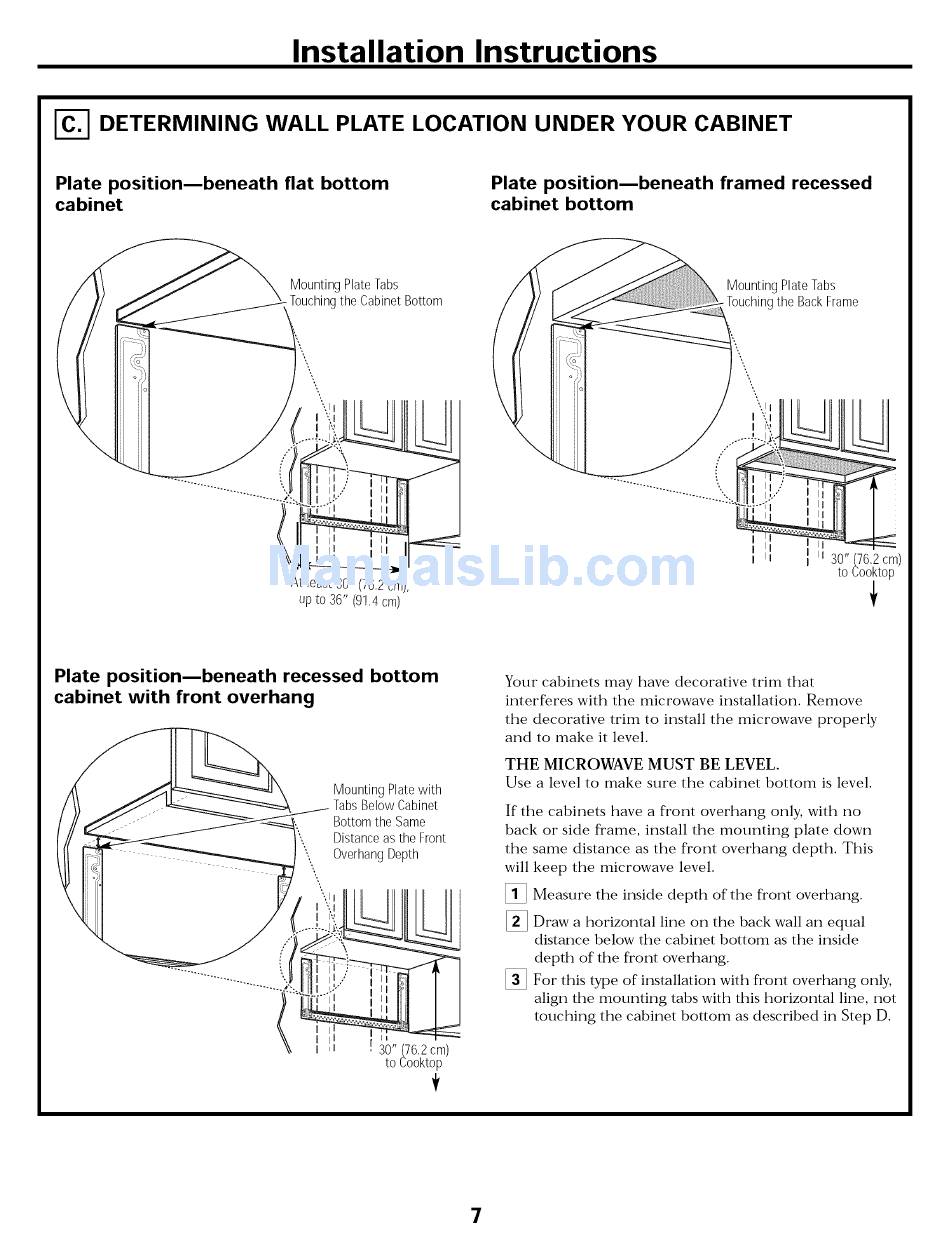

DETERMINING
WALL PLATE LOCATION UNDER YOUR CABINET
Plate
positionmbeneath
flat
bottom
cabinet
Plate
positionmbeneath
framed
recessed
cabinet
bottom
MountingPlateTabs
Touching the CabinetBottom
At least 30" (76.2cm),
up to 36" (9!.4 cm)
MountingPlateTabs
.Touchingthe BackFrame
i
I
I
i i 30" (76,2 cm)
to Cooktop
Plate
position_beneath
recessed
bottom
cabinet
with
front
overhang
Mounting Plate with
Tabs Below Cabinet
Bottom the Same
Distance as the Front
Overhang Depth
30" (76,2 cm)
to Cooktop
!
Your
cabinets
may
have
decorative
trim
that
interferes
with
the
microwave
installation.
Remove
the
decorative
trim
to install
the
microwave
properly
and
to make
it level.
THE MICROWAVE MUST BE LEVEL.
Use a level to make sure the cabinet bottom
is level.
If the cabinets
have a front overhang
only, with no
back or side frame, install the mounting
plate down
the same distance
as the front overhang
depth. This
will
[]
%
%
keep
the
microwave
level.
Measure
the inside
depth
of the front
overhang.
Draw
a horizontal
line
on the
back
wall an
equal
distance
below
the
cabinet
bottom
as the
inside
depth
of the
front
overhang.
For this
type
of installation
with
front
overhang
only,
align
the
mounting
tabs
with
this
horizontal
line,
not
touching
the
cabinet
bottom
as described
in Step
D.
7
