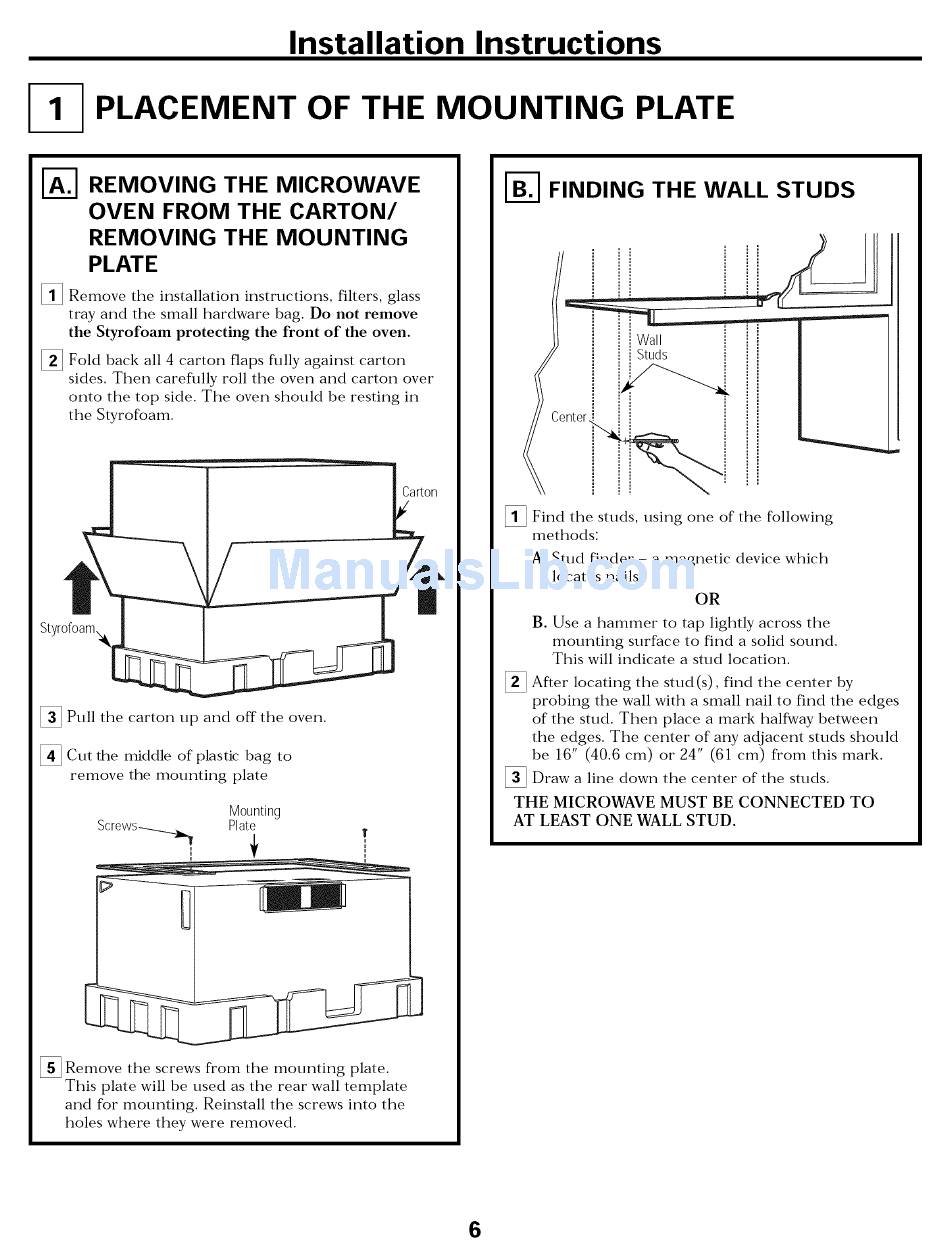

PLACEMENT OF THE MOUNTING
PLATE
I-_
REMOVING
THE MICROWAVE
OVEN FROM THE CARTON/
REMOVING
THE MOUNTING
PLATE
[]Remove
the
installation
instructions,
filters,
glass
tray
and
the
small
hardware
bag.
Do
not
remove
the
Styrofoam
protecting
the
front
of the
oven.
[]
Fold
back
all 4 carton
flaps
fully
against
carton
sides.
Then
carefully
roll
the
oven
and
carton
over
onto
the
top
side
The
oven
should
be resting
in
the
Styrofoam.
Styrofoam_
[]Pull
the carton
up and
off the oven
[]Cut
the middle
of plastic
bag to
remove
the mounting
plate
Mounting
Screws-_
Plate
f
[]Remove
the
screws
from
the
mounting
plate.
This
plate
will be
used
as the
rear
wall
template
and
for
mounting.
Reinstall
the
screws
into
the
holes
where
they
were
removed.
I-_
FINDING
THE WALL
STUDS
[]Find
the
studs,
using
one
of the
following
methods:
A. Stud
finder
- a magnetic
device
which
locates
nails.
OR
B. Use
a hammer
to tap
lightly
across
the
mounting
surface
to find
a solid
sound.
This
will indicate
a stud
location
[]
After
locating
the
stud(s),
find
the
center
by
probing
the
wall with
a small
nail
to find
the
edges
of the
stud.
Then
place
a mark
halfway
between
the
edges.
The
center
of any
adjacent
studs
should
be
16"
(40.6
cm)
or 24"
(61
cm)
from
this
mark.
[]Draw
a line down the center of the studs.
THE MICROWAVE MUST BE CONNECTED
TO
AT LEAST ONE WALL STUD.
