System Overview

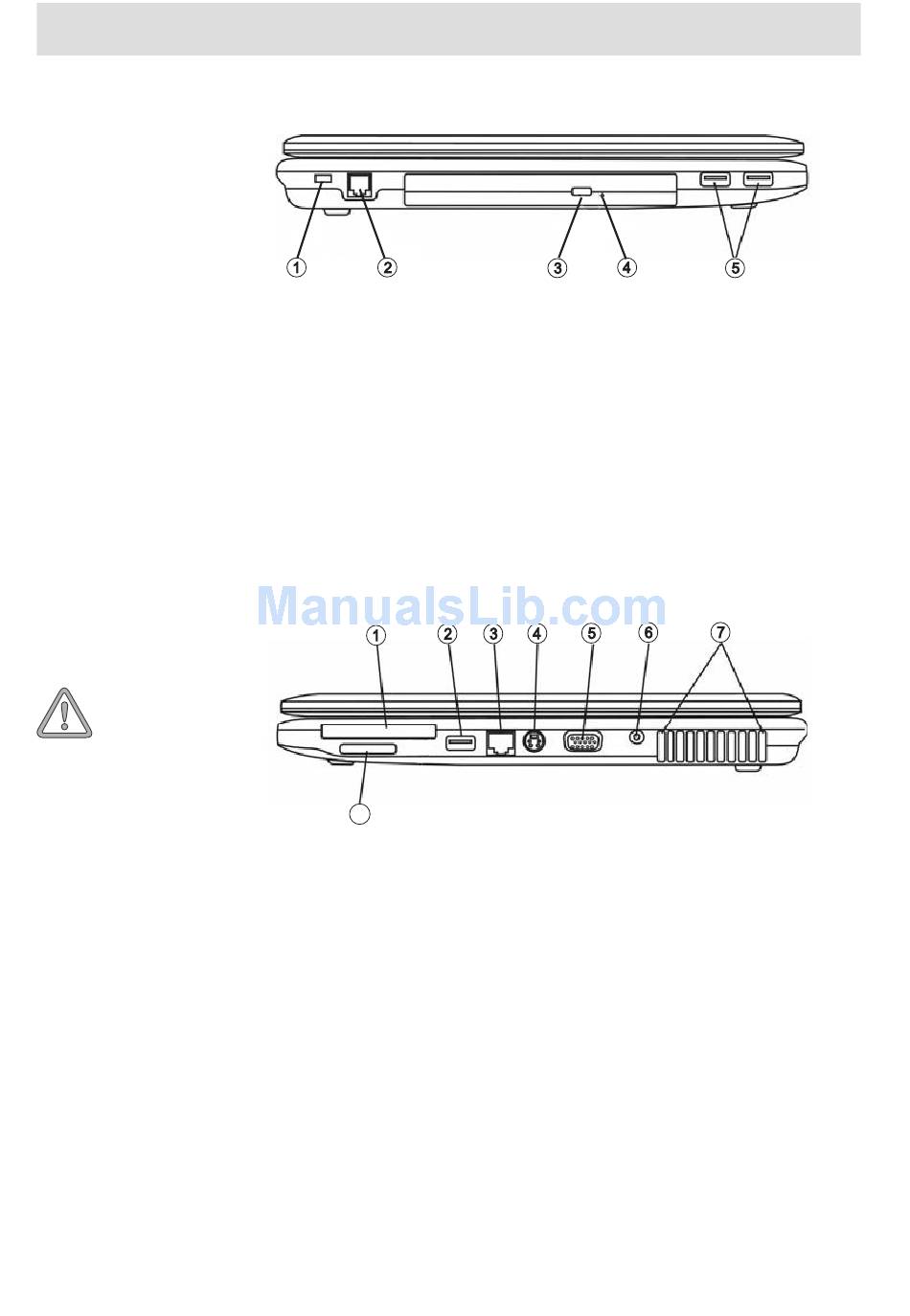

Left Side

Right Side

All air intake and
ventilation open-
ings must be kept
free from obstruc-
tions at all times.
If not, the device
is liable to over-
heat.
MAXDATA Notebook ECO 4511 IW
(1) Kensington Lock anti-theft device
Modem port
(2)
(3) Optical disk drive with eject button
(4) Emergency release for optical disk drive
(use only if notebook is switched off)
(5) USB ports
8
(1) ExpressCard slot
(2) USB port
(3) Ethernet/LAN port
(4) S-Video TV output
(5) VGA port
(6) Power adapter socket
(7) Ventilation slots
Memory card slot
(8)
Fig. 5
Fig. 6
5
