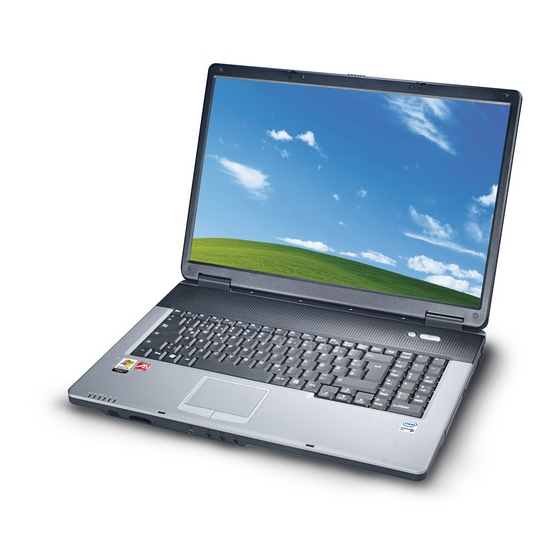

- Page 1 MAXDATA Notebook ECO 4700 IW User's Manual...
-
Page 3: Table Of Contents
Power Saving Button ....................... 72 The Keyboard ........................73 The TouchPad ........................74 The TouchPad - Operation ....................74 The Optical Drive ......................75 The ExpressCard Slot ...................... 75 The Data/Fax Modem .......................76 The LAN Port ........................76 MAXDATA Notebook ECO 4700 IW... - Page 4 Installation Instructions Restoring the Drivers ....................... 77 The Utility CD ........................77 Setting the Resolution ..................... 77 Specifications Fault Diagnosis and Troubleshooting Index Contents...
-
Page 5: Note
ROM for the relevant information. Please also consult your dealer to make sure that it is possible to run your chosen operating system on your notebook. The operating system is not provided on the Utility CD. Note: Some or all system configurations may have been made already. MAXDATA Notebook ECO 4700 IW... - Page 6 Declaration: This device meets the EN 55022 product standard for interference emissions, the EN 50082-1 basic standard for interference, and the EN 60950 low voltage directive standard. If any modification that has not been agreed upon with the manufacturer is made to the device, adherence to these standards can no longer be guaranteed.
- Page 7 They are accepted free of charge by manufacturers, dealers or their representatives for recycling or disposal. The outside packaging and all inner parts of the box can be disposed of as waste paper. MAXDATA Notebook ECO 4700 IW...
-
Page 8: Information On The Return Of Electrical And Electronic Waste In Eu Countries
Information on the return of electrical and electronic waste in EU countries according to Directive 2002/96/EC, and its im- plementation in respective national regulations a) Reason and Purpose of Separate Collection Users of electrical and electronic equipment are required to dispose of used devices sepa- rately. -
Page 9: Important Safety Information
The notebook is provided with a battery. The battery is recyclable. It is prohibited by law to dispose of the battery in ordinary household waste. If you have ques- tions concerning proper disposal, consult your garbage collection service. MAXDATA Notebook ECO 4700 IW... - Page 10 • Note on the System Clock Battery Caution: There is a risk of explosion if batteries are replaced incorrectly. Replace the battery only with a battery recommended by the manufacturer or with a battery of the same type. Dispose of the battery accord- ing to the manufacturer’s instructions.
-
Page 11: Wireless Lan
In 1997 the IEEE confirmed the standard 802.11 for WLANs; this set a data transfer rate of 1 to 2 Mbit/s (Megabits per second). Under 802.11a+b+g, the new governing standard, the maximum data transfer rate is 54 Mbit/s over a frequency band of 2.4 or 5 GHz (Giga- hertz). MAXDATA Notebook ECO 4700 IW... -
Page 12: Additional Safety Notes For Units With Wireless Lan
MAXDATA Computer GmbH is not responsible for disruptions to radio or television recep- tion which are caused by unauthorized alterations to this unit. MAXDATA also accepts no responsibility for the replacement or the exchange of connecting cables and units which were not specified by MAXDATA Computer GmbH. -
Page 13: Ce-Labeling For Devices With Wireless Lan
Sweden - www.pts.se France - www.art-telecom.fr Switzerland - www.bakom.ch Greece - www.eett.gr Spain - www.cmt.es England - www.oftel.gov.uk Iceland - www.pta.is Ireland - www.comreg.ie Liechtenstein - www.ak.li Italy - www.agcom.it Norway - www.npt.no Luxembourg - www.etat.lu/ILT MAXDATA Notebook ECO 4700 IW... -
Page 14: Restrictions
Restrictions France Restricted frequency range: In France, you may only use channels 10 to 11 (2457 MHz or 2462 MHz). It is forbidden to use the unit outside of enclosed areas. Info: www.art-telecom.fr Italy An official authorization is also required to use the unit in internal areas. For more detailed information about the necessary procedure to do this, please contact your provider. -
Page 15: Radio Frequencies For Units With Wireless Lan
2437 2442 2447 2452 2457 2462 In addition, the integrated radio network card supports the standard 802.11a. For more information regarding 5 GHz band frequencies authorized in your country, please contact your respective appropriate authority. MAXDATA Notebook ECO 4700 IW... -
Page 16: Legal Requirements - Exception Clauses
Legal requirements - exception clauses EXCEPTION CLAUSES FOR UNITS WITH WIRELESS LAN The installation and use of an unit with Wireless LAN may only take place when in accordance with the instructions contained in the user documents. The user documents are included in the material supplied with the product. -
Page 17: Shipping Contents
• Power adapter • Power cable • User guide • Modem cable Please retain the original packaging in case you need to send the device for repairs or up- grades. Please store the packaging safely. MAXDATA Notebook ECO 4700 IW... -
Page 19: Preparation
Slide the release catch (1) to the right and open the display (2). Fig. 1 Release catch Fold back the display Fig. 2 LC display Loudspeakers Keyboard Microphone TouchPad Status LEDs ON/OFF button Power saving button MAXDATA Notebook ECO 4700 IW... -
Page 20: Inserting The Battery
Inserting the Battery The battery is included in the notebook’s shipping contents. This battery is only partially charged. Note that the charging time for the battery is about three hours if the computer is switched off, or about five hours if the computer is switched on. It is absolutely essen- tial to fully charge the battery for initial op-... -
Page 21: Power Supply
Use only the supplied power adapter. Using the wrong power adapter can cause damage to the notebook. The power adapter contains no service- able parts. NEVER OPEN THE POWER ADAPTER! DANGER OF DEATH! MAXDATA Notebook ECO 4700 IW... -
Page 22: Switching The Notebook On
Switching the Notebook On You’ve now completed the preparations. Now press the on/off button to switch on the notebook. Tip: Once the notebook is switched on, the on/off button can per- If you experience a form several functions depending on the energy settings. program or system In the standard setting, pressing the on/off button again will crash, press the keys:... -
Page 23: Power Management
Notes on the ExpressCard: Never remove an ExpressCard when the system is in sleep mode. This deactivates the slot, thus changing the system configuration. This can lead to problems the next time the computer is started. MAXDATA Notebook ECO 4700 IW... -
Page 25: System Overview
Right Side Fig. 7 Optical disk drive USB ports Front View 5 6 7 Fig. 8 LC display catch (no function) Memory card slot FireWire port Microphone input socket Audio input socket Audio output socket MAXDATA Notebook ECO 4700 IW... -
Page 26: Rear View
Rear View Fig. 9 Power adapter socket S-Video output USB ports (no function) TV antenna port (option – available soon) Kensington Lock anti-theft device Underside All air intake and ventilation openings must be kept free from obstructions at all times. If not, the device is liable to overheat. -
Page 27: Explanation Of Led Displays
Lights/flashes when the optical disk drive or hard disk drive is being accessed. Lights when Num Lock is on. Lights when Caps Lock is on. Lights when the wireless LAN function (wireless network) is activated. MAXDATA Notebook ECO 4700 IW... -
Page 28: Hot Keys
Hot Keys (Shortcut key combinations with special functions) To activate the hot keys, press and hold down the Fn key and then press the desired addi- tional key. For certain functions it may be necessary to install a driver or additional software. Please refer to the ‘Installation Instructions’... -
Page 29: The Keyboard
These keys (and key combinations) are used for controlling various hardware functions. Fig. 13 Typewriter field with Windows ® Function keys – For the functions, see table 2 – Hot keys Fn key Arrow keys Numerical keypad (press Num Lock key to activate this field) MAXDATA Notebook ECO 4700 IW... -
Page 30: The Touchpad
The TouchPad The system automatically sets up the integrated TouchPad. If you are using Microsoft ® Windows , no driver needs to be installed for the basic functions. If you wish to use the ® advanced functions, you can find the driver to activate the function on the Utility CD. To do this, please follow the instructions in the “Installation Instructions”... -
Page 31: The Optical Drive
(for example, a network connection). Also con- sult the documentation for the relevant card. To remove the ExpressCard, first push it gently inward. This releases the catch, allowing the Fig. 16 ExpressCard to be removed. MAXDATA Notebook ECO 4700 IW... -
Page 32: The Data/Fax Modem
The Data/Fax Modem The system automatically sets up the integrated analog modem. To use the modem func- tions, connect the modem socket to an analog telephone socket (not ISDN) using the telephone cable. Proper use: The modem can be connected to all analog sockets in Europe. It is to be used solely for data communication purposes. -
Page 33: Installation Instructions
Right-click on any free area of the desktop. Select <Properties>. In the Display Properties window, click the Settings tab. Here you can set the slider to a resolution you find comfortable. Click <Apply> to set the resolution. MAXDATA Notebook ECO 4700 IW... -
Page 35: Specifications
• One internal optical drive • One memory card slot for MultimediaCard (MMC), SecureDigital Card (SD), Memory Stick (MS), and MS Pro Audio • Azalia interface with AC3 support • Built-in stereo loudspeakers and subwoofer MAXDATA Notebook ECO 4700 IW... -
Page 36: Input Devices
Communications • Fast Ethernet function for 10/100 Mbps, built in • MiniCard for 802.11a+b+g wireless network (optional) • High-speed 56 Kbps V.90 fax/data software modem (MDC) • Bluetooth (optional) Input Devices • 100-key Microsoft Windows keyboard ® ® • Ergonomically positioned TouchPad Ports •... -
Page 37: Operating System
Dimensions 280 (D) × 393 (W) × 22–33 (H) mm • Weight 3.5 kg (depending on model) • Operating temperature: 0 to 35 °C • Operating humidity: 10 to 90 % RH • Storage temperature: -20 to +60 °C MAXDATA Notebook ECO 4700 IW... -
Page 39: Fault Diagnosis And Troubleshooting
• Press the on/off button. Possible cause of the problem: • The screen settings are incorrect. Troubleshooting: • Press the spacebar, several times if necessary. • If an external monitor is connected, switch it on. MAXDATA Notebook ECO 4700 IW... - Page 40 Possible cause of the problem: • In the System Settings, a screen type other than the existing one has been set. Troubleshooting: • Press the Fn + F5 key combination. • If an external monitor is connected, connect this to a power source and switch it on. Also check the brightness and contrast settings.
-
Page 41: Index
Garbage collection service ....53 Power adapter socket ......70 Graphics functions, basic ....... 66 Power cable ........54, 65 Power saving button ......63 Power supply ........53, 81 Hot Keys ..........72 Household waste ......51, 53 MAXDATA Notebook ECO 4700 IW... - Page 42 Qualified service personnel ..53, 54, 79 RAM slot ..........70 Release catch ........63 Resolution ........66, 77 , 79 S-Video output ........70 Shipping contents ........61 Shocks/Vibrations ........53 Sleep ............67 Standby ..........67 Status LEDs ........... 63 Subwoofer ..........
