Standard fuse amperage rating and color

Fuse Mini
rating fuses
2A Grey
3A Violet
4A Pink
5A Tan
7.5A Brown
10A Red
15A Blue
20A Yellow
25A Natural
30A Green
40A —
50A —
60A —
70A —
80A —

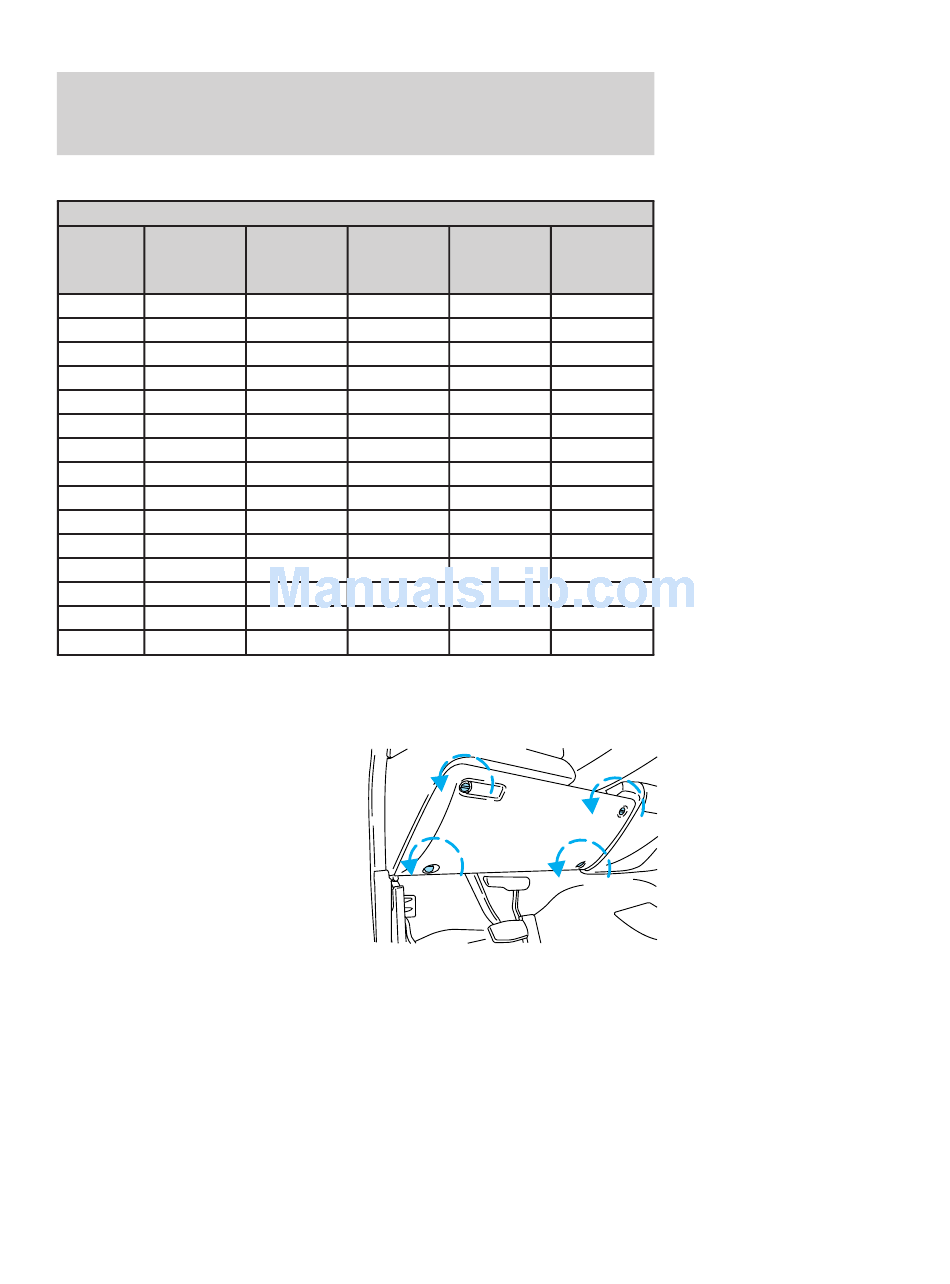

Passenger compartment fuse panel / power distribution box

The fuse panel is located below and to the left of the steering wheel by
the brake pedal. Remove the panel cover to access the fuses.
To remove the fuse panel cover,
turn the panel fasteners
counterclockwise.
2005 Excursion (hdw)
Owners Guide (post-2002-fmt)
USA (fus)
