iCentral 10.2 Premium Video Intercom System
Installation & Operation Manual
REV2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 10.2 Premium and is the answer not in the manual?

Questions and answers

Summary of Contents for iCentral 10.2 Premium

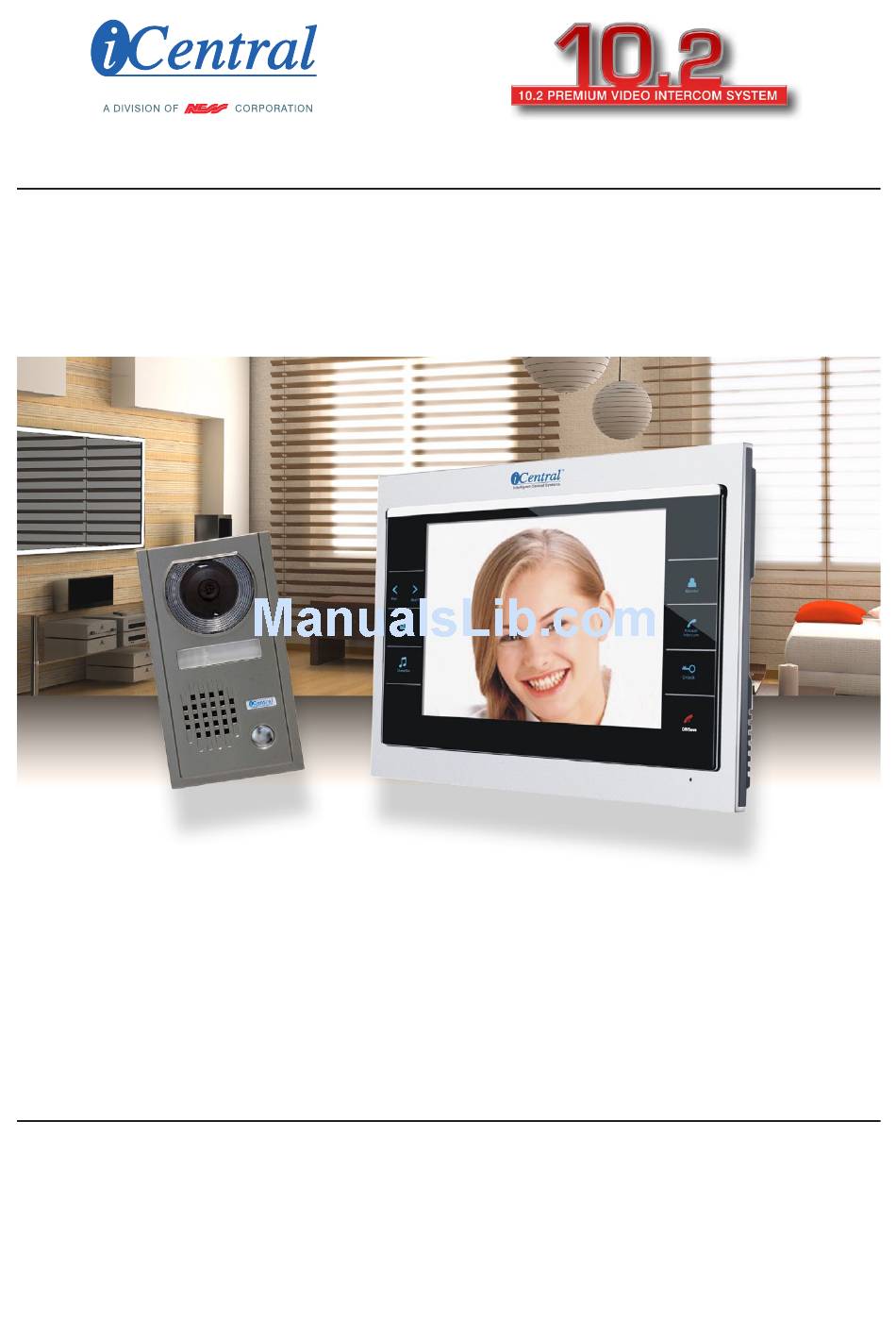

  • Page 1 Intelligent Central Systems iCentral 10.2 Premium Video Intercom System Installation & Operation Manual REV2...
  • Page 2 1300 050 333 Sales, Service, Spares consumer enquiries iCENTRAl TRAdE & dEAlER ENquIRIES Head OffICe Ness Corporation Pty ltd ABN 28 069 984 372 Ph +61 2 8825 9222 Fax +61 2 9674 2520 ness@ness.com.au www.ness.com.au CoPyRIghT NoTICE All rights reserved. No part of this publication may be reproduced, transmitted or stored in a retrieval system in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Ness.
  • Page 3: Table Of Contents

    Contents Features / Specifications / Cable Specifications ....4 Room Station description ........5 Monitor Rear description .
  • Page 4: Features / Specifications / Cable Specifications

    features DooR Station ■ Zinc Alloy, surface mount ■ 1/4 inch colour CCd camera ■ Resolution: 420TV lines ■ Waterproof Vandal Resistant alloy housing ■ Built-in automatic 3 x lEd lighting for night vision / Minimum illumination 1.0 lux ■ 68 degree wide angle field of view ■...
  • Page 5: Room Station Description

    room Station description Monitor button answer / Call / transfer / Intercommunication button door release button Off / Save button adjust Left/right buttons Menu: Brightness/Contrast/Colour button Chime Select button Microphone 10” Colour Screen...
  • Page 6: Monitor Rear Description

    room Station rear description DESCRIPTIONS OF MONITOR-REAR: ( 10.2 inch TFT Power voltage:DC 13.8V) Speaker door Station 1 connection door Station 2 connection Slave Room Station connection optional Audio/Video Input 1 connection optional Audio/Video Input 2 connection Master/Slave selector dipswitches DIMENSION: door 1 lock release output, 12VdC Power input 13.8VdC...
  • Page 7: Monitor Connections

    room Station Connections DESCRIPTIONS OF MONITOR CONNECTIONS: Power voltage:DC 13.8V) 10.2 inch TFF, SLave StatIOn pOwer InpUt Vd: Video Input 13.8VdC Ad: Audio Input gNd: ground dOOr LOCk OUtpUt dATA: data 13.8VdC a/v InpUt 1 dOOr StatIOn 1 Vd3: Video Input PWR3: 13.8VdC output PWR1: Power gNd: ground...
  • Page 8: System Schematic

    System Schematic 100-958 dooR STATIoN (max. 2) 100-974 RooM STATIoN (max. 2) 13.8VdC supply Selected as MASTER optional electric locks optional CCTV cameras, TV tuner or other A/V 13.8VdC supply inputs. Max 2. Selected as SlAVE...
  • Page 9: Connection Diagram 1 Door Station / 1 Room Station

    Connection diagram 1 door Station / 1 room Station door Lock Connection, Method 1 Notes 1. The Room Station provides power for the electric door strike. 2. one extra pair of wires is required between the door and the Room Station. This method eliminates the need to provide a dedicated power supply for the electric door strike.
  • Page 10: Connection Diagram 2 Door Stations / 1 Room Station

    Connection diagram 2 door Stations / 1 room Station 100-974 10.2 RooM STATIoN 13.8V- 13.8V+ MASTER Setting Both switches oN dATA loCk1 PWR1 PWR3 kEy1 PWR2 kEy2 PWR4 100-958 dooR STATIoN 1 kEy1 kEy2 100-958 840-003 dooR STATIoN 2 PoWER SuPPly 13.8VdC 12VdC ElECTRIC dooR STRIkE...
  • Page 11: Connection Diagram 2 Door Stations / 2 Room Stations

    Connection diagram 2 door Stations / 2 room Stations 100-974 10.2 RooM STATIoN 1 selected as MASTER 13.8V- 13.8V+ MASTER Setting Both switches oN dATA loCk1 PWR1 PWR3 kEy1 kEy2 PWR2 PWR4 100-958 dooR STATIoN 1 kEy1 kEy2 100-958 dooR STATIoN 2 100-974 12VdC ElECTRIC 10.2 RooM STATIoN 2...
  • Page 12: Switch Settings

    Switch Settings When connecting two room stations to the system, set the dipswitches on the rear panel of each station as follows. Switch 1. Enables video load impedance Switch 2. Master/Slave setup please disconnect power to each station before changing switch settings. MaSter StatIOn SLave StatIOn oR SINglE STATIoN...
  • Page 13: Room Station Installation Guide

    MONITOR INSTALLATION GUIDE: Installation Instructions:  Please select relevant wire diagram for your chosen  Make sure you use correct cable for system required room Station Installation Guide Single Monitor Installations:  Select correct height of indoor monitor usua use the recommended cable between all stations. NSTALLATION GUIDE: determine the correct height for the Room Station/s.
  • Page 14: Door Station Installation Guide

    door Station Installation Guide DOOR BELL INSTALLATION GUIDE: Please take care to select the most suitable position for the door Station. Doorbell Installation: Consider all factors which may affect audio and video performance such as likely sun position in daytime, shadows, blindspots, avoid backlighting, and the likely ...
  • Page 15: Operating Instructions

    Operating Instructions...
  • Page 16: Operating Instructions

    Operating Instructions HOw tO anSwer tHe dOOr StatIOn and reLeaSe tHe dOOr LOCk When a visitor presses the call button at the front door/s the room station/s will chime and the monitor will display the video from the front door which called. Press to answer.
  • Page 17 Operating Instructions HOw tO MOnItOr aUdIO & vIdeO InpUtS your 10.2 Intercom System has four Audio/Video inputs that can be viewed at any room station. Inputs 1 & 2 provide audio and video signals from door1 and door2. Inputs 3 & 4 provide audio and video signals from two optional A/V sources such as CCTV cameras, TV tuners, MP3 players and many other types of devices for surveillance or entertainment.
  • Page 18 Operating Instructions HOw tO Make an InterCOM CaLL Between twO rOOM StatIOnS In standby mode press at your room station. Answer Intercom The other room station will chime. Press on the other room station to take the call. Answer Intercom HOw tO adjUSt BrIGHtneSS/COntraSt/COLOUr At any time with an image on the display: Press...
  • Page 19: Operating Instructions

    Operating Instructions HOw tO CHOOSe tHe CaLL CHIMe tUne To choose one of the 12 available chime tunes. have one person press the call button on the door station. At a room station press to change the tune. Chime/set Press repeatedly to play each tune in turn. Press to save the selected chime tune.
