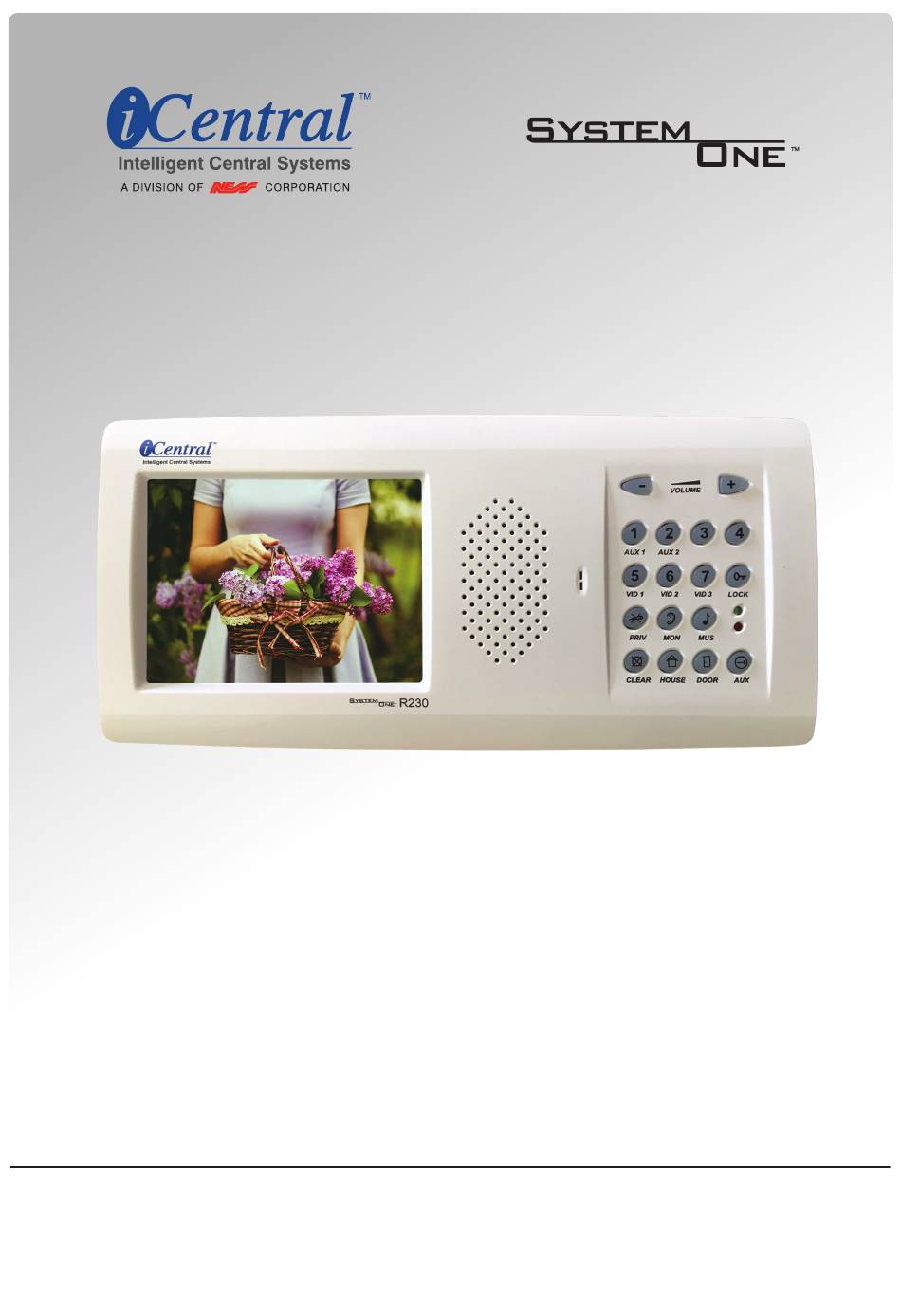

- Page 1 R230 Video Room Station Installation & Operation Manual Rev1.0...
- Page 2 Retail sales www.valet.com.au Sales, Service, Spares consumer enquiries ph 1300 050 333 sales@icentralsystems.com.au iCeNtRAl tRAde & deAleR eNquiRieS Head OffIce Ness Corporation pty ltd ABN 28 069 984 372 ph +61 2 8825 9222 Fax +61 2 9674 2520 sales@icentralsystems.com.au www.ness.com.au...
-
Page 3: Table Of Contents
Contents Features ............4 Specifications . -
Page 4: Features
Features Configurable for operation With or Without a Master Adjustable Keypad Backlighting Digital Volume Control Independent Volume Adjustment for Music and Communication Collective or Individual Communication with other internal stations Lock Release Control Audio Monitoring ... -
Page 5: Cabling - Important Information
IMPORTANT INFORMATION ABOUT CABLING Video Room Station Cabling Video room stations can be cabled using either CAT5 & RG59 or VALET Cable. The maximum cable length from the master (or central connection point) to each video room station is 25m. This distance can be doubled by adding a booster supply at the video room station or by running an additional Fig-8 wire (in parallel with the standard wiring) for the POS and NEG connections. -
Page 6: Systems Without A Master Station
R230 Video Room Station Installation & Operation Manual... -
Page 7: Systems With A Master Station
VIDEO VIDEO VIDEO R230 Video Room Station Installation & Operation Manual... - Page 8 System Cabling – With Master Multiple Video Rooms 1 PR SHIELDED AUDIO 300 ohm RIBBON RG59 CAT5 FIG-8 VIDEO Video Door 1 VIDEO Video Door 2 Video Spitter VIDEO Video Room Video Master VIDEO Video Room VIDEO Video Room Power Supply AM ANT* Music...
-
Page 9: Load Resistors
AUDIO & VLC LOAD RESISTORS Audio Volume Level Compensation – for smaller systems System One communication volume levels are optimal in systems consisting of 7 stations in total (Any combination of Master, Room and Door stations) For smaller systems (consisting of less than 7 stations in total), a resistor can be added across the COM1 &... -
Page 10: Wiring Connections - Systems With A Master One Video Room Station Using Cat5 + Rg59
- MASTER - ONE VIDEO ROOM - CAT5 + RG59 INSTALLATION Connections (System with a Master) R230 Video Room Station Installation & Operation Manual... -
Page 11: One Video Room Station Using Valet Cable
- MASTER - ONE VIDEO ROOM - VALET CABLE Connections (System with a Master) R230 Video Room Station Installation & Operation Manual... -
Page 12: Multiple Video Room Stations Using Cat5 + Rg59
- MASTER - MULTIPLE VIDEO ROOMS - CAT5 + RG59 Connections (System with a Master) R230 Video Room Station Installation & Operation Manual... -
Page 13: Multiple Video Room Stations Using Valet Cable
- MASTER - MULTIPLE VIDEO ROOMS - VALET CABLE Connections (System without Master) R230 Video Room Station Installation & Operation Manual... -
Page 14: Wiring Connections - Systems Without A Master Station One Video Room Station Using Cat5 + Rg59
- NO MASTER - ONE VIDEO ROOM - CAT5 + RG59 Connections (System without Master) R230 Video Room Station Installation & Operation Manual... -
Page 15: One Video Room Station Using Valet Cable
- NO MASTER - ONE VIDEO ROOM - VALET CABLE Connections (System without Master) R230 Video Room Station Installation & Operation Manual... -
Page 16: Multiple Video Room Stations Using Cat5 + Rg59
- NO MASTER - MULTIPLE VIDEO ROOMS - CAT5 + RG59 Connections (System without Master) R230 Video Room Station Installation & Operation Manual... -
Page 17: Multiple Video Room Stations Using Valet Cable
- NO MASTER - MULTIPLE VIDEO ROOMS - VALET CABLE Connections (System without Master) R230 Video Room Station Installation & Operation Manual... -
Page 18: Backlighting Levels, Set The Station Number And Other Options
PROGRAMMING PROGRAM MODE To enter program mode, press PRIV and MON buttons, both at the same time - Green Light ON – Master Mode (Default Setting) - Green Light OFF – No Master Mode - Red Light Flashing – Station Number (Default = 1) ... -
Page 19: Door Call / House Call / Select Call
OPERATION Calling Other Stations Door Call Press and hold the DOOR button to speak to the door station Release the DOOR button to listen to the hands free reply* from the door station Press and hold the DOOR button again to continue the conversation The Video Screen will display an image from the camera for the duration of communication To end the call, press the CLEAR button or just allow the call to time out (20 sec) House Call... -
Page 20: Privacy Mode / Music Mode / Monitor Mode
Operating Modes Privacy Mode Press the PRIV button to activate Privacy mode - The green light flashes - Automatic hands free reply is disabled from this station, preventing anyone at another station “listening in” to a private conversation. Music Mode Press the MUS button to activate Music mode - The red light turns on - Music playing through the system will be heard at this station... - Page 21 Video Operation In Response to the Chime When the chime is activated at the door station, the video image will be displayed at the video room station and will reset after 30 seconds if unanswered. Note: When used without a master, the display time above can be extended to 60 seconds by changing the CH programming at the door station from Option #1 to Option #3 During Communication If communication to the door is initiated from the video room station, the video image will be...
- Page 22 NoteS...
- Page 23 NoteS...
