Multicom CLASSIC
Installer Manual
MODEL
106-889 iCentral MULTICOM Classic
iCentral Multicom Classic Installation Manual
P a g e
| 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Multicom CLASSIC 106-889 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for iCentral Multicom CLASSIC 106-889

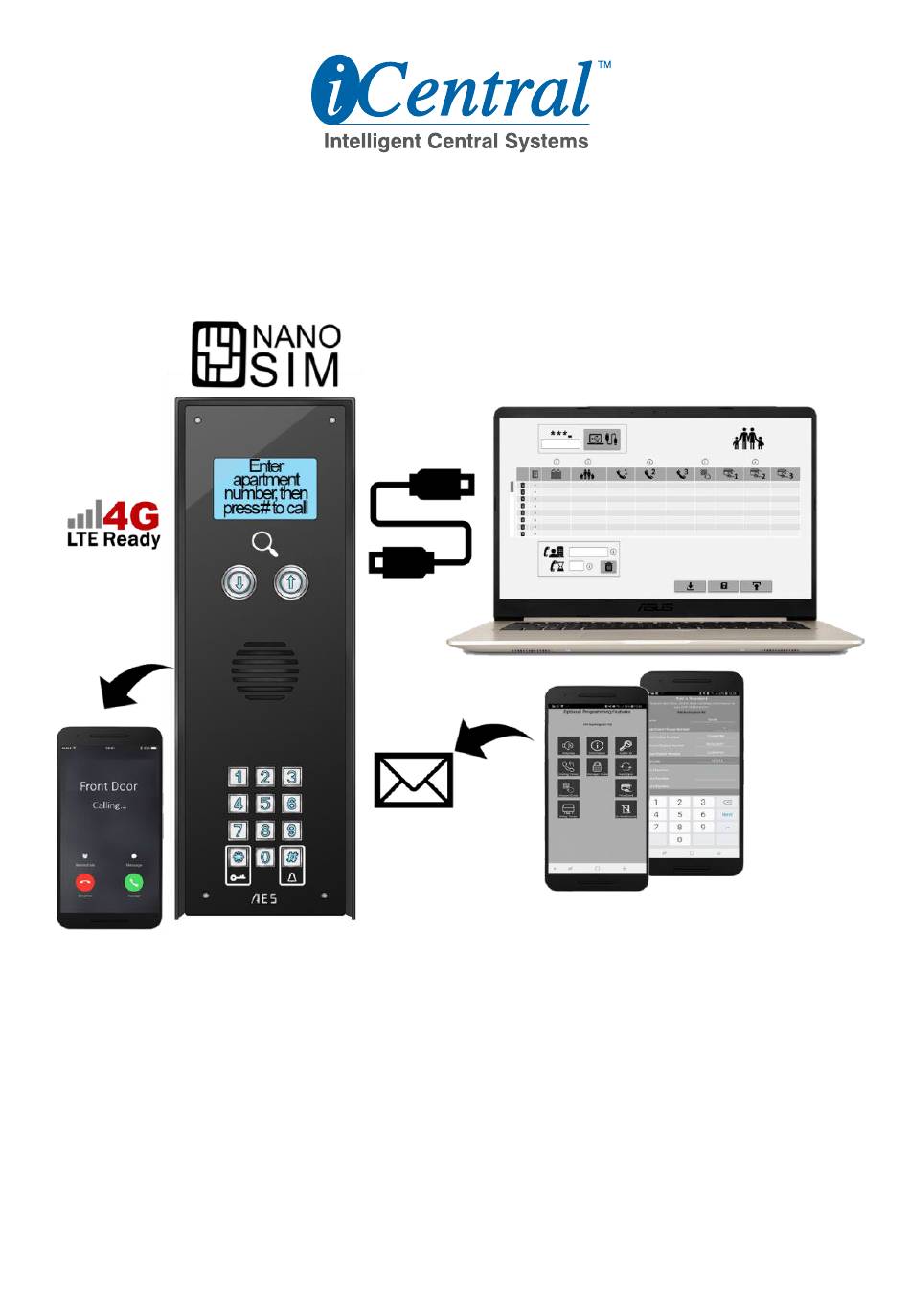

  • Page 1 Multicom CLASSIC Installer Manual MODEL 106-889 iCentral MULTICOM Classic iCentral Multicom Classic Installation Manual P a g e...
  • Page 2: Table Of Contents

    Pg28 Manager control of gate/door Pg29 Calling a resident Pg30 Using keypad codes Pg30 Answering a call from the intercom Pg31 Access control by callerID PG31 Complete list of parameters PG32 iCentral Multicom Classic Installation Manual P a g e...
  • Page 3: Important Things To Know

    VOLTE support (Voice over LTE) Warranty will be VOID! otherwise the unit will be forced to fall back to 3G or 2G service to make calls. iCentral Multicom Classic Installation Manual P a g e...
  • Page 4: A Look Around The Product

    Optional Prox badge reader Slave connections for additional keypad or prox devices Main GSM / cellular PCBA Module Antenna connection port Up / down Call button scroll buttons LCD display module iCentral Multicom Classic Installation Manual P a g e...
  • Page 5: Cellular Module In Detail

    Note: The manufacturer is not responsible for wiring to third party devices. Please consult an experienced security installer. Magnetic lock Pedestrian gates or door Separate lock Power Exit button supply (not supplied) iCentral Multicom Classic Installation Manual P a g e...
  • Page 6: Keypad / Prox Modules In Detail

    1 2 3 24v Optional To next Keypad device 1 2 3 24v 1 2 3 24v To next device Optional 1 2 3 24v Prox reader Optional Slave Prox Reader iCentral Multicom Classic Installation Manual P a g e...
  • Page 7: Inserting The Sim Card

    3 flashes = good (3 bars) 4 flashes = Strong (4 bars) 5 flashes = searching POWER MODEM Slow flashing = 3G ready Fast slashing = 4G ready Constant ON/OFF = searching iCentral Multicom Classic Installation Manual P a g e...
  • Page 8: Pc Programming

    SIM card and be printer type cable) connected to the cellular network before PC programming can begin. Open Multicom Classic Copy the SHORTCUT icon Double click and open folder software to desktop for convenience iCentral Multicom Classic Installation Manual P a g e...
  • Page 9: Pc Software Overview

    Backup and save Open an existing PC current data and current data from file to upload to the the intercom to settings to the PC intercom the PC software for editing iCentral Multicom Classic Installation Manual P a g e...
  • Page 10: Resident / Family Screen

    1 per family (10 digit card number) (must be 6 digits) For panels with Concierge / manager or help button, enter a phone number here iCentral Multicom Classic Installation Manual P a g e | 10...
  • Page 11: Visitor Screen Section

    Use DOWNLOAD button to download and view all existing stored data. Enter up to 50 visitor caller ID phone numbers for 24/7 access, 20 time restricted phone numbers, and 20 temporary phone numbers iCentral Multicom Classic Installation Manual P a g e | 11...
  • Page 12: Settings

    SIM card here, and set for daily 4G connectivity (check Use 24hr format, no colon SMS (1) to recalibrate time every APN for your network. This can usually be found online) iCentral Multicom Classic Installation Manual P a g e | 12...
  • Page 13: The App

    Accept and allow all To register first time, permissions (Android registration email, go enter your name, email version shown) back to the app screen and cell phone number. & press SETTINGS iCentral Multicom Classic Installation Manual P a g e | 13...
  • Page 14 Iphone use the “i” symbol NOTE: Do not change engineers or managers codes on the APP unless they have already been changed in the intercom Now you are ready to begin programming! iCentral Multicom Classic Installation Manual P a g e | 14...
  • Page 15: Programming Codes

    OK message. On iphones, due to restrictions by Apple, you must confirm the SMS as shown. Android devices will auto send the SMS in the background. iCentral Multicom Classic Installation Manual P a g e | 15...
  • Page 16: Programming (Steps 1-3)

    If you send another reception check (*20#), you may find that if it was on 3G signal strength before, that it is now on 4G signal. iCentral Multicom Classic Installation Manual P a g e | 16...
  • Page 17: Add A Family

    Keypad code (14 digits max) (must be 6 digits) Command (add family) Optional PROX card Phone numbers Apartment number serial numbers (3 max, comma separated) (up to 5 digits) iCentral Multicom Classic Installation Manual P a g e | 17...
  • Page 18: Edit A Family

    Edit or add family Prox Card 2 Edit or Add Family Door Code 9999#17#apartmentnumber#serialnumber# 9999#15#apartmentnumber#doorcode# Edit or add family Prox Card 3 9999#18#apartmentnumber#serialnumber# Delete a Family & all details 9999#25#apartmentnumber# iCentral Multicom Classic Installation Manual P a g e | 18...
  • Page 19: Activate Auto Sync

    You can add visitor keypad codes, or visitor caller ID access, and proximity cards for any visitors who are non-residents. CallerID (enter by calling intercom and CLIP caller recognition) Proximity card access for visitors Keypad code access for visitors iCentral Multicom Classic Installation Manual P a g e | 19...
  • Page 20: A Closer Look At Keypad Codes

    Store time restricted code 9999#83#day,day,day#time1,time2# code# (day=mon,tue,wed,thu,fri etc. Time1=start time, Time2= end time. Code = 4 digit keypad code) Delete Code 9999#84#code# (delete a known code) or 9999#84#*# (delete all stored codes) iCentral Multicom Classic Installation Manual P a g e | 20...
  • Page 21: A Closer Look At Proc Cards

    9999#63#day,day,day#time1,time2# serial# (day=mon,tue,wed,thu,fri etc. Time1=start time, Time2= end time, serial = 10 digit prox card number) Delete Card 9999#64#serial# (delete a known code) or 9999#64#*# (delete all stored codes) iCentral Multicom Classic Installation Manual P a g e | 21...
  • Page 22 Store time restricted phone number 9999#73#day,day,day#time1,time2# phonenumber# (day=mon,tue,wed,thu,fri etc. Time1=start time, Time2= end time) Delete Phone number 9999#74#phonenumber# (delete a known code) or 9999#74#*# (delete all stored visitor numbers) iCentral Multicom Classic Installation Manual P a g e | 22...
  • Page 23: Do Not Disturb

    9999#35#X# (X=0 to disable. X=1 to enable) Enable latching ability on received calls by residents 9999#36#X# (X=0 to disable. X=1 to enable) Quick Delete a resident to prevent access 9999#25#apartment# iCentral Multicom Classic Installation Manual P a g e | 23...
  • Page 24: Auto Opening

    2= Relay 1 latch Add days, 3 digits, e.g. 3= Relay 1 unlatch mon,tue,wed,thu,fri,sat,sun. 4= Relay 2 trigger Separated by comma. 5= Relay 2 latch 6= Relay 2 unlatch iCentral Multicom Classic Installation Manual P a g e | 24...
  • Page 25: Enquire Residents Info

    Enter Concierge / help or assistance number 9999#56#1#phonenumber# Delete Concierge / help or assistance number 9999#56#1#*# Set ringing time to call number 9999#57#XX# (XX = seconds, default = 20) iCentral Multicom Classic Installation Manual P a g e | 25...
  • Page 26: More Settings

    9999#30#X# (X = 1-9, default = 5) Set Microphone Volume 9999#31#X# (X = 1-9, default = 5) Set ring tone Volume (not used yet) 9999#32#XX (X = 1-9, default = 5) iCentral Multicom Classic Installation Manual P a g e | 26...
  • Page 27: Dialling Times

    Default relay time is 1 second. SMS Strings Set Relay 1 time: 9999#50#XXXX# (XXXX = time in secs from 1-9999) Set Relay 2 time: 9999#51#XXXX# (XXXX = time in secs from 1-9999) iCentral Multicom Classic Installation Manual P a g e | 27...
  • Page 28: Information Screen

    – time – number – CID. If a keypad code is used, it will be shown on the next line as date – time – pin number – CODE. iCentral Multicom Classic Installation Manual P a g e...
  • Page 29 Latch / Hold Open Latch / Hold Open SMS – 5555#2# SMS – 5555#5# RELAY 1 RELAY 2 Unlatch / Unhold Unlatch / Unhold SMS – 5555#3# SMS – 5555#6# iCentral Multicom Classic Installation Manual P a g e | 29...
  • Page 30: Calling A Resident

    1: Enter apartment number 1: Scroll Up/Down 2: Press #/CALL 2: Press #/CALL Using Keypad Codes 1:Enter 6 digit resident code, or 4 digit visitor code. 2: Press * to open door. iCentral Multicom Classic Installation Manual P a g e | 30...
  • Page 31 To open, simply call the intercom phone number from a stored number and the relay will trigger as per programmed. TIP.This feature must be enabled in settings first (default disabled) iCentral Multicom Classic Installation Manual P a g e | 31...
  • Page 32: Complete List Of Parameters

    9999#36#1# (1=Enabled, 0=Disabled. Default=0) Change Engineers programming code 9999#40#XXXX# (Default 9999) Change managers user code 9999#41#XXXX# (Default 5555) Change Relay 1 trigger time 9999#50#XXXX# Change relay 2 trigger time 9999#51#XXXX# iCentral Multicom Classic Installation Manual P a g e | 32...
  • Page 33 To delete a visitor caller ID number: 9999#74#number# To delete all visitor caller ID numbers: 9999#74#*# To store prox card (50 max) 9999#61#Y#serial# (Y = 1 or 2 for relay 1 or 2) iCentral Multicom Classic Installation Manual P a g e | 33...
  • Page 34 Q. The unit powers up but is not showing network reception or will not respond to SMS. A. This means the unit is not able to detect the network for some reason. iCentral Multicom Classic Installation Manual P a g e...
  • Page 35 If the relays do not make a clicking sound, then check this feature on a different mobile cell iCentral Multicom Classic Installation Manual P a g e...
  • Page 36 ON. Also ensure the app settings screen has a valid phone number stored. Change History Key: P = Panel version H = Hardware PCB version S = Software version Version Reason for change Date iCentral Multicom Classic Installation Manual P a g e | 36...
  • Page 37 TraDE & DEaLEr EnqUIrIEs Head Office ness Corporation Pty Ltd aBn 28 069 984 372 Ph +61 2 8825 9222 Fax +61 2 9674 2520 sales@ness.com.au www.ness.com.au www.icentralsystems.com.au iCentral Multicom Classic Installation Manual P a g e | 40...
