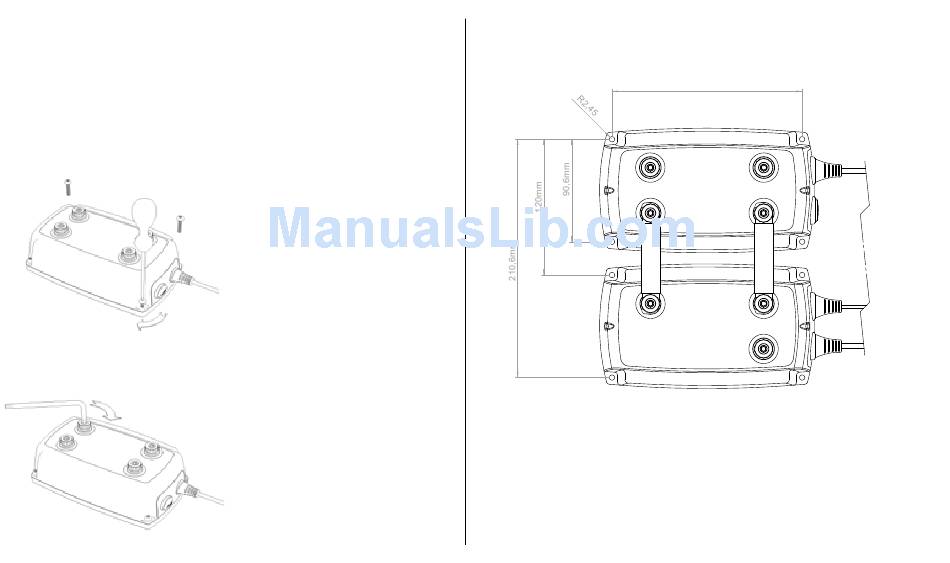

INSTALLATION OF UNIT
1. Attach the temperature sensor holder on a flat surface on one Service battery. Position it as
close as possible to a positive post.
2. Use the included drill template. Wiring is simplified if the units are installed according to the
drill template, but other setups are possible.
3. Install the unit(s) on a surface where it can be properly fixed and where the unit is not
exposed to fuels, oils or splashes of dirt.
4. Mount the unit with screws intended for the surface and attach it with one screw in each of the
four holes in the corners of the unit. See picture 1. Mount the unit with M4 or ST4.2 screws.
The required torque depends on the surface for mounting. Fig. 1 shows a CTEK D250S. The
same procedure is used for all devices.
5. Attach the cables and mount the cable screws with a torque of 7 Nm. Use tool – hand power
without tools is not enough.
Figure 1
2Nm
INSTALLATION OF CAbLES
Allen key
Figure 2
7Nm
6
DRILL TEmPLATE
168mm
