INSTALLATION OF UNIT
1. Attach the temperature sensor holder on a flat surface on one Service battery. Position it as close
as possible to a positive post.
2. Use the included drill template. Wiring is simplified if the units are installed according to the drill
template, but other setups are possible.
3. Install the unit(s) on a surface where it can be properly fixed and where the unit is not exposed
to fuels, oils or splashes of dirt.
4. Mount the unit with screws intended for the surface and attach it with one screw in each of the
four holes in the corners of the unit. See picture 1. Mount the unit with M4 or ST4.2 screws. The
required torque depends on the surface for mounting. Fig. 1 shows a CTEK D250S. The same
procedure is used for all devices.
5. Attach the cables and mount the cable screws with a torque of 7 Nm. Use tool – hand power
without tools is not enough.
6. The ground cable of the SMARTPASS should be connected to the ground screw of the DUAL or
to any convinient ground connection point.

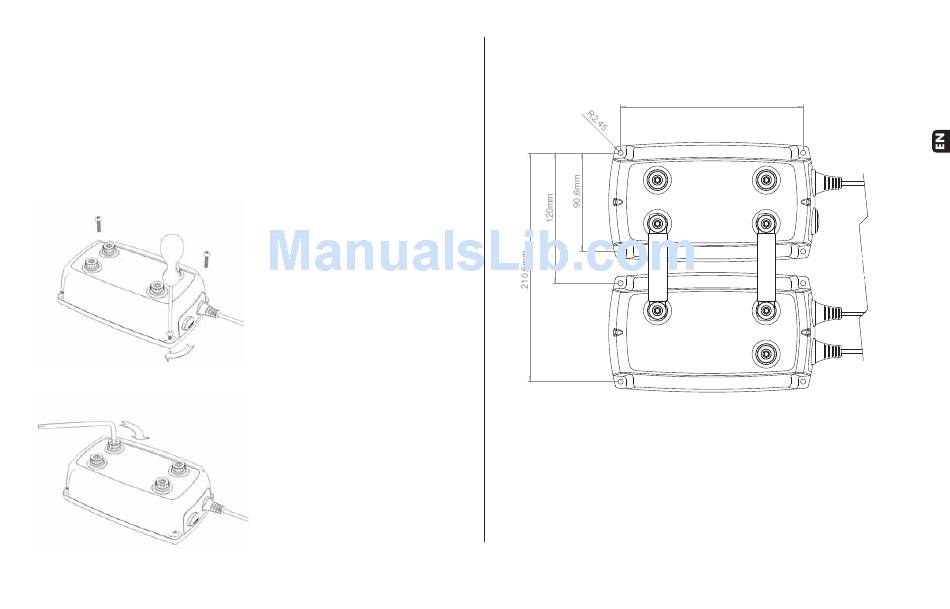

Figure 1
INSTALLATION OF CAbLES
Allen key
7Nm
20015686F D250S Dual + SmartPass, Manual, Print file 001.indd 7
2Nm
Figure 2

DRILL TEMPLATE

168mm
2011-12-20 11:19:34
EN • 7
