Serial Communications
Use these menus to setup the serial communication properties of the SymSafe.
RS-485/RS-422
This menu sets the I/O connector on the rear panel to RS-485 or RS-422.

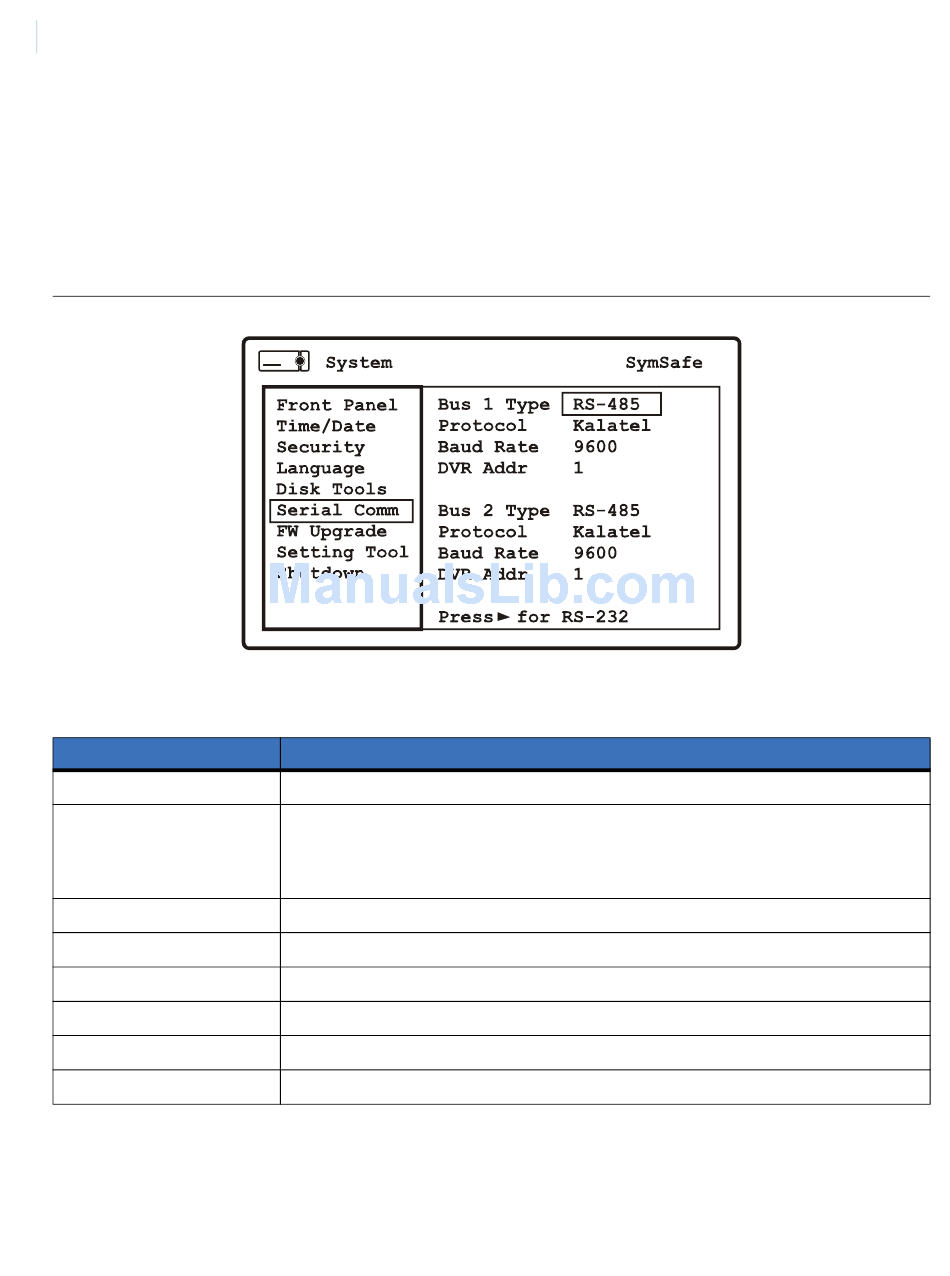

Figure 54. The System/RS-485 and RS-422 menu
Table 38. The System/RS-485 and RS-422 menu options
Menu Options
Bus 1 Type
Protocol
Baud Rate
DVR Address
Bus 2 Type
Protocol
Baud Rate
DVR Address
Settings
RS-485 or RS-422
Kalatel or Passthrough (Kalatel is used for controlling PTZ cameras using SymNav.
Passthrough is referring to serial passthrough which is setup in the Network/Passthrough
dialog. If you set Bus 1 to serial passthrough then the Protocol options must be set to
Passthrough.
300, 1200, 2400, 4800, 9600, 19200
0-199
RS-485 or RS-422
Kalatel or Passthrough
300, 1200, 2400, 4800, 9600, 19200
0-256 (Dome addressing)
