Display wall installations

Display wall installations should be planned and implemented keeping in mind
the technical requirements for the heat control of the Cells. Ensure that Cells
located in one ventilation space have sufficient intake of cold air (
MT550: 220 m3 / hour / Cell

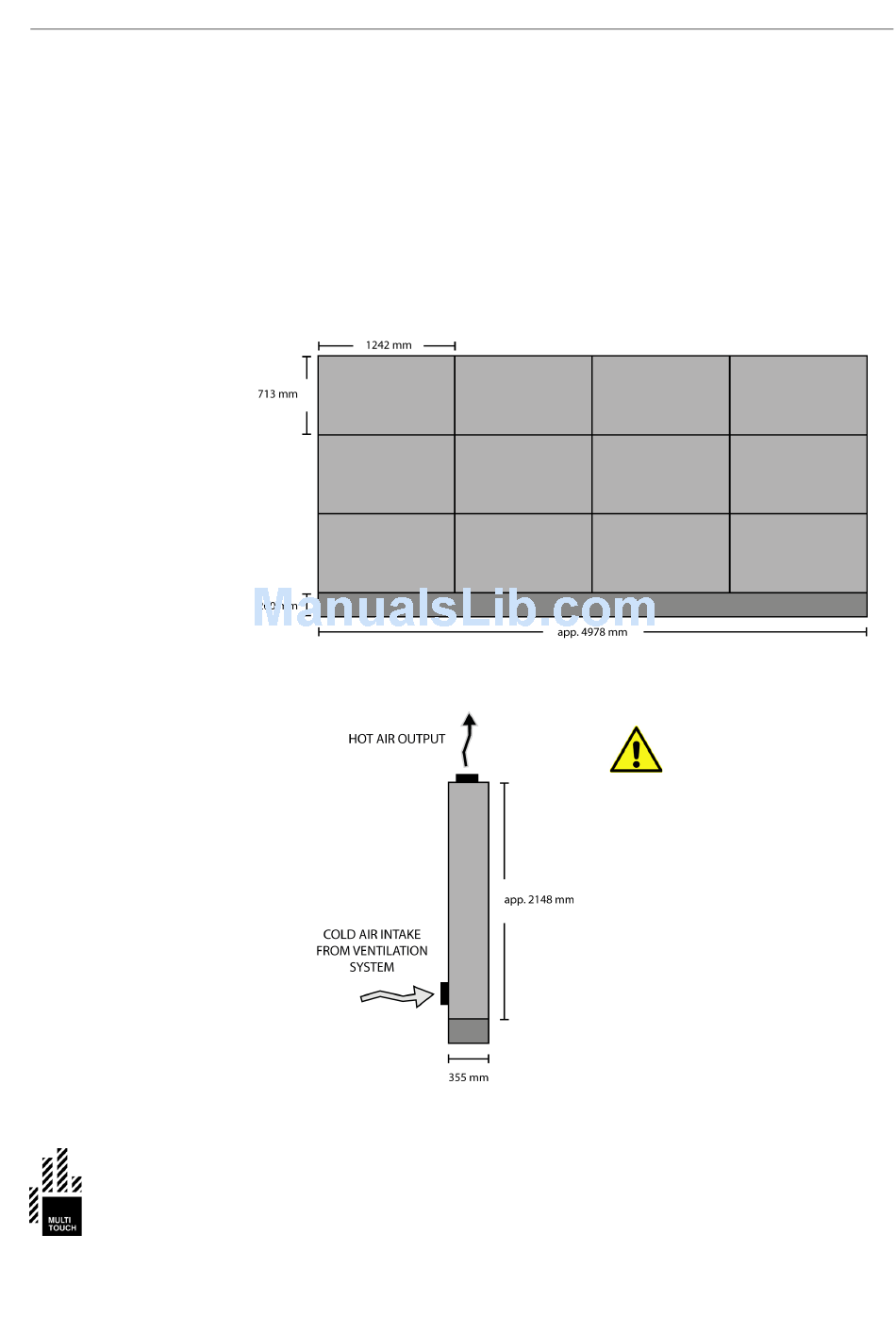

The following example of a 4x3 display wall of MT550 Cells provides general
guidelines for the design process.
).
Front view
View from right
M -C I
ULTI ELL NSTALLATION
typical use for
NOTICE:
Forced air flow is
recommend.
23
