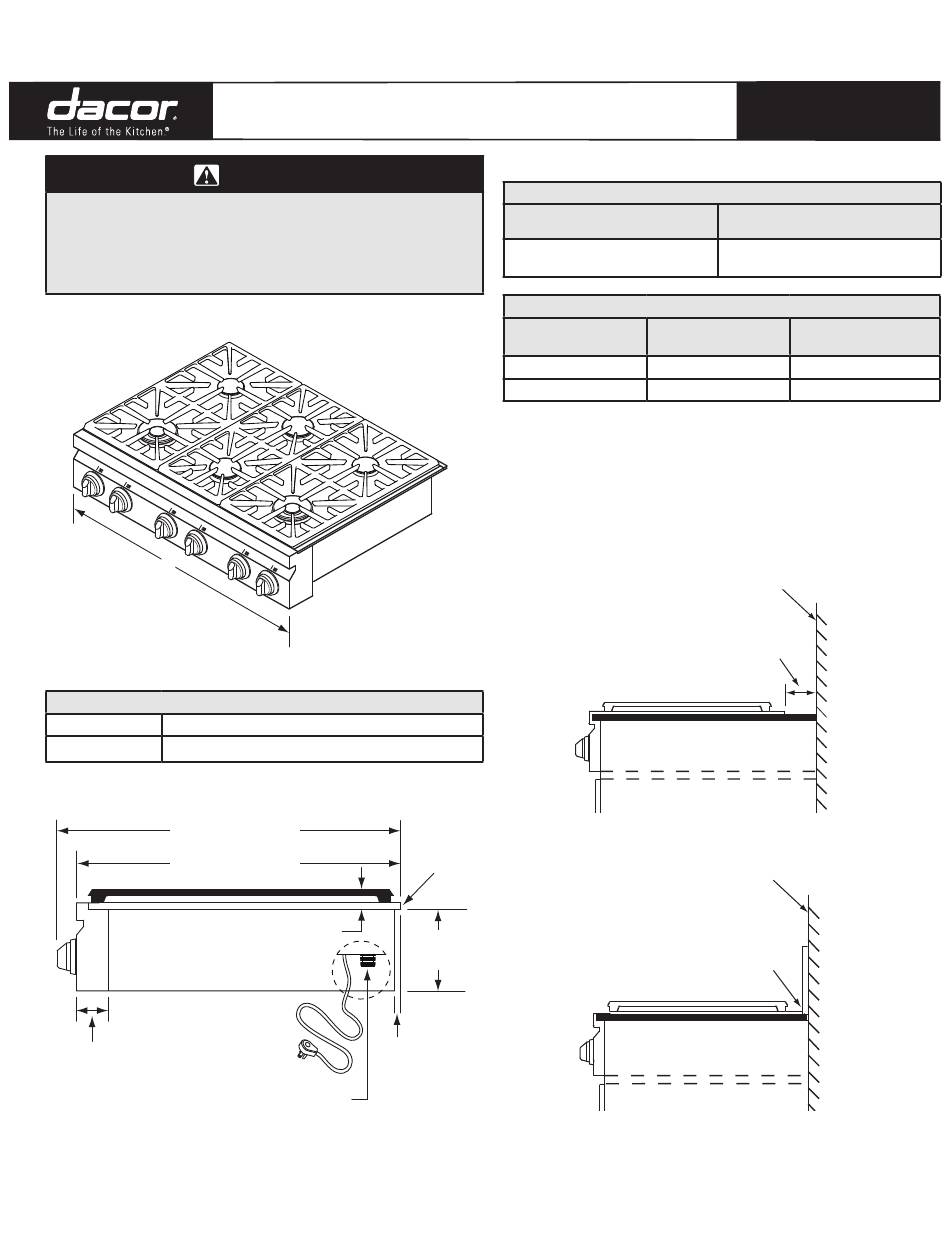

Dacor DRT304S Planning Manual

Document # PG04 - 003
• Observe all governing codes and ordinances during planning
and installation. Contact your local building department for
further information.
• This appliance must be installed in accordance with the
accompanying installation instructions.
Product Dimensions
A
DRT304S
DRT366S
28 1/8" (714 mm)
25 7/8" (657 mm)
1 5/8" (41 mm) cooking surface
height (grate level) above
countertop
4" (102 mm)
3/4" gas inlet, connects to regulator from
bottom or rear of unit, end is recessed
2" (51 mm) from chassis bottom
Specifications subject to change without notice.
Install all appliances according to accompanying installation instructions.
DRT304S, DRT366S

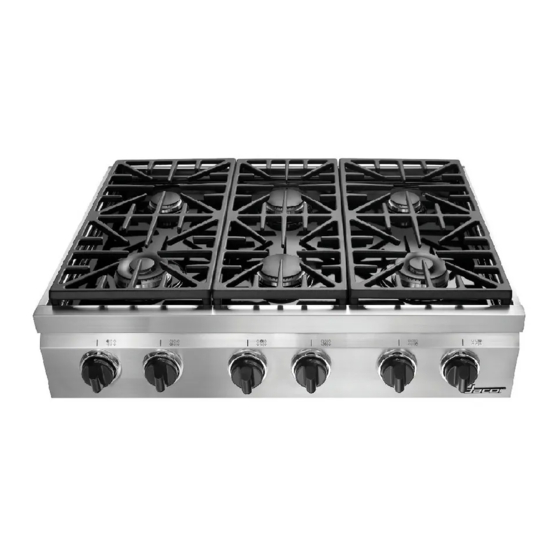

30" and 36" Wide, Distinctive Series
Slide-in Gas Cooktops
WARNING
Product tolerances:
±1/16" (±1.6 mm)
unless otherwise noted
COOKTOP WIDTH (A)
29 7/8" (759 mm)
35 7/8" (911 mm)
Power cord
32" long
SIDE VIEW
Electrical and Gas Supply Requirements
Circuit Required
120 Vac 60Hz, 15 Amp. (3 wire)
Gas Type
Natural Gas
Propane (LP)
* Maximum gas supply pressure for all models is 1/2 p.s.i.
Cabinet and Countertop Layout
Installation of a non-combustible material* (up to the hood) or a backsplash
is always recommended, and mandatory if the distance to the back
wall from the cooktop is less than 2 1/2" (Figure 2). When installing
a backguard, use only Dacor model numbers AEB3009, AEB3012
(DRT304S), AEB3609 or AEB3612 (DRT366S).
Trim:
1/2"
(13 mm)
thick
7 3/4"
(197 mm)
5/8" Min.
(16 mm)
www.Dacor.com
PLANNING
ELECTRIC CIRCUIT REQUIREMENTS
Total Connected Load
1.0 Amp @ 120 Vac, 60 Hz
GAS SUPPLY PRESSURE REQUIREMENTS*
Manifold Pressure
5" Water Column
10" Water Column
Combustible
rear wall
2 1/2" (64 mm) Min. to
combustible rear wall
SIDE VIEW WIThoUT BACkGUARD
Combustible
rear wall
Backguard mandatory if
gap from back of cooktop
to combustible wall is less
than 2 1/2"
SIDE VIEW WIThoUT BACkGUARD
Phone: (800) 793-0093
Revised 02/16/10 Page 1/3
GUIDE
Minimum Gas Supply
Pressure
6" Water Column
11" Water Column
4.14
