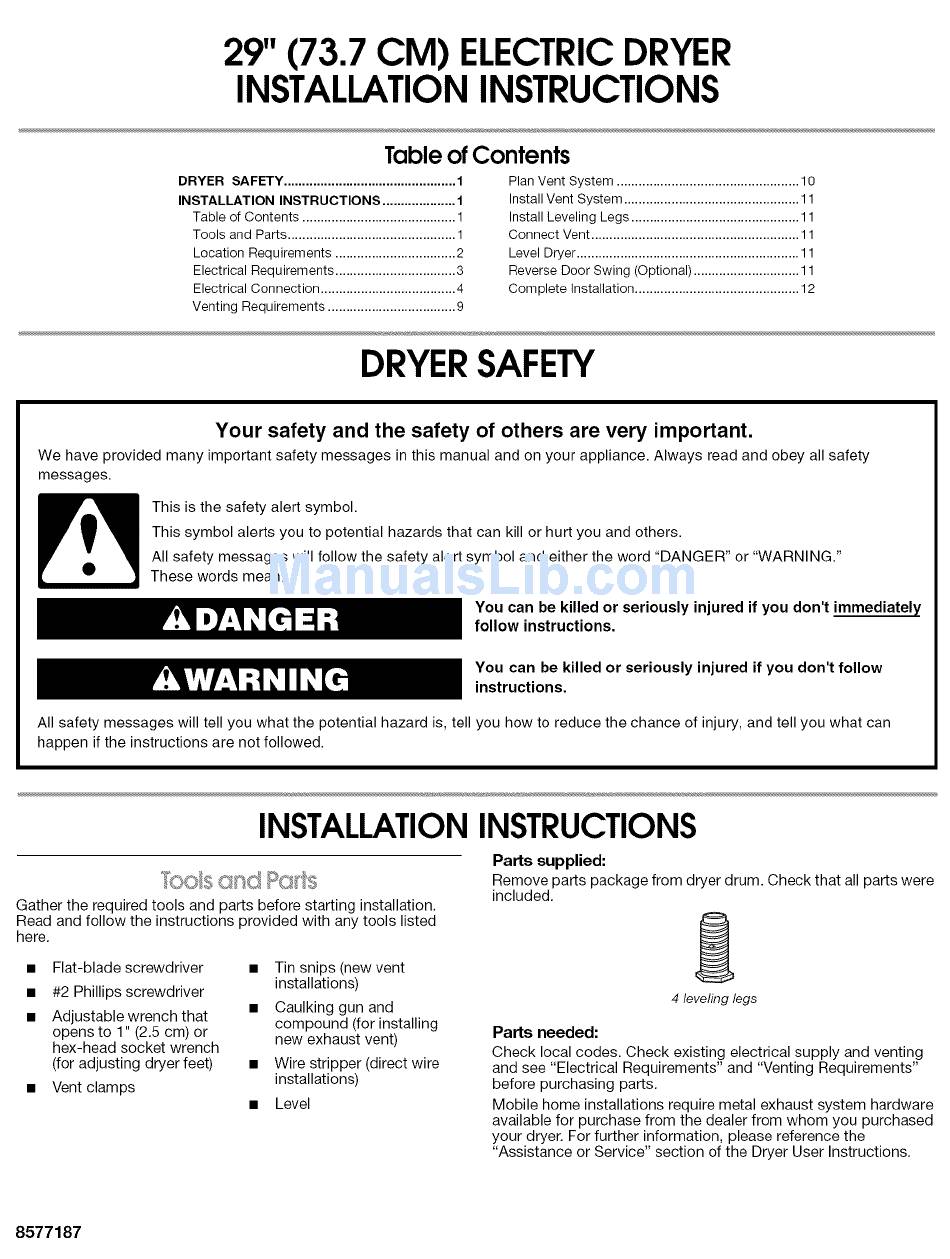

29" (73.7 CM) ELECTRICDRYER
INSTALLATION INSTRUCTIONS
Table of Contents
DRYER SAFETY ...............................................
1
INSTALLATION
INSTRUCTIONS
.................... 1
Table of Contents ..........................................
1
Tools and Parts ..............................................
1
Location Requirements
................................. 2
Electrical Requirements ................................. 3
Electrical Connection ..................................... 4
................................... 9
Plan Vent System ..................................................
10
Install Vent System ................................................
11
Install Leveling Legs ..............................................
11
Connect Vent .........................................................
11
Level Dryer .............................................................
11
Reverse Door Swing (Optional) ............................. 11
Complete Installation .............................................
12
DRYERSAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."
These words mean:
You can be killed or seriously injured if you don't immediately
follow instructions.
You can be killed or seriously injured if you don't follow
instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
INSTALLATIONINSTRUCTIONS
Gather the required tools and parts before starting installation.
Read and follow the instructions provided with any tools listed
here.
Flat-blade screwdriver
#2 Phillips screwdriver
Adjustable wrench that
opens to 1" (2.5 cm) or
hex-head socket wrench
(for adjusting dryer feet)
Vent clamps
•
Tin snips(new
vent
installations)
•
Caulking gun and
compound (for installing
new exhaust vent)
•
Wire stripper(direct
wire
installations)
•
Level
Parts supplied:
Remove parts package from dryer drum. Check that all parts were
included.
4 leveling legs
Parts needed:
Check local codes. Check existing electrical supply and venting
and see "Electrical Requirements"
and "Venting Requirements"
before purchasing parts.
Mobile home installations require metal exhaust system hardware
available for purchase from the dealer from whom you purchased
your dryer. For further information, please reference the
"Assistance or Service" section of the Dryer User Instructions.
8577187
Advertisement
Related Manuals for Crosley CEDX631VQ1
Summary of Contents for Crosley CEDX631VQ1
-
Page 1: Table Of Contents
29" (73.7 CM) ELECTRICDRYER INSTALLATION INSTRUCTIONS Table of Contents DRYER SAFETY ..........Plan Vent System ..........INSTALLATION INSTRUCTIONS ....1 Install Vent System ..........Table of Contents .......... Install Leveling Legs ..........Tools and Parts ..........Connect Vent ............Location Requirements ......... -
Page 2: Electrical Requirements
Dryer Dimensions 43 %"2 15W' -(38.74cm) (110crn) Explosion Hazard "26"_ *27%,,_ (70.Scrr (66 era) Keep flammable materials and vapors, such as gasoline, away from dryer. Place dryer at least 18 inches (48 cm) above the floor for a garage installation. Failure to do so can result in death, explosion, or fire. -
Page 3: Electrical Connection
A UL listed 30-amp power supply cord, rated Mobile Home - Additional Installation Requirements 120/240 volt minimum. The cord should be type SRD or SRDT This dryer is suitable for mobile home installations. and be at least 4 ft (1.22 m) long. The wires that connect to the The installation must conform to the Manufactured Home dryer must end in ring terminals or spade terminals with Construction... - Page 4 Power S upply Cord Direct Wire Fire Hazard Fire Hazard Use 10 gauge solid copper wire. Use a new UL listed 30 amp power supply cord. Use a UL listed strain relief. Use a UL listed strain relief. Disconnect power before making electrical connections. Disconnect power before making electrical connections.
- Page 5 Put power supply cord through the strain relief. Be sure Electrical Connection Options that the wire insulation on the power supply cord is inside the strain relief. The strain relief should have a tight fit with If your home has: And you will be Go to Section the dryer cabinet and be in a horizontal position.
-
Page 6: Venting Requirements
Remove center silver-colored terminal block screw. 4-wire connection: Direct Wire Remove neutral ground wire from external ground conductor screw. Connect neutral ground wire and the neutral wire (white IMPORTANT: A 4-wire connection is required for mobile homes or center wire) of power supply cord under center, silver- and where local codes do not permit the use of 3-wire colored terminal block screw. - Page 7 Loosen or remove center silver-colored terminal block screw. 3. Connect ground wire (green or bare) of power supply cable to external ground conductor screw. Tighten screw. Connect neutral wire (white or center wire) of power supply cord to the center, silver-colored terminal screw of the terminal block.
- Page 8 Loosen or remove center silver-colored terminal block screw. Optional 3-wire connection Place the hooked end of the neutral wire (white or center wire) of power supply cable under the center screw of terminal Use for direct wire or power supply cord where local codes do block (hook facing right).
- Page 9 • Remove excess flexible metal vent to avoid sagging and kinking that may result in reduced airflow and poor performance. • Do not install flexible metal vent in enclosed walls, ceilings or floors. Elbows 45 ° elbows provide better airflow than 90 ° elbows. Fire Hazard Use a heavy metal vent.
- Page 10 NOTE: The following kitsforclose clearance alternate installations Choose yourexhaust i nstallation t ype areavailable forpurchase. Please s ee theservice n umber located ontheback page ofthismanual toorder. Recommended exhaust i nstallations • Over-the-Top Installation: Typical installations vent t hedryer f rom therear o fthedryer. Other Part N umber 4396028 installations arepossible.
-
Page 11: Connect Vent
Place a carton corner post from dryer packaging under each Vent system chart of the 2 dryer back corners. Stand the dryer up. Slide the NOTE: Side and bottom exhaust installations have a 90 ° turn dryer on the corner posts until it is close to its final location. inside the dryer. -
Page 12: Level Dryer
Insert screws into bottom holes on left side of cabinet. Tighten 8. Remove door strike (E) from cabinet. Use a small, flat-blade screws halfway. Position door so large end of door hinge slot screwdriver to gently remove 4 hinge hole plugs (F) on left side is over screws.
