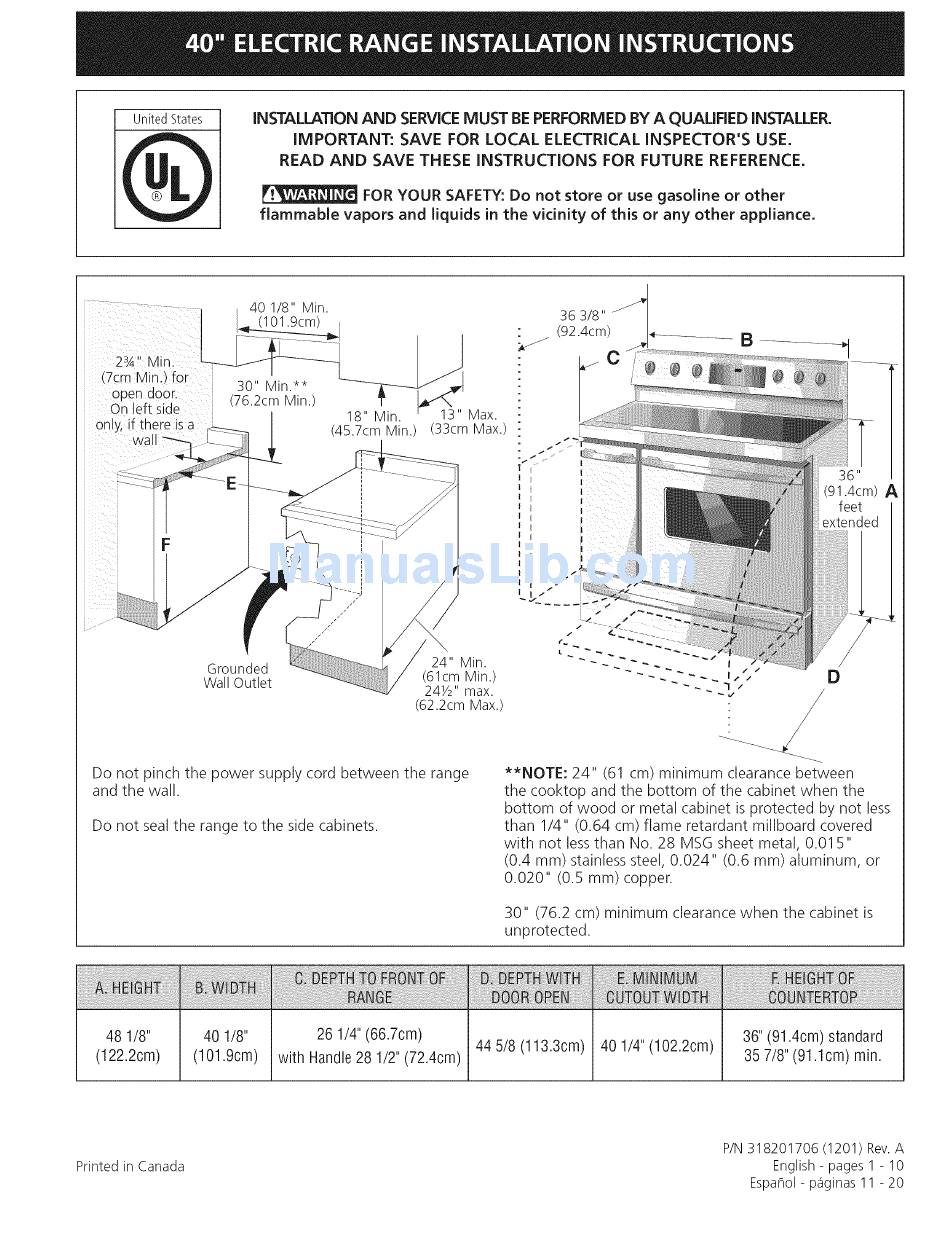

Frigidaire FPEF4085KFD Installation Instructions Manual

40"

Advertisement

Quick Links

United States
INSTALLATION AND SERVICEMUST BE PERFORMED BY A QUALIFIED INSTALLER.
IMPORTANT:
SAVE FOR LOCAL ELECTRICAL INSPECTOR'S
USE.
READ AND SAVE THESE INSTRUCTIONS
FOR FUTURE REFERENCE.
FOR YOUR SAFETY: Do not store or use gasoline or other
flammable
vapors and liquids in the vicinity of this or any other appliance.
40 1/8" Min.
(101.9cm)
23A '' Min
(7cm Min.) for
30" Min.**
open door
(76.2cm Min.)
On eft side
/
on y, if there isa _|
cwal/
_3_
18" Min.
'
13" Max.
(45.7cm Min.) (33cm Max.)
36"
(91.4cm)
A
Grounded
24" Min.
Wall Outlet
(61cm Min.)
241/2" max.
(62.2cm Max.)
D
Do not pinch the power supply cord between the range
and the wall.
Do not seal the range to the side cabinets.
**NOTE: 24" (61 cm) minimum clearance between
the cooktop and the bottom of the cabinet when the
bottom of wood or metal cabinet is protected by not less
than 1/4" (0.64 cm) flame retardant millboard covered
with not less than No. 28 MSG sheet metal, 0.01 5"
(0.4 ram) stainless steel, 0.024" (0.6 mm) aluminum, or
0.020" (0.5 mm) copper.
30" (76.2 cm) minimum clearance when the cabinet is
unprotected.
48 1/8"
(122.2cm)
40 1/8"
26 1/4" (66.7cm)
44 5/8 (113.3cm)
40 1/4" (102.2cm)
(101.9cm)
with Handle28 1/2" (72.4cm)
36" (91.4cm) standard
35 7/8" (91.1cm) rain.
Printed in Canada
P/N 318201706 (1201) Rev.A
English - pages 1 - 10
Espa_ol - p_iginas 11 - 20

Advertisement

loading

Summary of Contents for Frigidaire FPEF4085KFD

  • Page 1 INSTALLATION AND SERVICEMUST BE PERFORMED BY A QUALIFIED INSTALLER. United States IMPORTANT: SAVE FOR LOCAL ELECTRICAL INSPECTOR'S USE. READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. FOR YOUR SAFETY: Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. 40 1/8"...
  • Page 2: Tip Over Hazard

    The installation of appliances designed for important Notes to the Installer manufactured (mobile) home installation must conform Read all instructions contained in these installation with Manufactured Home Construction and Safety instructions before installing range. Standard, title 24CFR, part 3280 [Formerly the Federal Remove all packing material from the oven Standard for Mobile Home Construction and Safety,...
  • Page 3: Power Supply Cord Kit

    Model Serial Number Location The serial plate is located on the oven front frame behind the large oven door. When ordering parts for or making inquiries about your range, always be sure to include the model and serial numbers and a lot number or letter from the serial plate on your range (Figure 1).
  • Page 4: Electrical Connection To The Range

    Four Conductor Wire Connection Range 3. Electrical Connection to the Range Where local codes does NOT permit connection of the Three Conductor Wire Connection Range frame grounding conductor to the neutral wire of the If local codes permit connection of the frame grounding copper power supply cord (see Figure 4): conductor to the neutral wire of the copper power 1.
  • Page 5 Direct Electrical Connection to the Circuit Where local codes DO NOT permit connecting appliance-grounding conductor to the neutral Breaker, Fuse Box or Junction (white) wire, or if connecting to 4-wire electrical If the appliance is connected directly to the circuit system (see Figure 6): breaker, fuse box or junction box, use flexible, armored Be sure that no power is supplied on the cable from...
  • Page 6 Junction Location on the floor where the back edge of the range will be. Now install anti-tip brackets (see "Anti-Tip Brackets Locate junction box as shown in Figure 7. Installation" page 8). If a service cord is used, the wall receptacle should be located in accordance with the dimensions below.
  • Page 7 Bake-After setting the oven to 350°F (177°C) for Leveling Range baking, the lower element in the oven should become Level the range and set cooktop height before red. installation in the cut=out opening (if applicable). Install an oven rack in the center of the oven. Broil-When the oven is set to BROIL, the upper element Place a level on the rack (see figure 9).
  • Page 8: Anti-Tip Bracket Installation Instructions

    Anti-tip Bracket Installation A. Locate the Bracket Using Template instructions - Locate the bracket position by placing the template on the floor, against the back wall and on the right edge of Important Safety Warning cabinet. Mark the location of the screw holes, shown on To reduce the risk of tipping of the range, the range must template.
  • Page 9 C. Level position rang_e_ - Slide range to its final position. Insert the range leveling leg in the Leveling Range _.._ anti-tip bracket. Visually verify if the anti-tip bracket is "_ Anti-Tip engaged. Lower the range by adjusting the 4 leveling legs alternatively until the range is level.
