Installation
Instructions

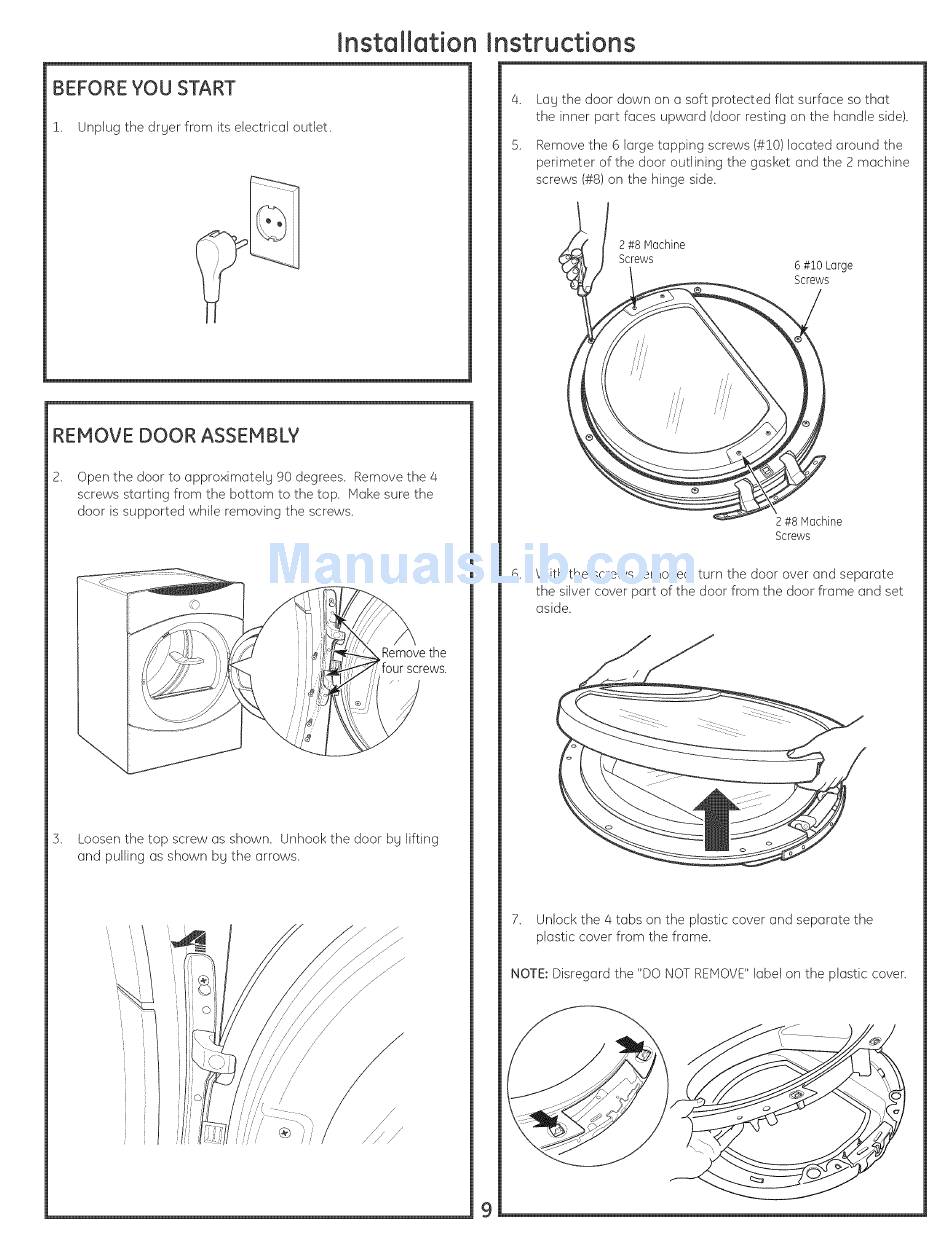

BEFORE YOU START
1. Unplug the drger from its electrical outlet.
REMOVE DOOR ASSEMBLY
2.
Open the door to approximatelg 90 degrees. Remove the 4
screws starting from the bottom to the top. Make sure the
door is supported while removing the screws.
Removethe
four screws.
3.
Loosen the top screw as shown. Unhook the door bg lifting
and pulling as shown bg the arrows.
/
//
/
/
/
/
//
4_
5_
Lag the door down on a soft protected flat surface so that
the inner part faces upward (door resting on the handle side).
Remove the 6 large tapping screws (#10) located around the
perimeter of the door outlining the gasket and the 2 machine
screws (#8) on the hinge side.
2 #8 Machine
Screws
6 #10 Large
Screws
6_
2 #8 Machine
Screws
With the screws removed, turn the door over and separate
the silver cover part of the door from the door frame and set
aside.
7. Unlock the 4 tabs on the plastic cover and separate the
plastic cover from the frame.
NOTE: Disregard the "DO NOT REMOVE"label on the plastic cover.
9
