Installation
Instructions

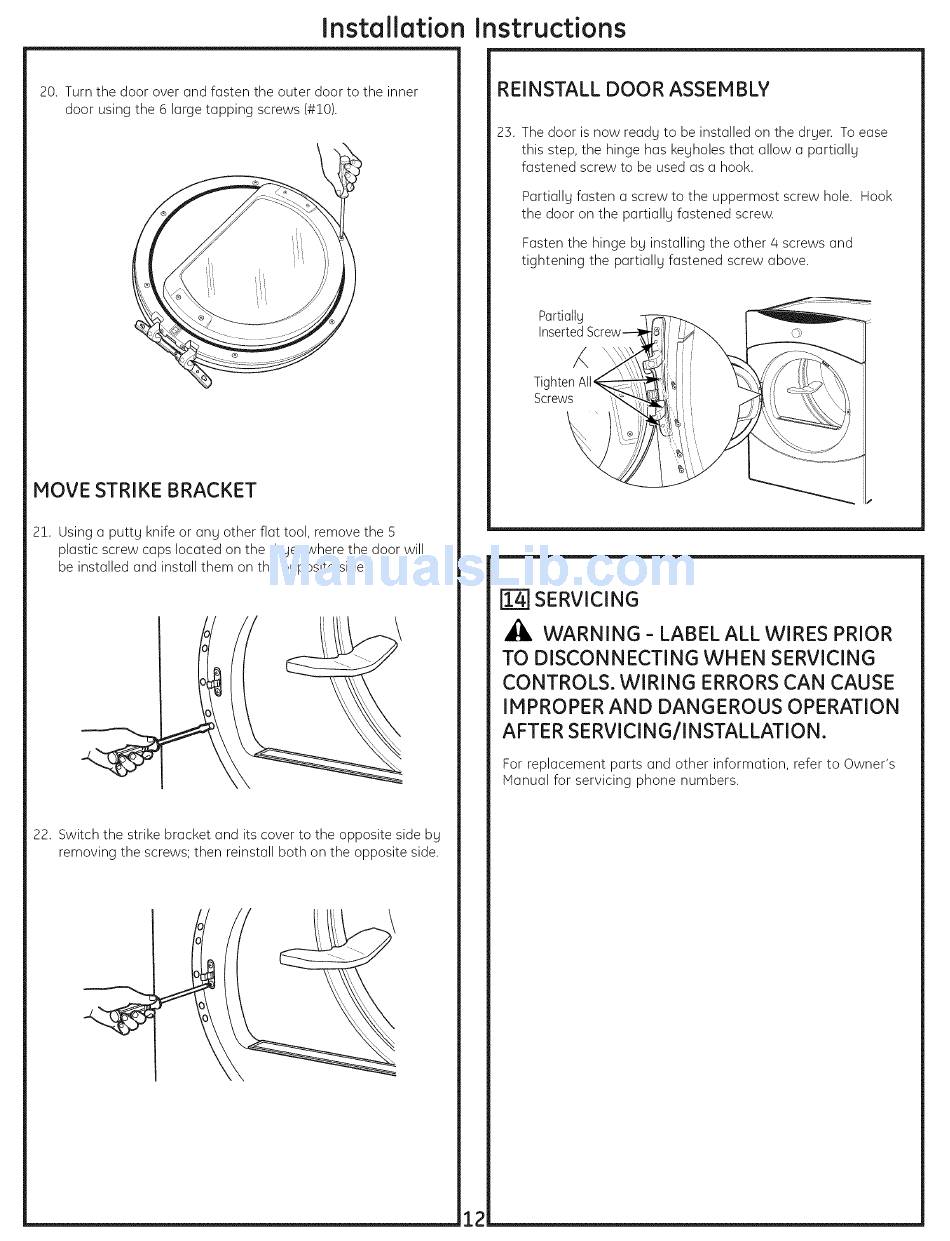

20. Turn the door over and fasten the outer door to the inner
door using the 6 large tapping screws (#!0).
ii i,
¢,
MOVE STRIKE BRACKET
21. Using a puttg knife or ang other flat tool, remove the 5
plastic screw caps located on the drger where the door will
be installed and install them on the opposite side.
22. Switch the strike bracket and its cover to the opposite side bg
removing the screws; then reinstall both on the opposite side.
12
REINSTALL DOOR ASSEMBLY
23. The door is now readg to be installed on the drger. To ease
this step, the hinge has kegholes that allow a partiallg
fastened screw to be used as a hook.
Partiallg fasten a screw to the uppermost screw hole. Hook
the door on the partiallg fastened screw.
Fasten the hinge bg installing the other 4 screws and
tightening the partiallg fastened screw above.
Partiattg
K
Screws
SERVICING
WARNING - LABEL ALL WIRES PRIOR
TO DISCONNECTING
WHEN SERVICING
CONTROLS. WIRING ERRORS CAN CAUSE
IMPROPER AND DANGEROUS OPERATION
AFTER SERVICING/INSTALLATION,
For replacement parts and other information, refer to Owner's
Manual for servicing phone numbers.
