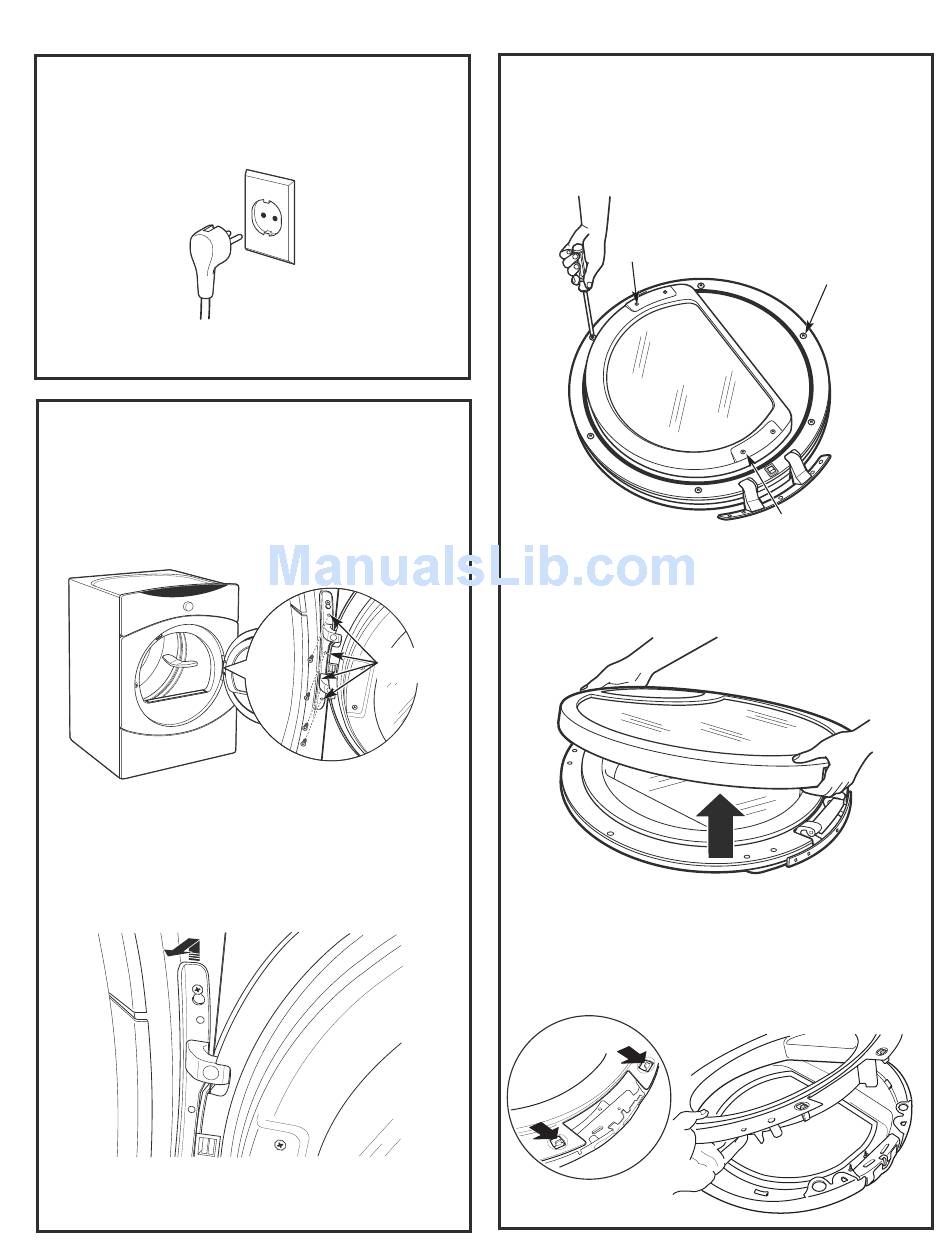

BEFORE YOU START

1. Unplug the dryer from its electrical outlet.
REMOVE DOOR ASSEMBLY
2. Open the door to approximately 90 degrees. Remove the 4
screws starting from the bottom to the top. Make sure the
door is supported while removing the screws.
3. Loosen the top screw as shown. Unhook the door by lifting
and pulling as shown by the arrows.
Installation Instructions
4. Lay the door down on a soft protected flat surface so that
5. Remove the 6 large tapping screws (#10) located around the
6. With the screws removed, turn the door over and separate
Remove the
four screws.
7. Unlock the 4 tabs on the plastic cover and separate the
NOTE: Disregard the "DO NOT REMOVE" label on the plastic cover.
9
the inner part faces upward (door resting on the handle side).
perimeter of the door outlining the gasket and the 2 machine
screws (#8) on the hinge side.
2 #8 Machine
Screws
the silver cover part of the door from the door frame and set
aside.
plastic cover from the frame.
6 #10 Large
Screws
2 #8 Machine
Screws
