Design Guide

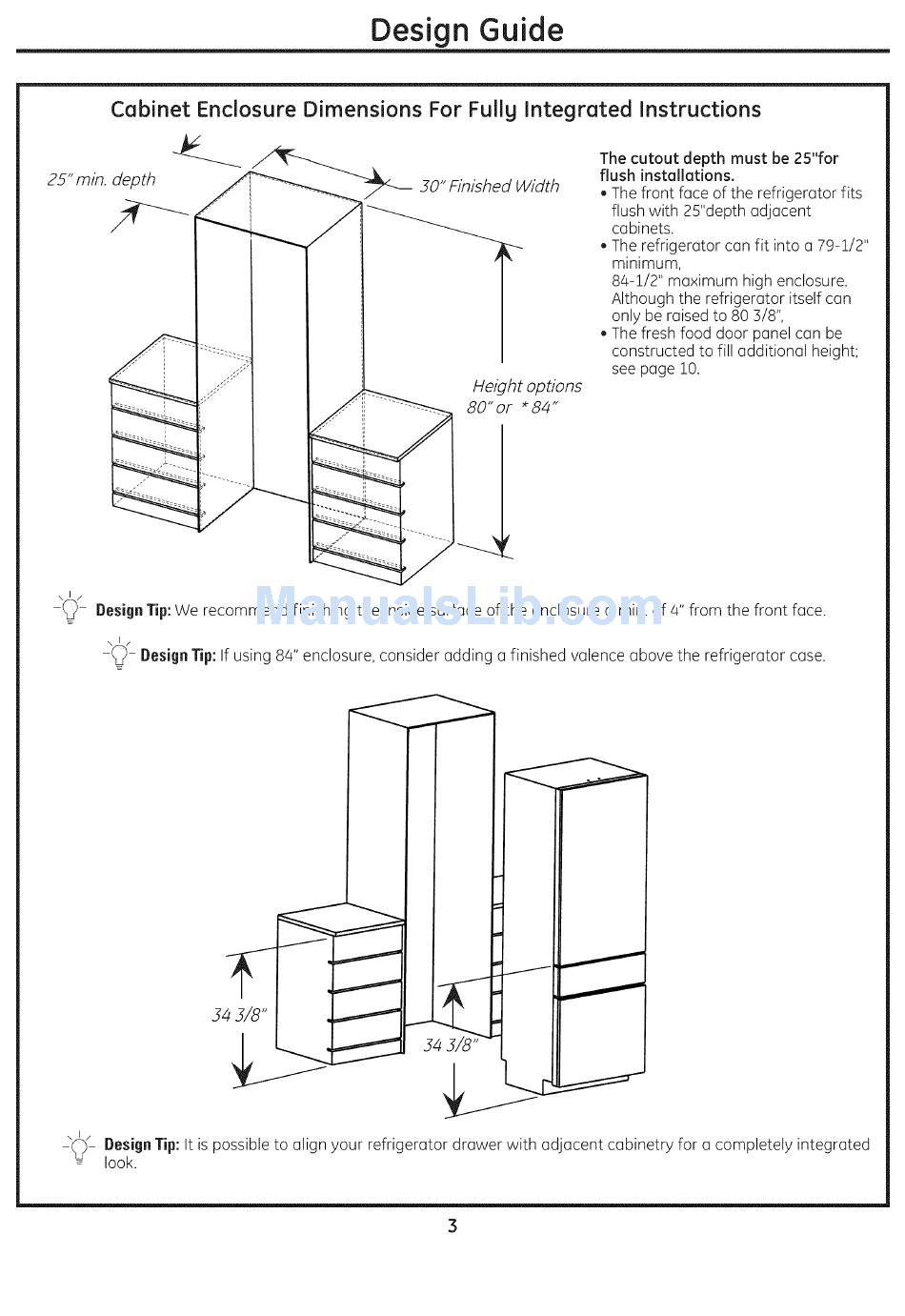

Cabinet Enclosure Dimensions For Fullg Integrated Instructions
25" min. depth _ YO" Finished Width
Height options
80" or * 84"
The cutout depth must be 25"for
flush installations.
, The front face of the refrigerator fits
flush with 25"depth adjacent
cabinets.
, The refrigerator can fit into a 79-1/2"
minimum,
84-1/2" maximum high enclosure.
Although the refrigerator itself can
only be raised to 80 3/8",
, The fresh food door pGnel can be
constructed to fill additional height;
see page 10.
Design Tip: We recommend finishing the inside surface of the enclosure cl min. of 4" from the front face.
'0L Design Tip: If using 84" enclosure, consider Gdding G finished vGlence Gbove the refrigerGtor cGse.
Design Tip: It is possible to align your refrigerator drawer with adjacent cabinetry for cl completely integrated
look.
3
