Design Guide

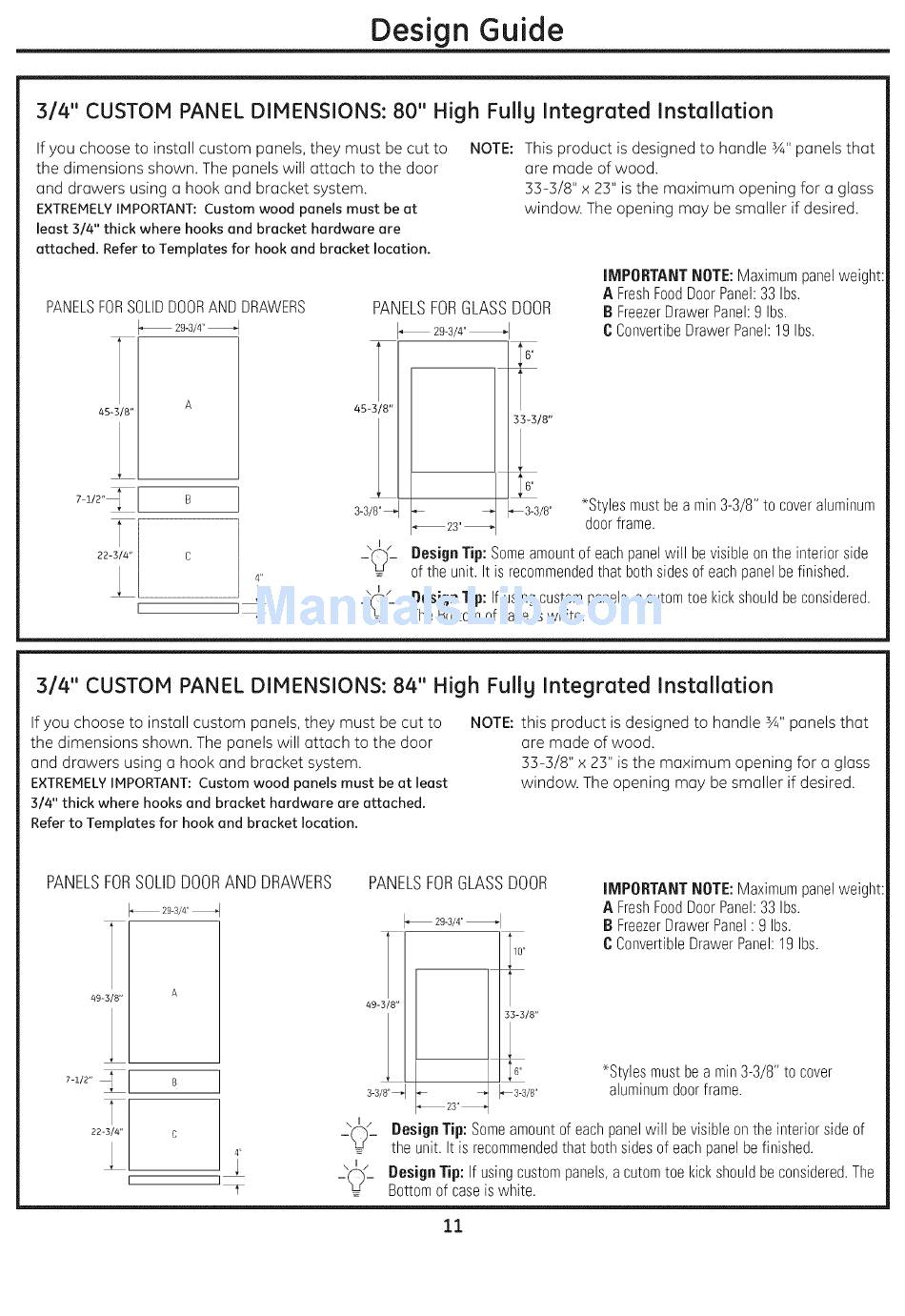

3/4" CUSTOM PANEL DIMENSIONS: 80" High Fullg Integrated Installation
If you choose to install custom panels, they must be cut to
the dimensions shown. The panels will attach to the door
and drawers using a hook and bracket system.
EXTREMELYIMPORTANT: Custom wood panels must be at
least 3/4" thick where hooks and bracket hardware are
attached. Refer to Templates for hook and bracket location.
PANELS FOR SOLID DOOR AND DRAWERS
29-3/@
A
45-3/8"
22-3/4"
NOTE:
PANELSFORGLASSDOOR
29-3/4"
This product is designed to handle 3A"panels that
ore made of wood.
33-3/8" x 23" is the maximum opening for a glass
window. The opening may be smaller if desired.
IMPORTANTNOTE:Maximumpanelweight:
A FreshFoodDoorPanel:33 Ibs.
B Freezer DrawerPanel:9 Ibs.
I1Convertibe DrawerPanel:19 Ibs.
33-3/8"
6"
.. 3.3/8 "
_Stylesmustbe a min 3-3/8" to coveraluminum
door frame.
Design Tip:Someamountof eachpanelwill be visible on the interior side
of the unit. It is recommended t hat both sidesof eachpanelbe finished.
Design Tip: If usingcustompanels,a cutomtoe kickshouldbe considered.
The Bottomof caseis white.
3/4" CUSTOM PANEL DIMENSIONS: 84" High Fullg Integrated Installation
If you choose to install custom panels, they must be cut to
the dimensions shown. The panels will attach to the door
and drawers using a hook and bracket system.
EXTREMELYIMPORTANT: Custom wood panels must be at least
3/4" thick where hooks and bracket hardware are attached.
Refer to Templates for hook and bracket location.
NOTE: this product is designed to handle 3A"panels that
ore made of wood.
33-:S/8"x 23" is the maximum opening for a glass
window. The opening may be smaller if desired.
PANELSFORSOLIDDOORAND DRAWERS
I_ 29-3/4"
49-3/8" A
7-i/2"
22-3/4"
4_,
PANELSFORGLASSDOOR
I._29-3/4"_ I
49-3/8"
3-3/8"_1
33-3/8"
_3-3/8'
IMPORTANTNOTE:Maximumpanelweight:
A FreshFoodDoorPanel:33 Ibs.
B Freezer DrawerPanel: 9 Ibs.
I1Convertible DrawerPanel:19 Ibs.
_Stylesmustbe a min3-3/8" to cover
aluminumdoor frame.
Design Tip: Someamountof eachpanelwill be visible on the interiorsideof
the unit. It is recommended t hat bothsides of eachpanel be finished.
Design Tip: If usingcustompanels,a cutomtoe I<ick shouldbe considered. T he
Bottomof case iswhite.
