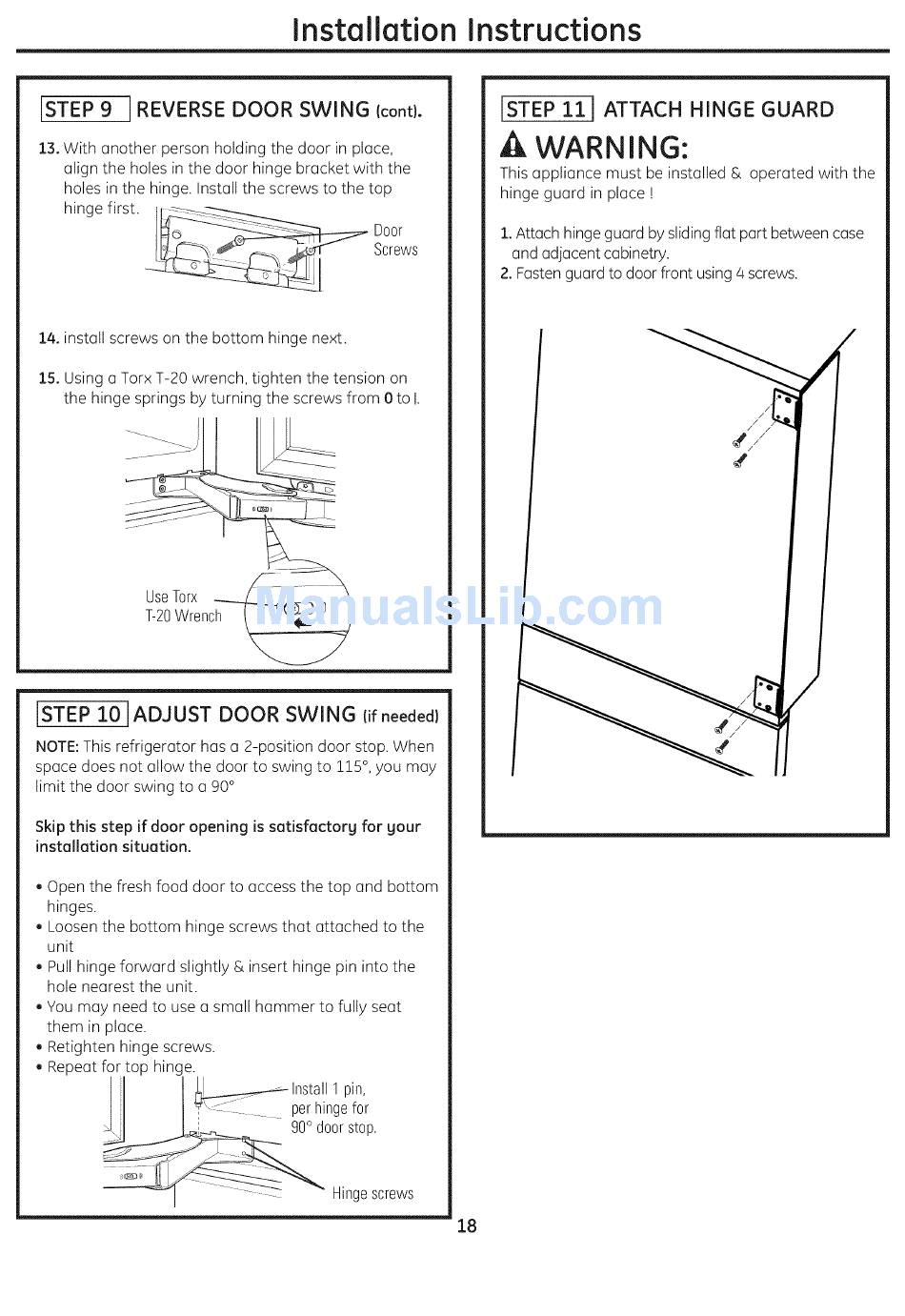

Installation Instructions
jSTEP 9 REVERSE DOOR SWING (cont).
13. With another person holding the door in place,
align the holes in the door hinge bracket with the
holes in the hinge. Install the screws to the top
hinge first.
__- Door
Screws
14.install screws on the bottom hinge next.
15. Using a Torx T-20 wrench, tighten the tension on
the hinge springs by turning the screws from 0 to I.
T-20Wrenc_
STEP 10 ADJUST DOOR SWING
(if needed)
NOTE:This refrigerator has a 2-position door stop. When
space does not allow the door to swing to 1!5 °, you may
limit the door swing to a 90°
Skipthis stepif door openingis satisfactorg forgour
installation situation.
, Open the fresh food door to access the top and bottom
hinges.
. Loosen the bottom hinge screws that attached to the
unit
. Pull hinge forward slightly & insert hinge pin into the
hole nearest the unit.
,You may need to use a small hammer to fully seat
them in place.
, Retighten hinge screws.
, Repeat for top hinge.
iJ _ Install 1 pin,
: .......... per hingefor
g0° door stop.
Hingescrews
18
STEP 111 ATTACH HINGE GUARD
A WARNING:
This appliance must be installed & operated with the
hinge guard in place !
1. Attach hinge guard by sliding flat part between case
and adjacent cabinetry.
2. Fasten guard to door front using 4 screws.
/ /
