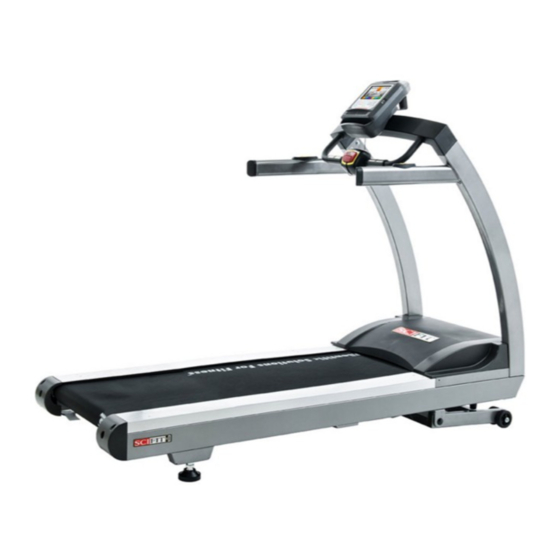

SCIFIT AC5000 Operation Manual

Intelli-fit treadmills
Hide thumbs Also See for AC5000:
Table of Contents

Advertisement

Quick Links

See also: User Manual
Operations Manual
AC5000/AC5000M Intelli-Fit Treadmills
SALES:
800-278-3933
CUSTOMER SERVICE:
800-745-1373 or 918-359-2040
www.SCIFIT.com
Order online 24/7 at www.SCIFIT.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AC5000 and is the answer not in the manual?

Questions and answers

Related Manuals for SCIFIT AC5000

Summary of Contents for SCIFIT AC5000

  • Page 1 Operations Manual AC5000/AC5000M Intelli-Fit Treadmills SALES: 800-278-3933 CUSTOMER SERVICE: 800-745-1373 or 918-359-2040 www.SCIFIT.com Order online 24/7 at www.SCIFIT.com...
  • Page 2 This page purposely left blank...

  • Page 3: Important Safety Instructions

    Important Safety Instructions Read all instructions before using your SCIFIT exercise machine! Save these instructions! DANGER! Connect to a dedicated, properly grounded outlet only. See Power Requirements below. Also, always unplug this machine from the To minimize risk of electric shock: electtrical outlet immediately after using and before cleaning.
  • Page 4 Directives de sécurité importantes DANGER ! AVERTISSEMENT !
  • Page 5 Do not modify the plug provided with the product - if it will not t the outlet, have a If you or your electrician have any questions, contact SCIFIT Product Support at 800-745-1373 or 918-359-2040.
  • Page 6 ; si elle ne convient pas à la prise, demander à un élec L’acheteur ou l’électricien peut adresser toute question au service d’assistance de SCIFIT en appelant le (aux Etats-Unis) (918) 359-2040, (800) 745-1373 or 918-359-2040. Alimentation requise – 5000 CA (110V) Les tapis roulants 5000 CA (100-110 V) exigent un circuit spécialisé...

  • Page 7: Table Of Contents

    Installation and Maintenance 4.1 to 4.2 Heart Rate Transmitter Strap Keypad Functions 6.1 to 6.2 Program Descriptions 7.1 to 7.5 Troubleshooting Warranty Policy and Service Procedures 9.1 to 9.5 Specifications 10.1 to 10.2 Warranty card 11.1 SCIFIT SCIFIT SCIFIT SCIFIT...

  • Page 8: Introduction

    Introduction Thank you for your purchase of the SCIFIT treadmill. We have incorporated machine to assist you afety, please adhere to the following recommendations before you begin to exercise. FITKEY™ Your SCIFIT treadmill may be equipped with a FITKEY receptical.
  • Page 9 Pull magnet CLIP The Push Button option Lanyard option To stop the treadmill quickly in emergency situations you may also push the emergency button (see gure to the left) and the belt will come to a rest. SCIFIT SCIFIT SCIFIT SCIFIT...

  • Page 10: Product Components

    End Caps Running Belt Main Frame Leveling Pad 2. Internal components Components located behind the inveter: Power Resistor Combination Inlet & Breaker Noise Filter Main Motor Front Roller Pulley Drive Belt Inverter Actuator Motor Front Roller SCIFIT SCIFIT SCIFIT SCIFIT...

  • Page 11: Assembly

    Assembly Order online 24/7 at www.SCIFIT.com PARTS LIST MAIN UNIT WITH MOTOR COVER M5 x 12mm Console Screw (Qty. 4) LH/RH UPRIGHTS CENTER FRAME M10 x 20mm Screw (Qty. 4) M12 x 30mm Screw (Qty. 8) M12 Lock M12 Flat...

  • Page 12: Assembly Procedures

    Install motor cover End Caps Level pads Connect power cord (not shown) Align running belt Assembly Note All power cables should be grounded. Verify dust and debris are removed from the machine before using. SCIFIT SCIFIT SCIFIT SCIFIT...
  • Page 13 STEP 2 for the left side. CAUTION Fasten hardware securely to eliminate noise due to looseness - The left Upright has a small cut-out at the bottom to allow for cable routing. SCIFIT SCIFIT SCIFIT SCIFIT...
  • Page 14 Repeat the same process for the right upright. NOTE: Be careful not to pinch the cables inside the uprights. When all bolts are attached, then securely tighten. At this time return to the bolts securing the LH/RH uprights and firmly tighten them. SCIFIT SCIFIT SCIFIT SCIFIT...
  • Page 15 - Using a phillips screw driver secure the console the the center weldment with (Qty. 4) M5 x 12mm screws. NOTE: A ring lug extension from the emergency tether will need to be secured under one of the screws as shown above. SCIFIT SCIFIT SCIFIT...

  • Page 16: End Caps

    STEP 1 - Beginning on the right side use a Phillips screw driver to attach the right end cap with three M5 x 12mm screws STEP 2 - Repeat step 1 for the left end cap. SCIFIT SCIFIT SCIFIT SCIFIT...
  • Page 17 On/O switch location STEP 1 - Verify the On/O switch is in the “OFF” position located at the front of the machine, then attach the supplied power cord and plug the other end into the wall socket. SCIFIT SCIFIT SCIFIT SCIFIT...
  • Page 18 *If the belt slips, then more tension is needed and step 6 will need to be repeated. *If the belt does not slip, then no further tensioning is required. STEP 5 - Reattach the side rails previously removed. SCIFIT SCIFIT SCIFIT SCIFIT...

  • Page 19: Installation And Maintenance

    *Please use furniture dollys to move the treadmill longer distances. After intense training, always clean your SCIFIT product. Perspiration that stays in contact with the frame, casing, and console may cause rust or other damage. Clean surfaces with water and mild soap, then dry with a towel.
  • Page 20 SCIFIT LTD (UK) Lexham House Forest Road Binfield Berkshire, RG42 4HP Company Number: 5970624 (UK) * COUNTRIES OUTSIDE OF UK & EUROPE PLEASE USE USA CONTACT NUMBERS* Order online 24/ 7 at w w w .SCIFIT.com SCIFIT SCIFIT SCIFIT SCIFIT...

  • Page 21: Heart Rate Transmitter Strap

    Simply grip the contact grips lightly, after a short delay the pulse reading will appear on the display. NOTE: If a transmitter heart strap is worn, this will over ride the reading of the contact heart rate. CHR Grips CHR Grips SCIFIT SCIFIT SCIFIT SCIFIT...

  • Page 22: Keypad Functions

    Press again to exit the workout QUICK START This key provides a one-touch “Quick Start” pre-programmed workout pro le or after logging into a program teh “Quick Start” key will activate a selected program. SCIFIT SCIFIT SCIFIT SCIFIT...
  • Page 23 B. Change - Pressing this key will take the user back to the perameter screen to make any additional adjustments. C. STOP - Pressing this key will exit the workout and return to the main screen. SCIFIT SCIFIT SCIFIT SCIFIT...

  • Page 24: Program Descriptions

    Program Descriptions MANUAL (AC5000) Time 15:00 Allows the user to initially set the speed and Speed incline grade. These settings do not change unless the user manually adjusts the speed by using the Pace -- -- [+] or [-] keys or adjust the incline by using the [UP] or [DOWN] arrow keys during the workout.
  • Page 25 Program Descriptions HEART RATE (AC5000/AC5000M) Time 15:00 NOTE: Heart Rate Transmitter Required Heart Rate The Heart Rate program automatically adjusts the incline of the treadmill in response to changes in Speed the operator’s heart rate, so to put the operator as near as possible to the desired Target Heart Rate.
  • Page 26 Program Descriptions Grade Profile Programs Pro le (AC5000/AC5000M) Minimum The grade profile provides seven different incline dependent workout contours that the operator Maximum may select. The incline will automatically adjust up or down as Select the maximum incline height with workout progresses.
  • Page 27 Program Descriptions The following are Grade and Speed workout profiles available for selection MULTI-PEAKS COURSE RAMP SPRINT TWIN PEAKS PEAK PROGRESSIVE SCIFIT SCIFIT SCIFIT SCIFIT...
  • Page 28 Program Descriptions Speed Profile Programs (AC5000/AC5000M) Pro le The speed profile provides seven different speed Minimum dependent workout contours that the operator Maximum may select. The speed will automatically adjust faster or Select the minimum workout speed slower as the workout progresses.

  • Page 29: Troubleshooting

    Noise coming from belt each Noise goes away after a day or two, if noise Seam of new belt time seam passes over the roller. persists contact SCIFIT service Bearings of motor damaged Replace motor Motor making noise 1. Level machine...

  • Page 30: Warranty Policy And Service Procedures

    Warranty Policy and Service Procedures It is very important that your SCIFIT machine is registered. This can be done online at http://www.SCIFIT.com/warrantyregistration.shtml or fill out and mail the registration form at the back of this manual. SCIFIT Statement of Warranty...
  • Page 31 Warranty Policies and Service Procedures (e) The below listed items have the following warranty coverage unless determined to be defective. These items include, but are not limited to: Treadmills – AC5000 models Warranty Period only Treadmill belts...
  • Page 32 Warranty Policies and Service Procedures Freight and Shipping SCIFIT is not responsible for the repair or replacement of any unit or part damaged during transit or installation. The customer is responsible for inspection of each unit and part for shipping damage at time of delivery or installation, and prior to signing receiving paperwork.
  • Page 33 Installation SCIFIT is not responsible for the repair or replacement of any unit or part damaged during installation. The customer is responsible for inspection of each unit and part for damage at the time of installation. The customer is responsible for pursuing all damage claims with the installer.
  • Page 34 Return of Parts SCIFIT is committed to continual improvement in the equipment we market. In order to meet this commitment, the rapid return of defective parts is essential. The examination of the parts by our engineering department leads to changes that insure the same problem does not re-occur.

  • Page 35: Specifications

    Power ..110V/15 amp, 220V/10 amp dedicated circuit Power Cord ..5-15P RA (110V), 6-20P RA (220V) Elevation Range ..0 to 15% (AC5000), -3 to 12% (AC5000M) .5 % increment changes per key stroke Speed Range .
  • Page 36 Power ..110V/15 amp, 220V/10 amp dedicated circuit Power Cord ..5-15P RA (110V), 6-20P RA (220V) Elevation Range ..0 to 15% (AC5000), -3 to 12% (AC5000M) .5 % increment changes per key stroke Speed Range .

  • Page 37: Warranty Card

    Serial Number Entity Purchased From City/State Please rank the following reasons (1 through 6) for selecting SCIFIT with 1 being most important: ____Features ____ Quality ____Price ____Dealer ___User Friendly ___Appearance Please Check the appropriate box(s) on how you were introduced to SCIFIT:...
  • Page 39 Important: Please keep this page for “Recalibration records” Model Number: Serial Number: Date of Purchase: Calibration Date (Medical units): Supplied By: SCIFIT Systems Inc. User Manual: #P4770A (2/2011) CLUB OR TECH CERTIFICATION LOCATION DATE CERTIFIED SERVICE COMPANY INITIALS Recalibration Recalibration...
  • Page 40 5151 South 110th East Avenue Tulsa, Oklahoma 74146 Sales: 1-800-278-3933 • 1-918-359-2000 Customer Service: 1-800-745-1373 Order online 24/ 7 at w w w .SCI FI T.com...
