Operation Description:
AC5/AC5M/DC1000 TOUCHSCREEN
SET-UP AND CALIBRATION
PART NO.
A6625

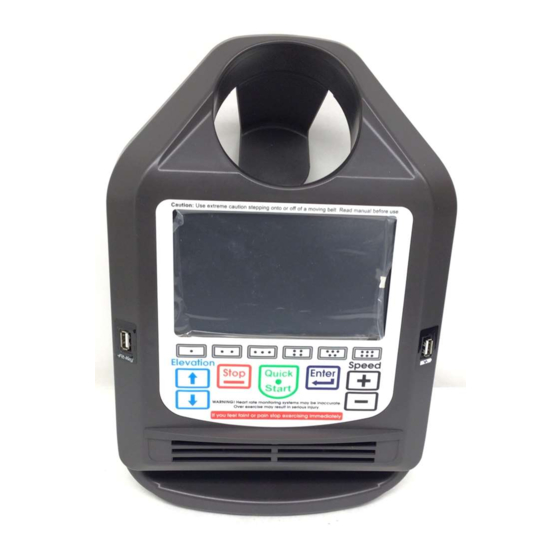

AC5-INT TREADMILL, TOUCHSCREEN CONSOLE
A4897TS
DC1000-INT TREADMILL, TOUCHSCREEN CONSOLE
Service Replacement
Instructions
Current Sub Assy. of:
Required Parts
DESCRIPTION
Required Tools
Assy. Inst. No:
M1027
Originator
AC5/AC5M
MP
DC1000
Controlled Copy
Int:_____ Date:_____
Revision
E
Approved Date
12/12/16
ITEM
QTY.
Tool No:
MP
12/12/16
