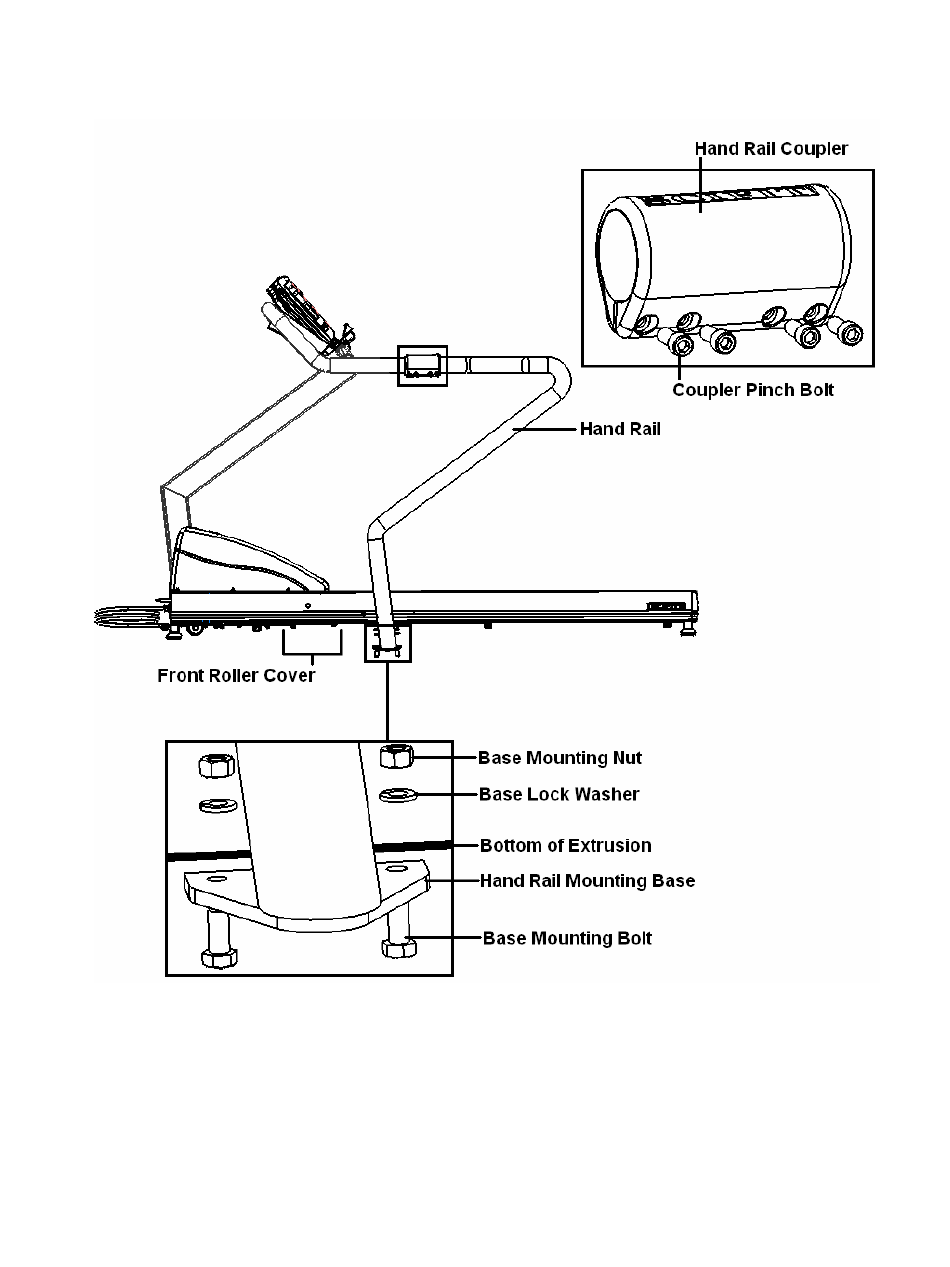

DC4000 Hand Rail Installation
1. Slide the hand rail coupler halfway onto the upright handlebar with the
coupler pinch bolt heads facing out. The upright handlebar should stop
between the middle two (2) coupler pinch bolts.
2. Insert the top end of the hand rail into the hand rail coupler.
3. Line up the two (2) holes in the hand rail mounting base with the two (2)
unused holes on the underside of the extrusion. The holes on the
underside of the extrusion are located at 3" and 6" behind the front roller
cover.
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SCIFIT DC4000
Summary of Contents for SCIFIT DC4000
- Page 1 DC4000 Hand Rail Installation 1. Slide the hand rail coupler halfway onto the upright handlebar with the coupler pinch bolt heads facing out. The upright handlebar should stop between the middle two (2) coupler pinch bolts. 2. Insert the top end of the hand rail into the hand rail coupler.
- Page 2 4. Install each base mounting bolt up through the hand rail mounting base, the extrusion, followed by a base lock washer, and then install base mounting nut. Do not tighten. 5. Verify hand rail coupling is centered between the upright handle bar and the handle bar and the tapered lip on the hand rail coupling is pointed down.
