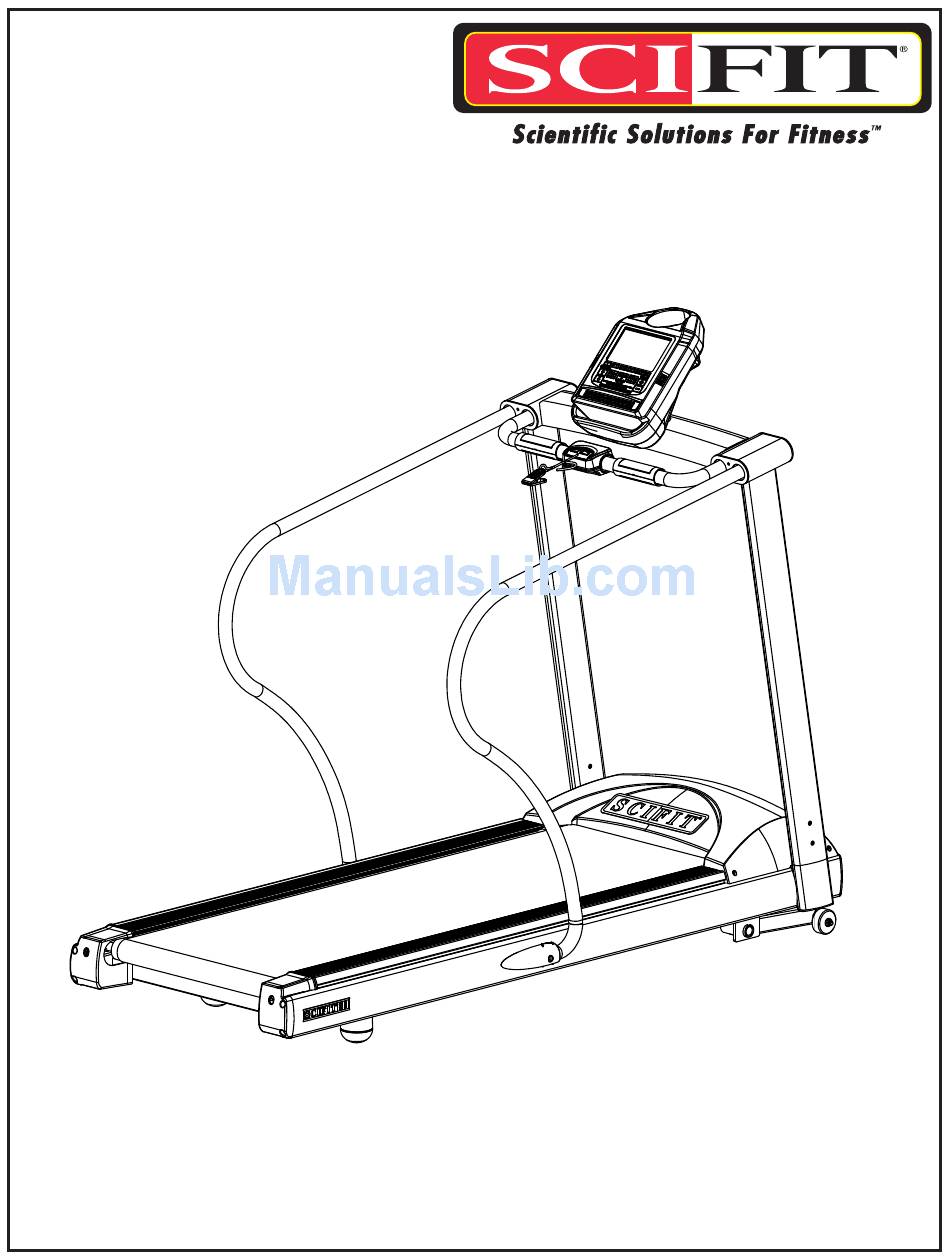

- Page 1 Owner’s Manual DC1000 Intelli-Fit Treadmill SALES: 1-800-278-3933 CUSTOMER SERVICE: 1-800-745-1373 Order online 24/7 at www.SCIFIT.com...
- Page 2 This page purposely left blank...
-
Page 3: Important Safety Instructions
Do not operate where aerosol (spray) products are being used or in an oxygen rich environment. To disconnect, turn off the power switch and unplug from the wall outlet SCIFIT • Scientific Solutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFIT... - Page 4 If you or your electrician have any questions, contact SCIFIT Product Support at 1-800-745-1373. Plug grounding Grounded outlet SCIFIT • Scientific Solutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFIT...
-
Page 5: Table Of Contents
Table of Contents Introduction 1.1 to 1.2 Product Components 3.1 to 3.16 Assembly 4.1 to 4.2 Installation and Maintenance Heart Rate Transmitter Strap 6.1 to 6.2 Keypad Functions 7.1 to 7.5 Program Descriptions 8.1 to 8.2 Set-Up Mode Troubleshooting 10.1 to 10.5 Warranty Policy and Service Procedures 11.1 Speci cations... -
Page 6: Introduction
To ensure a future of good health, you should always eat well balanced meals, drink plenty of fluid/water during a workout, and stay fit by exercising intelligently. SCIFIT • Scientific Solutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFIT... - Page 7 If you should fall or slip backward during the workout, the magnet will pull away from the MAGNET Emergency Stop housing and the running belt will come to a rest CLIP SCIFIT • Scientific Solutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFIT...
-
Page 8: Product Components
2. Internal components On/O 110V Motor Power Switch Controller Board 110V Actuator Thermal Fuse 3hp Motor AC Inlet Transformer Drive Belt Front Roller & Pulley Speed Sensor SCIFIT • Scientific Solutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFIT... -
Page 9: Assembly
Assembly Order online 24/7 at www.SCIFIT.com PARTS LIST Please make sure all parts below are in the box before assembly. MAIN UNIT WITH MOTOR COVER CONSOLE M5 x 12mm Console Screw (Qty. 4) SIDE HAND RAILS UPRIGHT WELDMENT ASSEMBLY CONSOLE MOUNT WELDMENT... - Page 10 Assembly Order online 24/7 at www.SCIFIT.com PARTS LIST CONT’D Please make sure all parts below are in the box before assembly. MAGNET/CLIP LOWER SIDE RAIL COVERS 4-WIRE CHR CABLE 2-WIRE E-STOP CABLE 10-WIRE MAIN CABLE EXTENSION EXTENSION EXTENSION...
- Page 11 Assembly Order online 24/7 at www.SCIFIT.com PARTS LIST CONT’D ASSEMBLY BAG CONTAINING M8 Flat M5 x 12mm M8 Lock M8 x 16mm M6 x 15mm Screw (Qty. 2) Washer Washer w/Blue Loctite Screw (Qty. 4) Patch Screw (Qty. 6) (Qty. 6) (Qty.
-
Page 12: Assembly Procedures
Power-Up Belt Alignment Belt Tension Incline Calibration Assembly Note • All power cables should be grounded. • Verify dust and debris are removed from the machine before using. SCIFIT Scientific Solution for Fitness SCIFIT Scientic Solutions for Fitness SCIFIT... - Page 13 Assembly NOTE: 1. The following assembly instructions for the DC1000 will require two people 2. Refer to section 3.3 for hardware indentification STEP 1: UPRIGHT WELDMENT INSTALLATION 1a. Carefully hold the upright weldment assembly over the treadmill main body frame and attach the 10-wire connector from the right upright to the 10-wire connector coming from the treadmill main body frame upright extension.
- Page 14 1f. Repeat steps 1c, 1d and 1e for the left upright. NOTE: The screws will be secured properly in a later step. SCIFIT Scientific Solutions For Fitness SCIFIT Scientific Solutions For Fitness...
- Page 15 (Qty. 2) M6 x 1.0 x 15mm M4 Hex Wrench Socket Button HD Screws 2b. Use a M4 Hex wrench to LOOSELY secure the hand rail with (Qty.2) M6 x 15mm socket button head screws. SCIFIT Scientific Solutions For Fitness SCIFIT Scientific Solutions For Fitness SCIFIT...
- Page 16 . 2f. Using a M5 hex wrench tightly secure the screw on both the lower right and left side hand rails . SCIFIT Scientific Solutions For Fitness SCIFIT Scientific Solutions For Fitness...
- Page 17 4c. Attach the Dual 2 wire CHR (Dual male housing end) cable to connectors P3 and P4. 2 - Wire E-Stop Cable 4d. Attach the 2 wire E-Stop cable to connector P11. SCIFIT Scientific Solutions For Fitness SCIFIT Scientific Solutions For Fitness SCIFIT...
- Page 18 E-Stop extension cables coming from the console. 6b. After connecting, push all the cables back into the center frame and align the two console mounting bracket holes with the two center frame mounting holes.. SCIFIT Scientific Solutions For Fitness SCIFIT Scientific Solutions For Fitness...
- Page 19 (Qty. 2) M8 x 45mm socket cap screws to secure it in place. STEP 7: ATTACH MAGNET AND CLIP TO THE MACHINE Part Required: (Qty. 1) Magnet/Clip 7a. Place the magnet end of the tether onto the Emergency stop housing. SCIFIT Scientific Solutions For Fitness SCIFIT Scientific Solutions For Fitness SCIFIT...
- Page 20 9b. Insert an M6 T-Handle wrench into the right end cap and turn the handle clockwise, then place the T-handle into the left end cap and equally turn the handle clockwise. Continue doing this until the walk belt becomes taunt SCIFIT Scientific Solutions For Fitness SCIFIT Scientific Solutions For Fitness...
- Page 21 * If the belt slips, than more belt tension is required and step 9b needs to be repeated, also verifying the belt is still running centered. * If the belt does not slip, no futher tensioning is required. SCIFIT Scientific Solutions For Fitness SCIFIT Scientific Solutions For Fitness...
- Page 22 C S AF E loopback : F AIL R F ID loopback : F AIL F an Then the screen in Figure 2 will appear B attery : 0.200V Fig.2 SCIFIT Scientific Solutions For Fitness SCIFIT Scientific Solutions For Fitness SCIFIT...
- Page 23 C S AF E loopback : F AIL R F ID loopback : F AIL During the calibration process, the “POT” category F an will be highlighted in yellow (Fig.4) B attery : 0.200V Fig.4 SCIFIT Scientific Solutions For Fitness SCIFIT Scientific Solutions For Fitness SCIFIT...
- Page 24 B attery : 0.200V 11d. Press the [One Dot] key and hold, then press the [Stop] key. The console will reset and you may begin using the treadmill. Fig.5 SCIFIT Scientific Solutions For Fitness SCIFIT Scientific Solutions For Fitness SCIFIT...
-
Page 25: Installation And Maintenance
*Please use furniture dollys to move the treadmill longer distances. After intense training, always clean your SCIFIT product. Perspiration that stays in contact with the frame, casing, and console may cause rust or other damage. Clean surfaces with water and mild soap, then dry with a towel. - Page 26 Forest Road Binfield Berkshire, RG42 4HP Company Number: 5970624 (UK) *COUNTRIES OUTSIDE OF UK & EUROPE PLEASE USE USA CONTACT NUMBERS* Order online 24/7 at www.SCIFIT.com SCIFIT • Scientific Solutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFIT...
-
Page 27: Heart Rate Transmitter Strap
NOTE: If a transmitter heart strap is worn, this will over ride the reading of the contact heart rate. SCIFIT • Scientific Solutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFIT... -
Page 28: Keypad Functions
QUICK START This key provides a one-touch “Quick Start” pre-programmed workout profile or after logging into a program the“Quick Start” key will activate a selected program. SCIFIT • Scientific Solutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFIT... - Page 29 E. Change - Pressing this key will take the user back to the parameter screen to make any additional adjustments. F. STOP - Pressing this key will exit the workout and return to the main screen. SCIFIT • Scientific Solutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFIT...
-
Page 30: Program Descriptions
Select your weight (maximum 375 lbs/170 kg) Select the speed (maximum 9 mph or 14.5 km/h) with the keys, then press with the keys, then press Speed SCIFIT • Scientific Solutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFIT... -
Page 31: Heart Rate
These values are based upon averages. Always consult your physician to establish the proper heart rate zone for your individual health condition. keys, then press Speed SCIFIT • Scientific Solutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFIT... - Page 32 Select your weight (maximum 375 lbs/170 Kg) with NOTE: Do not exceed the Maximum incline grade keys, then press selected in the next step. Speed SCIFIT • Scientific Solutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFIT...
- Page 33 Program Descriptions The following are Grade and Speed workout profiles available for selection COURSE MULTI-PEAKS SPRINT RAMP TWIN PEAKS PEAK PROGRESSIVE SCIFIT • Scientific Solutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFIT...
- Page 34 Select the minimum workout speed with the keys, then press Speed keys, then press Speed NOTE: Do not exceed the Maximum speed you select in the next step. SCIFIT • Scientific Solutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFIT...
-
Page 35: Set-Up Mode
DC1000-INT TREADMILL CONSOLE “SET-UP” DESCRIPTIONS The following are brief descriptions of Set-Up Mode categories that pertain only to the SCIFIT -INT treadmill. Additional categories will be seen, which are used for other SCIFIT products. Use the [UP] or [Down] arrows to make adjustments. After making adjustments the user may press [Quick Start] to save and exit the Set-Up mode at anytime. - Page 36 8. 2 Set-up Mode OVERLAY: (Production only) Default: Rotary Indicates the type of membrane switch (Overlay) that has been attached on the console Press [E N T ER ] to advance MODEL: Default: PRO1 Selects the type of machine the console is going to be attached to Press [E N T ER ] to advance LANGUAGE: Default: English...
-
Page 37: Troubleshooting
Noise goes away after a day or Noise coming from belt each Seam of new belt two, if noise persists contact time seam passes over the roller SCIFIT product support Motor making noise Bearings of motor damaged Replace motor 1. Treadmill not level... - Page 38 LIEU OF ALL OTHER LIABILITIES OF SCIFIT INCLUDING DIRECT, INDIRECT, SPECIAL AND CONSEQUENTIAL DAMAGES OR PENALTIES EXPRESSED OR IMPLIED WHETHER ARISING OUT OF CONTRACT, NEGLIGENCE OR OTHER SORT. SCIFIT • Scientific Solutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFIT...
-
Page 39: Warranty Policy And Service Procedures
12 months Assist gloves 90 days USB Keys and Lanyards 90 days (f) Fires, floods, and acts of God, are not covered under this warranty. SCIFIT • Scientific Solutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFIT... - Page 40 INSPECT MERCHANDISE THOROUGHLY NOTING ANY DAMAGE ON RECEIVING PAPERWORK PRIOR TO SIGNING”. SCIFIT is not responsible for the repair or replacement of any unit or part damaged during transit or installation. The customer is responsible for inspection of each unit and part for shipping damage at time of delivery or installation, and prior to signing receiving paperwork.
- Page 41 Detailed description of symptoms encountered. Installation SCIFIT is not responsible for the repair or replacement of any unit or part damaged during installation. The customer is responsible for inspection of each unit and part for damage at the time of installation. The customer is responsible for pursuing all damage claims with the installer.
- Page 42 Thank you in advance for your assistance! When requested by SCIFIT, defective parts must be returned to the SCIFIT factory within 20 days of receipt of replacement part. Otherwise SCIFIT will expect payment on the parts invoice net 30 days.
-
Page 43: Specifications
Quick Start, Manual, Heart Rate, 7 Pre-programmed Elevation profiles, 7 Pre-programmed Speed profiles Warranty Within U.S. & Canada 3 years parts, 1 year labor Outside U.S. 3 years parts, no labor 73.35 (1863.1mm) SCIFIT • Scientific Solutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFIT... - Page 44 This page purposely left blank...
- Page 45 12.1 SCIFIT SCIFIT SCIFIT SCIFIT...
- Page 47 Model Number: Serial Number: Date of Purchase: Supplied By: SCIFIT Systems Inc. User Manual: #P4805A (6/2011)
- Page 48 5151 South 110th East Avenue Tulsa, Oklahoma 74146 Sales: 1-800-278-3933 Customer Service: 1-800-745-1373 Order online 24/7 at www.SCIFIT.com...
