Operation Description:

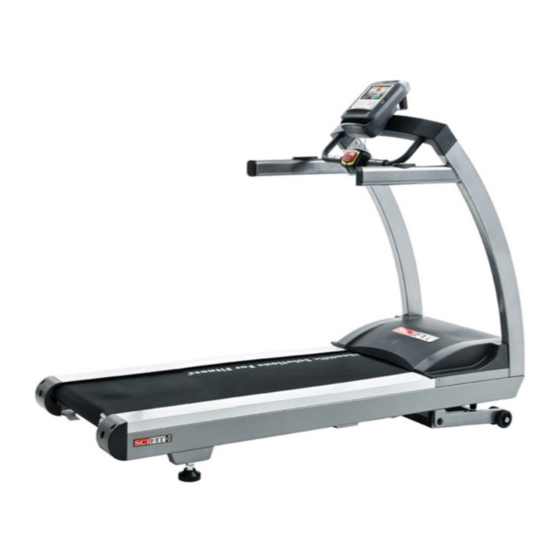

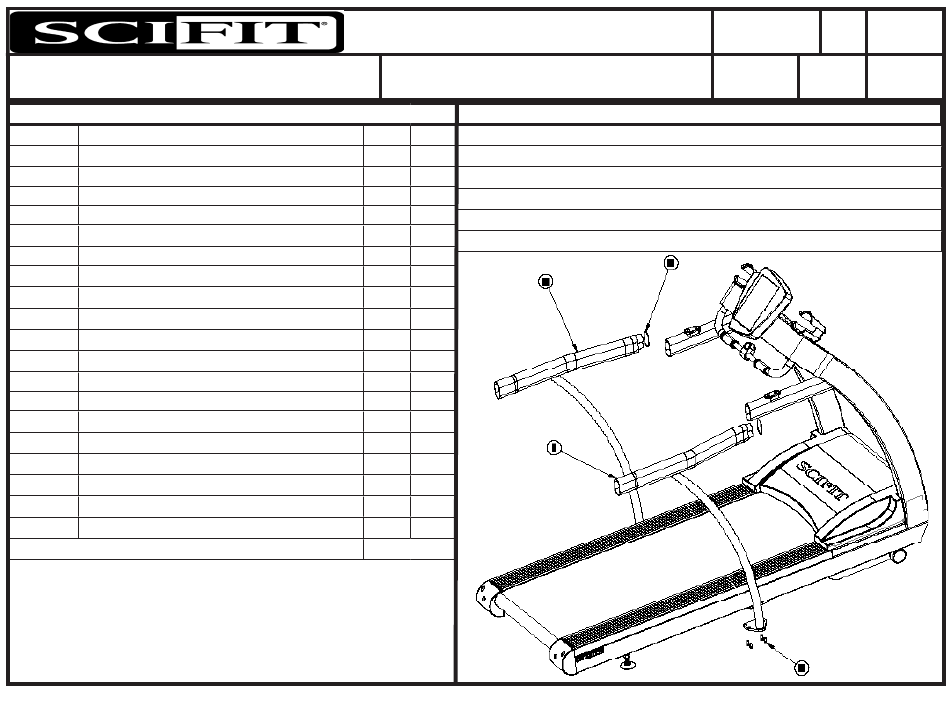

AC5000 Medical Handrails Installation
Required Parts
Part No.
Description
A3614
Kit, Extension, Handrail, Pair, AC5000
P3612
Extension, Handrail, Right, AC5000, Assembly
P3613
Extension, Handrail, Left, AC5000, Assembly
P3871
Kit, Hardware, Handlebar, Extension, Treadmill
M0816SCH
Screw, Socket Head Cap Screw, M8-1.25 x 16mm
P3902
O-Ring, Nitrile, 70 Duro
Check contents of kit and verify that all items are recieved. If
there are any missing components, contact SCI-FIT customer
service at 1-800-745-1373.
Service Part Replacement In
Sub Assy of :
AC5000, AC5000M
Item
Qty.
3/4" Wrench or Socket
1
1
7/32" or 6mm Allen Wrench
2
1
5/16" or 8mm Allen Wrench
#2 Phillips Screwdriver
Needle Nose Pliers or Vise Grips
3
8
4
2
Sheet 1 of 3
Inst. No.:
struction
M1004
Creation Date:
12/10/07
Required Tools
Description
Rev.
ECN No.
A
_
Approv. Date:
Originator:
12/15/07
R. Gant
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for SCIFIT AC5000
Summary of Contents for SCIFIT AC5000
- Page 1 Required Tools Part No. Description Item Qty. Description A3614 Kit, Extension, Handrail, Pair, AC5000 3/4” Wrench or Socket P3612 Extension, Handrail, Right, AC5000, Assembly 7/32” or 6mm Allen Wrench P3613 Extension, Handrail, Left, AC5000, Assembly 5/16” or 8mm Allen Wrench...
- Page 2 Service Part Replacement Instruction Operation Description: Assy. Inst. No.: Rev. ECN No. AC5000 Medical Handrails Installation M1004 Sub Assy of: Creation Date: Originator: Approv. Date: 12/15/07 12/10/07 R.Gant AC5000, AC5000M Step 1: Disconnect Power WARNING Unplug power cord from electrical outlet before in- Injuries to health may result from not disconnecting power stalling Handrail Extensions.
- Page 3 Service Part Replacement Instruction Operation Description: Assy. Inst. No.: Rev. ECN No. AC5000 Medical Handrails Installation M1004 Sub Assy of: Creation Date: Originator: Approv. Date: 12/15/07 12/10/07 R.Gant AC5000, AC5000M Treadmill Frame Mount Plate Secure Bottom Flange w/ M8 Screws...
