Summary of Contents for SCIFIT Intelli-Fit AC5000

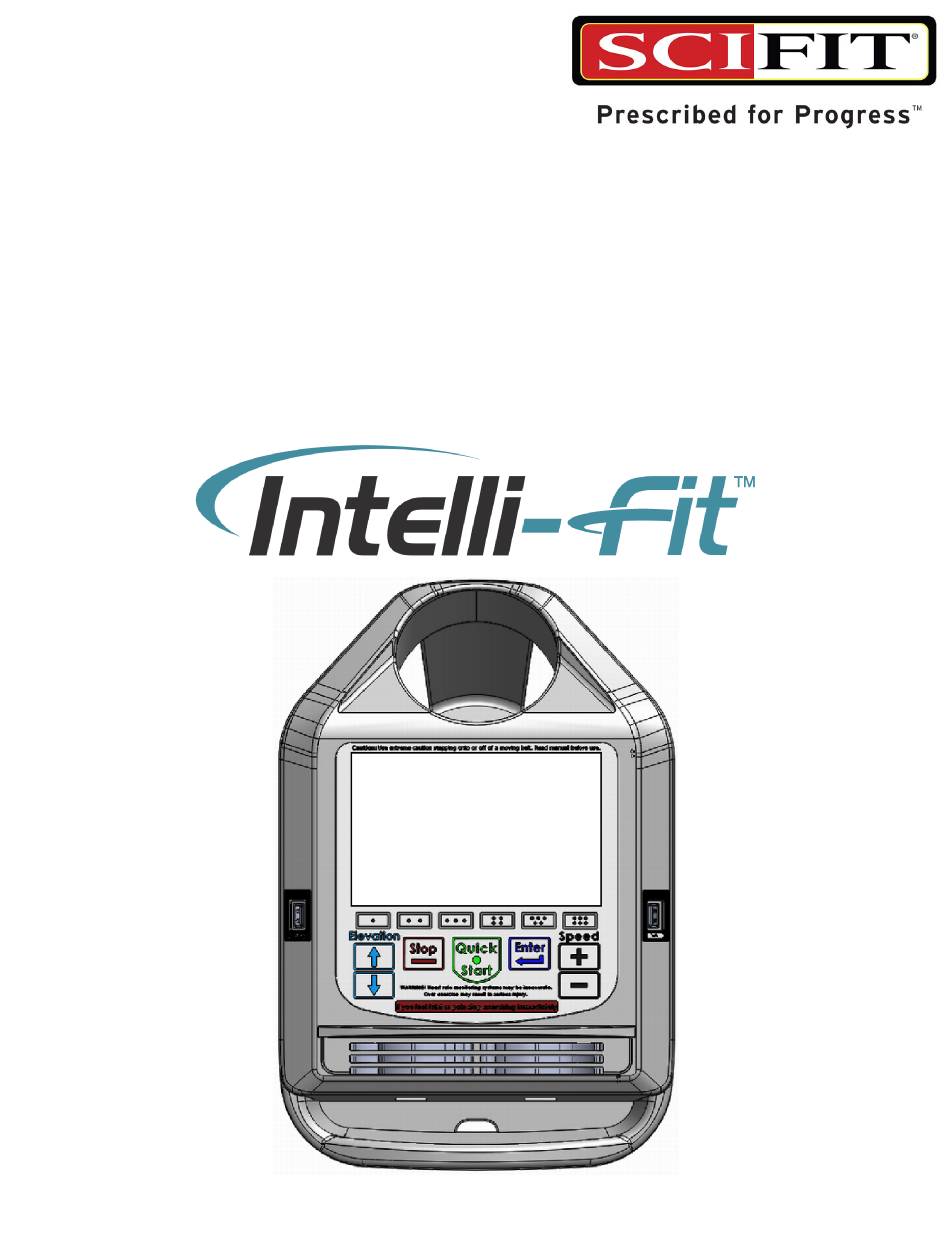

- Page 1 Intelli-Fit Treadmill Touchscreen User Manual...
- Page 3 United Kingdom All Other EMEA Countries and Distributor Business EMEA* North America Life Fitness UK LTD Life Fitness Atlantic BV SCIFIT Queen Adelaide Bijdorpplein 25-31 Ely, Cambs, CB7 4UB 5151 S. 110th E. Avenue 2992 LB Barendrecht Telephone: General Office (+44) 1353.666017 Tulsa, OK, 74146 U.S.A...
- Page 4 User and Service Documents Link https://lifefitness9512.zendesk.com/hc/en-us https://lfworld.lifefitness.com Additional information is available online using the links above. أعلاه الرابط باستخدام الإنترنت على إضافية معلومات تتوفر 点击上面的链接可在线获取更多信息。 Flere oplysninger er tilgængelige online gennem linket ovenfor. Bijkomende informatie is online beschikbaar via bovenstaande link. Vous trouverez plus d'informations en ligne à...
-
Page 5: Table Of Contents
© Copyright 2022, Life Fitness, LLC. All Rights Reserved. Life Fitness, Hammer Strength, Cybex, ICG and SCIFIT are registered trademarks of Life Fitness, LLC and its affiliated companies and subsidiaries. Brunswick and related trademarks used under license from Brunswick Corporation. Disclaimer: Images and specifications are current as of the date of publication and are subject to change. -
Page 6: Introduction
Safety Introduction Thank you for your purchase of this SCIFIT exercise machine. We have incorporated the finest technology and ergonomic design into this machine to assist you in achieving your fitness goals. This SCIFIT machine is designed for class “S” (commercial) and class “A” (high accuracy) and class “II a” (medical directive) applications. - Page 7 If warnings are missing or damaged, please contact customer service immediately for replacement warning labels. Warning labels are shipped with every product and should be installed before the product is used. SCIFIT is not responsible for missing or damaged warning labels.
- Page 8 • Do not use this product in areas where aerosol spray products are being used or where oxygen is being administered. Such substances create the danger of combustion and explosion. • Position the product so that the power cord plug to the wall is accessible to the user. Make sure that the power cord is not knotted or twisted and that it is not trapped under any equipment or other objects.
-
Page 9: Mantenance
Mantenance Maintenance Component Action When Console Clean with mild soap and water. Weekly LCD Display LCD Screen Wipes. Weekly Page 7 of 32... -
Page 10: Specifications
Specifications Specifications Weight 6 lbs (2.7 kg) Length 14 in. (35.6 cm) Width 9 in. (22.9 cm) Depth 6 in. (15.2 cm) Water Bottle Holder USB Charging Port Fan Vents Personal Item Compartment Fit-Key Connecting Port Active Touchscreen/Tactile Area Selecting workout or activating a special feature. Data process entry or increase/decrease the speed level. -
Page 11: Heart Rate
Heart Rate Heart Rate WARNING: Heart Rate monitoring systems may be inaccurate. If you feel faint, stop exercising immediately. Over exercising may result in serious injury or death. CAUTION: Always follow manufacturers instructions for proper care and use. Failure to follow manufacturers instructions may result in injury to yourself. -
Page 12: Machine Program Menus
Machine Program Menus Machine Program Menus AC5000 and DC1000 Quick Start Manual Heart Rate Grade Profile Speed Profile AC5000M Quick Start Manual Reverse Heart Rate Grade Profile Speed Profile Page 10 of 32... -
Page 13: Workout Programs
Workout Programs Quick Start (AC5000/AC5000M/DC1000) Allows the user to get on and go. The workout has no set time limit. Speed and grade (elevation) levels are manually controlled and the timer will count upward. Adjusting Speed and Elevation: Press the Menu icon to activate the pop-up menu at the bottom of the screen. Page 11 of 32... - Page 14 Grade (Elevation): 1. Press the [Grade] icon and an adjustment screen will appear. 2. Use the Up or Down arrows to adjust the grade (elevation) of the treadmill. Speed: 1. Press the [Speed] icon and an adjustment screen will appear. Page 12 of 32...
- Page 15 2. Use the Up or Down arrows to adjust the speed of the treadmill. Pace: 1. Press the [Pace] icon and an adjustment screen will appear. 2. Use the Up or Down arrows to adjust the pace of the treadmill. •...
-
Page 16: Manual (Ac5000/Dc1000) And Forward
Manual (AC5000/DC1000) and Forward (AC5000M) Allows the user to set the workout time, speed, grade (elevation) and user weight to begin the workout. Speed and grade (elevation) can be changed manually using the console or grade/speed buttons on the left and right handrails. 1. -
Page 17: Heart Rate (Ac5000/Ac5000M/Dc1000)
After pressing [Reverse] a warning message will appear. Press the [Stop] tactile button on the console to return to the main menu, otherwise the screen will advance to the data entry screen. 1. Screen 1: Enter the time length of the workout. 2. -
Page 18: Grade Profile
ATTENTION: A heart rate transmitter chest strap is required. If you are not wearing a transmitter belt or the belt is not sending a signal correctly, after a short period of time a warning message will appear. 1. Screen 1: Enter the time length of the workout. (Minimum workout time is 12 min. including a 2 min. warm up) 2. -
Page 19: Speed Profile
5. Screen 5: Enter the speed wanted during the workout. a. After entering and accepting the speed a caution message will appear showing the speed selected associated running pace. if you wish to continue press [Accept]. Press [Cancel] to change the speed entered. 6. -
Page 20: Additional Key Features
Additional Key Features Pop-Up Menu Access Once a workout commences the word “Menu” will appear above the workout program currently activated. Touching the “Menu” icon activates a second screen showing a pop-up menu at the bottom of the display where additional features may be accessed. Second screen Page 18 of 32... -
Page 21: The Grade (Elevation)
The Grade (Elevation) Key Allows the user to change the grade (elevation) of the treadmill during the workout. The Pace Key Allows the user to adjust the amount of time (in minutes) to complete 1 mile during the workout. Increasing the pace minutes decreases the speed of the belt. -
Page 22: The Pause Key
The Pause Key Pauses the workout program at anytime, then a second screen appears to show three options. Second screen 1. Cool Down - Will take the user to the “Cool Down” screen. The user can’t return to the workout program and will have to exit the screen by touching the “Stop”... -
Page 23: Set-Up Mode Access
Set-Up Mode Access Option 1: Touchscreen Do the following steps in sequence. 1. Touch the upper left corner of the screen. 2. Then touch the left side of the “Quick Start” icon. 3. Finally touch the upper left corner of the screen again. Option 2: Tactile Do the following steps in sequence. -
Page 24: Set Up Mode
Set Up Mode 1. NOTE: Use the [UP] or [Down] arrows on the side of the screen to highlight a selected category. Category Selection 2. NOTE: There will be times the screen will change to a data entry view to make adjustments. After making the adjustments touch the “Accept”... -
Page 25: Treadmill Set Up Mode
3. NOTE: Press [Accept] to save or [Cancel] not to save any changes. The screen will then return to the main menu. Saving or Canceling the Changes Treadmill Set Up Mode Categories When the “Set-Up Mode” is accessed it will show categories for both rotary and treadmill. The following information will only list categories concerning the treadmill machines. -
Page 26: Serial Protocol
Serial Protocol DEFAULT: CSAFE This gives the user a choice between “CSAFE” or “ERGOLINE” protocol. Utilization (Hours) DEFAULT: 0.0 This tracks the amount of time (in hours) that the machine has been in use. NOTE: Hours will not reset when a software upgrade is done. Maximum Workout Time DEFAULT: 99:00 Allows the workout time length to be set to a predetermined limit. -
Page 27: Information Screens
Information Screens Main Information Screen Touch the [More] key on the main menu screen until the main information screen is shown, then touch the screen for the information you wish to access. Product Information Service Information Intelli-Fit Information Product Information The screen will show the following: 1. -
Page 28: Service Information
Service Information The screen will show the following: 1. Domestic website. 2. Current console software installed. Intelli-Fit Information The screen will show the following: 1. A description summary of the console programs available (Machine dependent). Page 26 of 32... -
Page 29: Warranty
All terms of this warranty are void if this product is moved beyond the continental borders of the United States of America (excluding Alaska, Hawaii and Canada) and are then subject to the terms provided by that country’s local authorized SCIFIT representative. -
Page 30: Exclusive Warranty
Retain proof of purchase; use, operate and maintain the Product as specified in the Manual; notify Customer Support Services of any defect within 10 days after discovery of the defect; if instructed, return any defective part for replacement or, if necessary, the entire Product for repair. - Page 31 NOTES Page 29 of 32...
- Page 32 NOTES Page 30 of 32...
- Page 33 NOTES Page 31 of 32...
- Page 34 A6872C 2022 www.scifit.com...
