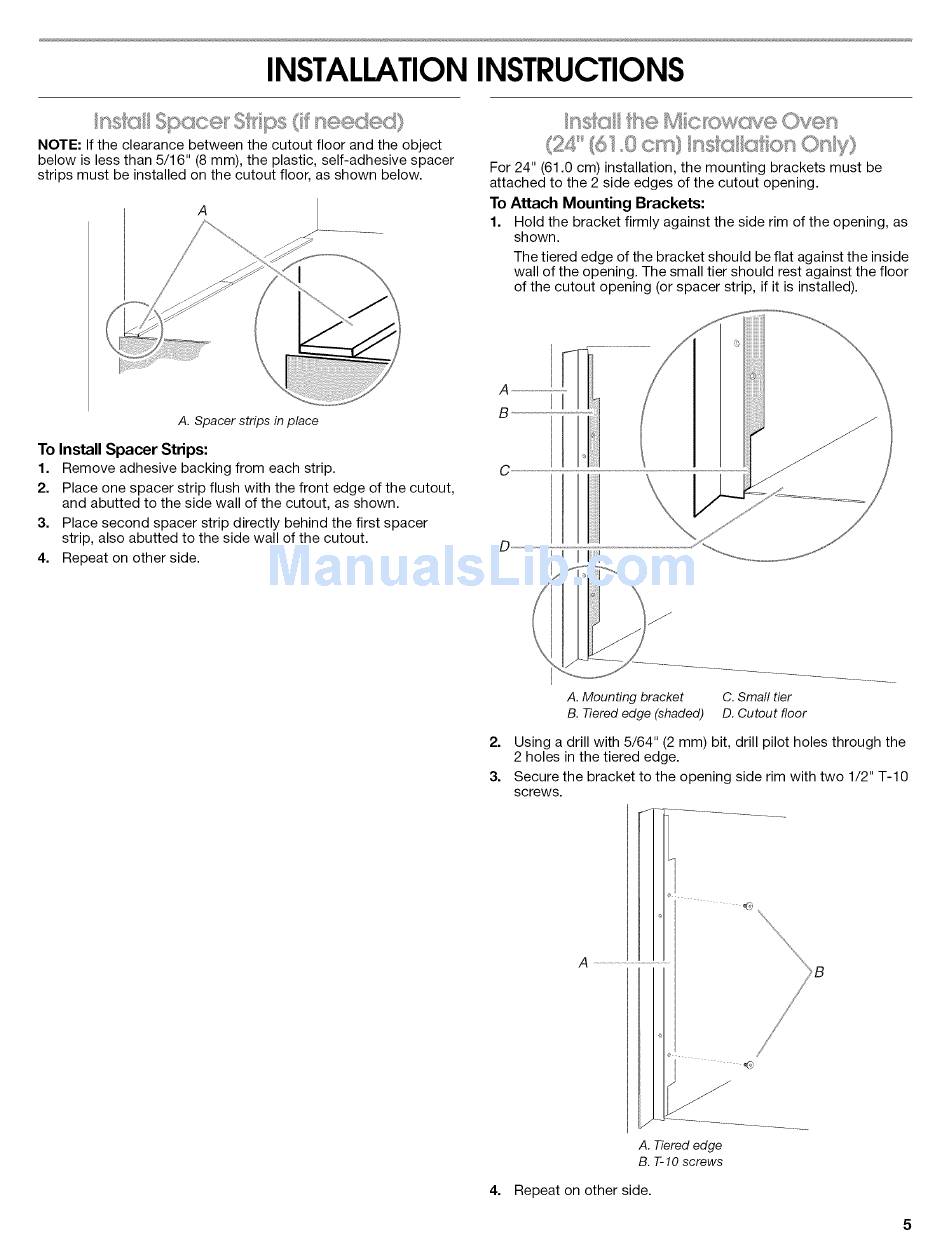

INSTALLATIONINSTRUCTIONS
NOTE: If the clearance between the cutout floor and the object
below is less than 5/16" (8 ram), the plastic, self-adhesive spacer
strips must be installed on the cutout floor, as shown below.
A
A. Spacer strips in place
TO Install Spacer Strips:
1. Remove adhesive backing from each strip.
2. Place one spacer strip flush with the front edge of the cutout,
and abutted to the side wall of the cutout, as shown.
3. Place second spacer strip directly behind the first spacer
strip, also abutted to the side wall of the cutout.
4. Repeat on other side.
f'O,_" (6© ,,,+<rdt O_/yJ+'
%6,+/"_' o,. %J_l l,#iJ
For 24" (61.0 cm) installation, the mounting brackets must be
attached to the 2 side edges of the cutout opening.
To Attach Mounting Brackets:
1. Hold the bracket firmly against the side rim of the opening, as
shown.
The tiered edge of the bracket should be flat against the inside
wall of the opening. The small tier should rest against the floor
of the cutout opening (or spacer strip, if it is installed).
C
D
A, Mounting bracket
B. Tiered edge (shaded)
C. Small tier
D. Cutout floor
2. Using a drill with 5/64" (2 mm) bit, drill pilot holes through the
2 holes in the tiered edge.
3. Secure the bracket to the opening side rim with two 1/2" T-10
screws.
A ..............................................................
/
/
A. Tiered edge
B. T-IO screws
4. Repeat on other side.
