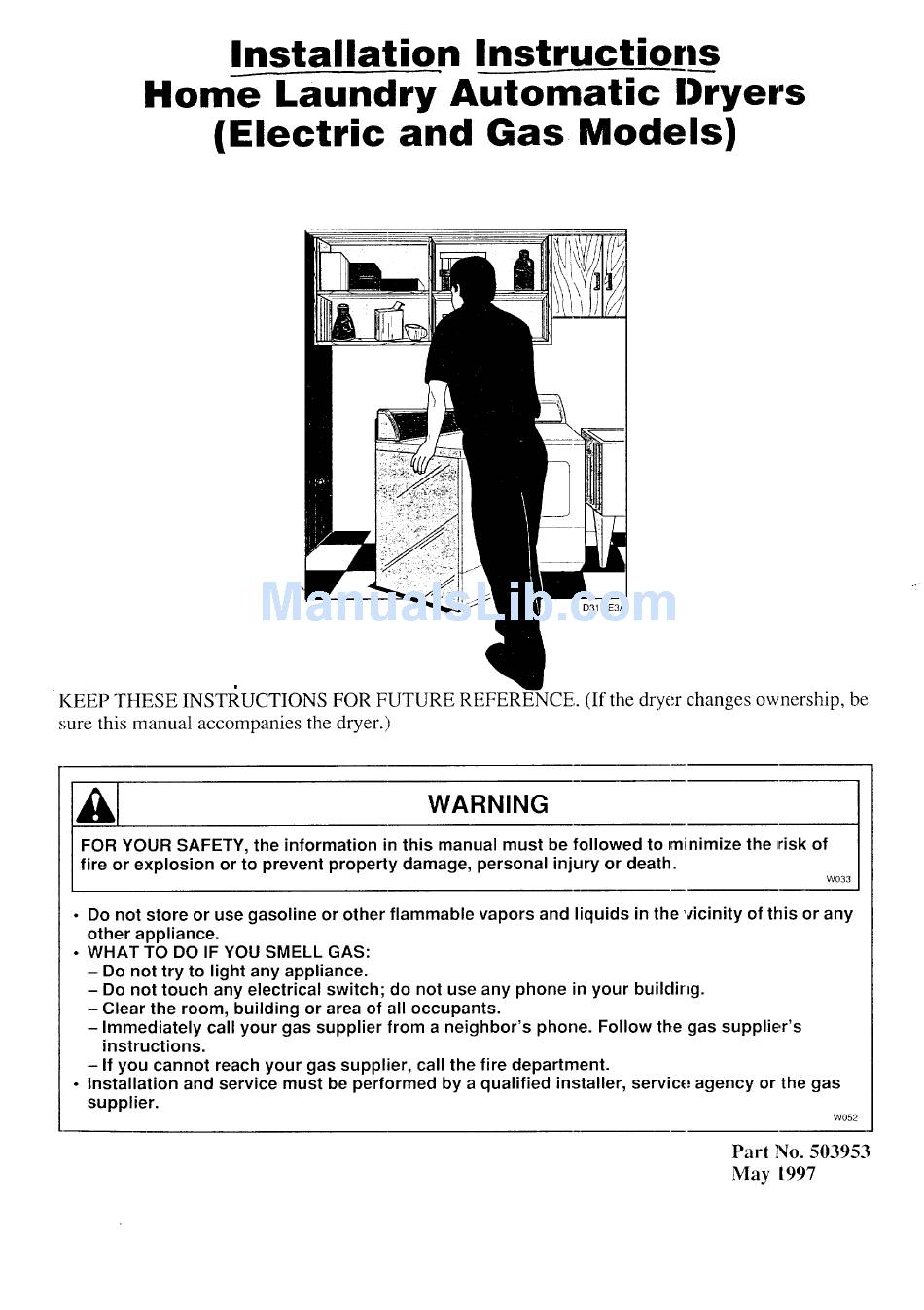

D3111E3A
KEEP
THESE
INSTt_UCTIONS
FOR FUTURE
REFERENCE.
(If the dryer changes
ownership,
be
sure this manual
accompanies
the dryer.)
_1
WARNING
FOR YOUR SAFETY,
the information
in this manual
must be followed
to minimize
the trisk of
fire or explosion
or to prevent
property
damage,
personal
injury or death.
W033
• Do not store
or use gasoline
or other flammable
vapors
and liquids in the vicinity
of this or any
other
appliance.
• WHAT
TO DO IF YOU SMELL
GAS:
- Do not try to light any appliance.
- Do not touch
any electrical
switch;
do not use any phone
in your building.
- Clear the room,
building
or area of all occupants.
- Immediately
call your gas supplier
from a neighbor's
phone.
Follow
the gas supplier's
instructions.
- If you cannot
reach your
gas supplier,
call the fire department.
• Installation
and service
must
be performed
by a qualified
installer,
service
agency
or the gas
supplier.
W052
Part No. 503953
May
1997
