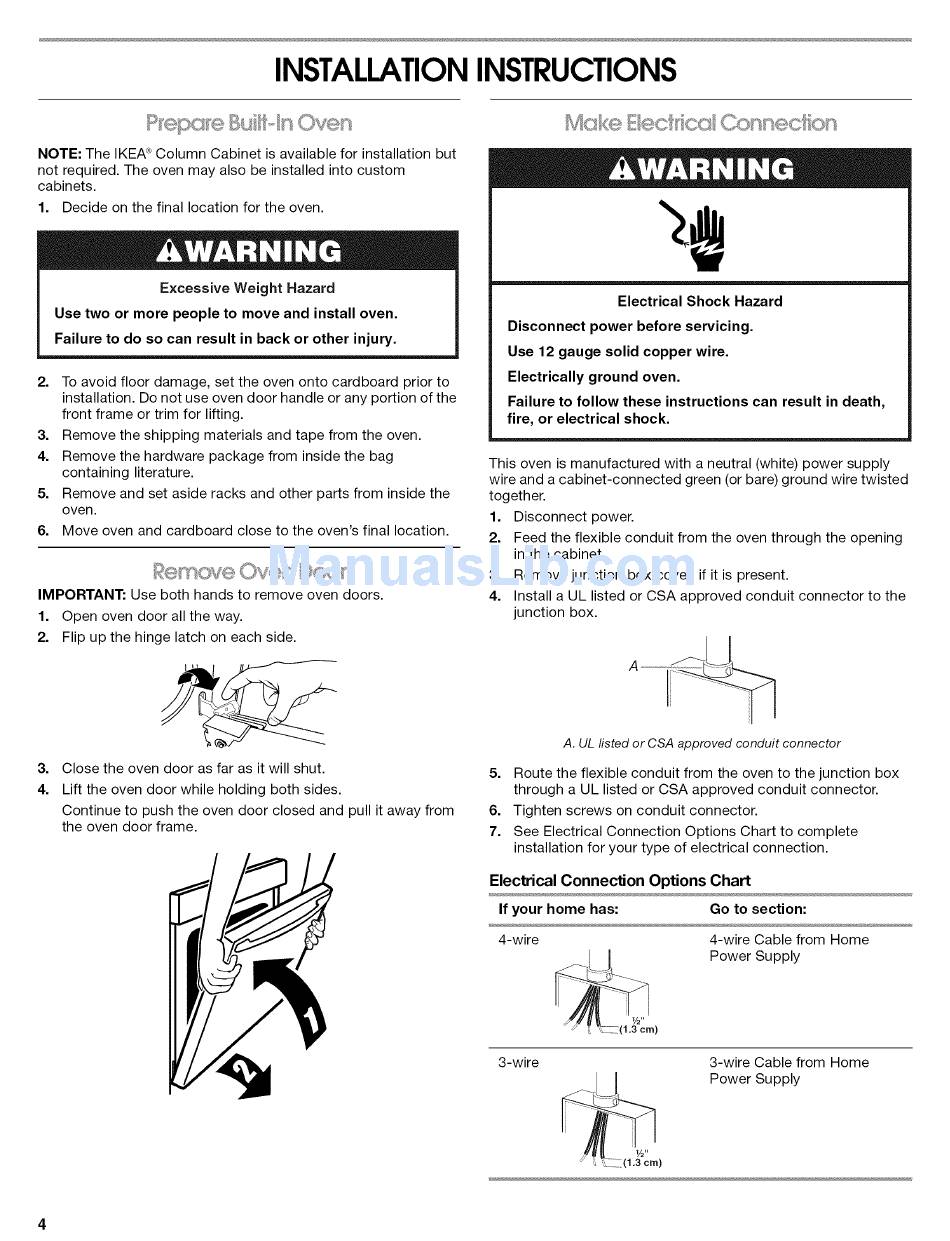

INSTALLATION INSTRUCTIONS
NOTE: The IKEA®Column Cabinet is available for installation but
not required. The oven may also be installed into custom
cabinets.
1. Decide on the final location for the oven.
Excessive
Weight Hazard
Use two or more people to move and install oven.
Failure to do so can result in back or other injury.
2. To avoid floor damage, set the oven onto cardboard prior to
installation. Do not use oven door handle or any portion of the
front frame or trim for lifting.
3. Remove the shipping materials and tape from the oven.
4. Remove the hardware package from inside the bag
containing
literature.
5. Remove and set aside racks and other parts from inside the
oven.
6. Move oven and cardboard close to the oven's final location.
D
IMPORTANT: Use both hands to remove oven doors.
1. Open oven door all the way.
2. Flip up the hinge latch on each side.
3.
Close the oven door as far as it will shut.
4.
Lift the oven door while holding both sides.
Continue
to push the oven door closed
and pull it away from
the oven door frame.
Electrical Shock Hazard
Disconnect power before servicing.
Use 12 gauge solid copper wire.
Electrically ground oven.
Failure to follow these instructions can result in death,
fire, or electrical shock.
This oven is manufactured
with a neutral (white) power supply
wire and a cabinet-connected
green (or bare) ground wire twisted
together.
1. Disconnect
power.
2. Feed the flexible conduit from the oven through the opening
in the cabinet.
3. Remove junction box cover, if it is present.
4. Install a UL listed or CSA approved conduit connector to the
junction box.
A. UL listed or CSA approved conduit connector
5. Route the flexible conduit from the oven to the junction box
through a UL listed or CSA approved conduit connector.
6. Tighten screws on conduit connector.
7. See Electrical Connection
Options Chart to complete
installation for your type of electrical connection.
Electrical
Connection
Options Chart
If your home has:
Go to section:
4-wire
4-wire Cable from Home
Power Supply
I/2"
(1.3 cm)
3-wire
3-wire Cable from Home
Power Supply
