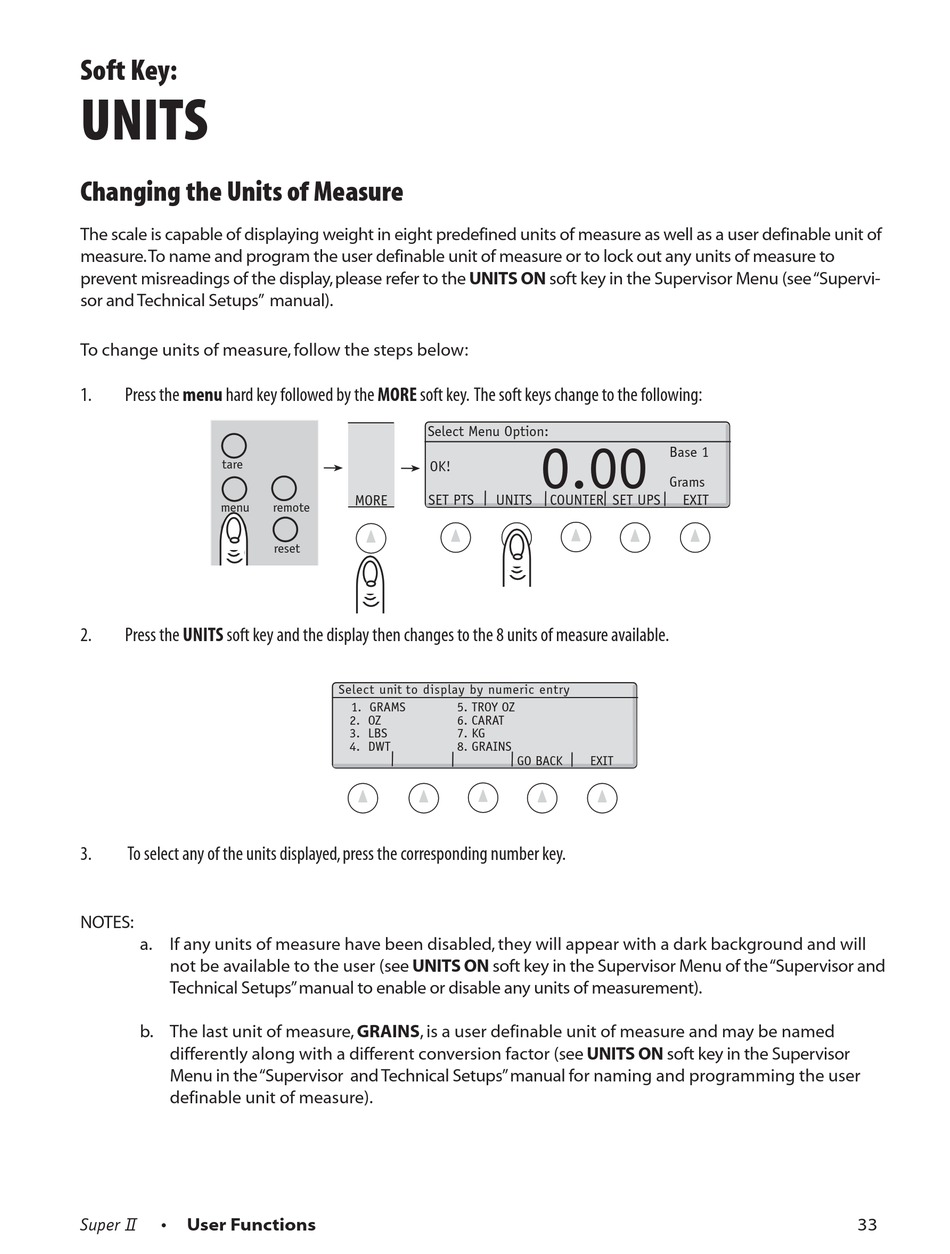

Soft Key:
UNITS
Changing the Units of Measure
The scale is capable of displaying weight in eight predefined units of measure as well as a user definable unit of
measure. To name and program the user definable unit of measure or to lock out any units of measure to
prevent misreadings of the display, please refer to the UNITS ON soft key in the Supervisor Menu (see "Supervi-
sor and Technical Setups" manual).
To change units of measure, follow the steps below:
1. Press the menu hard key followed by the MORE soft key. The soft keys change to the following:
tare
menu
abc
2. Press the UNITS soft key and the display then changes to the 8 units of measure available.
3. To select any of the units displayed, press the corresponding number key.
NOTES:
a. If any units of measure have been disabled, they will appear with a dark background and will
not be available to the user (see UNITS ON soft key in the Supervisor Menu of the "Supervisor and
Technical Setups" manual to enable or disable any units of measurement).
b. The last unit of measure, GRAINS, is a user definable unit of measure and may be named
differently along with a different conversion factor (see UNITS ON soft key in the Supervisor
Menu in the "Supervisor and Technical Setups" manual for naming and programming the user
definable unit of measure).
Super II
User Functions
•
Select Menu Option:
OK!
SET PTS
MORE
remote
reset
Select unit to display by numeric entry
1. GRAMS
2. OZ
3. LBS
4. DWT
0.00
UNITS COUNTER SET UPS
5. TROY OZ
6. CARAT
7. KG
8. GRAINS
GO BACK EXIT
Base 1
Base 1
Pieces
Grams
EXIT
