OWNER'S MANUAL

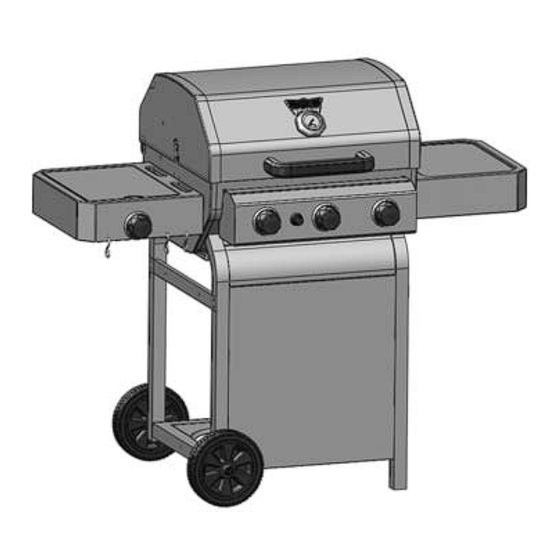

Stealth Griller Model # 3008

LP Gas Grill

A propane gas cylinder is required for

operation. This gas grill is not intended

for commercial use.

SAVE THESE INSTRUCTIONS FOR FU-

TURE REFERENCE. IF YOU ARE ASSEM-

BLING THIS UNIT FOR SOMEONE ELSE,

GIVE THIS MANUAL TO HIM OR HER TO

SAVE FOR FUTURE REFERENCE.

FOR CUSTOMER SERVICE, CALL 912-

638-4724

WARNING:

Improper installation, adjustment, al-

teration, service or maintenance could

cause injury or property damage Read

the installation, operation and mainte-

nance instructions thoroughly before

assembling or servicing this equip-

ment.

OM3008 B.3

Keep your receipt with this manual

(outside any enclosure)

DANGER:

DO NOT use gas grill for indoor cook-

ing or heating. TOXIC fumes can accu-

mulate and cause asphyxiation. Do

not use in or on boats or recreational

vehicles.

PROP 65 WARNING:

Chemicals known to the state of Cali-

fornia to cause cancer, birth defects

or other reproductive harm are creat-

ed by the combustion of propane.

WARNING

For Outdoor Use Only

Table of Contents

Need help?

Do you have a question about the 3008 and is the answer not in the manual?

Questions and answers

Summary of Contents for King-Griller 3008

Page 2: If You Smell Gas
1-912-638-4724 (USA), Mon- day-Friday 8:30am-5pm (EST). Have your grills serial number (located on the back of the grill body or on the leg) when calling. OM3008 B.3 ™ & © Char-Griller / A&J Mfg.
Page 3: Table Of Contents
Operating Grill Connecting Gas Cylinder…………………………..page 20 Cleaning and Care……………………………………page 21-22 Checking for Leaks………………………………..…page 23 Lighting Grill…...……………………………………..page 24-26 Trouble Shooting……………………………………..page 27-28 Grill Preparation………………………………………..page 29 Recipes……………………………………………..…...…page 30 - 31 Accessories……………………………………………….page 32 - 33 OM3008 B.3 ™ & © Char-Griller / A&J Mfg.
Page 4: Important Safety Information
8. DO NOT use this grill or any gas product near unprotected combustible constructions. 9. Do not use in an explosive atmosphere. Keep grill area clear and free from combus- tible materials, gasoline and other flammable vapors and liquids. OM3008 B.3 ™ & © Char-Griller / A&J Mfg.
Page 5 This grill is shipped from the factory for propane gas use only. Never use a propane cylinder with a damaged body, valve, collar or footing. Dented or rusted propane cylinders may be hazardous and should be checked by your propane gas supplier. OM3008 B.3 ™ & © Char-Griller / A&J Mfg.
Page 7 10-0009 UPPER FRONT PANEL 10-0010 SIDE BURNER/ CONTROL PANEL 80-0012 UTENSIL HOOK 50-0001 GREASE TRAY 10-0011 CATCH PAN 20-0003 SIDE SHELF 20-0004 POT STAND 20-0005 HEAT SHIELD 10-0015 HUB CAP 55-0007 OM3008 B.3 ™ & © Char-Griller / A&J Mfg.
Page 8: Tools, Assembly Tips And Hardware List
¼-20 x 1/2” BOLT…..40 PCS 2/5” FLAT WASHER….2 PCS ¼” FLAT WASHER….8 PCS ¼-20 HEX NUT……..6 PCS ¼” LOCK WASHER…40 PCS HINGE PINS………..2 PCS LARGE HAIR COTTER PIN….2 PCS SMALL HAIR COTTER PIN….5 PCS OM3008 B.3 ™ & © Char-Griller / A&J Mfg.
Page 9: Assembly Instructions
1 to the BASE, with (4) lock washers and (4) 1/2” Hex Bolts, see below. Base Front Leg Assembly Back Leg Assembly Bolts Lock Washers OM3008 B.3 ™ & © Char-Griller / A&J Mfg.
Page 10 WHEELS then insert the AXLE through the SHORT LEG, through the BASE, and through the LONG LEG. Finish by attaching 2nd WASHER, COTTER PIN and HUB CAP. Wheel Axle Black Cotter Pin Hub Cap Washer Short Leg OM3008 B.3 ™ & © Char-Griller / A&J Mfg.
Page 11 WASHERS AND (4) 1/2” BOLTS. Then attach LOWER FRONT PANEL to the inside of the front LEGS using (4) LOCK WASHERS and (4) 1/2” BOLTS as shown below. Upper Front Panel Lock Washers Bolts Lock Washers Lower Front Panel Bolts Lock Washers OM3008 B.3 ™ & © Char-Griller / A&J Mfg.
Page 12 GRILL BODY slightly to get the holes in the GRILL BODY to line up with the holes in the LEGS. Lock Washers Bolts Flat Washers Step 7 Attach the SIDE SHELF with (4) ½” BOLTS and (4) LOCK WASHERS. Side Shelf Lock Washers Bolts OM3008 B.3 ™ & © Char-Griller / A&J Mfg.
Page 13 BURNERS to the GAS GRILL BODY with the SMALL STAINLESS HAIR COTTER PIN provided. Burners with Short Igniter Wires Igniter Wire Small Stainless Cotter Pin Burner with Long Igniter Wire Igniter Wires OM3008 B.3 ™ & © Char-Griller / A&J Mfg.
Page 14 GRILL BODY and then screw into the CONTROL PANEL from inside the GRILL BODY. Then remove and re-install bolt in LEG BRACE to hold HOSE GUIDE in place. Valve Tips Igniter Wire Electronic Igniter Burners Leg Brace Hose Clip INCORRET CORRECT OM3008 B.3 ™ & © Char-Griller / A&J Mfg.
Page 15 HOOD onto the GRILL BODY then screw the HINGE PINS into place and then insert COTTER PINS through the holes in the HINGE PINS on the inside of the GRILL BODY. Hood Hinge Pin Hinge Pin Grill Body OM3008 B.3 ™ & © Char-Griller / A&J Mfg.
Page 16 THERMOMETER through the BEZEL and HOOD then secure it with (1) WING NUT as shown below. Tighten all bolts and nuts. Hood Thermometer Bezel Handle Wing Nut Lock Washers Heat Shield OM3008 B.3 ™ & © Char-Griller / A&J Mfg.
Page 17 HEX NUTS only finger tight. Now set the COOKING GRATES in place and the utensil hooks on the side shelf. Inside of Hood Warming Rack Bolts Warming Rack Hex Nut Cooking Grates OM3008 B.3 ™ & © Char-Griller / A&J Mfg.
Page 18 Install Igniter battery by turning the Igniter push button cap counter-clockwise until the igniter button detaches, then install AA battery making sure the positive(+) end is toward the push button. Then re-attach the igniter button by turning it clockwise. OM3008 B.3 ™ & © Char-Griller / A&J Mfg.
Page 19 Any remaining glue residue can be cleaned off with a spray lubri- cant like WD-40 . Do NOT use any other type of solvent or cleaner because this will damage the finish/paint/coating on the grill. OM3008 B.3 ™ & © Char-Griller / A&J Mfg.
Page 20: Connecting Gas Cylinder
(refer to illustration under step 22 of page 17). DANGER: Never store a spare propane cylinder near this grill. A fire causing death or serious injury may occur if the above is not followed exactly. OM3008 B.3 ™ & © Char-Griller / A&J Mfg.
Page 21: Cleaning And Care
Non abrasive scour- ing powder can be used on stubborn stains, then rinse with water. Heat Shield – Clean residue with wire brush and wash with soapy water. Then rinse with water. OM3008 B.3 ™ & © Char-Griller / A&J Mfg.
Page 22 Inspect burner for any damage (cracks or holes). If damage is found, replace with new burner. Reinstall burner; check to insure that gas valve orifices are cor- rectly positioned inside burner inlet (venturi). Also check position of spark elec- trode. OM3008 B.3 ™ & © Char-Griller / A&J Mfg.
Page 23: Checking For Leaks
Disconnect regulator from the tank and recon- nect, making sure the connection is secure. Retest with solution. If you contin- ue to see bubbles, replace the cylinder. OM3008 B.3 ™ & © Char-Griller / A&J Mfg.
Page 24: Lighting Grill
5 minutes before re-lighting. Clean your grill after each use, DO NOT use abrasive or flammable cleaners, as it will damage the parts of this product and may start a fire. OM3008 B.3 ™ & © Char-Griller / A&J Mfg.
Page 25: Side Burner
Flame should be a Blue / Yellow color. To visually check that the burner is operating, look at the burner flame through the flame viewing hole. The flame should be approximately 1/2-3/4 inch long with the high setting. OM3008 B.3 ™ & © Char-Griller / A&J Mfg.
Page 26: Cooking Grate
2. Press in knob and rotate counter-clockwise to the High setting and burner should light immediately. 3. Adjust burners to desired cooking settings Cooking Grate Match Holder Chain Burner Ports OM3008 B.3 ™ & © Char-Griller / A&J Mfg.
Page 27: Trouble Shooting
30 seconds and then light the grill. Irregular flame pattern, Burner ports are clogged Clean Burner ports flame does not run the or blocked. full length of burner. OM3008 B.3 ™ & © Char-Griller / A&J Mfg.
Page 28 Baked on grease buildup has Clean inside of lid thorough- be peeling turned to carbon and is flak- ly. The lid is not painted on - like paint peeling ing off. the inside OM3008 B.3 ™ & © Char-Griller / A&J Mfg.
Page 29: Grill Preparation
PROPERLY CARED FOR. 3. You may fill unwanted holes with Nuts & Bolts (Not Provided). NOTE: Smoke will escape from areas other than the smoke vent. This will not affect your cooking . OM3008 B.3 ™ & © Char-Griller / A&J Mfg.
Page 30: Recipes
(hot) position for 1 min each side before lowering grate and closing lid. *OR SMOKE by placing birds in center of GRID with fire in both ends of FIRE BOX. OM3008 B.3 ™ & © Char-Griller / A&J Mfg.
Page 31 50 minutes. Turn after 25 minutes (no need to turn if smoked). Squeeze to check for doneness. SWEET CORN IN HUSKS: Trim excess silk from end and soak in cold salted water 1 hour before grilling. Grill 25 minutes – turning several times. OM3008 B.3 ™ & © Char-Griller / A&J Mfg.
Page 34 Char-Griller will repair or re- place any defective part of its side fire boxes for a period up to one year from the date of purchase.
