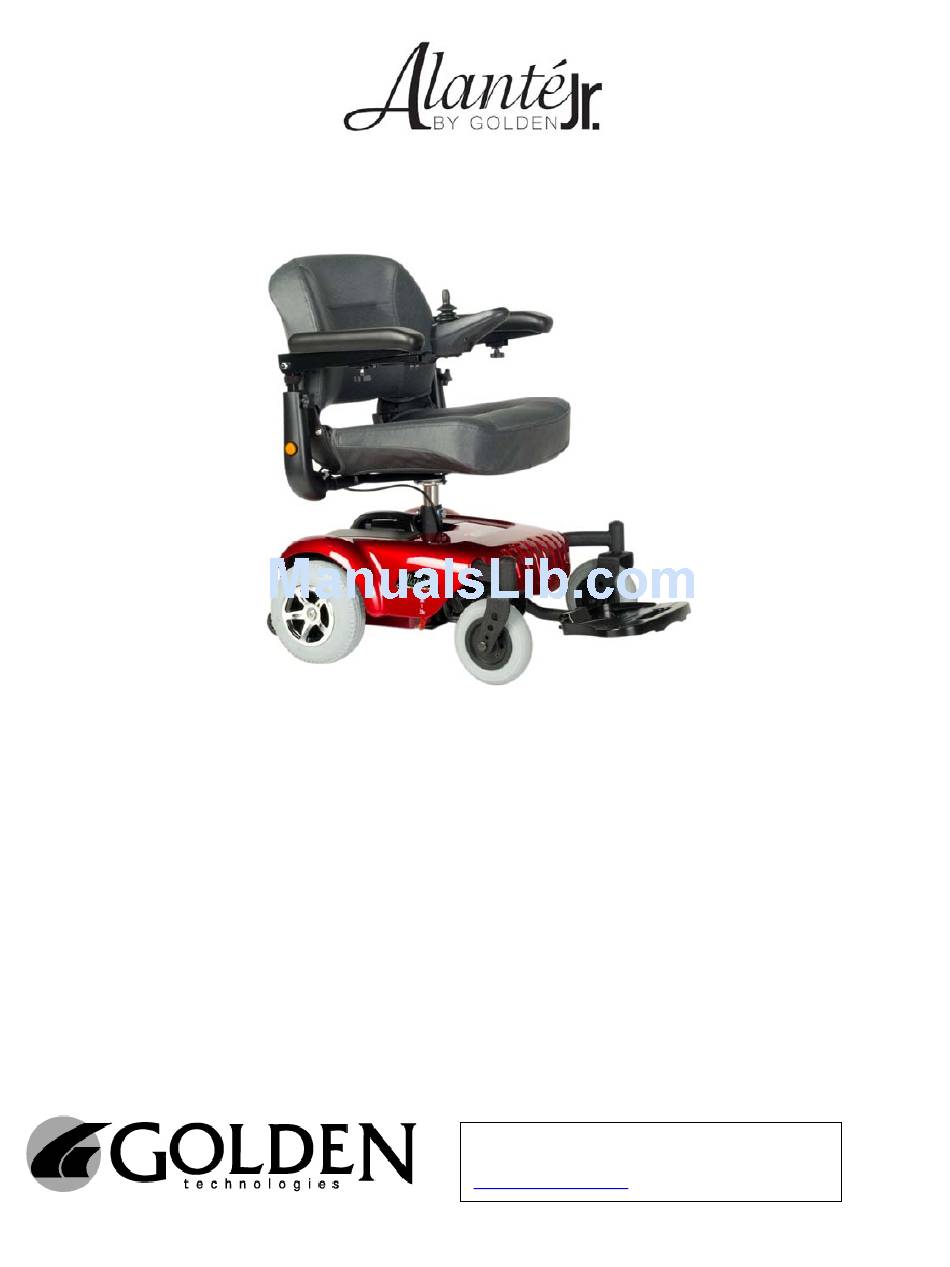

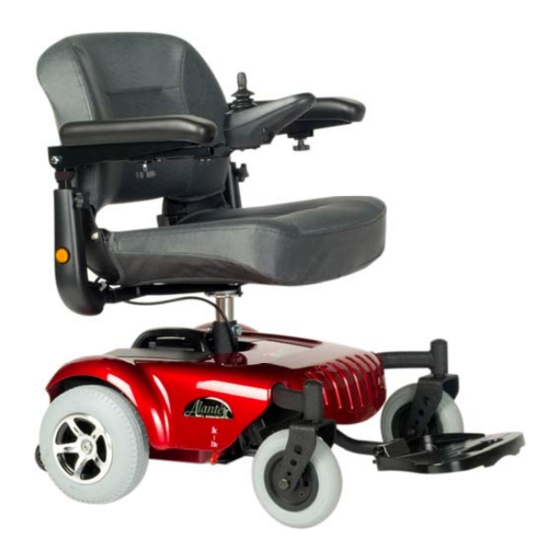

- Page 1 Alante Jr. GP-200 Manual Revised 060208 Owner’s Manual Alante Jr. Rear-Wheel Drive Power Chair Model GP 200 401 Bridge Street, Old Forge, PA 18518 Tel: 800-624-6374 Fax: 570-451-7494 www.goldentech.com Y O U R L I F E I N M O T I O N...
- Page 2 Please fill in your Alante Jr. information below. This ™ information will be useful in the event that you ever need to contact Golden Technologies, Inc. concerning your power chair. Your Alante Jr ™ Model __________________ Serial Number _______________ Date of Purchase _______...
-
Page 3: Table Of Contents
Alante Jr. GP-200 Manual Revised 060208 CONTENTS ________________________________________ Introduction……………………………………………………… Safety……………………………………………………………… EMI/RFI…………………………………………………………… Assembly of your GP 200.…………………………………….. 11-16 Disassembly of your GP 200..………………………………… Comfort Settings………………………………………………… 18-21 Operation/Diagnostics/Troubleshooting…………..………. 22-29 Battery Charging…………………………………………………. 30-31 Care and Maintenance of your GP 200……………………… Riding Your Alante Jr™……………………….…………………. 33-34 Technical Specifications GP 200………………………………. -
Page 4: Introduction
Alante Jr. combines cutting edge technology with attractive designs that are also highly functional in today’s world. We at Golden Technologies know that you have chosen a power chair that will give you years of dependable operation and will also enhance the quality of your life by providing you with the mobility to experience a more active daily lifestyle. -
Page 5: Safety
Note: Before learning to operate your Alante Jr., have your Golden Technologies, Inc. representative determine if it is advisable for you to practice getting on and off your Alante Jr. - Page 6 DRIVING DOWN AN INCLINE • Always drive forward down any ramp, low rise, or incline. Golden Technologies, Inc. does not recommend that you drive your power chair in reverse down any incline, ramp, curb, or low rise. Backing down any slope may create...
- Page 7 Alante Jr. GP-200 Manual Revised 060208 SAFETY Cont. RULES FOR USE AND OTHER SAFETY CONSIDERATIONS MEDICATION Always check with your physician to determine if any of the medications you are taking ™ may affect your judgment and/or your ability to operate your Alante Jr. .
-
Page 8: Safety Rules
Alante Jr. GP-200 Manual Revised 060208 SAFETY RULES • Do not attempt to use your Alante Jr. on an escalator. Always use an elevator. • Do not carry passengers on your power chair. • Do not operate your Alante Jr. if it is not functioning properly. •... - Page 9 Technologies, Inc. • Do not disassemble the tire. If disassembly is required, have your authorized Golden Technologies dealer perform any necessary maintenance or repair. • Do not attempt to inflate the tires of your Alante Jr. Your power chair is equipped with foam-filled flat free tires that do not require inflation.
-
Page 10: Emi/Rfi
• Report all incidents of unintended movement or brake failure to your Golden Technologies representative or to Golden Technologies. TURN OFF YOUR POWER CHAIR AS SOON AS IT IS SAFELY POSSIBLE IF UNINTENDED OR UNCONTROLLABLE MOTION OCCURS OR IF UNINTENDED BRAKE... - Page 11 NOTE: You will need only basic tools. If you do not have the required tools, or if you do not feel capable of safely assembling your power chair, please contact your local Golden Technologies, Inc. representative. Main Components Base...
- Page 12 Alante Jr. GP-200 Manual Revised 060208 ASSEMBLY Cont. Before operating or assembling your Alante Jr., be sure to remove the battery contact insulator under the battery box. Your Alante Jr. will not power up or operate with the insulator in place. Grasp the battery box handle and pull the latch trigger.
- Page 13 Alante Jr. GP-200 Manual Revised 060208 ASSEMBLY Cont. Lift the seat and align the seat pin with the hole in the seat post. Figure 5 Insert the seat into the seat post. Figure 6 Move the seat from side to side until it drops into place facing forward (Note: the seat on the Alante Jr.
- Page 14 Alante Jr. GP-200 Manual Revised 060208 ASSEMBLY Cont. The seat assembly weighs 23 pounds. Please ask for help if you do not feel capable of safely lifting that much weight. Removal of arms will significantly reduce the weight of the seat. Be sure the seat is correctly installed and locked before operating your power chair.
- Page 15 Alante Jr. GP-200 Manual Revised 060208 ASSEMBLY Cont. Joystick Installation Insert the joystick mounting tube into one of the mounting tubes under the armrest pads. Battery Charge LED Array Speed Setting LED Array ON-OFF Button Speed Control SLOWER Horn Button Speed Control FASTER Figure 9...
- Page 16 Alante Jr. GP-200 Manual Revised 060208 ASSEMBLY Cont. Plug the joystick cable into the controller cable. Joystick Cable Figure 11 The joystick may be installed on the left or right arm according to your Note: preference. Note: Be sure the joystick cable and controller cables are securely attached to the unit and that the cables are not able to trail on the ground or become entangled on any surrounding objects while the unit is in use.
- Page 17 The battery pack weighs 30 pounds. Please get help if you do not feel capable of safely lifting that much weight. Battery Replacement Should your battery need replacement, please contact your Golden Technologies representative. Battery replacement requires disassembly of the battery pack and must be performed by a qualified technician.
-
Page 18: Comfort Settings
COMFORT SETTINGS You may be spending a great deal of time on your Alante Jr. ™ . To provide you with the maximum seating comfort, Golden Technologies, Inc. has designed this power chair to incorporate the following adjustments for operator comfort. - Page 19 Alante Jr. GP-200 Manual Revised 060208 COMFORT SETTINGS Cont. Arm Height Loosen the arm height adjustment knobs. Figure 15 Lift the arm to the desired height making sure not to exceed the maximum height marked on the arm. Figure 16 Tighten the arm height adjusting knobs.
- Page 20 Alante Jr. GP-200 Manual Revised 060208 COMFORT SETTINGS Cont. Adjust the arms to the desired width making sure not to exceed 28 inches total outside width at the armrests. Tighten the arm width adjusting knobs. Arm Rest Angle Lift the arm Loosen the armrest angle adjustment screws with a 13mm wrench.
- Page 21 Alante Jr. GP-200 Manual Revised 060208 COMFORT SETTINGS Cont. Joystick Bracket Length Loosen the joystick adjustment knob. Figure 21 Loosen the joystick cable retaining straps. Slide the joystick forward or backward to the desired position. Tighten the joystick adjustment knob. Reposition the joystick cable and secure with the retaining straps.
- Page 22 OPERATION Your Alante Jr. ™ is simple to operate. However, for your safety and the safety of others, Golden Technologies, Inc. recommends that you carefully read and understand the following operating instructions. We also recommend that you practice operating your Alante Jr. ™ in an area free of any obstacles. Once you have gained confidence in your ability to control your power chair, you will more easily be able to operate it in normal daily conditions.
- Page 23 Alante Jr. GP-200 Manual Revised 060208 OPERATION Cont. The Joystick The joystick (see Figure 9 on page 15) controls the speed (up to the maximum limit set by the speed control buttons) and direction of your power chair. NOTE: When you are not pushing on the joystick, or when you release the joystick, the joystick will automatically return to the neutral position, the chair will decelerate, as the electromagnetic brakes are applied, and come to a smooth stop.
- Page 24 Alante Jr. GP-200 Manual Revised 060208 OPERATION Cont. 2. Battery Charge Level The joystick LED array is composed of ten (10) LED’s. ♦Three (3) red ♦Four (4) amber ♦Three (3) green When all ten LEDs are lit continuously, there is a full charge on the batteries. As you use your power chair and the batteries discharge, LEDs in the array will begin to turn off in descending order.
- Page 25 • Switch on the control system again and try to drive the wheelchair. If the safety circuits operate again, switch off and do not try to use the wheelchair. • Contact your Golden Technologies representative for service. Self-Help Guide If a system trip occurs, you can find out what has happened by counting the number of LEDs on the battery gauge that are flashing.
- Page 26 Below is a list of trouble-shooting actions. Try to use this list before you contact your Golden Technologies representative. Go to the number in the list which matches the number of flashing LEDs and follow the instructions. If the problem persists after you made the checks described, contact your Golden Technologies representative for further assistance.
- Page 27 Note that joystick OONAPU (Out Of Neutral At Power Up) is not a fault. Simply by removing your hand from the joystick and allowing it to return to the neutral position, the fault will immediately clear. If the condition persists after removing your hand, the joystick may be damaged. Consult a Golden Technologies representative.
- Page 28 Alante Jr. GP-200 Manual Revised 060208 DIAGNOSTICS/TROUBLESHOOTING Cont. FREEWHEEL MODE ♦ To disengage the brakes and put your power chair in freewheel mode, push the freewheel levers down as shown. See Figure 23. ♦ To re-engage the brakes and take your chair out of freewheel mode, pull the levers up as shown.
- Page 29 Alante Jr. GP-200 Manual Revised 060208 OPERATION Cont. THERMAL ROLLBACK Your Alante Jr. ™ is equipped with a safety system. A microprocessor monitors the operating temperatures of the controller. In the event of excessive heat occurring in the controller, the controller will decrease the speed of your chair. This is done to reduce the load on the electrical system and allow the components to dissipate heat.
-
Page 30: Battery Charging
Alante Jr. GP-200 Manual Revised 060208 BATTERY CHARGING NOTE: You must use only the charger that is supplied with your Alante Jr. ™ . The use of any other charger on this power chair will void the warranty. Using unauthorized chargers may also result in severe damage to the batteries and/ or damage to the chair. - Page 31 Alante Jr. GP-200 Manual Revised 060208 BATTERY CHARGING Cont. Alternatively, you may charge the battery pack directly. Remove the battery pack from the power chair. Locate the charger port at the rear of the battery pack and swing the cover out of the way.
-
Page 32: Care And Maintenance
Alante Jr. GP-200 Manual Revised 060208 CARE AND MAINTENANCE Your Alante Jr. ™ is designed to require minimal maintenance. We recommend that you periodically check the following: Tire Tread: Regularly visually inspect the tire tread. If the remaining tread is less than 1/32 of an inch, have your local Golden representative replace the worn tires. -
Page 33: Riding Your Alante Jr
Alante Jr. GP-200 Manual Revised 060208 RIDING YOUR ALANTE JR. Control through tight spots ™ As you use your Alante Jr. to increase your mobility, you will undoubtedly encounter some obstacles that will require practice to negotiate smoothly and safely. Below are some common obstacles that you may meet during the daily use of your power chair. - Page 34 Alante Jr. GP-200 Manual Revised 060208 RIDING YOUR ALANTE JR. Cont. Ramps Because of the American Disabilities Act (ADA), many buildings are fitted with ramps that provide access for power chairs and for other mobility vehicles. Please read and thoroughly understand “Safety Rules” and “Driving On An Incline”...
- Page 35 Alante Jr. GP-200 Manual Revised 060208 ALANTE JR. POWER CHAIR GP 200 SPECIFICATIONS Specification Name Specification Weight Base 56 Pounds Seat 23 Pounds Battery Pack 30 Pounds Total weight w/Batteries 109 Pounds Dimensions Length 32.5” Width 23” Maximum Incline 6 Degrees Maximum Speed 3.5 MPH Range...
-
Page 36: Warranty
Compass GP600 and GP601 Limited Lifetime Warranty: In the event of defective materials or workmanship, Golden Technologies will repair or replace at our option any of the following structural frame components found to be defective by an authorized Golden Technologies... - Page 37 For the period of one year from the date of purchase, in the event of defective materials or workmanship, Golden Technologies will repair or replace at our option any of the following parts found to be defective by an authorized Golden Technologies representative:...
- Page 38 Alante’ Jr. GP-200 Manual Revised 060208 Golden Technologies Alante Jr. Notes Page Page 38...
-
Page 39: Warranty Registration
________ My Golden dealer has instructed me on how to operate my power chair. Signature ___________________________________________________________ Telephone (__________) _______________________________________________ Comments ___________________________________________________________________________ ___________________________________________________________________________ Please Mail Completed Form To: Golden Technologies Product Warranty Registration Department 401 Bridge Street Old Forge, PA 18518 Page 39... - Page 40 Alante’ Jr. GP-200 Manual Revised 060208 Alante Jr. GP200 AlanteJr.OM.0608 Page 40...
