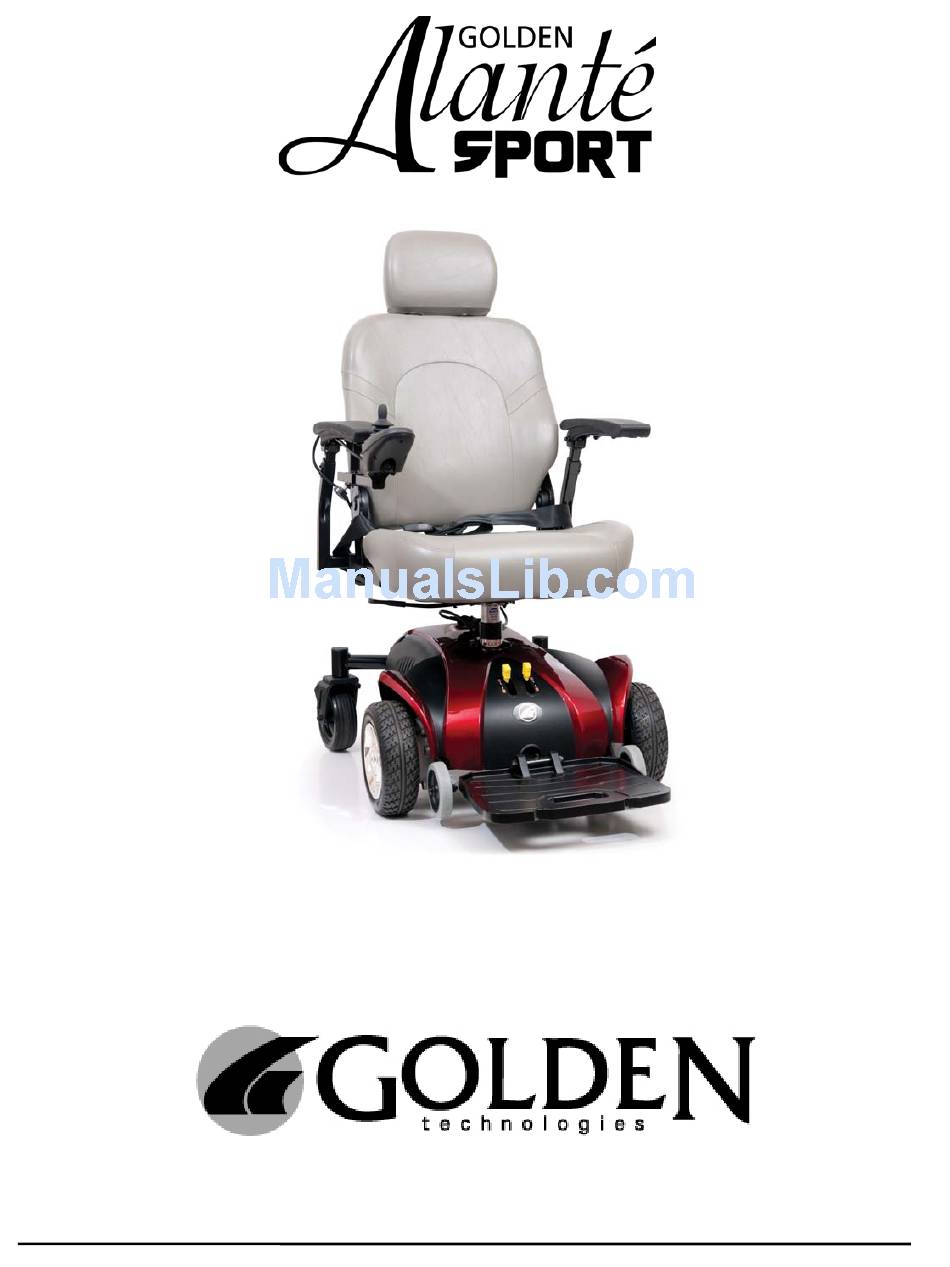

- Page 1 Front Wheel Drive Power Chair Model GP205 Y O U R L I F E I N M O T I O N Golden Technologies - 401 Bridge Street - Old Forge, PA 18518 - Tel: 800-624-6374 - Fax: 800-628-5165 - www.goldentech.com...
- Page 2 We ask that you read this manual completely before operating your new Alante Sport. Golden Technologies, Inc. is not and cannot be held responsible for any damage or injury incurred due to improper or unsafe use of the Golden Alanté Sport, power chair. Golden Technologies, Inc.
-
Page 3: Table Of Contents
V. Disassembly and Battery Replacement………………………………………………….. 15-16 VI. Comfort Settings……………………………………………………………………………… 17-22 VII. Operation/Diagnostics/Troubleshooting………………………………………………. 23-30 VIII. Battery Charging……………………………………………………………………………. 31-32 IX. Care and Maintenance of your GP205….…………………………………………………. 33 X. Riding Your Alanté Sport……………………………………………………………………. 34-35 XI. Technical Specifications GP205………………………………………………………….. 36-37 XII. Warranty………………………………………………………………………………………. 38-39 Warranty/Registration Card……………………………………………………………………… 40... -
Page 4: Introduction
We at Golden Technologies, Inc. know that you have chosen a power chair that will give you years of dependable operation and also will enhance the quality of your life by providing you with the mobility to experience an active daily lifestyle. - Page 5 ACCESSORIES for the Alanté Sport POWER CHAIR: A variety of accessories are available for your Golden Alanté Sport power chair. Please contact your Authorized Golden Technologies Dealer for more information or to order. • Cane Holder Tube • Safety Flag •...
-
Page 6: Safety
MANDATORY! Read and follow the owner’s manual before operating your power chair. Note: Before learning to operate your Alanté Sport, have your Golden Technologies, Inc. representative determine if it is advisable for you to practice getting on and off your power chair and operating it in the presence of an attendant. - Page 7 Alanté Sport_GP205CC/SS_Owner’s Manual Rev C_102714 II. SAFETY DRIVING ON AN INCLINE • Drive with caution when attempting to negotiate any incline, even handicap access ramps. • Try to keep your Alanté Sport moving when climbing an incline. If you do come to a stop, restart and accelerate slowly and carefully.
- Page 8 Alanté Sport_GP205CC/SS_Owner’s Manual Rev C_102714 II. SAFETY SAFETY RULES • Do not attempt to use your Alanté Sport on an escalator. Always use an elevator. • Do not carry passengers on your power chair. • Do not operate your Alanté Sport, if it is not functioning properly. •...
- Page 9 MAY FOLD DOWN AND MAY CAUSE YOU TO LOSE YOUR BALANCE AND COULD RESULT IN PERSONAL INJURY. Do not modify your power chair in any way that is not authorized by Golden Technologies, Inc. DO NOT CONNECT OR ALLOW ANYONE EXCEPT AN AUTHORIZED ...
-
Page 10: Emi/Rfi
• If unintended movement or brake release occurs, turn your power chair off as soon as it is safe to do so. • Report all incidents of unintended movement or brake failure to your Golden Technologies representative or to Golden Technologies. -
Page 11: Assembly Of Your Gp205
You will need only basic tools. If you do not have the required tools, or if you do not feel capable of safely assembling your power chair, please contact your local Golden Technologies, Inc. representative. Main Components 1. Base 2. - Page 12 Alanté Sport_GP205CC/SS_Owner’s Manual Rev C_102714 IV. ASSEMBLY Before operating or assembling your Alanté Sport, be sure to connect the power cable from the batteries to the VR2 power module. Your Alanté Sport will not power up or operate without completing this step. 1.
-
Page 13: Seat Installation
Alanté Sport_GP205CC/SS_Owner’s Manual Rev C_102714 IV. ASSEMBLY - cont. Seat Installation 1. Fold the seat back down 2. Grasp the seat firmly on each side, lift the seat and align the seat pin with the hole in the seat post receiver. See figure 6. Figure 6 3. - Page 14 Alanté Sport_GP205CC/SS_Owner’s Manual Rev C_102714 IV. ASSEMBLY The standard (18 x 18) seat assembly weighs 46 pounds. Please ask for help if you do not feel capable of safely lifting that much weight. Removal of arms will reduce the weight of the seat. Be sure the seat is correctly installed and locked before operating your ...
- Page 15 Alanté Sport_GP205CC/SS_Owner’s Manual Rev C_102714 IV. ASSEMBLY Joystick Installation 1. Loosen the joystick bracket adjustment screw located under the armrest. See figure 10. 2. Insert the joystick mounting tube into the joystick bracket under the armrest. 3. Adjust the position of the joystick to a comfortable spot. 4.
-
Page 16: Disassembly And Battery Replacement
Alanté Sport_GP205CC/SS_Owner’s Manual Rev C_102714 V. DISASSEMBLY and BATTERY REPLACEMENT To disassemble your Alanté Sport, simply reverse the assembly process. See pages 12-16. Make certain that the controller power is turned off and that the chair is NOT in freewheel mode before attempting to perform disassembly. Accessing the batteries 1. -
Page 17: V. Disassembly And Battery Replacement
Alanté Sport_GP205CC/SS_Owner’s Manual Rev C_102714 V. DISASSEMBLY and BATTERY REPLACEMENT 1. Use the screws, washers, and nuts provided to connect the positive (red booted) connector of each cable to the positive (+) terminal of each battery. 2. Use the screws, washers, and nuts provided to connect the negative (black booted) connector of each cable to the negative (-) terminal of each battery. -
Page 18: Comfort Settings
VI. COMFORT SETTINGS You may be spending a great deal of time on your Alanté Sport. To provide you with the maximum seating comfort, Golden Technologies, Inc. has designed this power chair to incorporate the following adjustments for operator comfort. -
Page 19: Vi. Comfort Settings
Alanté Sport_GP205CC/SS_Owner’s Manual Rev C_102714 VI. COMFORT SETTINGS Headrest Height Adjustment 1. Standing behind the chair, push and then release the clamp on the left post of the headrest while you are pulling up or pushing down on the head rest. See figure 16. 2. - Page 20 Alanté Sport_GP205CC/SS_Owner’s Manual Rev C_102714 VI. COMFORT SETTINGS Arm Height Adjustment 1. Loosen the two armrest height adjustment screws on the outside of the armrest with a 3mm Allen wrench until you can slide the armrest up and down freely. See figure 18. 2.
- Page 21 Alanté Sport_GP205CC/SS_Owner’s Manual Rev C_102714 VI. COMFORT SETTINGS Arm Rest Angle Adjustment 1. Lift armrest up. See figure 20. 2. Turn jam nut counter-clockwise with a 14mm wrench to loosen. 3. Turn the adjustment bolt using a 6mm Allen wrench to raise or lower the armrest- angle.
- Page 22 Alanté Sport_GP205CC/SS_Owner’s Manual Rev C_102714 VI. COMFORT SETTINGS FOOTREST HEIGHT ADJUSTMENT 1. Remove front body shroud by lifting it up and off of the power chair base. 2. Use a 10mm socket and 4mm Allen wrench to remove the bolts indicated in figure 22. 3.
-
Page 23: Joystick Position
Alanté Sport_GP205CC/SS_Owner’s Manual Rev C_102714 VI. COMFORT SETTINGS Joystick Position 1. Loosen the joystick adjustment screw. 2. Slide the joystick mount forward and remove the joystick. 3. Reposition the joystick and joystick cable to the opposite side of the power chair. 4. -
Page 24: Operation/Diagnostics/Troubleshooting
VII. OPERATION Your Alanté Sport is simple to operate. However, for your safety and the safety of others, Golden Technologies, Inc. recommends that you carefully read and understand the following operating instructions. We also recommend that you practice operating your Alanté... - Page 25 Alanté Sport_GP205CC/SS_Owner’s Manual Rev C_102714 VII. OPERATION The Joystick The joystick (see Figure 10 on page 14) controls the speed (up to the maximum limit set by the speed control buttons) and direction of your power chair. NOTE: When you are not pushing on the joystick, or when you release the joystick, the joystick will automatically return to the neutral position, the chair will decelerate, as the electromagnetic brakes are applied, and come to a smooth stop.
- Page 26 Note that joystick OONAPU (Out Of Neutral At Power Up) is not a fault. Simply by removing your hand from the joystick and allowing it to return to the neutral position, the fault will immediately clear. If the condition persists after removing your hand, the joystick may be damaged. Consult a Golden Technologies representative.
- Page 27 Switch on the control system again and try to drive the wheelchair. If the safety circuits operate again, switch off and do not try to use the wheelchair. Contact your Golden Technologies representative for service. Self-Help Guide If a system trip occurs, you can find out what has happened by counting the number of LEDs on the battery gauge that are flashing.
- Page 28 Below are a list of trouble-shooting actions. Try to use this list before you contact your Golden Technologies representative. Go to the number on the list which matches the number of flashing LEDs and follow the instructions. If the problem persists after you made the checks described, contact your Golden Technologies representative for further assistance.
- Page 29 If adjusting the speed setting does not remedy the problem, then there may be a non-hazardous fault. Contact your Golden Technologies representative. Maximum Speed/Profile Indicator This LED array shows the maximum speed setting for the power chair or, if the control system is programmed for drive profile operation, the selected drive profile.
-
Page 30: Freewheel Mode
VII. OPERATION Maximum Speed/Profile Indicator Flashes This indicates the speed of the wheelchair is being limited for safety reasons. Contact your Golden Technologies representative. The VR-2 modules are not user serviceable. Do not attempt to repair VR-2 modules. FREEWHEEL MODE ♦... - Page 31 Alanté Sport_GP205CC/SS_Owner’s Manual Rev C_102714 VII. OPERATION THERMAL ROLLBACK Your Alanté Sport is equipped with a safety system. A microprocessor monitors the operating temperatures of the controller. In the event of excessive heat occurring in the controller, the controller will decrease the speed of your chair. This is done to reduce the load on the electrical system and allow the components to dissipate heat.
-
Page 32: Battery Charging
Alanté Sport_GP205CC/SS_Owner’s Manual Rev C_102714 VIII. BATTERY CHARGING You must use only the charger that is supplied with your Alanté Sport. The use of any other charger on this power chair will void the warranty. Using unauthorized chargers may also result in severe damage to the batteries and/or damage to the chair. -
Page 33: Viii. Battery Charging
Alanté Sport_GP205CC/SS_Owner’s Manual Rev C_102714 VIII. BATTERY CHARGING CHARGING THE BATTERIES Your Alanté Sport’s charging system is designed for your safety and for your convenience. Follow the steps below to recharge the batteries. 1. Position your Alanté Sport close to a standard wall electrical outlet. 2. -
Page 34: Care And Maintenance Of Your Gp205
Alanté Sport_GP205CC/SS_Owner’s Manual Rev C_102714 IX. CARE AND MAINTENANCE Your Alanté Sport is designed to require minimal maintenance. We recommend that you periodically check the following: Tire Tread: Regularly visually inspect the tire tread. If the remaining tread is less than 1/32 of an inch, have your local Golden representative replace the worn tires. -
Page 35: Riding Your Alanté Sport
Alanté Sport_GP205CC/SS_Owner’s Manual Rev C_102714 X. RIDING YOUR ALANTE SPORT Control Through Tight Spots As you use your Alanté Sport to increase your mobility, you will undoubtedly encounter some obstacles that will require practice to negotiate smoothly and safely. Below are some common obstacles that you may meet during the daily use of your power chair. - Page 36 Because of the American Disabilities Act (ADA), many buildings are fitted with ramps that provide access for power chairs and for other mobility vehicles. MANDATORY! Please read and thoroughly understand “Safety Rules” and “Driving On An Incline” sections of this manual on pages 5-8. Alante Sport GP205 ...
-
Page 37: Technical Specifications Gp205
Alanté Sport_GP205CC/SS_Owner’s Manual Rev C_102714 XI. TECHNICAL SPECIFICATIONS Specification Alante Sport Alante Sport Model Number GP-205CC GP-205SS Medicare Code K0823 K0822 Weight capacity 300 lbs. 300 lbs. Drive Wheels Front Front Maximum speed 3.5 mph 3.5 mph Operating Range 16.5 miles 16.5 miles Ground Clearance 1.75 in. - Page 38 1. Battery range will vary due to rider weight, drive surface, and terrain. 2. Electronics warranty excludes batteries. Literature is current at the time of printing. Golden Technologies reserves the right to make changes to the product or literature at any time. ...
-
Page 39: Warranty
Limited Lifetime Warranty: In the event of defective materials or workmanship, Golden Technologies will repair or replace at our option any of the following structural frame components found to be defective by an authorized Golden Technologies representative: ... -
Page 40: Xii. Warranty
Items not mentioned or listed are covered at the discretion of Golden Technologies. Any accessories, standard or optional, supplied by Golden Technologies, are covered for a period of one year from the date of purchase with the particular unit. Warranty Exclusions:... -
Page 41: Warranty/Registration Card
Alanté Sport_GP205CC/SS_Owner’s Manual Rev C_102714 WARRANTY/REGISTRATION FORM Golden Technologies Product Registration Form Please fill out this product registration form or you can also register your product online at www.goldentech.com. Failure to register your product may result in significant delays should service be required. - Page 42 Alanté Sport_GP205CC/SS_Owner’s Manual Rev C_102714 Fold Here First Place Stamp Here Golden Technologies 401 Bridge St. Old Forge, PA 18518 Fold Here Second...
- Page 43 Alanté Sport_GP205CC/SS_Owner’s Manual Rev C_102714 ...
- Page 44 Alanté Sport_GP205CC/SS_Owner’s Manual Rev C_102714 Model GP205 Y O U R L I F E I N M O T I O N 401 Bridge Street Old Forge, PA 18518 Tel: 800-624-6374 Fax: 800-628-5166 www.goldentech.com...
