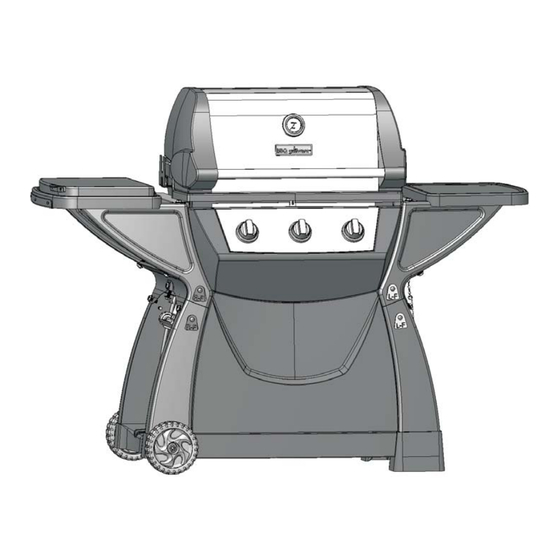

BBQ grillware 41590 Instructions Manual

3-burner lp gas grill
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
WARNING
Improper installation,
adjustment, alteration, service or
maintenance can cause injury or
property damage.
Read the installation,
operation and maintenance
instructions thoroughly before
installing or servicing this
equipment.
DANGER
Failure to follow these
instructions could result in fire
or explosion that could cause
property damage, personal
injury or death.
DANGER
DO NOT use gas grill for indoor
cooking or heating. TOXIC
fumes can accumulate and
cause asphyxiation. DO NOT
use in or on boats or
recreational vehicles.
PROP 65 WARNING
Chemicals known to the state of
California to cause cancer, birth
defects or other reproductive
harm are created by the
combustion of propane
WARNING
For Outdoor Use Only
(Outside any enclosure)
GSF2616
Owner's Manual
3-Burner LP Gas Grill
SAVE THESE INSTRUCTIONS FOR FUTURE
REFERENCE. IF YOU ARE ASSEMBLING THIS UNIT
FOR SOMEONE ELSE, GIVE THIS MANUAL TO HIM OR
HER TO SAVE FOR FUTURE REFERENCE.
FOR CUSTOMER SERVICE, EMAIL TO
SERVICE@PYROMAGICBBQ.COM
.
CALL 1-877-885-8227,
6 A.M. – 5 P.M.(PST),MONDAY-FRIDAY.
FURTHER INFORMATION PLEASE VISIT OUR WEBSITE
AT
WWW.PYROMAGICBBQ.COM
0
ITEM # 41590
OR

Advertisement

Table of Contents
loading

Related Manuals for BBQ grillware 41590

Summary of Contents for BBQ grillware 41590

  • Page 1 ITEM # 41590 3-Burner LP Gas Grill WARNING Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Read the installation, operation and maintenance instructions thoroughly before installing or servicing this equipment. DANGER Failure to follow these...

  • Page 2: Grill Operation

    Grill Operation 1-2-3 Before Grilling, Step 1 Keep your grill a safe distance away from your property.* Step 2 Always Perform a Leak Test. * Step 3 Keep children away from the grill. During Grilling, (To avoid tripping safety valves, please follow these instructions carefully!) Step 1 First open lid and turn gas valve on slowly.

  • Page 3: Table Of Contents

    Table of Contents For Your Safety....................3 Illustrated Parts List ..................5 Hardware List.....................6 Assembly Instructions..................7 Operating Your Grill..................15 LP Gas Supply Connection......15 Checking for Leaks...........16 Lighting Your Grill..........16 Excess Flow Safety Valve Reset Procedure..17 Care and Maintenance........18 Award-Winning Barbecue Recipes..............20 Troubleshooting....................21 Warranty Program....................22 GSF2616 Owner’s Manual...

  • Page 4: For Your Safety

    For Your Safety Dear Valued Customer, Congratulations on your new barbecue grill purchase! You’ve made the right choice. In this manual, you will find assembly instructions, suggestions for grilling and helpful hints, as well as guidelines for the safe operation, proper care and use of your grill.
  • Page 5 Safe Locations For Use Of This Outdoor Grill DANGER Never use this outdoor grill inside any building, garage, shed or breezeway, or inside any boat, trailer or recreationall vehicle, to prevent a possible fire and to prevent the possibility of carbon monoxide poisoning or asphyxiation. WARNINGS Do not use this appliance under overhead combustible surface or covered area (e.g., awnings, umbrellas, porches or gazeboes).

  • Page 6: Illustrated Parts List

    Illustrated Parts List 1. Leg R-F ----------------------------1pc 2. Leg L-F ---------------------------1pc 3 Leg L-B --------------------------1pc 4 Leg R-B ----------------------1pc 5. Right Foot------------------------1pc 6. Left Foot-------------------------1pc 7. Wheel---------------------------2 pcs 8. Axle----------------------------- 1pc 9.Cart Front Panel--------------1pc 10. Top Cart L-F----------------------1pc 11. Top Cart L-B----------------1pc 12.

  • Page 7: Hardware List

    Hardware List 29pcs 2pcs (2pcs spare M6 X 16mm Bolt included) M4 X 10mm Bolt Axle Nut Side Burner Knob 2pcs Phillips Head 2pcs Wrench Screwdriver 2pcs Collar M10 Washer Hardware listed above is not scaled to exact size (A screwdriver is included for your convenience.) GSF2616 Owner’s Manual...

  • Page 8: Assembly Instructions

    Assembly Instructions Remove all contents from the carton packaging. Make sure all parts are present before attempting assembly. Once the grill is fully assembled, go back check and make certain all the bolts are tighten. Tighten again by the screwdriver provided if it is necessary.
  • Page 9 Step 3 Align the holes on the top cart R-F(12) with the holes on the leg R-F(1). Screw a M6x16mm bolt (A) into a pre-drilled hole. Align the holes on the top cart R-B (13) with the holes on the leg R-B (4). Screw a M6x16mm bolt (A) into a pre-drilled hole.
  • Page 10 Step 5 Align the holes on back beam (16) with the holes on leg L-B (3). Screw a M6x16mm bolt (A) into each pre-drilled hole. Align the holes on back beam (16) with the holes on leg R-B (4), screwing a M6x16mm bolt (A) into each pre-drilled hole.
  • Page 11 Step 7 Insert the axle (8) into the hole of the right foot. Put a wheel (7) and a M10 (G) washer on each end of the axle. NOTE: protruding side of each wheel must face the surface of grill leg. Tighten each axle nut (D) toward the wheel, make certain each axle nut should be flat with each end of axle.
  • Page 12 Step 9 Align the holes on the cart beam (15) with the holes on the left cart Screw a M6x16mm bolt (A) into each pre-drilled hole and tighten by hand until secure. Repeat the procedure for the right cart. Go back and tighten by the screwdriver provided.
  • Page 13 Step 11 Open the side burner lid. Insert side burner valve into the venture tube on the side burner.. Align the holes on side burner valve with the holes on the side burner knob seat. Screw a M4x10mm bolt (B) into each pre-drilled hole. Tighten the bolts by the screwdriver provide.
  • Page 14 Step 13 Insert the warming rack–lid (25) on the hook on the both side of the grill lid. Put the warming rack-body (24) on top of the grill body above the cooking grids. Make certain the two racks are on a secure position.
  • Page 15 Step 15 Screw the regulator with gas hose into cylinder valve. ( Gas cylinder not included ). Make certain the regulator is connected secure. *Refer to LP Gas Supply Connection in the manual for important safety information. Collar (H) Rotisserie Shaft Set Screw Stopper (With Rotisserie set)

  • Page 16: Operating Your Grill

    Fully Assembled View Operating Your Grill CAUTION: Use only the regulator provided. If a replacement is necessary, call our customer service center. The use of unauthorized parts can create an unsafe condition and environment. The propane gas supply cylinder used must be constructed and marked in accordance with the Specifications for Propane Gas Cylinders of the U.S.

  • Page 17: Checking For Leaks

    LP (Propane) Gas Supply Connection 1. Always place the propane cylinder on the tank brackets located on the right side of the cart. 2. Always confirm that all burner control knobs are in the OFF position before activating the gas supply. 3.
  • Page 18 Using the Lighting Stick to Light the Main Burners Remove the cooking grid from the burner you wish to light. Insert a match into the end of lighting stick. Light the match. Once lit, place the flame through the hole on grill body to reach the burner ports. (As the fig.

  • Page 19: Excess Flow Safety Valve Reset Procedure

    Excess Flow Safety Valve Reset Procedure The new regulators are equipped with a safety device that restricts the gas flow in the event of a gas leak. However, unsafe practices of grill operation could activate the safety device without having a gas leak. A sudden shut off of the gas flow typically occurs if you open the LP tank valve rapidly, or if one or more of the burner control knobs is in an open position when opening the LP tank valve.
  • Page 20 Recommended cleaning materials - Mild dishwashing liquid detergent Hot water Nylon cleaning pad Wire brush Paper clip Putty knife/scraper Compressed air DO NOT use cleaners that contain acid, mineral spirits or xylene. Outside surfaces Use a mild dishwashing detergent and hot water solution to clean. Rinse thoroughly with water. Inside surface If the inside surface of the grill lid has the appearance of peeling paint, baked on grease has turned to carbon and is flaking off.

  • Page 21: Award-Winning Barbecue Recipes

    Award-Winning Barbecue Recipes Never-fail Barbecue Sauce Hardcore Grilled Trout Ingredients: Ingredients: ¼ cup Finely chopped onion ¼ cup Lemon or lime juice 2 tablespoons Butter or margarine 2 tablespoons Melted butter ¼ cup Brown sugar, firmly packed 2 tablespoons Vegetable oil 1 tablespoon Worcestershire sauce 2 tablespoons...

  • Page 22: Troubleshooting

    Troubleshooting Problem Possible Cause Solution Burner will not light using Wires or electrode covered Clean wire and/or electrode knobs. with cooking residue. with rubbing alcohol. Electrode and burners are wet. Wipe dry with cloth. Electrode cracked or Replace electrode. its sparks at the crack. Wire is loosen or disconnected.

  • Page 23: Warranty Program

    Warranty Program Proof of purchase is required to access this warranty program, which is in effect from the date of purchase. Inability to provide proof of purchase or after the warranty has expired, customers will be subject to parts, shipping and handling fees. Product Registration is required to receive full warranty coverage, which is in effect from the date of purchase.
