Summary of Contents for ZALMAN CNPS7500 LED

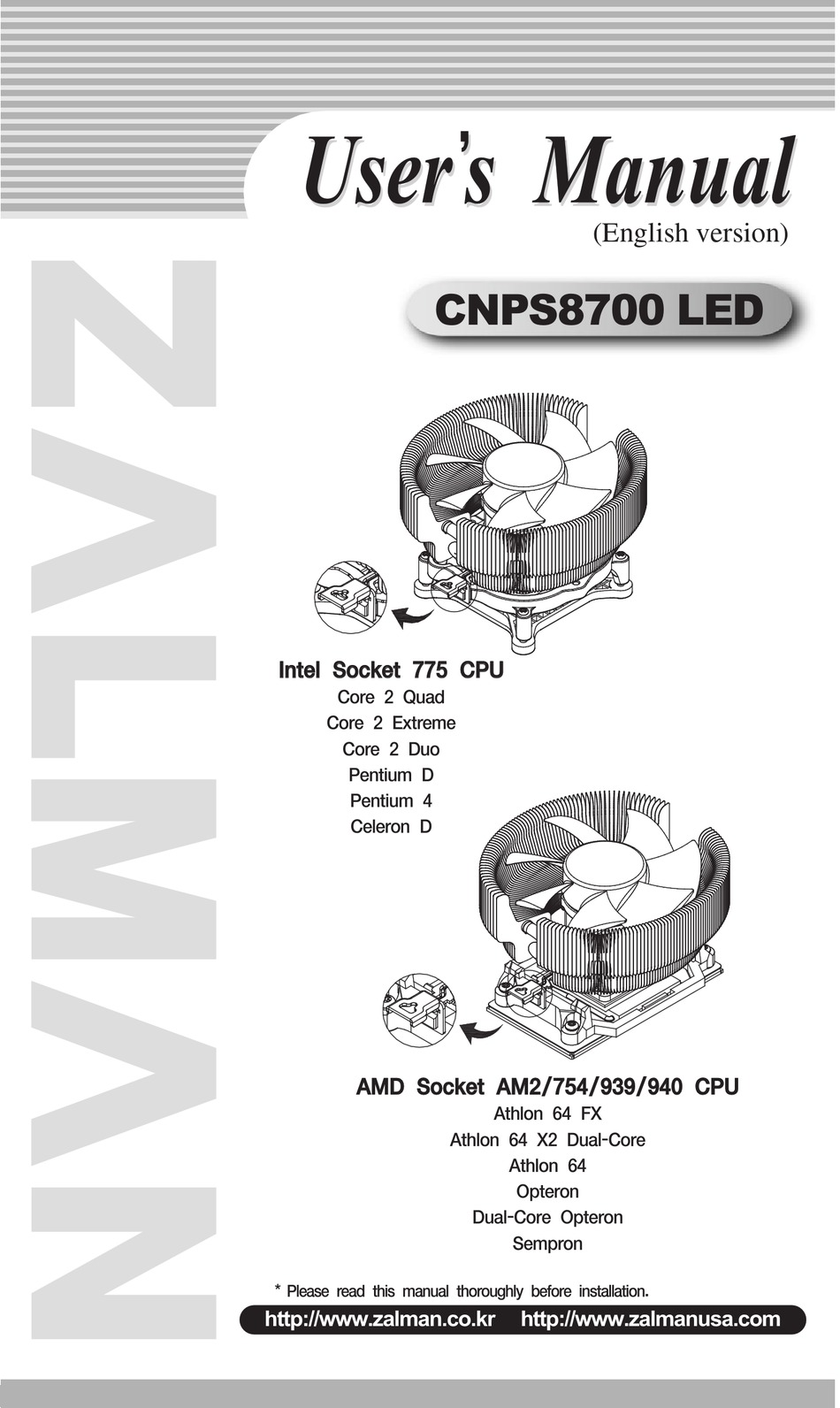

- Page 1 (English version) CNPS7500 LED CNPS8700 LED http://www.zalman.co.kr http://www.zalmanusa.com...
-
Page 2: Specifications
The maximum weight for a cooler is specified as 450g for Intel Socket 775 and AMD Sockets AM2/754/939/940. Special care should be taken when moving a computer equipped with a cooler that exceeds the specified weight limit. Zalman is not responsible for any damage that occurs when moving a computer. Note The fan operates at 2,550rpm (35.5dBA) if directly connected to the motherboard’s power connector... - Page 3 5) Do not ingest or put the thermal grease into the mouth. If ingested, get medical attention. Disclaimer) Zalman Tech Co., Ltd. is not responsible for any damages due to external causes, including but not limited to, improper use, problems with electrical power, accident, neglect, alteration, repair, improper installation, or improper testing.
- Page 4 6. Compatible CPUs 1) All CPUs conforming to Intel Socket 775 platform 2) All CPUs conforming to AMD Socket AM2/754/939/940 platform Caution) 38mm 30mm 61.5mm 61.5mm < Intel Socket 775 > < AMD Socket AM2/754/939/940 > 7. Installation (Intel Socket 775) 1) Clip Support Installation Align the Clip Support for Socket 775( ) and the Backplate for Socket 775( ) with the mounting holes on the motherboard and fasten them together with the Clip Support Fixing Bolts( ).
- Page 5 2) Clip Installation Insert the Clip( ) between the Heatpipes. Turn the Clip so that the central hole comes in alignment with the Base Cover s projecting part. Now attach the Clip so that its central hole slides over the projecting part of the Base Cover.
- Page 6 8. Installation (AMD Socket AM2/754/939/940) 1) Clip Installation Insert the Clip( ) between the Heatpipes. Turn the Clip so that the central hole comes in alignment with the Base Cover’s projecting part. Now attach the Clip so that its central hole slides over the projecting part of the Base Cover.
- Page 7 Note) FAN MATE 2 has been specifically designed for the fan of this product. Zalman Tech Co., Ltd. is not responsible for any damages to the system or CPU resulting from its use with other types of fans.
- Page 8 11. Zalman Computer Noise Prevention Systems Zalman's Noiseless Power Supplies, Fanless Northbridge Coolers, Heatpipe HDD Cooler, Noiseless Case Fans, VGA Coolers, and Fan Controllers facilitate stable performance and a noiseless computing environment. 12. Home Theatre PC Enclosures The HD160XT is designed for ultra quiet home theatre...
