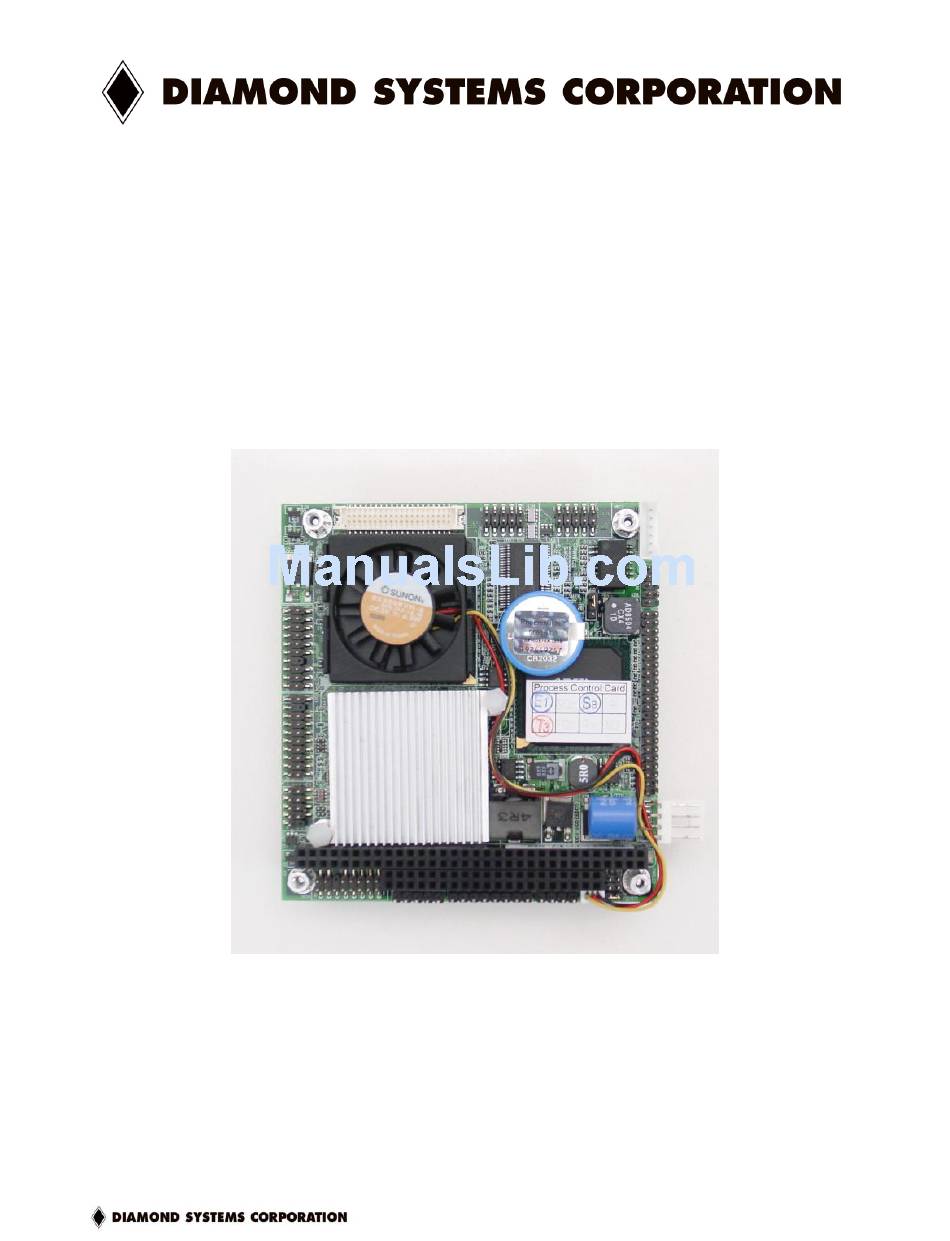

- Page 1 MORPHEUS High Integration PC/104 Celeron CPU with Ethernet User Manual v1.01 © Copyright 2005 Diamond Systems Corporation 1255 Terra Bella Ave. Mountain View, CA 94043 Tel (650) 810-2500 www.diamondsystems.com Morpheus CPU User Manual V1.01 Page 1...
-
Page 2: Table Of Contents
Accessories ..........................18 Quick Start Guide ......................... 20 General Setup ........................... 20 IDE Configuration........................20 Booting into MS-DOS, FreeDOS or ROM-DOS................ 20 Booting into Linux or Microsoft Windows .................. 21 Technical Support......................... 21 Morpheus CPU User Manual V1.01 Page 2... -
Page 3: Description
1. DESCRIPTION Morpheus is a Single Board Computer based on the Intel Celeron processor. It conforms to the PC/104 standard, an embedded standard that is based on the ISA and PCI buses and provides a compact, rugged mechanical design for embedded systems. PC/104 modules feature a pin and socket connection system in place of card edge connectors, as well as mounting holes in each corner. -
Page 4: Board Layout And Drawings
13. Serial Port 2 5. Utilities 14. Serial Port 1 6. IrDA 15. Keyboard and Mouse 7. VGA 16. Ethernet 8. PC 104 Expansion Bus 17. J1 Clear CMOS Jumper 9. USB 0-1 18. IDE Morpheus CPU User Manual V1.01 Page 4... -
Page 5: Board Layout Bottom View
Board Layout Bottom View CompactFlash Socket DIMM Memory Socket Morpheus CPU User Manual V1.01 Page 5... -
Page 6: Jumper And I/O Headers
This is a 4-pin power connector. It is the external input power connector for powering up the board. Power may be supplied through the PC104 bus or through this connector. Morpheus only requires power to be supplied to the 5V and ground pins to power up. -
Page 7: Jumper Settings
1 is fixed RS-232. Jumper J5 determines the serial protocol for port 2. To configure the protocol, power down the CPU, install the jumper in the desired location, then power up the Morpheus again. For serial port pinouts, please refer to section 6.1, page 8. -
Page 8: System I/O
J5 can be found on page 7. When connecting cables, connect the side with the red stripe to pin 1 on the Morpheus. Using the cable supplied in the cable kit C-MOR-KIT, the DB-9 connector will provide the standard DTE pinout for a PC serial port. The pinouts shown below are for the pin headers on Morpheus, NOT the DB-9 connector. -
Page 9: Cpu Fan
North Bridge chip on the 650MHz model. In most cases just a heat sink is sufficient for the North Bridge chip on the 400MHz model. Fan control Ethernet LED This connector can be used to indicate whether the Ethernet is working/active or not. Diamond Systems does not provide any cables or LEDs for this connector. Activity LED +3.3V Link LED +3.3V... -
Page 10: Vga
Pin 11 is keyed for easy, error-free connection. When connecting the VGA cable, align the side with the red stripe to pin 1 and attach the .2mm header to the Morpheus. Connect the cable’s DB15 female connector to the monitor’s DB15 male connector for video output to monitor. Diamond Systems’ cable kit C-MOR-KIT includes a cable for this connector. -
Page 11: Ide
2mm 44-pin header on the cable. To connect the cable to the header, connect the side with the red stripe to pin 1. Diamond Systems’ cable kit C-MOR-KIT includes a cable for this connector. -
Page 12: Floppy Disk Drive
Floppy Disk Drive This header is keyed to provide error-free connection. Morpheus supports up to two floppy drive connections simultaneously. To connect the provided cable to the header, attach the side with the red stripe to pin 1. Diamond Systems provides a floppy drive ribbon cable. -
Page 13: Ps/2 Keyboard And Mouse
Morpheus board. Diamond Systems does not provide a cable for this connector. Morpheus requires about 2 – 2.5A on the +5V line for proper operation. Be sure to use proper gauge wire to handle this current. Power conductors should be kept as short as possible to reduce the voltage drop on the conductors. -
Page 14: Ethernet (100 Base-Tx)
6.13 Ethernet (100 Base-Tx) This connector is keyed for error-free connection. When connecting the cable to the header, align the side with the red stripe to pin 1. Diamond Systems’ cable kit C-MOR-KIT includes a cable for this connector. 6.14 Utilities This utility connector provides multiple functions for users. -
Page 15: System Resources
Primary IDE Controller VIA Bus Master PCI IDE Controller Secondary IDE Controller VIA Bus Master PCI IDE Controller Direct Memory Access Description Standard Floppy Disk Controller ECP Printer Port (LPT1) Direct memory access controller Morpheus CPU User Manual V1.01 Page 15... -
Page 16: I/O Address Description
Standard Floppy Disk Controller 03F6 – 03F6 VIA Bus Master PCI IDE Controller 03F6 – 03F6 Primary IDE controller (dual FIFO) 03F7 – 03F7 Standard Floppy Disk Controller 03F8 – 03FF Communications Port (COM1) Morpheus CPU User Manual V1.01 Page 16... - Page 17 E400 – E41F VIA Tech 3038 PCI to USB Universal Host Controller E800 – E81F VIA Tech 3038 PCI to USB Universal Host Controller EC00 – ECFF Realtek RTL8139/810x Family Fast Ethernet NIC Morpheus CPU User Manual V1.01 Page 17...
-
Page 18: Accessories
128MB RAM SODIMM for Morpheus MEM-256-01 256MB RAM SODIMM for Morpheus MEM-512-01 512MB RAM SODIMM for Morpheus PS-5V-MOR AC Adapter, Universal in, 5VDC / 6A out, for Morpheus ACC-IDEEXT IDE Extender Board + 2 IDE cables (see below) FD-32-XT 32MB Flashdisk, Extended Temp. FD-64-XT 64MB Flashdisk, Extended Temp. - Page 19 Figure 2. Morpheus Cable Kit Item Description Keyboard and mouse cable USB cable VGA cable IDE cable Parallel port cable 6, 7 Serial port cables (2 included in kit) Floppy drive cable Ethernet cable Morpheus CPU User Manual V1.01 Page 19...
-
Page 20: Quick Start Guide
Booting into MS-DOS, FreeDOS or ROM-DOS This section describes how to boot into a DOS-based operating system via a bootable floppy disk. 1) Connect a floppy drive to Morpheus or connect a USB floppy drive to a USB socket connected to the Morpheus. -
Page 21: Booting Into Linux Or Microsoft Windows
Booting into Linux or Microsoft Windows This section describes how to setup Morpheus in preparation for a Linux or Windows install from an installation CD-ROM onto a laptop IDE hard drive. 1) Connect the IDE extender board to IDE channel.
