HERITAGE SERIES
SPREAD LAVATORY
FAUCETS
Thank you for selecting American-Standard...the benchmark
of fine quality for over 100 years.
To ensure that your installation proceeds smoothly--please
read these instructions carefully before you begin.
6802 SERIES
CONVENTIONAL
SPOUT LESS POP-UP
6831 SERIES
GOOSENECK SPOUT
WITH POP-UP
P r i n t e d i n M e x i c o
Installation
Instructions
6801 SERIES
6802 SERIES
6830 SERIES
6831 SERIES
6832 SERIES
6801
SERIES
HERITAGE
SPOUT
W/POP-UP
HANDLE
SCREW
RUBBER
CARTRIDGE
GASKET
ESCUTCHEON
RUBBER
RING
RUBBER
WASHER
BRASS
WASHER
SEAL
LOCKNUT
FRICTION
RING
COUPLING
NUT
LIFT
ROD
O-RING
RUBBER
WASHER
RETAINER
LOCKNUT
TUBE & TEE
O-RING
THUMBSCREW
SCREW
COMPRESSION
NUT
EXTENSION
Certified to comply with ANSI A112.18.1M
U.S. Patent No. 5,819,789
WRENCH
AERATOR
VALVE
ASSEMBLY
ASSEMBLY
WASHER
CLIP
ACTUATOR
ROD
M 3 4 3 7 5 C
DRAIN
STOPPER
DRAIN
PLUG
GASKET
LOCKNUT
GASKET
COUPLING
TAILPIECE
Advertisement
Table of Contents
Related Manuals for American Standard 6801 Series
Summary of Contents for American Standard 6801 Series
-
Page 1: Installation Instructions
GOOSENECK SPOUT CARTRIDGE WITH POP-UP ESCUTCHEON WASHER WASHER LOCKNUT P r i n t e d i n M e x i c o Installation Instructions 6801 SERIES 6802 SERIES 6830 SERIES 6831 SERIES 6832 SERIES 6801 SERIES HERITAGE SPOUT W/POP-UP... - Page 2 CAUTION Turn off hot and cold water supplies before beginning. SPOUT OR BASE ASSEMBLY Insert BASE or SPOUT shank through center hole of SINK, making sure RUBBER GASKET is properly positioned. Assemble RUBBER WASHER, RETAINER, and LOCKNUT onto threads of SPOUT from underside of SINK.
Need help?
Do you have a question about the 6801 Series and is the answer not in the manual?
Questions and answers

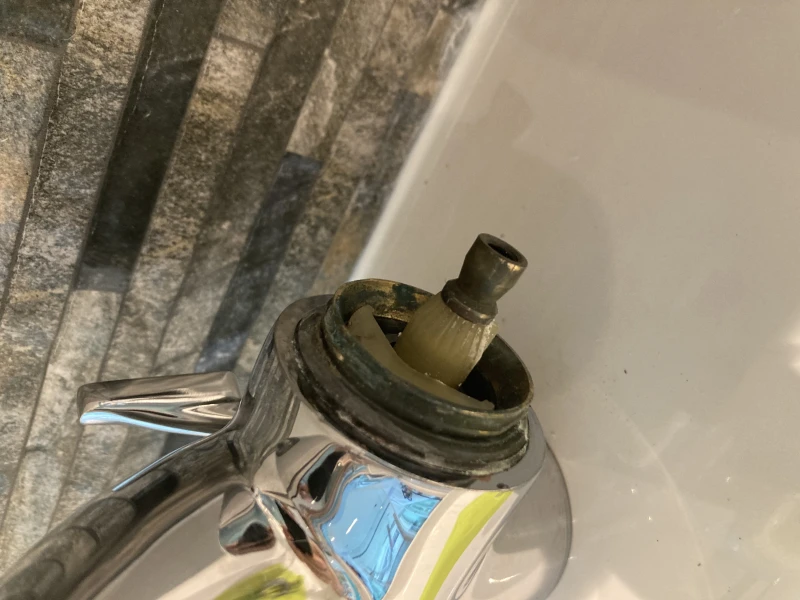

Hi, I have an American standard bathroom faucet A-6801-100. How to remove the last part before getting access to the cartridge? See picture and thank in advance for your precious support. Pierre
To access the cartridge on an American Standard A-6801-100 bathroom faucet, follow these steps:
1. Turn the valve to the OFF position.
2. Remove the INSERT and HANDLE SCREW.
3. Slip the HANDLE with ADAPTER off.
4. Remove the SPRING CLIP.
5. Unscrew the CARTRIDGE with a wrench.
This will expose the cartridge for maintenance or replacement.
