Owner's Manual

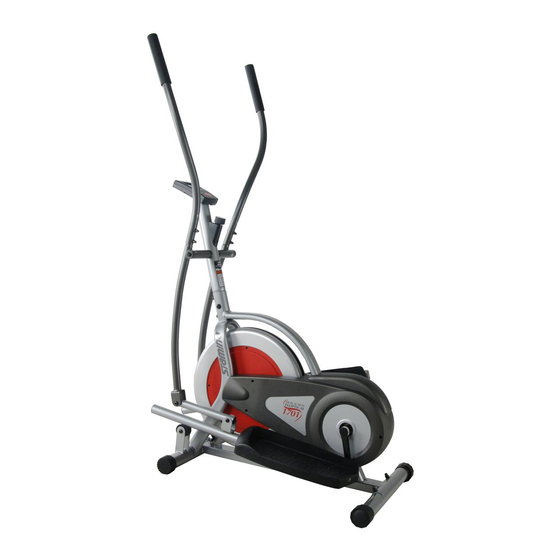

Product May Vary Slightly From Pictured.
CAUTION:
Weight on this product should not exceed 250 lbs.
This Product is Produced Exclusively by
2040 N. Alliance, Springfield, MO 65803
Customer Service
1 (800) 375-7520
www.staminaproducts.com
WARNING
!
Exercise can present a
h e a l t h r i s k . C o n s u l t a
physician before beginning
any exercise program with
this equipment. If you feel
faint or dizzy, immediately
d i s c o n t i n u e u s e o f t h i s
equipment. Serious bodily
i n j u r y c a n o c c u r i f t h i s
equipment is not assembled
and used correctly. Serious
bodily injury can also occur
if all instructions are not
followed. Keep others and
pets away from equipment
when in use. Always make
sure all bolts and nuts are
securely tightened prior to
each use. Follow all safety
instructions in this manual.
When calling for parts or
service, please specify
the following number :
Model#: 55-1701
STAMINA PRODUCTS
MADE IN CHINA
©
2010 Stamina Products, Inc.
2010, 05
!
Advertisement
Table of Contents
Related Manuals for Stamina 1701
Summary of Contents for Stamina 1701
- Page 1 CAUTION: Weight on this product should not exceed 250 lbs. This Product is Produced Exclusively by STAMINA PRODUCTS MADE IN CHINA 2040 N. Alliance, Springfield, MO 65803 Customer Service © 2010 Stamina Products, Inc. 1 (800) 375-7520 2010, 05 www.staminaproducts.com...
-
Page 2: Table Of Contents
17. The 1701 Dual Action Elliptical should not be used by persons weighing over 250 pounds. 18. The 1701 Dual Action Elliptical should be used by only one person at a time. 19. The 1701 Dual Action Elliptical is for consumer use only. It is not for use in public or semipublic facilities. - Page 3 1701 Dual Action Elliptical To help you get started, we have pre-assembled most of your 1701 Dual Action Elliptical at the factory with the exception of those few parts left unassembled for shipping purposes. Simply follow the few assembly instructions set forth in this manual.
-
Page 4: Before You Begin
BEFORE YOU BEGIN Thank you for choosing the 1701 Dual Action Although Stamina constructs its products with Elliptical. We take great pride in producing this the finest materials and uses the highest standards quality product and hope it will provide many hours... -
Page 5: Equipment Warning & Notice Labels
EQUIPMENT WARNING & NOTICE LABELS This chart is provided to help identify the warning and notice labels on the 1701 Dual Action Elliptical. Please take a moment to familiarize yourself with all of the warning and notice labels. Label is larger than actual size... -
Page 6: Hardware Identification Chart
HARDWARE IDENTIFICATION CHART This chart is provided to help identify the hardware used in the assembly process. Place the washers or the ends of the bolts or screws on the circles to check for the correct diameter. Use the small scale to check the length of the bolts and screws. -
Page 7: Assembly Instructions
Attach the FRONT STABILIZER(2) to the MAIN FRAME(1) with FLAT HEAD BOLTS(M8x1.25x65mm)(62). STEP 2 Attach the REAR STABILIZER(3) to the MAIN FRAME(1) with CARRIAGE BOLTS(M8x1.25x65mm)(58), ARC WASHERS(M8)(73), LOCK WASHERS(M8)(75), and ACORN NUTS(M8x1.25)(71). NOTE: You can adjust the LEVELING CAPS(57) on the REAR STABILIZER(3) to keep the 1701 Dual Action Elliptical stable. - Page 8 ASSEMBLY INSTRUCTIONS STEP 3 NOTE: There is a red strap and a black strap attached inside of the UPRIGHT(6). These straps are to assist in pulling the SENSOR WIRE(33) and TENSION CABLE(30) through the UPRIGHT(6). Tie the red strap to the plug end of the SENSOR WIRE(33). And tie the black strap to the cable end of the TENSION CABLE(30).
- Page 9 ASSEMBLY INSTRUCTIONS STEP 4 Refer to illustration 1 below. Turn the TENSION KNOB(31) counterclockwise as far as it can go, so the HOOK moves down to the lowest position. Remove the black strap from the TENSION CABLE(30). Connect the CABLE END of the TENSION CABLE(30) into the HOOK on the TENSION KNOB(31) as shown in illustration 2.
- Page 10 ASSEMBLY INSTRUCTIONS STEP 6 There is an “L” decal on the LEFT PEDAL ARM(4) and LEFT PEDAL CAP(45), and an “R” decal on the RIGHT PEDAL ARM(5) and RIGHT PEDAL CAP(46). Attach the RIGHT PEDAL CAP(46) to the RIGHT PEDAL ARM(5) with ROUND HEAD SCREWS(M5x15mm)(66). Repeat on the left side. NOTE: The LEFT and RIGHT PEDAL CAPS(45, 46) have a raised lip on two sides.
- Page 11 ASSEMBLY INSTRUCTIONS WARNING: The CRANKS(37) require a special tool to remove once assembled. Read all of the following ASSEMBLY INSTRUCTIONS before attaching the CRANKS(37). NOTE: Align the ARROW MARK on the CRANK(37) to the WHITE MARK on the SHAFT(12) when installing the two CRANKS(37) onto the SHAFT(12).
- Page 12 ASSEMBLY INSTRUCTIONS STEP 9: There is an “L” decal on the LEFT PIVOTING ARM(9), and an “R” decal on the RIGHT PIVOTING ARM(10). To assemble the RIGHT PIVOTING ARM(10), place a SPACER(50) and a LARGE WASHER (M16)(51) onto the right side of the SHAFT on the UPRIGHT(6). Slide the RIGHT PIVOTING ARMS(10) onto the SHAFT and secure with a LARGE WASHER(M8)(44), LOCK WASHER(M8)(75), and BUTTON HEAD BOLT(M8x1.25x20mm)(59).
-
Page 13: Set Up Instructions
SET UP INSTRUCTIONS Place the 1701 Dual Action Elliptical in the area where it will be used. It is recommended that the 1701 Dual Action Elliptical be placed on an equipment mat. The maximum operation dimensions of the 1701 Dual Action Elliptical are approximately 40.8 inches long x 24.8 inches wide x 60.4 inches tall. (These dimensions may vary up to one inch.) An area 4 feet wide x 6 feet long is required for safe operation of... -
Page 14: Operational Instructions
EXERCISE WORKOUT To start using the 1701 Dual Action Elliptical simply stand on the foot pedals with the front of your shoes close to the front edge of the pedal cap. Place your hands at a comfortable position on the handlebars. - Page 15 OPERATIONAL INSTRUCTIONS USING THE FITNESS METER POWER ON : Pedal movement or press the MODE button. POWER OFF : Automatic shut off after four minutes of inactivity. MODE BUTTON: Press to select display functions, include SCAN, TIME, SPEED, DISTANCE, and CALORIES. Press and hold for three seconds to reset all functions to zero.
-
Page 16: Storage
5. Only Stamina Products supplied components shall be used to maintain/repair the 1701 Dual Action Elliptical. 6. Keep your 1701 Dual Action Elliptical clean by wiping it off with an absorbent cloth after use. -
Page 17: Conditioning Guidelines
CONDITIONING GUIDELINES How you begin your exercise program depends on your physical condition. If you have been inactive for several years or are severely overweight, start slowly and increase your workout time gradually. Increase your workout intensity gradually by monitoring your heart rate while you exercise. Remember to follow these essentials: Have your doctor review your training and diet programs. -
Page 18: Warm-Up And Cool-Down
WARM-UP and COOL-DOWN Warm-Up The purpose of warming up is to prepare your body for exercise and to minimize injuries. Warm up for two to five minutes before strength training or aerobic exercising. Perform activities that raise your heart rate and warm the working muscles. Activities may include brisk walking, jogging, jumping jacks, jump rope, and running in place Stretching Stretching while your muscles are warm after a proper warm-up and again after your... -
Page 19: Warranty
To implement this limited warranty, send a written notice stating your name, date, and place of purchase and a brief description of the defect along with your receipt to Stamina Products, Inc. P.O. Box 1071, Springfield Missouri, USA, 65801-1071, or email us at customerservice@staminaproducts.com, or call us at 1-800-375-7520. -
Page 20: Product Parts Drawing
PRODUCT PARTS DRAWING FRONT Red Strap Black Strap BACK... -
Page 21: Parts List
PARTS LIST PART# PART NAME Main Frame Front Stabilizer Rear Stabilizer Left Pedal Arm Right Pedal Arm Upright Left Handlebar Right Handlebar Left Pivoting Arm Right Pivoting Arm Linkage Pulley and Axle Bearing (R12z) Inner C Ring (42mm) Spacer Washer (M19) C Ring (19mm) Chain (1/4"... - Page 22 PARTS LIST PART# PART NAME Plastic Washer (M8 x ø18 x 2mm thick) Round Plug (28.6mm) Spacer Large Washer (M16 x 0.5mm thick) Dome Plug (38mm) Foam Grip Roller Roller Spacer Endcap (50.8mm) Leveling Cap (50.8mm) Carriage Bolt (M8 x 1.25 x 65mm) Bolt, Button Head (M8 x 1.25 x 20mm) Bolt, Button Head (M8 x 1.25 x 48mm) Bolt, Button Head (M10 x 1.5 x 50mm)
-
Page 23: Fax/Mail Ordering Form
FAX/MAIL ORDERING FORM Please do not return the product. For your convenience, Stamina's Customer Service Department can be reached by email at customerservice@staminaproducts.com or toll free at 1-800-375-7520 (in the U.S.). Should a part be missing or a defective part found, please call us from 7:30 A.M. to 5:00 P.M. Central Time, Monday through Thursday and 8:00 A.M.
